HEADLAMP

CHASSIS ELECTRICAL

54A-113

Horizontal direction;

± 26 mm (± 0.5°) from

the vertical line (V)

LUMINOUS INTENSITY MEASUREMENT

M1540100600334

Using a photometer, and following its manufacture’s
instruction manual, measure the headlamp intensity
and check to be sure that the limit value is satisfied.

Limit: 30,000 cd or more (When a screen is
set 25 m ahead of the vehicle)

NOTE:

1. When measuring the intensity, maintain an

engine speed of 2,000 r/min, with the battery in
the charging condition.

2. There may be special local regulations pertaining

to headlamp intensity, be sure to make any
adjustments necessary to satisfy such regula-
tions.

3. Check that the headlamp intensity of the

high-beam satisfies the limit value.

4. If an illuminometer is used to make the measure-

ments, convert its values to photometer values by
using the following formula.

I = Er

I=intensity (cd)
E=illumination (lux)
r=distance (m) from headlamps to illuminome-

ter

REPLACE THE BULB

M1540100700557

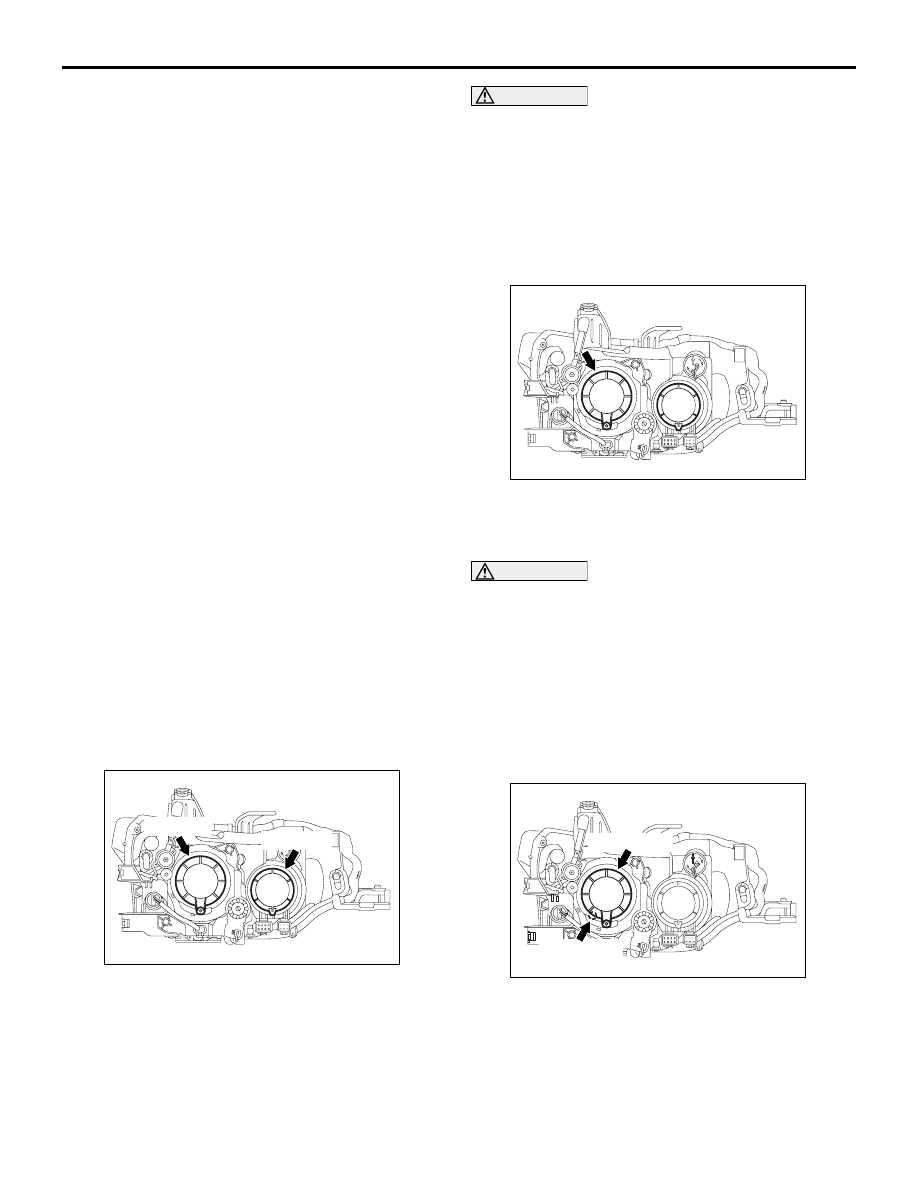

HALOGEN HEADLAMP BULB
(LOW-BEAM / HIGH-BEAM) REPLACE-
MENT

ACB05757AB

Low-beam

High-beam

1. Twist the socket cover anticlockwise to remove.

CAUTION

Do not touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, immediately clean it with alcohol or thinner.
After drying completely, install the bulb.

2. Twist the bulb anticlockwise to remove.

DISCHARGE HEADLAMP BULB
(LOW-BEAM) REPLACEMENT

ACB05757AC

1. Twist the socket cover anticlockwise to remove.

2. Twist the socket anticlockwise to disconnect it

from the bulb.

CAUTION

Do not touch the bulb surface with bare hands or
dirty gloves. If the bulb surface (glass part) gets
dirty, immediately clean it with alcohol or thinner.
After drying completely, install the bulb.

3. Raise the fastener securing the bulb, and then

remove the bulb.

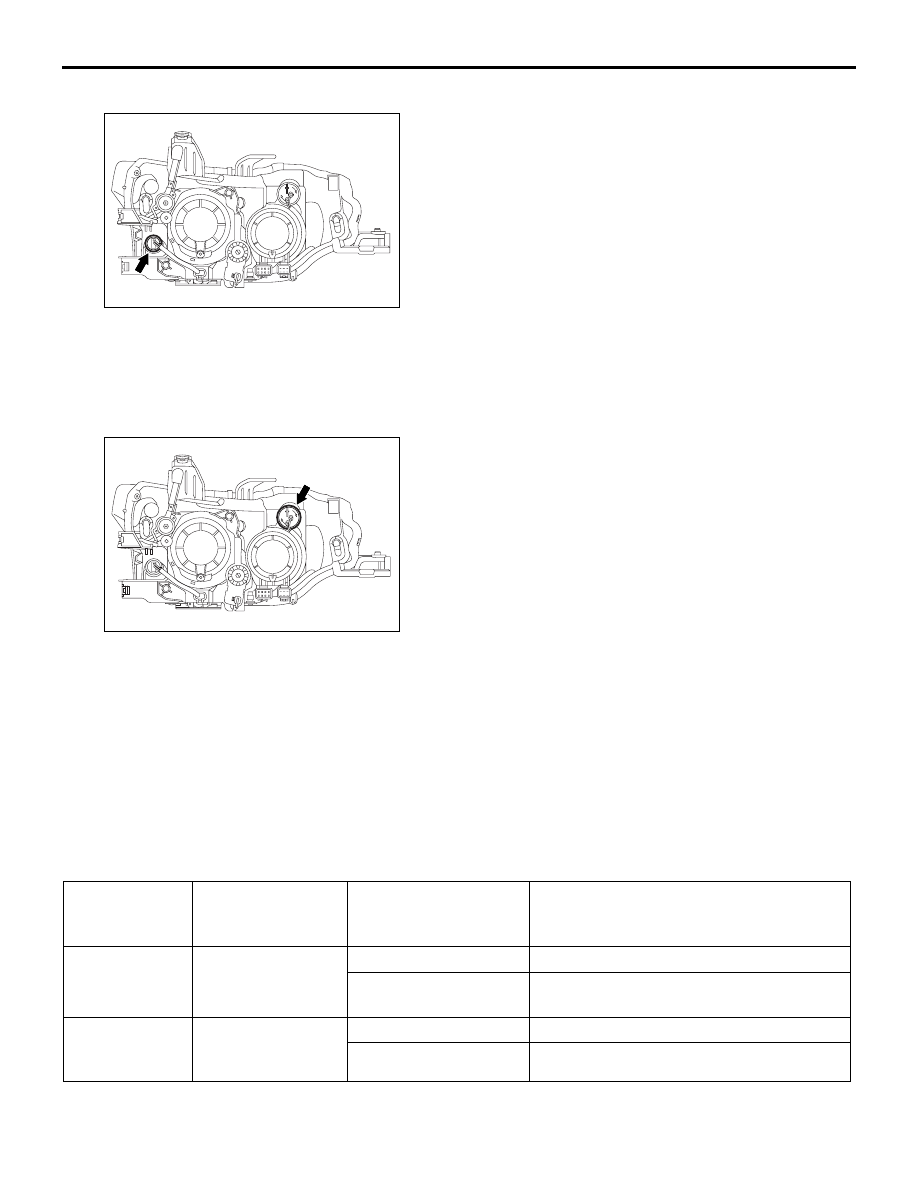

POSITION LAMP BULB REPLACEMENT

<Vehicles without discharge headlamp>

ACC00447

Position lamp

Socket cover

1. Twist the socket cover anticlockwise to remove.

2. Pull out the socket.

3. Disconnect the bulb from the socket.

HEADLAMP

CHASSIS ELECTRICAL

54A-114

<Vehicles with discharge headlamp>

ACC00448AB

1. Twist the socket anticlockwise to remove.

2. Disconnect the bulb from the socket.

FRONT TURN-SIGNAL LAMP BULB
REPLACEMENT

ACC00449AB

1. Twist the socket anticlockwise to remove.

2. Disconnect the bulb from the socket.

HEADLAMP AUTOMATIC SHUTDOWN
FUNCTION CHECK

M1540100800071

Confirm that the headlamps turn OFF in one second
if the ignition key is pulled out and the driver's door is
opened when the ignition switch is ON and the light-
ing switch is ON (HEAD position). If there is a mal-
function, perform the troubleshooting (Refer to

P.54A-96

HEADLAMP AUTO LAMP FUNCTION
CHECK

M1540100900283

Verify that the headlamps will illuminate when plac-
ing a hand over the receiver of the lighting control
sensor under direct sunlight with the ignition switch in
the "ON" position and the lighting switch in the
"AUTO" position. If there is a malfunction, perform
the troubleshooting (Refer to

P.54A-96

NOTE: When covering the lighting control sensor
receiver, be careful not to touch the windshield sur-
face (where the lighting control sensor receiver is
mounted). (The lighting control sensor receiver has
limited resistance to oil.)

WELCOME LIGHT FUNCTION CHECK

M1540112700015

When the lighting switch is in the OFF or AUTO posi-
tion, unlock the door by the keyless entry system and
check that the tail lamps or headlamps turn on. If
there is a malfunction, perform the troubleshooting
(Refer to

P.54A-96

NOTE: As for the vehicles with lighting control sen-
sor, carry out the inspection in the dark place.

COMING HOME LIGHT FUNCTION
CHECK

M1540112800012

After turning the ignition switch to the LOCK (OFF)
position, check that passing operation lights up the
headlamps. If there is a malfunction, perform the
troubleshooting (Refer to

P.54A-96

CUSTOMISATION FUNCTION

M1540103701258

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Turn power
source

Adjustment of
turn-signal lamp
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (initial
condition)

Comfort flasher

With/without
comfort flasher
function

Disable

No function

Enable

With function (initial condition)

HEADLAMP

CHASSIS ELECTRICAL

54A-115

LIGHTING CONTROL SENSOR (LIGHT
SENSOR) CHECK

M1540109000050

Using the M.U.T.-III, check the data list of LIN. It is
judged normal if the display turns ON from OFF
when the light receiver of lighting control sensor is
covered by hand, with item No.7009: RLS Low beam
"ON" request, 7011: RLS Tail light "ON" request, and
7012: RLS Tunnel detect output.

NOTE:

•

When covering the lighting control sensor
receiver, be careful not to touch the windshield
surface (where the lighting control sensor
receiver is mounted). (The lighting control sensor
receiver has limited resistance to oil.)

•

Before checking the data list by using M.U.T.-III,
wipe the windshield thoroughly and visually
check if there are foreign materials on the wind-
shield to which the lighting control sensor is
installed.

HEADLAMP RELAY CHECK

M1540104000378

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 second (initial condition)

Long

0.8 second

Hazard answer
back

Adjustment of the
number of keyless
hazard warning
lamp answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Sensitivity for
auto lamp

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with lighting control
sensor>

Level 1 bright

High ambient brightness

Level 2 bright

Standard ambient brightness (initial
condition)

Level 3

Low ambient brightness

Level 4 dark

Low-low ambient brightness

Head lamp auto
cut customise

Adjustment of
headlamp
automatic shutdown
function

Disable

No function

Enable (B-spec.)

With function (initial condition)

Coming home
light

Disabling or
enabling coming
home light function

Disabled

No function

15 sec

The headlamps illuminate for 15 seconds.

30sec

The headlamps illuminate for 30 seconds.
(initial condition)

60 sec

The headlamps illuminate for 60 seconds.

180 sec

The headlamps illuminate for 180 seconds.

Welcome light

Disabling or
enabling welcome
light function

Disabled

No function

Small lamp

The tail lamps illuminate. <initial condition>

Head lamp

The headlamps illuminate.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

ACB05793

ACB04408

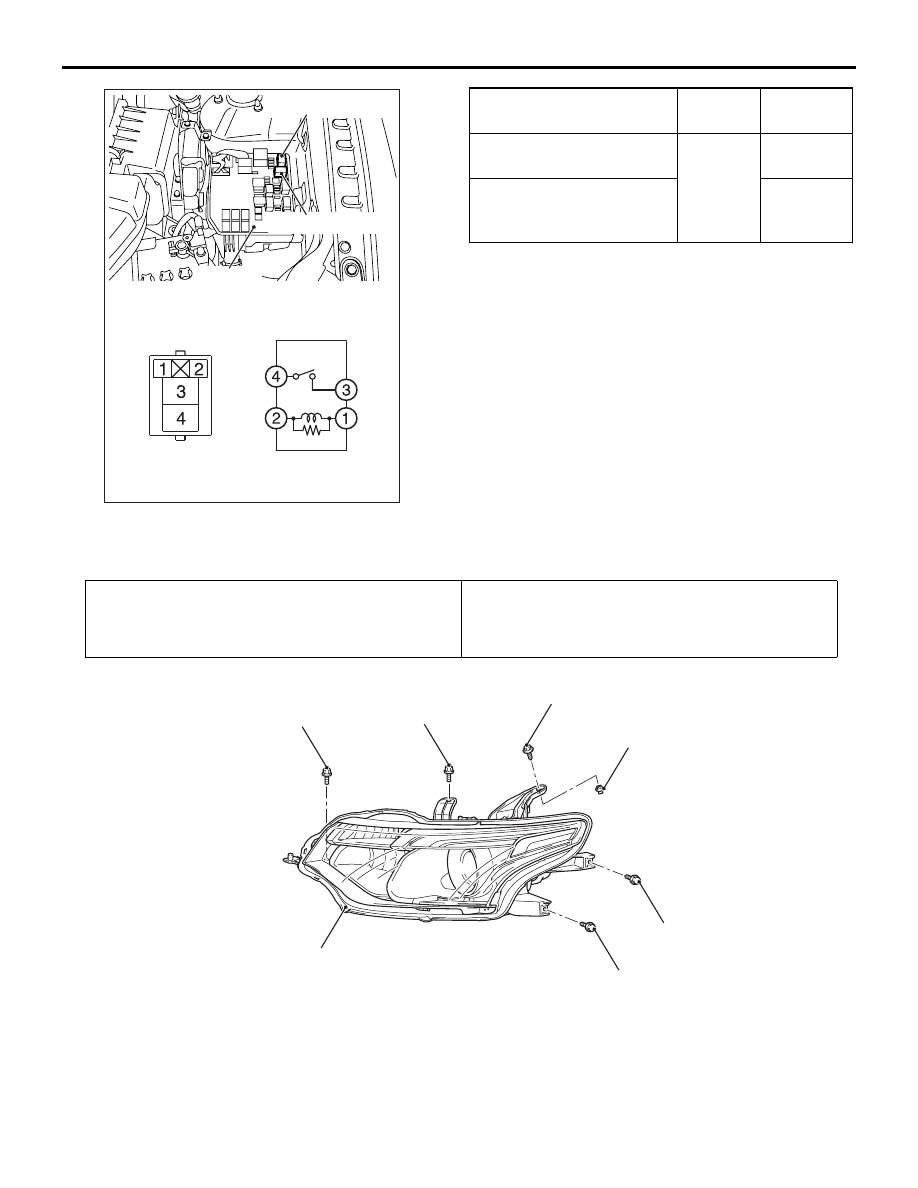

Headlamp relay (LO)

Headlamp relay (HI)

Relay box

Battery voltage

Terminal
number

Normal
condition

At no energisation

− 4

No
continuity

With current supply
[terminal 2 (+), terminal 1
(

−)]

Continuity
exists (2

Ω

or less)

HEADLAMP

CHASSIS ELECTRICAL

54A-116

HEADLAMP

REMOVAL AND INSTALLATION

M1540101000896

Pre-removal Operation
• Front Bumper Assembly Removal (Refer to GROUP 51 -

Front Bumper Assembly ).

Post-installation Operation
• Front Bumper Assembly Installation (Refer to GROUP 51

- Front Bumper Assembly ).

• Headlamp Aiming Adjustment (Refer to

P.54A-111

ACB05557AB

1.5 ± 0.3 N·m

4.5 ± 1.5 N·m

Removal Steps

Headlamp assembly

Grommet
