Mitsubishi Outlander (2013+). Manual - part 626





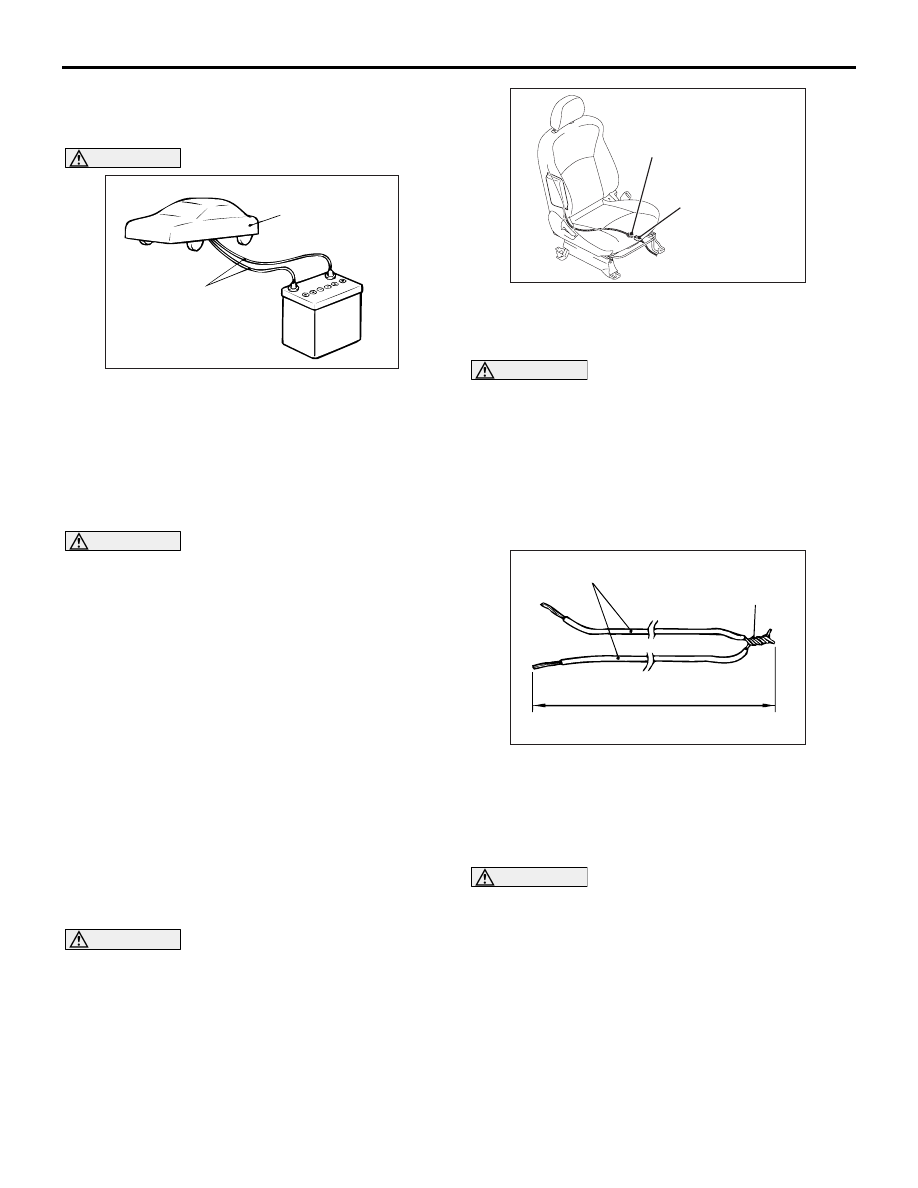

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-155

7. Connect the adapter harness to the passenger's

(front) air bag module, and then pull out the
deployment wire to outside the vehicle.

ACX01308AE

Cover

Deployment wire
6 m or longer

WARNING

If the glass is scratched, the glass may be
shattered at deployment. Therefore, cover
with a vehicle cover to avoid danger.

8. In order to suppress the operation sound as much

as possible, fully close all the door windows, close
the doors, and then cover the vehicle with a
vehicle cover.

CAUTION

• Make sure that no one is present inside or

near the vehicle before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

9. Disconnect the deployment wire connection at a

place as far as possible from the vehicle. Then,
connect the wires to the removed vehicle battery
to deploy the air bag module.

10.Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

      ).

SIDE-AIRBAG MODULE DEPLOYMENT
INSIDE THE VEHICLE

1. Move the vehicle to flat and isolated spot.

CAUTION

Disconnect the battery cable connection, and
wait for 60 seconds or more before starting the
work.
2. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

AC507006 AC

Side-airbag module
connector
(2-pin, yellow)

Floor wiring
harness side
connector
(2-pin, yellow)

3. Disconnect the connections of the side-airbag

module connector (2-pin: yellow) and the floor
harness connector (2-pin: yellow).

CAUTION

Make sure to deploy both driver's and front pas-
senger's side-airbags.

NOTE: When the side-airbag module connector is
disconnected from the floor harness, the two pins
of side-airbag module connector are automatically
shorted. This prevents the unintentional deploy-
ment of side-airbags caused by the static or oth-
ers.

AC100450 AC

Connection

Deployment wires

6 m or longer

4. Prepare two deployment wires of 6 m or more,

and keep the terminal at one end connected to
that of the other wire (shorted).

NOTE: This prevents the air bags from uninten-
tional deployment caused by static.

CAUTION

The following procedures are intended to prevent
the unintentional deployment caused by the
static. Therefore, make sure to perform the pro-
cedures.

5. Touch the vehicle body with bare hands to release

the charged static.

AC506241

AC506974 AC

Connection

Deployment
wires

Insulator tape

Side-airbag module connector
(2-pin, yellow)

Harness side connector
(2-pin, yellow)

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-156

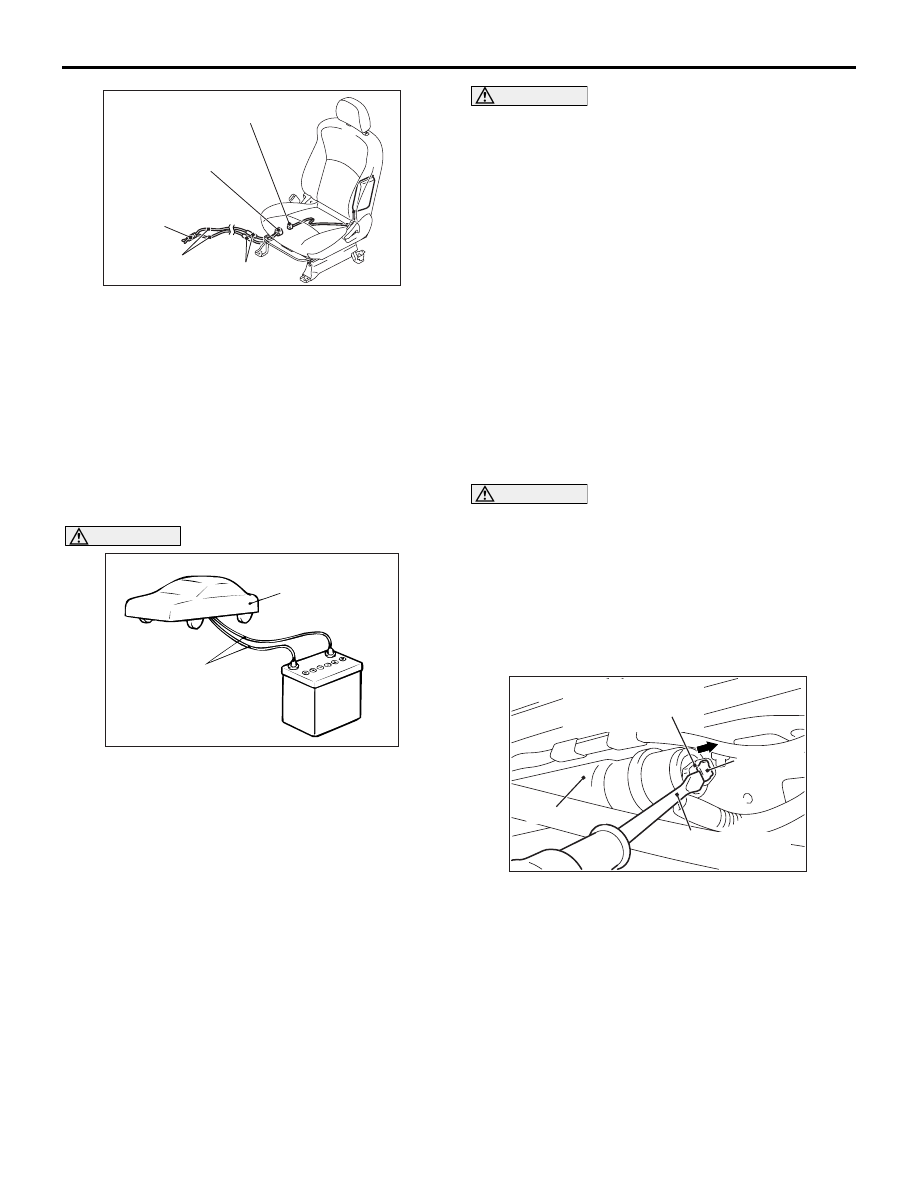

6. With the side-airbag module connector

disconnected, cut the floor harness using a nipper
or similar tools.

7. Connect the deployment wire to each of two cut

wiring harnesses. After covering the connection
areas with insulation tape, pull out the deployment
wire to outside the vehicle.

8. Connect the floor harness, to which the

deployment wire is connected, to the side-airbag
module connector.

ACX01308AE

Cover

Deployment wire
6 m or longer

WARNING

If the glass is scratched, the glass may be
shattered at deployment. Therefore, cover
with a vehicle cover to avoid danger.

9. In order to suppress the operation sound as much

as possible, fully close all the door windows, close
the doors, and then cover the vehicle with a
vehicle cover.

CAUTION

• Make sure that no one is present inside or

near the vehicle before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

10.Disconnect the deployment wire connection at a

place as far as possible from the vehicle. Then,
connect the wires to the removed vehicle battery
to deploy the side-airbag module.

11.Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

    ).

CURTAIN AIR BAG MODULE
DEPLOYMENT INSIDE THE VEHICLE

1. Move the vehicle to flat and isolated spot.

CAUTION

Disconnect the battery cable connection, and
wait for 60 seconds or more before starting the
work.
2. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

3. Remove the headlining (Refer to GROUP 52A -

Headlining ).

AC506711AC

Curtain air bag wiring
harness connector
 (2-pin, black)

Locking
button

Flat-tipped screwdriver

Inflator

4. Use the flat-tipped screwdriver to pull out the

locking button of curtain air bag harness
connector. After releasing the lock, disconnect the
connector.

NOTE: When the curtain air bag module connec-
tor is disconnected from the inflator, the two pins
of inflator connector are automatically shorted.
This prevents the unintentional deployment of cur-
tain air bags caused by the static or others.

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m or longer

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-157

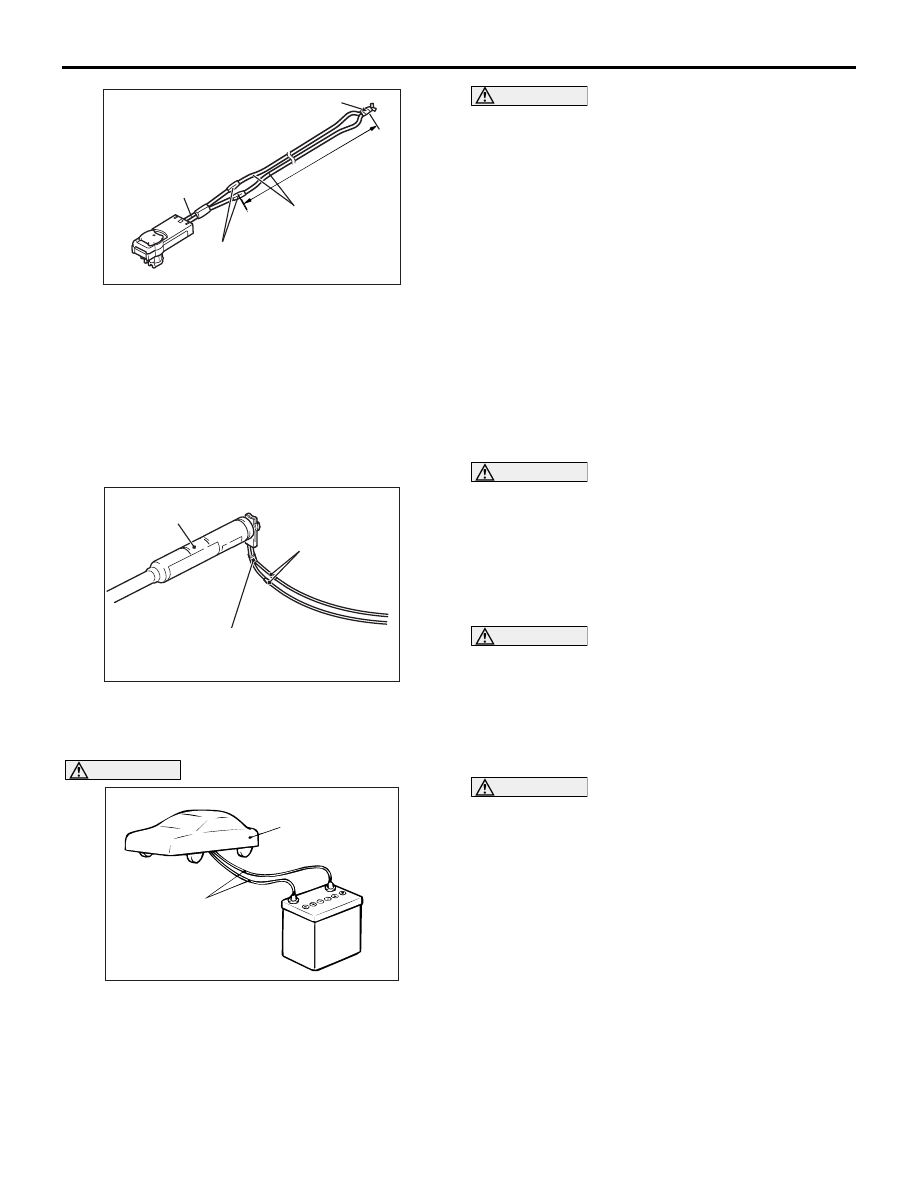

5. Connect the deployment wires of 6 m or more to

each of the two wiring harnesses of special tool
adapter harness (MB661885), and cover the
connection areas with insulation tape. Keep the
other ends of deployment wires connected to
each other (shorted).

NOTE: This prevents the unintentional deploy-
ment of curtain air bags caused by the static or
others.

AC301520

MB991885

AH

Inflator

Deployment wires

6. Connect the adapter harness to the inflator, and

then pull out the deployment wire to outside the
vehicle.

ACX01308AE

Cover

Deployment wire
6 m or longer

WARNING

If the glass is scratched, the glass may be
shattered at deployment. Therefore, cover
with a vehicle cover to avoid danger.

7. In order to suppress the operation sound as much

as possible, fully close all the door windows, close
the doors, and then cover the vehicle with a
vehicle cover.

CAUTION

• Make sure that no one is present inside or

near the vehicle before deploying the air bag.

• Immediately after the air bag deployment, the

inflator is extremely hot. Thus, before han-
dling, leave the inflator for 30 minutes or more
to cool.

• If the air bag module does not deploy, consult

with your distributor.

8. Disconnect the deployment wire connection at a

place as far as possible from the vehicle. Then,
connect the wires to the removed vehicle battery
to deploy the air bag module.

9. Discard the deployed air bag module according to

the disposal procedures (Refer to

P.52B-163

    ).

DRIVER'S AIR BAG MODULE
DEPLOYMENT OUTSIDE THE VEHICLE

CAUTION

• Deploy the air bag in the wide open, flat place

with a distance of 6 m or more from obstacles
and people.

• When deploying the air bag in the open

space, do not deploy when the strong wind is
blowing. Even with a slight breeze, ignite at
the windward of the air bag module.

CAUTION

Disconnect the battery cable connection, and
wait for 60 seconds or more before starting the
work.

1. Disconnect the (

−) and (+) terminals of battery

cable, and then remove the battery from the
vehicle.

CAUTION

When the connector is disconnected, the two
pins of air bag module are automatically shorted
to prevent the unintentional deployment caused
by the static or others. However, in preparation
for the accidental deployment, store the air bag
module on a flat place with the deployment sur-
face facing upward. Also, do not put anything on
it.

2. Remove the driver’s air bag module from the

vehicle (Refer to

P.52B-131

).

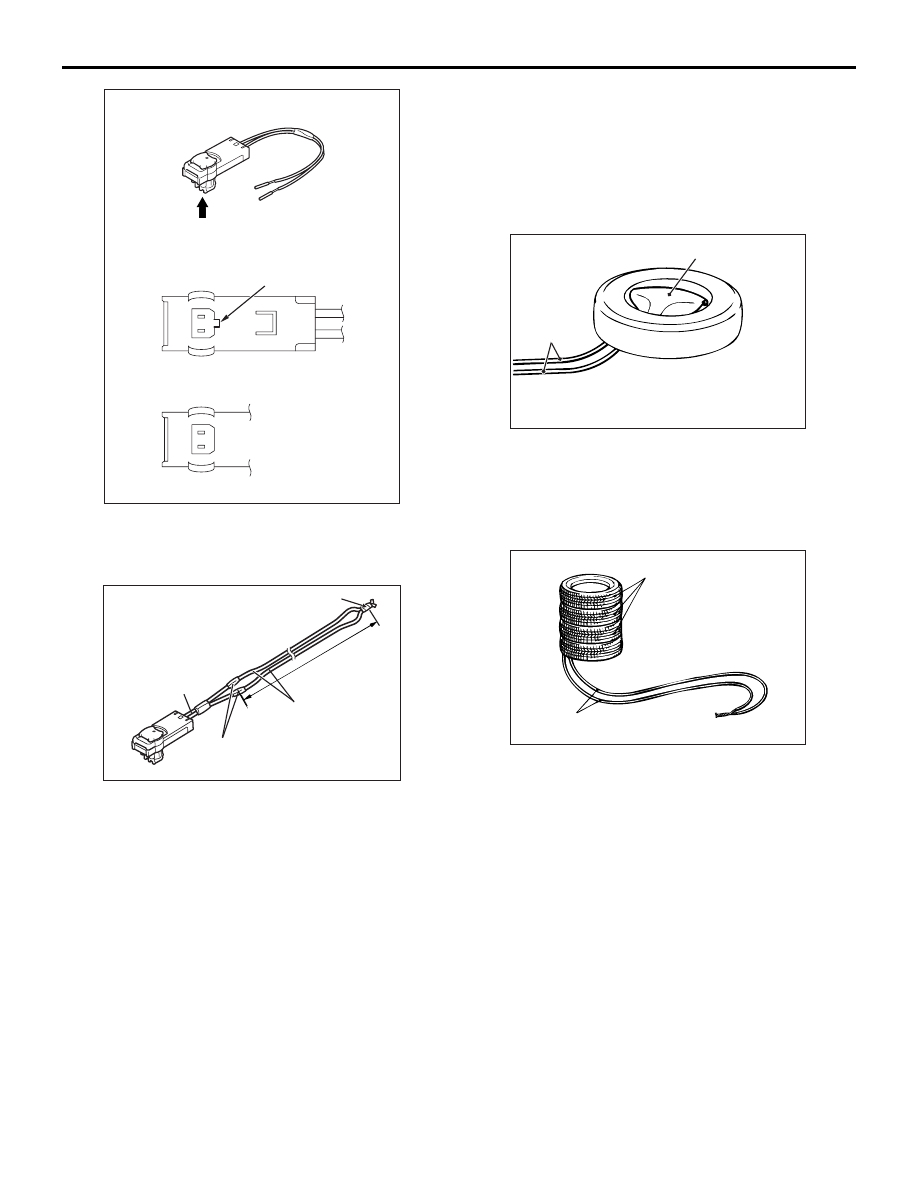

AC905199

AC905252

MB991885

A

AC

View A

<Before>

<After>

Cutting part

AIR BAG MODULE DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-158

3. Cut the part shown to connect the adapter

harness (Special tool: MB991885) to the driver's
airbag module connector.

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m or longer

4. Connect the deployment wires of 6 m or more to

each of the two wiring harnesses of special tool
adapter harness (MB991885), and cover the
connection areas with insulation tape. Keep the
other ends of deployment wires connected to
each other (shorted).

NOTE: This prevents the unintentional activation
of inflator caused by the static or others.

5. Connect the adapter harness to the driver's air

bag module.

6. To the torx screw installation hole located at the

backside of air bag module, tie a thick wire for
fixing the wheel.

AC100482AC

Driver's air bag module

Deployment
wires

7. Pass the deployment wire connected to the air

bag module underneath the old tyre with wheel.
Then, fix the air bag module with deployment
surface facing upward using the wire which is tied
to the bolt.

ACX00610 AD

Old tyres
without wheels

Deployment wires

8. Place three old tyres without wheel onto the tyre

to which the air bag module is fixed.
