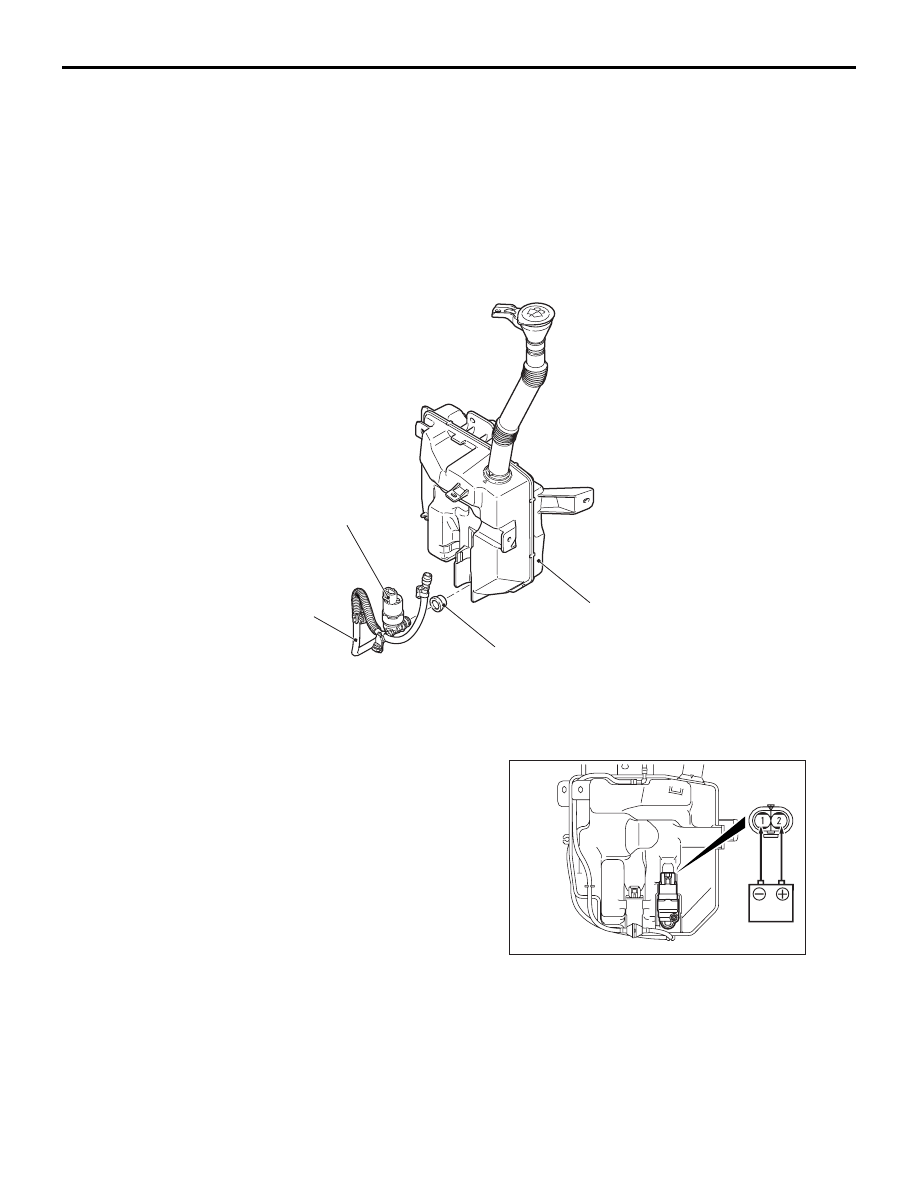

Headlamp washer actuator assembly
Removal
•

Front bumper assembly (Refer to

P.51-4

)

1.

Headlamp washer hose connection
(bumper side)

2.

Headlamp washer hose

3.

Headlamp washer cover

4.

Headlamp washer actuator
assembly

ACB05721AB

ACB05721

6

7

5

8

Washer tank removal steps
•

Front bumper assembly (Refer to

P.51-4

)

5. Headlamp washer hose (body side)
6. Headlamp washer motor
7. Headlamp washer motor packing
8. Windshield washer tank (Refer to

P.51-43

)

HEADLAMP WASHER

EXTERIOR

51-63

INSPECTION

M1511009800156

HEADLAMP WASHER MOTOR CHECK

ACB05725 AB

1. Remove the headlamp washer motor connector.

2. Check to see that the water is vigorously sprayed

when connecting the positive battery terminal to
terminal number 2 and terminal number 1 to the
negative battery terminal.

Headlamp washer actuator assembly
Removal (Continued)

MARK

EXTERIOR

51-64

MARK

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required

REMOVAL AND INSTALLATION

M1511011803884

ACB05807

1

2

3

N

AB

N

4

N

5

1.

Front three-diamond mark (Refer to

P.51-9

)

>>A<<

2.

Rear three-diamond mark (Refer to

P.51-9

)

>>A<<

3.

MITSUBISHI mark

>>A<<

4.

OUTLANDER mark

>>A<<

5.

4WD mark <4WD>

INSTALLATION SERVICE POINT

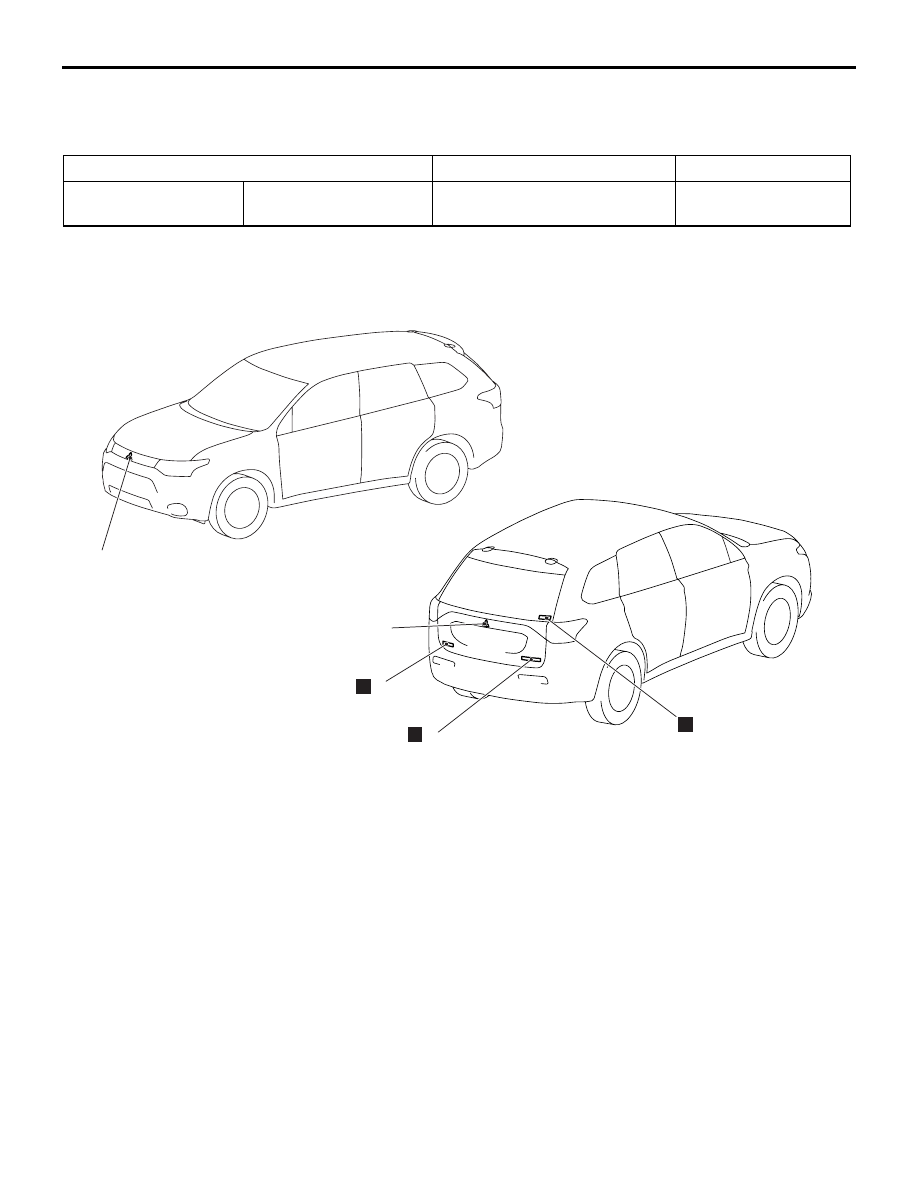

>>A<< MARK APPLICATION

1. Installation position

Attach each mark to the position shown in the
illustration.

ACA01527

A

A

AB

13 mm

13 mm

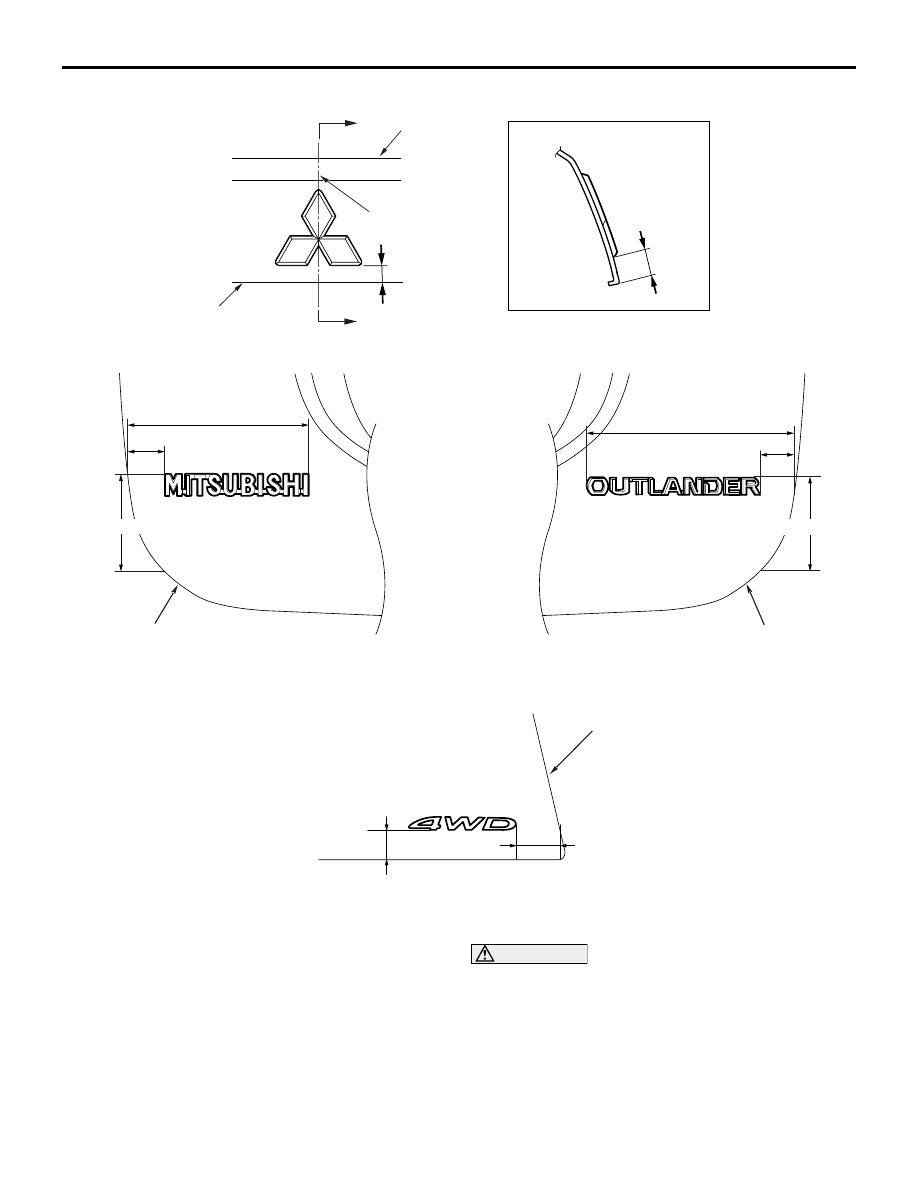

2. Rear three-diamond mark

Section A – A

Centre line of vehicle

Tailgate garnish
upper end

Tailgate garnish lower end

ACB05772AB

Tailgate panel end

3. MITSUBISHI mark
4. OUTLANDER mark

39.9 mm

191.1 mm

160.6 mm

222.5 mm

39.7 mm

160.6 mm

Tailgate panel end

ACC00072AB

5. 4WD mark <4WD>

17.7 mm

27.1 mm

Tailgate window glass hem line

MARK

EXTERIOR

51-65

2. Installation procedure

(1) Use Parts Cleaner (MZ100387 or equivalent)

to clean the mark installation surfaces on the
body.

CAUTION

When attaching the marks, the ambient tempera-
ture should be 20

− 38°C and the air should be

completely free of dust. If the ambient tempera-
ture is lower than 20

°C, the marks and the places

on the vehicle body where the marks are to be
attached should be heated to 20

− 30°C.

(2) Peel off the protection sheet on the back of the

marks to paste it on the installation position.

OUTSIDE MIRROR

EXTERIOR

51-66

OUTSIDE MIRROR

SERVICE SPECIFICATION

M1511000301566

Item

Standard value

Heated door mirror resistance value

Ω

7.2

± 1.4 (at 25 °C)

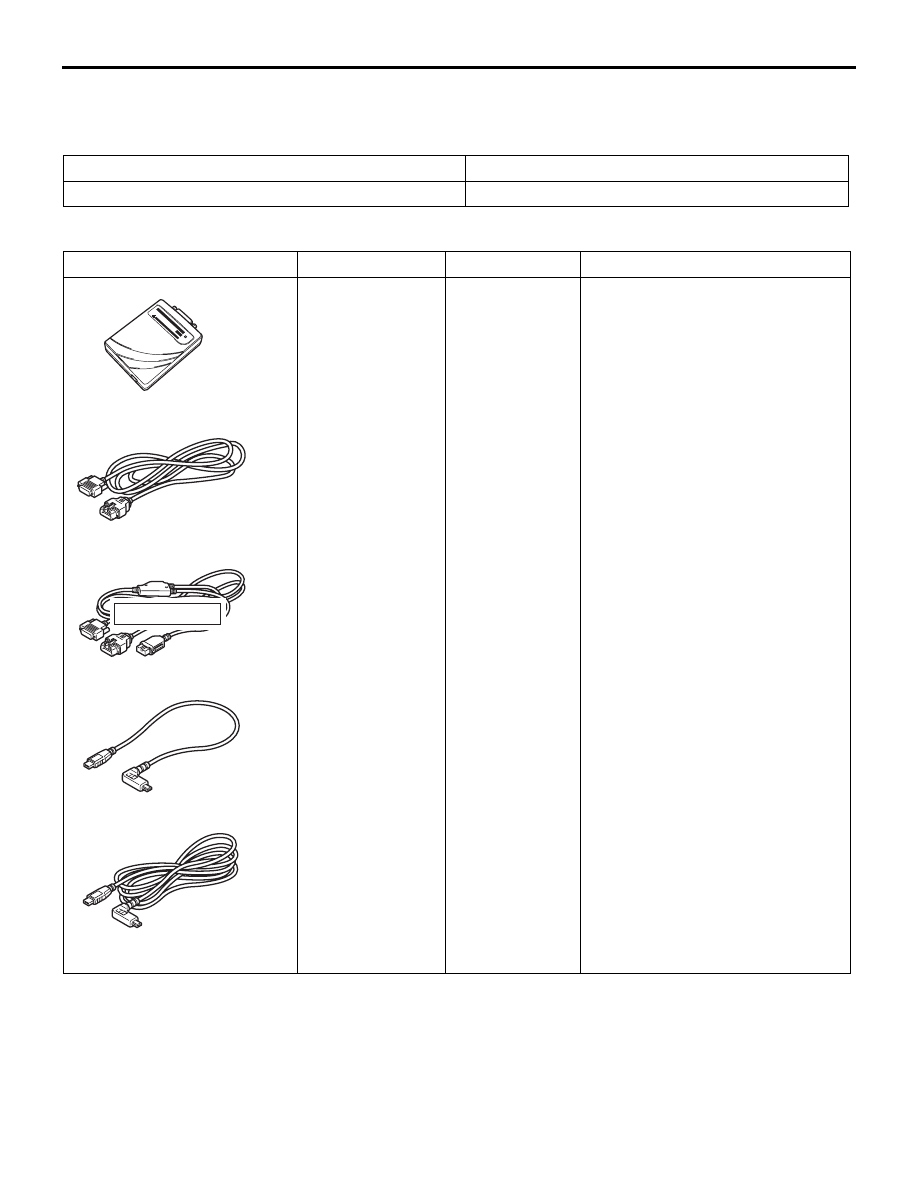

SPECIAL TOOLS

M1511000603295

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communicatio
n
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite

main harness
A (for vehicles
with CAN
communicatio
n)

c. V.C.I.-Lite

main harness
B (for vehicles
without CAN
communicatio
n)

d. V.C.I.-Lite

USB cable
short

e. V.C.I.-Lite

USB cable
long

Check the vehicle
speed-dependent automatic
unfolding function of the outside
rear-view mirrors
