ON-VEHICLE SERVICE <KOS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-89

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Door service key set

NOTE: It is the key that comes with the door
service key set. It can only be used for locking
and unlocking, and it cannot start the engine.

AC608188

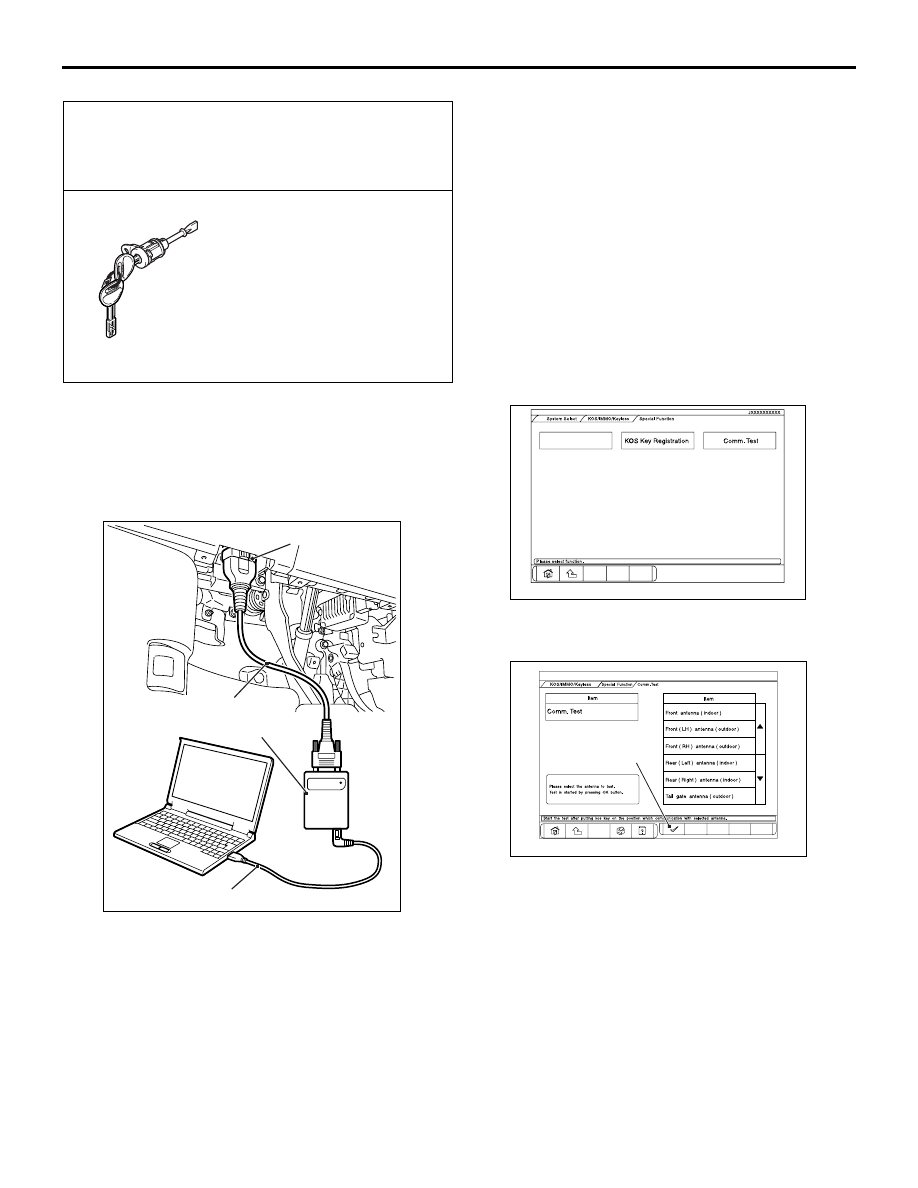

ANTENNA COMMUNICATION TEST

M1429606400201

Through the operations on the M.U.T.-III screen, the
antenna communication tests can be performed.

NOTE: For details on how to use the M.U.T.-III, refer
to the "M.U.T.-III User's Manual."

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

MB992745, MB991910

Diagnosis connector

1. Start the M.U.T.-III system on the PC

2. Select "KOS/IMMO/Keyless" button from the

"System Select" screen. Then, select the
applicable option code item and push the OK
button.

3. Select "Special Function" on the next screen.

ACA00666

Security appli. file generation

4. Select "Comm. Test" on the "Special Function"

screen.

AC509796

OK button

5. Select the antenna to be tested on "Comm. Test"

screen, and press the OK button with the keyless
operation key placed within the communication
operational area.

6. Push the OK button after "Communication is

normal." is displayed.

KEYLESS ENTRY SYSTEM CHECK

M1429611800227

Check the keyless entry system as described below.
If it does not work, perform troubleshooting (Refer to

P.42B-33

• Operate the keyless operation key to check that

the doors and tailgate can be locked and

unlocked.

ON-VEHICLE SERVICE <KOS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-90

• Operate the keyless operation key to check that

the answerback function works in response to
door and tailgate locking/unlocking.

NOTE: The hazard answerback setting can be

changed using the customisation function. Con-
firm which setting is activated before performing
these checks (Refer to

P.42B-90

INSPECTION OF MULTI-MODE KEYLESS
ENTRY FUNCTION

M1429612100328

Operate the keyless operation key to check that the
electric-folding door mirrors <Vehicles with electric
retractable remote controlled door mirrors> work. If
they do not work, carry out troubleshooting (Refer to

P.42B-33

NOTE: The settings of the operation of the elec-
tric-folding door mirrors <Vehicles with electric
retractable remote controlled door mirrors> can be
changed using the customisation function. Confirm
which settings are activated before performing diag-
nosis (Refer to

P.42B-90

INSPECTION OF KEYLESS ENTRY TIMER
LOCK FUNCTION

M1429612200240

Attempt to unlock the doors by using the keyless
operation key. If the doors are not locked within 30
seconds, carry out troubleshooting. Note that the
doors will not be locked if the ignition key is inserted
within the 30-second period, one of the doors is
opened is triggered. Refer to

P.42B-33

NOTE: The operation time of the keyless entry timer
lock function can be set using the customisation
function. Confirm the operation time before perform-
ing the diagnosis. Refer to

P.42B-90

POWER DOOR LOCKS WITH SELECTIVE
UNLOCKING INSPECTION

M1429619600205

Check the power door locks with selective unlocking
as described below. If it does not work, perform trou-
bleshooting (Refer to

P.42B-33

NOTE: The setting of the power door locks with
selective unlocking can be changed using the cus-
tomisation function. Confirm which setting is acti-
vated before performing these checks. Refer to

P.42B-90

• Press the unlock switch on the keyless operation

key once to unlock only the driver's door. Press
the unlock switch of the keyless operation key
once again within 2 seconds after the driver's
door is unlocked, and check that the front pas-
senger's door, rear doors, and tailgate are
unlocked.

NOTE: Press the unlock switch on the keyless oper-

ation key once to unlock only the driver's door.
When the unlock switch of the keyless operation
key is pressed once again more than 2 seconds
after the driver's door is unlocked, only the
driver's door is unlocked.

• Press the lock and unlock switch on the door out-

side handle (driver’s side) once to unlock only the
driver's door. Press the lock and unlock switch of
the door outside handle (driver’s side) once again
within 2 seconds after the driver's door is
unlocked, and check that the front passenger's
door, rear doors, and tailgate are unlocked.

NOTE: Press the lock and unlock switch on the door

outside handle (driver’s side) once to unlock only
the driver's door. When the lock and unlock
switch of the door outside handle (driver’s side) is
pressed once again more than 2 seconds after
the driver's door is unlocked, only the driver's
door is unlocked.

CUSTOMISATION FUNCTION

M1429611601066

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

ON-VEHICLE SERVICE <KOS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-91

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Hazard answer
back

Adjustment of the
number of keyless
hazard warning
lamp answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Auto fold mirror

Electric folding door
mirror automatic
unfolding function
<vehicles with
electric retractable
remote controlled
door mirrors>

Not Auto

No synchronised operation

Open Vehicle SPD

Vehicle speed-dependent operation

Open/Close by IG

Ignition switch linked operation

OPN/CLS Keyless

Keyless entry linked operation (initial
condition)

Auto door
unlock

Adjustment of the
auto door unlock
function

Disable

Without function (initial condition)

Always (P pos)

With function: Operates when the shift
lever or the selector lever is moved to the
P position.

Always(Lock pos)

With function: Operates when the ignition
switch is moved to the LOCK (OFF)
position.

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking

All Doors Unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors (initial condition).

Dr Door Unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors.

Timer lock timer Timer lock period

adjustment

30 sec.

30 seconds (initial condition)

60 sec.

60 seconds

120 sec.

120 seconds

180 sec.

180 seconds

Multi mode

Multi-mode keyless
entry function
customisation
<Vehicles with
electric retractable
remote controlled
door mirrors>

Disable

No function

D/M: O&C

Door mirror fold/unfold operation only
(initial condition)

ON-VEHICLE SERVICE <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-92

ON-VEHICLE SERVICE <OSS-ECU>

POWER SUPPLY MODE BY ENGINE SWITCH OPERATION

M1429627000026

When the engine switch is pressed, the power supply
mode changes according to the shift position and
brake pedal operation state.

Shift position

Brake pedal operation

Power supply mode at engine switch operation

P position

Released

Every time the switch is pressed, the power supply mode
changes from OFF to ACC to ON to OFF.

Depressed

While the power supply mode is OFF, the engine is started
when the switch is pressed.

While the power supply mode is ACC, the engine is started
when the switch is pressed.

While the power supply mode is ON, the engine is started
when the switch is pressed.

Depressed or released

When the switch is pressed after the engine is started, the
power supply mode is turned OFF (the engine stops).

Other than P
position

Depressed or released

When the switch is pressed while the power supply mode is
ACC, the power supply mode is turned ON.

When the switch is pressed while the power supply mode is
ON, the power supply mode is turned to ACC.

When the switch is pressed after the engine is started, the
power supply mode is turned to ACC.

KOS key detect
out from window

With/without KOS
key exterior
detection function
<Vehicles with
KOS>

Enable

No function

Disable

With function (initial condition)

KOS feature

KOS function
adjustment
<Vehicles with
KOS>

Both enable

All KOS functions are enabled (initial
condition).

Door Entry enable

Only door entry function is enabled.

ENG start enable

Only engine starting function is enabled.

Both disable

All KOS functions are disabled.

KOS unlock
disable time

Adjusts the door
unlock inhibition
period after door
lock is activated.
<Vehicles with
KOS>

0 sec.

0 second

3 sec.

3 seconds (Initial condition)

5 sec.

5 seconds

Outer buzzer
volume

Volume adjustment
for the KOS outer
buzzer <Vehicles
with KOS>

Volume 1

Quieter than the standard

Volume 2

Standard volume (Initial condition)

Volume 3

Louder than the standard

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content
