SERVICE SPECIFICATIONS

ELECTRIC POWER STEERING (EPS)

37-3

SERVICE SPECIFICATIONS

M1372000302252

Item

Standard value

Limit

Steering wheel free play mm

Engine running

−

30 or less

Engine stopped

16.5 or less

−

Steering angle

Inner wheel

38

° 50' ± 1° 30'

(Difference between right and left
wheels must be 2

°00’ or less)

−

Outer wheel
(reference value)

32

° 20'

−

Tie rod end ball joint turning torque N

⋅m

3.92 or less

−

Stationary steering force N

Steering force

29 or less

−

Fluctuation band

5.9 or less

−

Total rotational torque of
steering column shaft N

⋅m

Total rotational
torque

1.77 or less

−

Torque fluctuation

0.6 or less

−

Total rotational torque of pinion
N

⋅m

Total rotational
torque

0.7

− 1.3 N⋅m

−

Torque fluctuation

0.7 or less

−

Band crimped value mm

2.4

− 2.8

−

LUBRICANT

M1372000401074

Item

Specified lubricant

Quantity

Bellows

Silicone grease

As required

SEALANT

M1372000500885

Item

Specified sealant

Quantity

Tie-rod bellows outer side

3M ATD Part No. 8663 or equivalent

As required

SPECIAL TOOLS

ELECTRIC POWER STEERING (EPS)

37-4

SPECIAL TOOLS

M1372000601852

Tool

Number

Name

Use

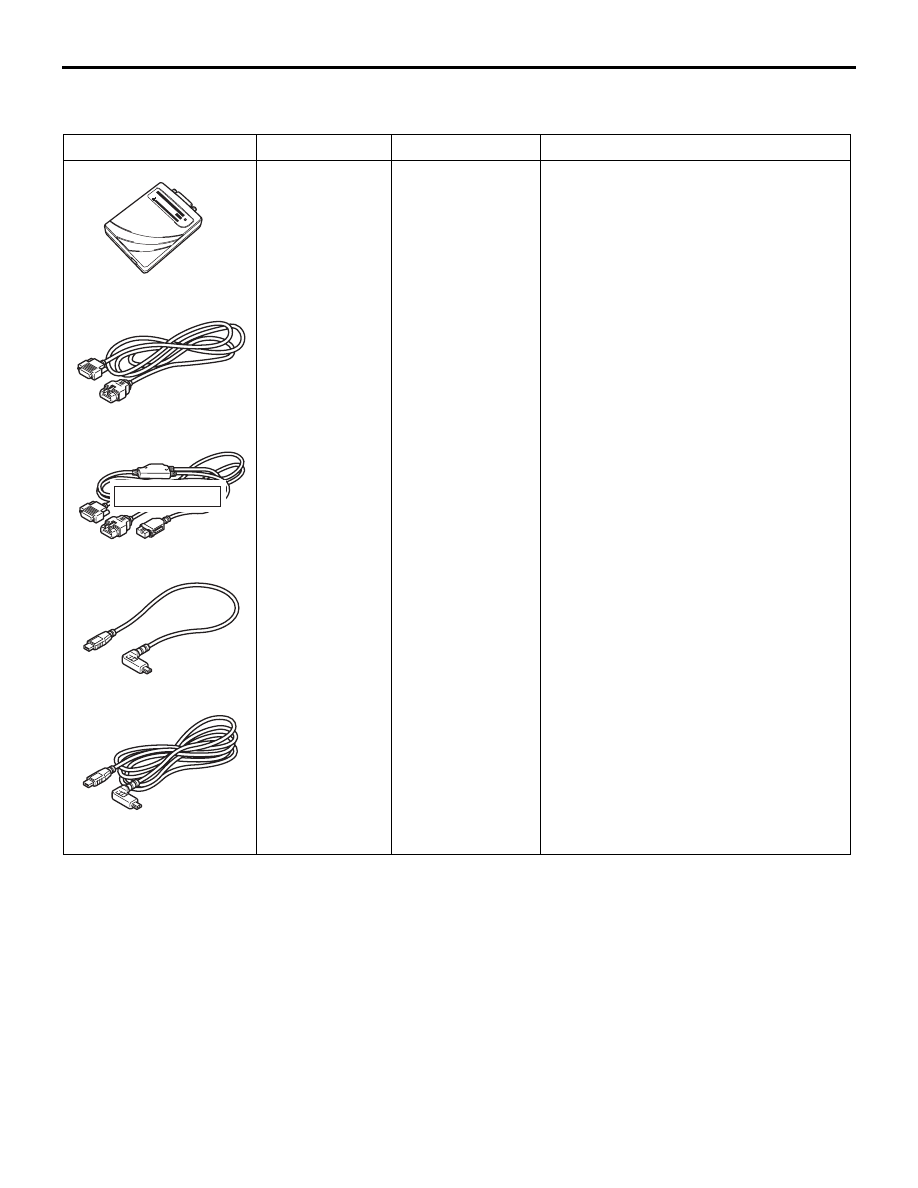

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with
CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

Electrical power steering check
(Diagnosis code display, data list display
and actuator test display by M.U.T.-III)

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

SPECIAL TOOLS

ELECTRIC POWER STEERING (EPS)

37-5

MB991955

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991825
f. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

Communication
Interface
(V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III

measurement
adapter

f. M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III main
harness A to send simulated vehicle
speed. If you connect M.U.T.-III main
harness B instead, the CAN
communication does not function
correctly.
Electrical power steering check
(Diagnosis code display, data list display
and actuator test display by M.U.T.-III)

MB991223

a

d

c

b

DO NOT USE

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED wiring

harness

c. LED wiring

harness
adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. Contact pressure inspection at

connector pin

b. Power supply circuit inspection
c. Power supply circuit inspection
d. Commercial tester connection

Tool

Number

Name

Use

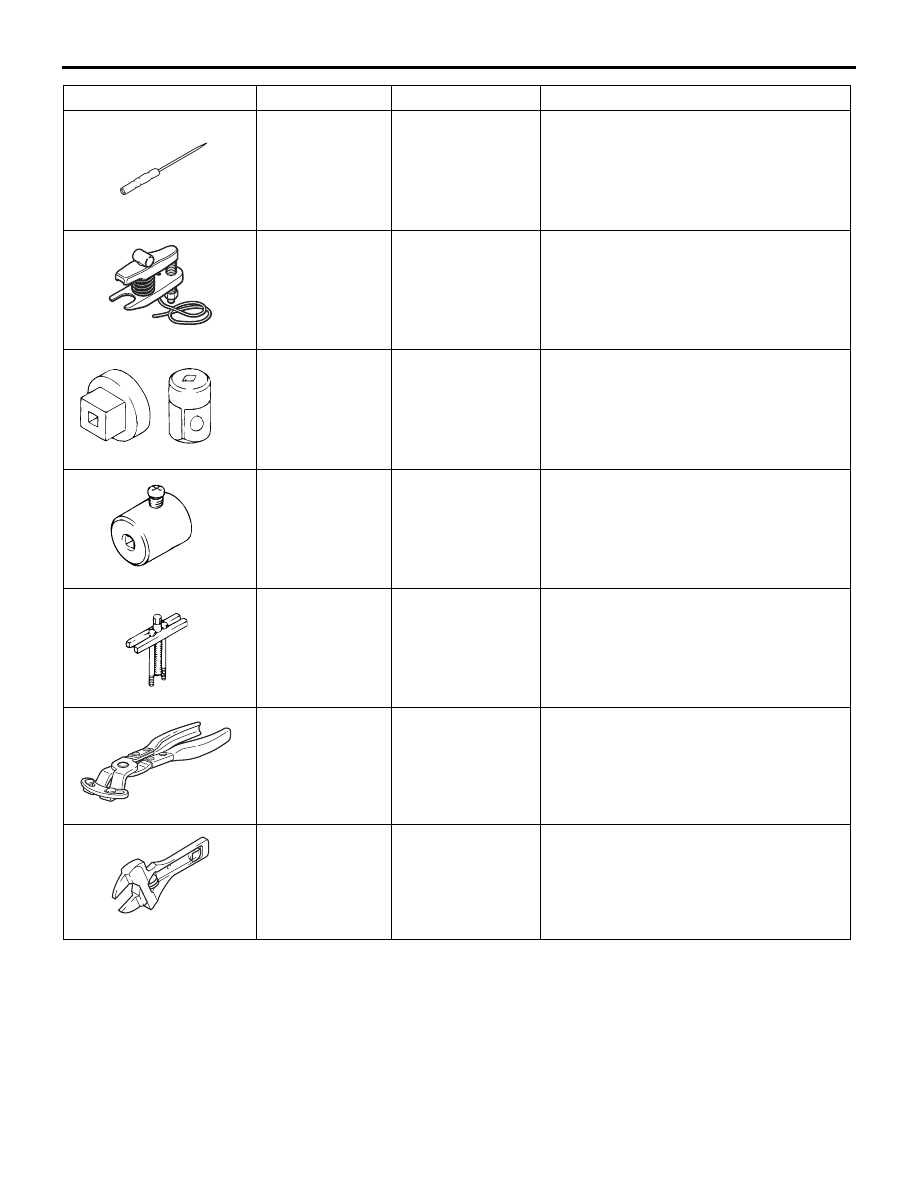

MB992006

TROUBLESHOOTING

ELECTRIC POWER STEERING (EPS)

37-6

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1372007300309

Refer to GROUP 00

− Contents of Troubleshooting  .

MB992006

Extra fine probe

Making voltage and resistance
measurement during troubleshooting

MB991897

MB991897 or
MB992011

Ball joint remover

Knuckle and ball joint disconnection

NOTE: Steering linkage puller
(MB990635 or MB991113)is also used to
disconnect knuckle and tie rod end ball
joint.

MB990326

MB990326

Preload socket

• Ball joint rotation torque measurement

• Steering column shaft total rotation

torque measurement

MB991006

MB991006

Preload socket

Steering gear total pinion torque
measurement

MB990803

MB990803

Steering wheel
puller

Steering wheel disconnection

MB992209

MB992209

Bellows band
clipping tool

Tie-rod bellows band installation

MB992249

MB992249

Variable spanner

Tie-rod removal and installation

Tool

Number

Name

Use
