Mitsubishi Outlander (2013+). Manual - part 428





STABILIZER BAR

FRONT SUSPENSION

33-14

INSTALLATION SERVICE POINTS

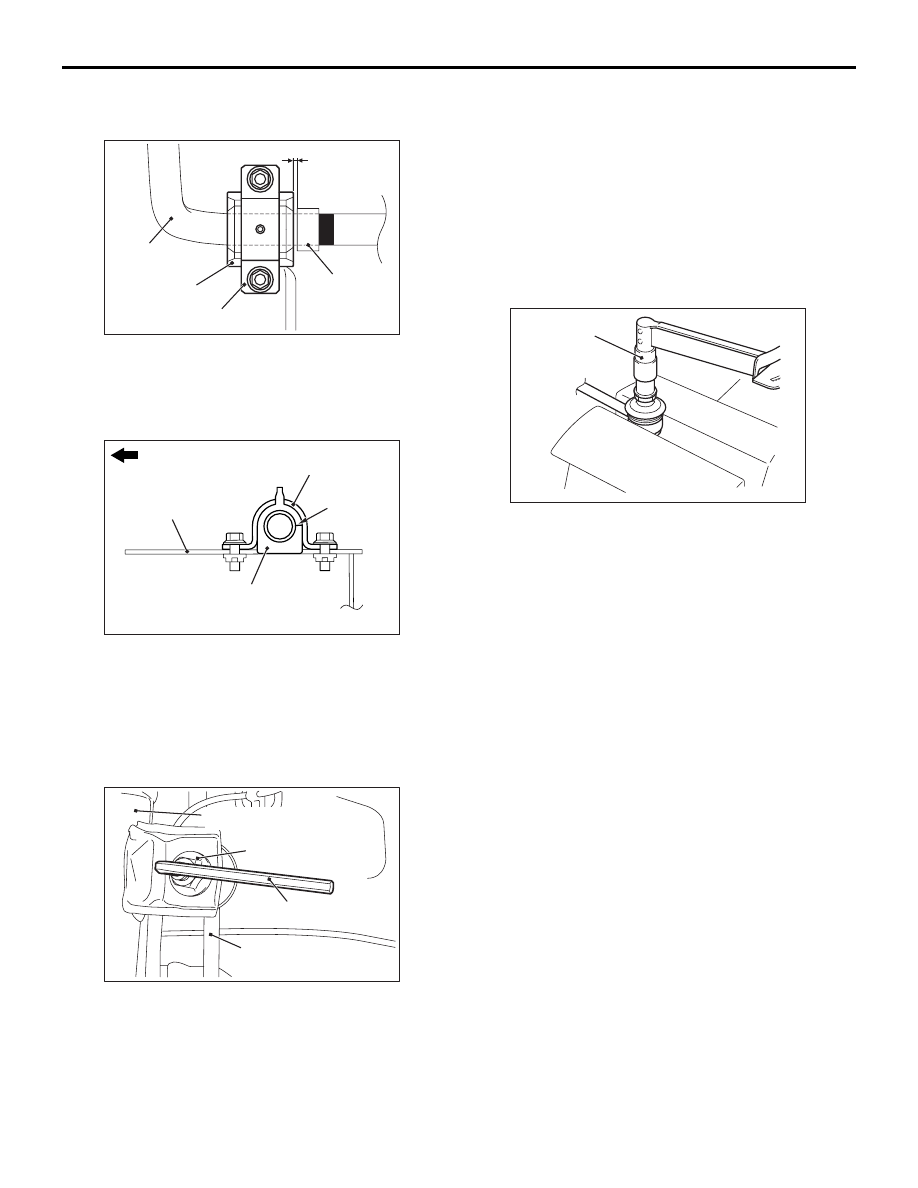

>>A<< STABILIZER BAR INSTALLATION

AC611658 AC

2.5 mm

Stopper ring

Stabilizer bushing

Stabilizer bar bracket

Stabilizer bar

Install the stabilizer bar as shown in the figure.

>>B<< STABILIZER BUSHING
INSTALLATION

AC609899

AB

Stabilizer bushing

Front axle
crossmember

Stabilizer bar
bracket

Slit

Front

Install the stabilizer bushing as shown in the figure.

>>C<< STABILIZER LINK AND
STABILIZER BAR CONNECTION
NUT/STABILIZER LINK AND STRUT
CONNECTION NUT INSTALLATION

AC613526 AB

Stabilizer link

Strut assembly

Hexagon wrench

Stabilizer link and
strut connection nut

Use a hexagon wrench to install the stabilizer link
and strut connection nut as shown in the figure.

INSPECTION

M1332002000967

• Check the bushings for wear and deterioration.

• Check the stabilizer bar for deterioration or dam-

age.

• Check all bolts for condition and straightness.

STABILIZER LINK BALL JOINT
ROTATION STARTING TORQUE CHECK

AC404845

MB990326

AC

1. Move the stabilizer link ball joint stud back and

forth for several times, install the stud with nut,
and measure the stabilizer link ball joint rotation
starting torque using special tool preload socket
(MB990326).

Standard value: 0.3

 2.9 Nm

2. When the measured value exceeds the standard

range, replace the stabilizer link (Refer
to

P.33-13

).

3. When the measured value stays within the

standard range, if there is any looseness or gritty
feeling, it is judged as unusable and replaced.

STABILIZER LINK BALL JOINT DUST
COVER CHECK

(Refer to

P.33-4

)

34-1

GROUP 34

REAR SUSPENSION

CONTENTS

SERVICE SPECIFICATIONS. . . . . . .

34-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

34-2

ON-VEHICLE SERVICE. . . . . . . . . . .

34-4

REAR WHEEL ALIGNMENT CHECK AND
ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

34-4

STABILIZER LINK BALL JOINT DUST COVER
INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

34-4

CONTROL LINK, UPPER ARM AND LOWER
ARM . . . . . . . . . . . . . . . . . . . . . . . . . .

34-5

REMOVAL AND INSTALLATION . . . . . . . .

34-5

LOWER ARM BUSHING REPLACEMENT

34-7

TRAILING ARM . . . . . . . . . . . . . . . . .

34-8

REMOVAL AND INSTALLATION . . . . . . . .

34-8

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

34-12

TRAILING ARM BUSHING REPLACEMENT



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-12

SHOCK ABSORBER ASSEMBLY . . .

34-14

REMOVAL AND INSTALLATION  . . . . . . . .

34-14

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

34-15

DISASSEMBLY AND REASSEMBLY . . . . .

34-16

STABILIZER BAR. . . . . . . . . . . . . . . .

34-18

REMOVAL AND INSTALLATION  . . . . . . . .

34-18

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

34-19

STABILIZER LINK BALL JOINT ROTATION TORQUE
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-19

STABILIZER LINK BALL JOINT DUST COVER
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-19

REAR SUSPENSION CROSSMEMBER



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34-20

REMOVAL AND INSTALLATION  . . . . . . . .

34-20

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

34-21

SERVICE SPECIFICATIONS

REAR SUSPENSION

34-2

SERVICE SPECIFICATIONS

M1341000301349

Item

Standard value

Toe in mm

At the centre of tyre tread mm

± 2

Toe-angle (per wheel)

° 02’ − 0 ° 12’

Camber

−0°30' ± 0°45'

*

Stabilizer link ball joint rotation torque N

⋅m

0.3

− 2.9

NOTE: *: Difference between right and left wheels must be 0

°

30' or less.

SPECIAL TOOLS

M1341000601027

Tool

Number

Name

Use

MB991447

MB992123

Arm bushing
remover and
installer

Lower arm bushing removal and press-fit

MB991448

Bushing remover
and installer base

MB991449

Bushing remover
and installer
supporter

B990767

MB990767

Front hub & flange
yoke holder

Fixing of hub

MB990241

A

B

C

AK

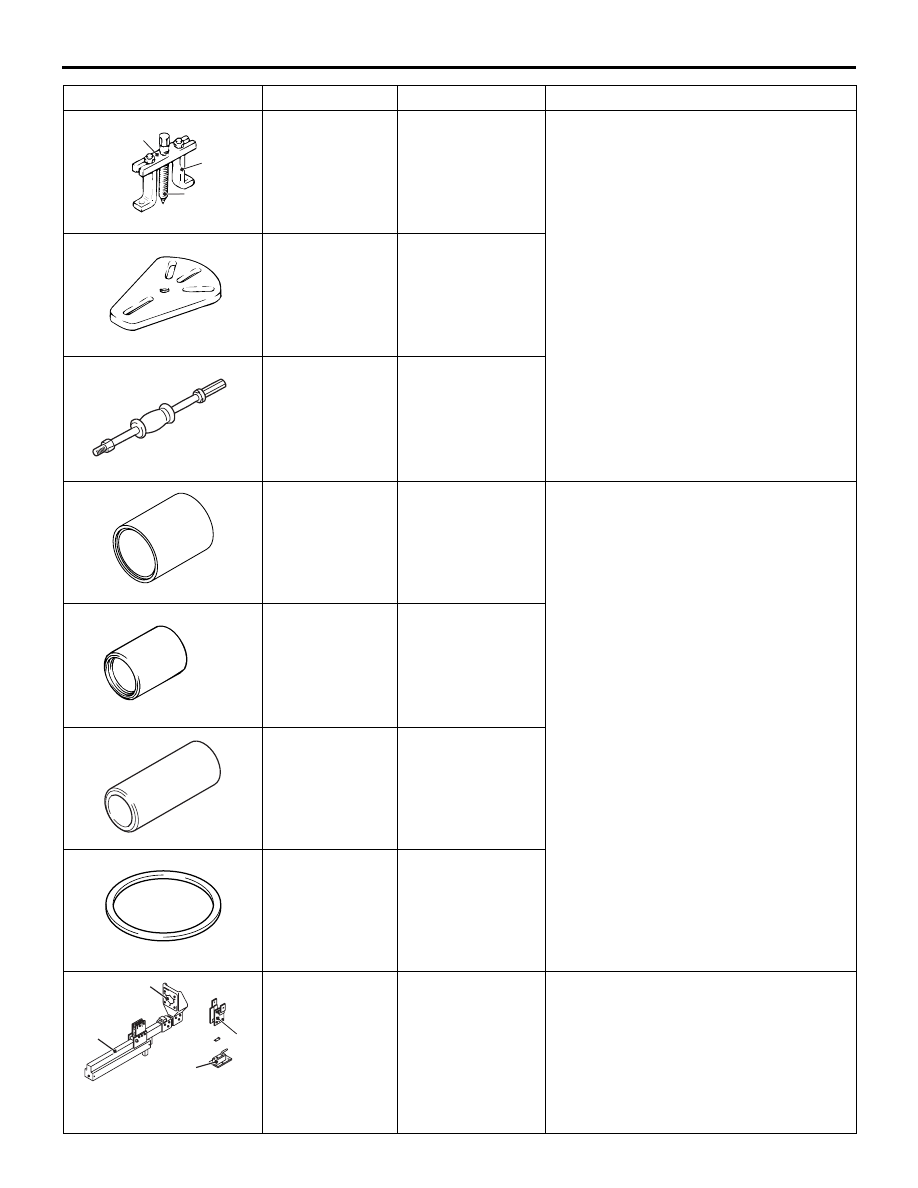

SPECIAL TOOLS

REAR SUSPENSION

34-3

MB990241

A:MB990242
B:MB990243
C:MB990244

Axle shaft puller

A: Puller shaft
B: Puller body
C: Puller bar

Rear hub assembly removal

MB991354

MB991354

Puller body

MB990211

MB990211

Slide hammer

MB991523

Arm bushing
remover and
installer

Trailing arm bushing removal and
press-fit

MB990890

MB990890

Arm bushing
remover and
installer

MB992125

MB992125

Arm bushing base

B992865

MB992865

Spacer base

MB991832

a

b

c

d

MB991832

a: MB991793
b: MB991796
c: MB991794
d: MB991830

Spring compressor
set

a: Spring

compressor
assembly

b: Attachment B
c: Upper plate
d: Fixture

Coil spring removal and installation

Tool

Number

Name

Use
