SERVICE SPECIFICATIONS

FRONT AXLE

26-2

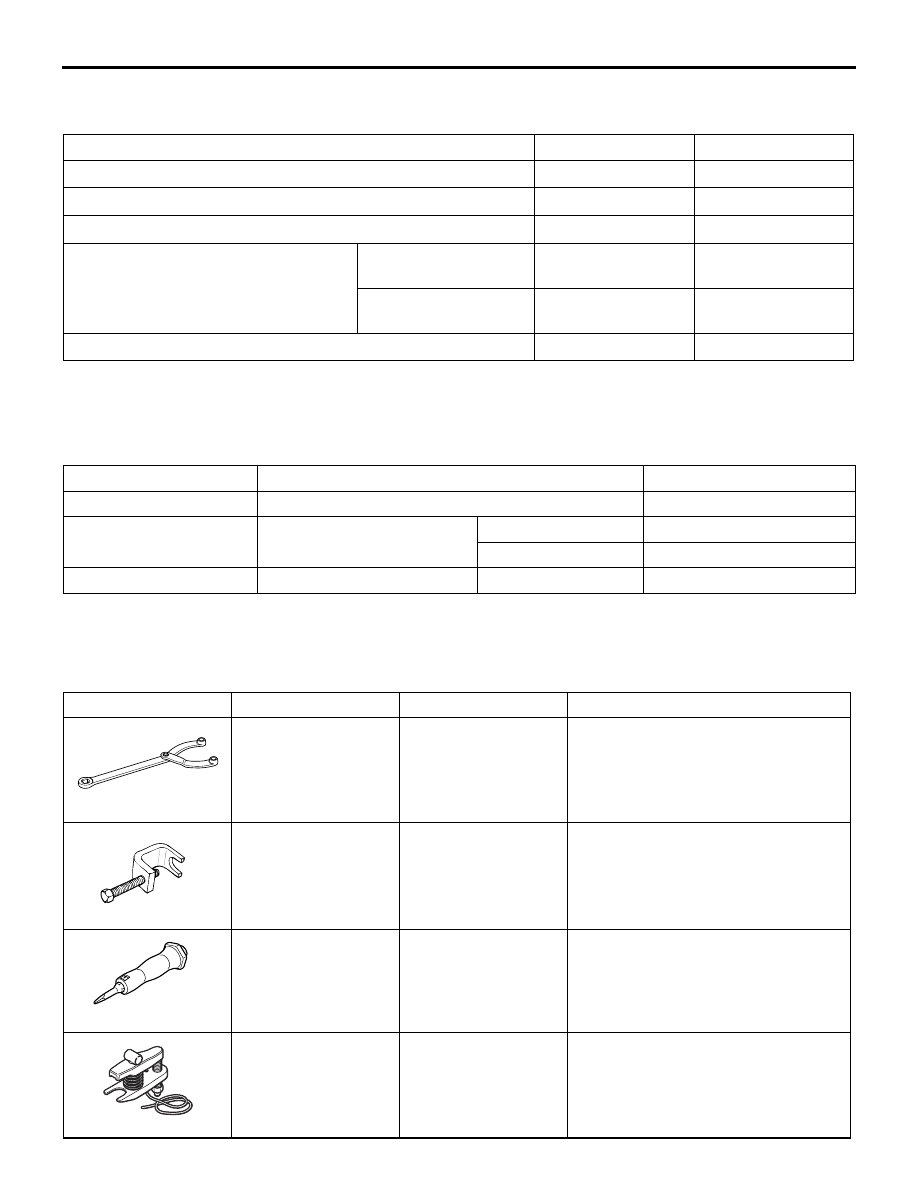

SERVICE SPECIFICATIONS

M1261000301623

Item

Standard value

Limit

Wheel bearing axial looseness mm

−

0.05

Wheel bearing rotation starting torque N

⋅m

−

1.5

PTJ boot assembly dimension mm

85

± 3

−

Opening dimension of boot band
clipping tool (Special tool: MB991561)
mm

EBJ boot band (small)
crimping

2.9

−

EBJ boot band (large)
crimping

3.2

−

EBJ boot band crimping size mm

2.4

− 2.8

−

LUBRICANTS

M1261000401835

Item

Specified lubricant

Quantity

Inside of knuckle bore

Shell Sunlight Grease BD2 or equivalent

As required (1.0

− 1.5 g)

PTJ

Repair kit grease

2WD, 4WD-LH

210

± 10 g

4WD-RH

200

± 10 g

EBJ

Repair kit grease

2WD-LH, 4WD

120

± 10 g

SPECIAL TOOLS

M1261000601851

Tool

Number

Name

Use

B990767

MB990767

Front hub and flange
yoke holder

Fixing of hub

MB991618

MB991618

Hub bolt remover

Removal of hub bolt

B992700

M

MB992700

Lock nut chisel

Raising up the swaged part driveshaft
nut

MB991897

MB991897 or
MB992011

Ball joint remover

Ball joint disconnection

NOTE: Conventional steering linkage
puller MB991406, MB990635, or
MB991113 can also be used.

MB990241AD

B

A

SPECIAL TOOLS

FRONT AXLE

26-3

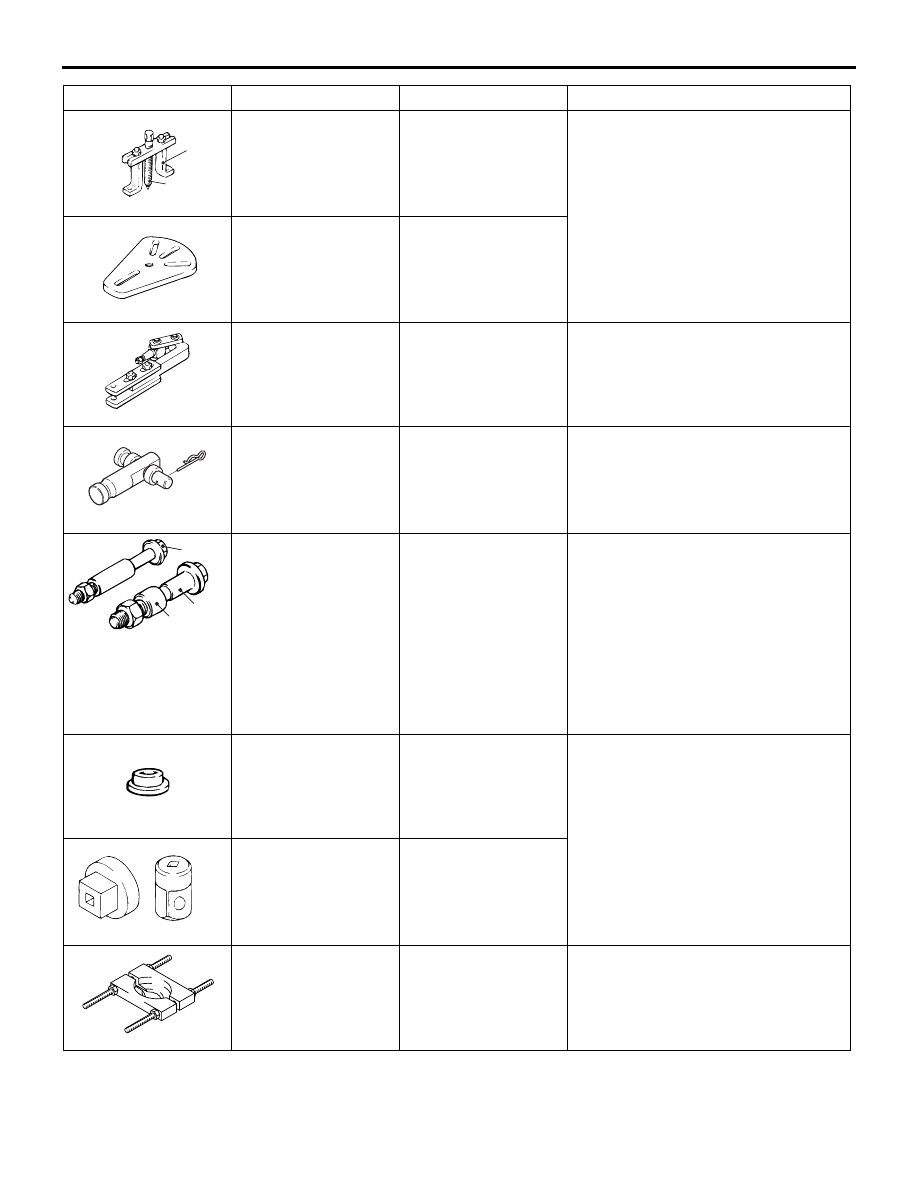

MB990241
A:MB990242
B:MB990244

Axle shaft puller
A: Puller shaft
B: Puller bar

• Driveshaft removal

• Hub assembly removal

MB991354

MB991354

Puller body

MB991056 or
MB991355

Knuckle arm bridge

• Hub removal

• Driveshaft removal

B992250

MB992250

Knuckle arm bridge
attachment

Hub removal

NOTE: Replace this attachment with
a guide of MB991355 and use them.

MB991017

A

B

C

A:MB991017
B:MB990998
C:MB991000

A, B: Front hub
remover and installer
C: Spacer

• Wheel bearing temporarily fixing

• Wheel bearing rotation starting

torque measurement

• Wheel bearing axial looseness

measurement
Use MB991000 (a part of
MB990998) for spacer

• Removal of the wheel bearing

inner race (outside) (Use
MB991000 with MD998801.)

MB991099

MB991099

Oil seal installer
guide

Wheel bearing rotation starting torque
measurement

MB990326

MB990326

Preload socket

MD998801

Remover

• Removal of the wheel bearing

inner race (outside)

• Removal of PTJ case

Tool

Number

Name

Use

SPECIAL TOOLS

FRONT AXLE

26-4

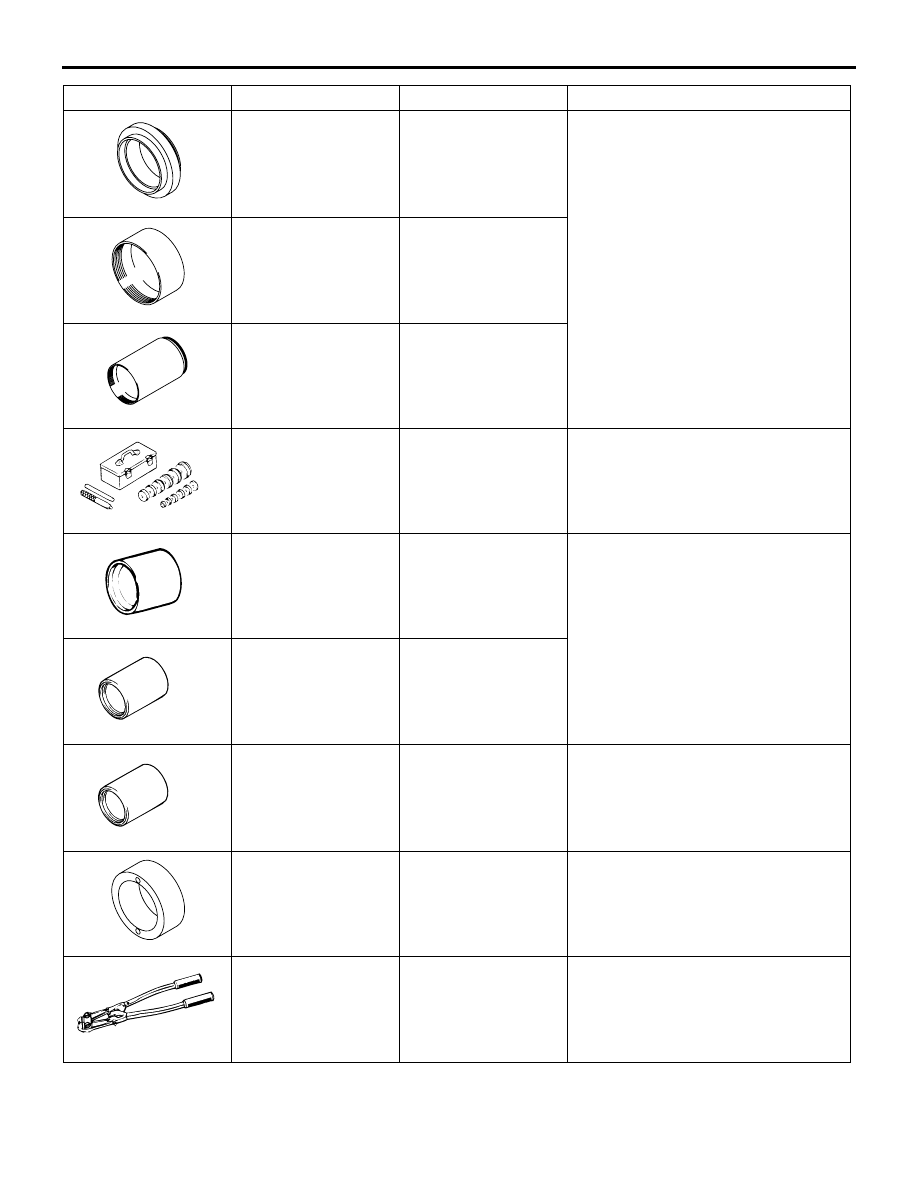

MB992150

Oil seal installer

Installation of the wheel bearing inner
race (outside)

MD998812

Installer cap

MD998813

Installer

MB990925

MB990925

Bearing and oil seal
installer set

Bearing removal and press-fit

MB991388

MB991388

Bush remover base

Press-fitting of the dust shield

MB991576

MB991576

Base

MB990890

MB990890

Rear suspension
bushing base

• Wheel bearing installation

• Dust seal outer and dust seal inner

press-fit

MD999528

Adapter

Wheel bearing installation

MB991561

MB991561

Boot band clipping
tool

Resin boot band installation

Tool

Number

Name

Use

ON-VEHICLE SERVICE

FRONT AXLE

26-5

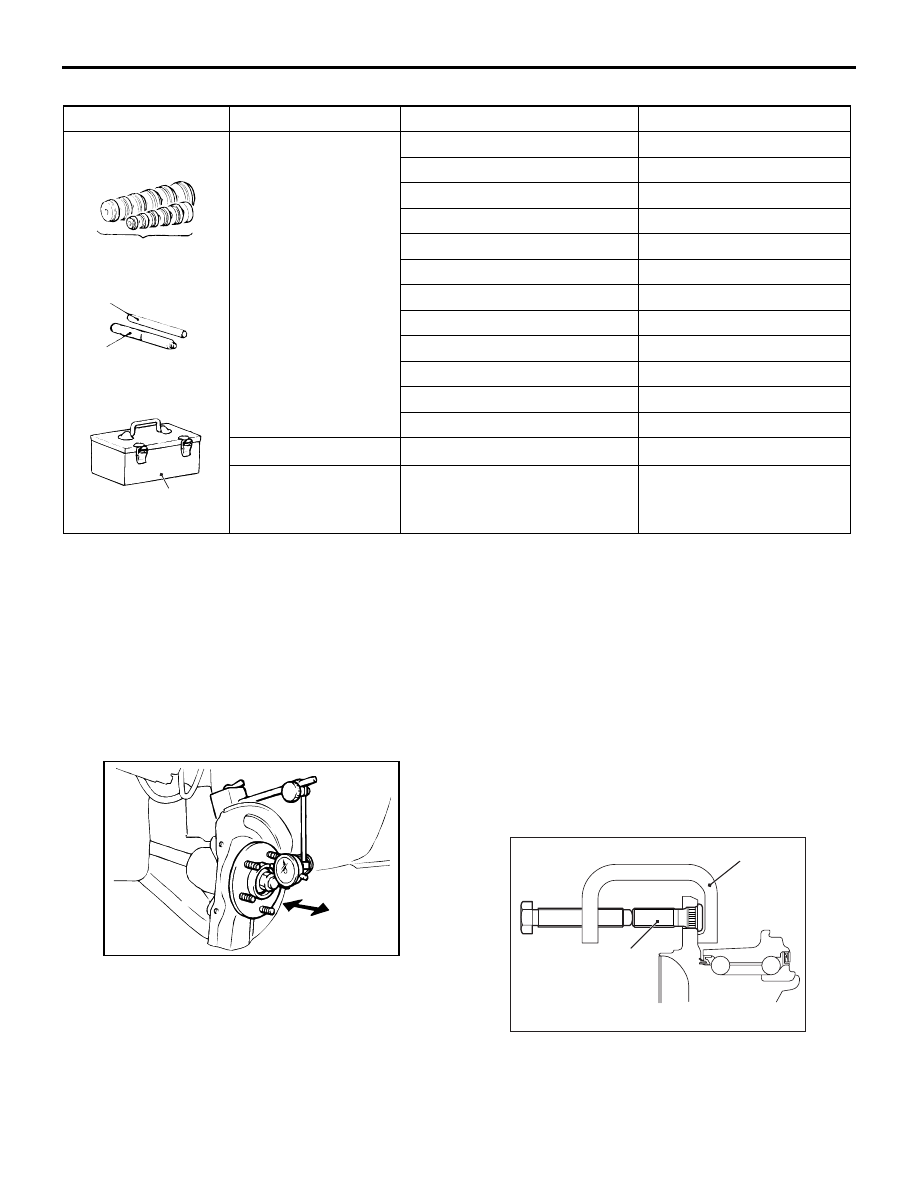

MB990925 BEARING AND OIL SEAL INSTALLER SET

Tool

Type

Number

Outer diameter  mm

ACX02372

A

B

C

AE

Remover bar

Installer bar
 (Snap-in type)

Toolbox

Installer adapter

MB990925

A

MB990926

39

MB990927

45

MB990928

49.5

MB990929

51

MB990930

54

MB990931

57

MB990932

61

MB990933

63.5

MB990934

67.5

MB990935

71.5

MB990936

75.5

MB990937

79

B

MB990938

−

C

MB990939

−

ON-VEHICLE SERVICE

WHEEL BEARING CHECK FOR
LOOSENESS IN THE AXIAL DIRECTION

M1261001100715

1. Remove the front caliper assembly and front

brake disc, and retain the front caliper assembly
with a wire and the like to prevent from falling
(Refer to

P.26-7

).

AC102438

2. Set a dial gauge as shown in the figure. Move the

hub in the axial direction and measure the
looseness.

Limit : 0.05 mm

3. If the play exceeds the limit, disassemble hub

knuckle to check each component. If the front hub
bearing is faulty, replace it.

4. After checking, install the front brake disc and the

front caliper assembly.

Tightening torque: 100

± 10 N⋅m

HUB BOLT REPLACEMENT

M1261001000923

1. Remove the front caliper assembly and front

brake disc, and retain the front caliper assembly
with a wire and the like to prevent from falling
(Refer to

P.26-7

).

AC302114

MB991618

AD

Hub bolt

2. Use special tool hub bolt remover (MB991618) to

remove the hub bolt.
