TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-36

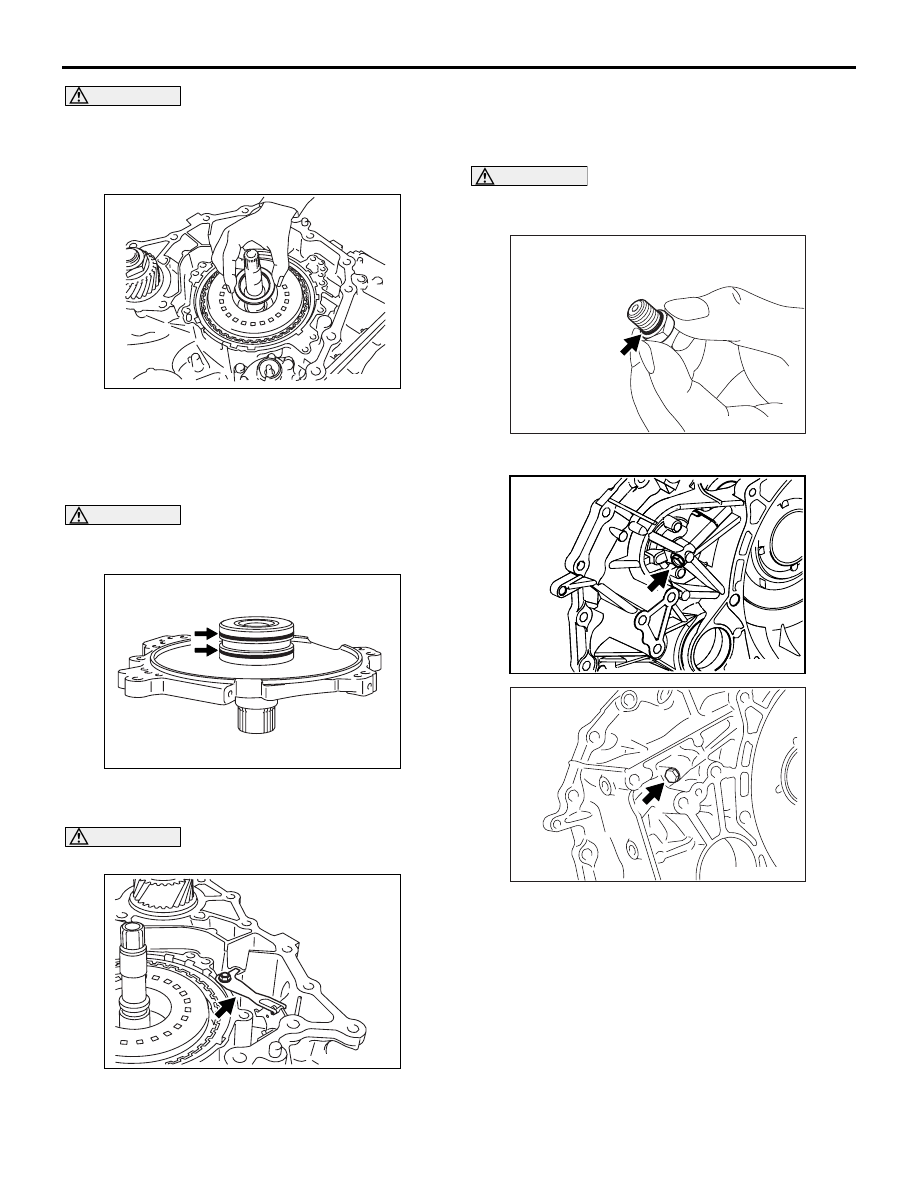

CAUTION

• Apply vaseline when installing the needle

bearing.

•

AK502219

Be careful to attach the needle bearing in
right direction.

14.Install the selected needle bearing on the forward

clutch assembly. Refer to D in the
"IDENTIFICATION OF NEEDLE BEARINGS" for
right direction.

CAUTION

• Do not re-use the seal rings.
•

AK502218AC

Apply vaseline when installing the seal rings.

15.Install the seal rings on the oil pump cover.

CAUTION

Do not re-use the bolt.

AK502243AC

16.Install the detent spring on the transmission case,

and tighten the fastening bolt at the specified
torque of 6.9 N

⋅m.

CAUTION

• Do not re-use the O-ring.
•

AK502774AC

Apply CVT fluid when installing the O-ring.

17.Install the O-ring on the plug.

AK603125

<F1CJA>

AG

AK502977

<W1CJA>

AG

18.Install the plug on the converter housing to the

specified torque of 7.5 N

⋅m.

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-37

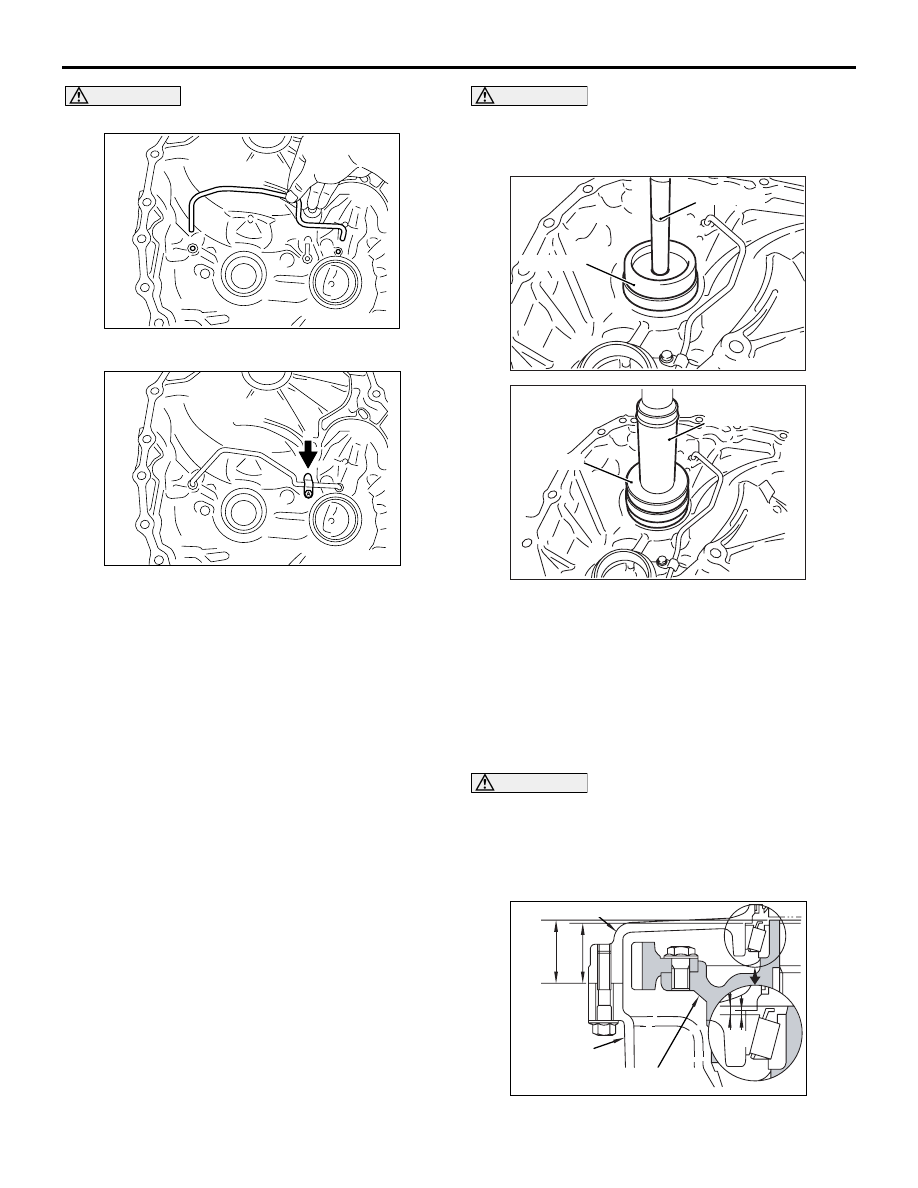

CAUTION

Do not strain the pipe when attaching it.

AK502976

19.Install the pipe on the converter housing.

AK502975AC

20.Install the clip, and tighten the bolt at the specified

torque of 5.9 N

⋅m.

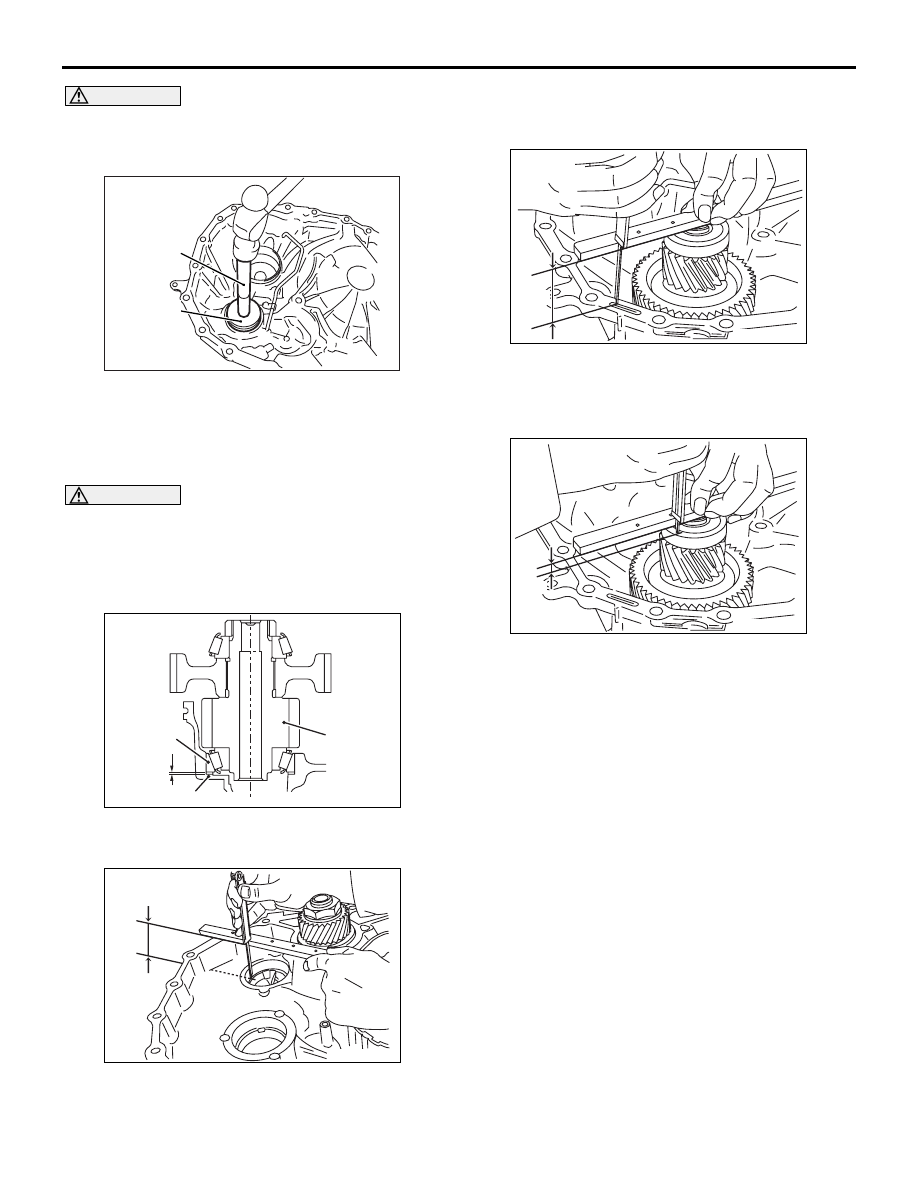

CAUTION

• Do not re-use the outer race.
•

AK701042AG

MB990780

MB990779

<F1CJA>

AK502847

MB991702

MB991168

<W1CJA>

AG

Replace the outer race together with the inner
race.

21.Using the special tools, Install the differential

bearing outer race.

• Bar (MB990779) <F1CJA>

• Real axle shaft bushing installer (MB990780)

<F1CJA>

• Differential oil seal installer (MB991168)

<W1CJA>

• Adapter (MB991702) <W1CJA>

CAUTION

• When adjusting the preload, apply CVT fluid

to the bearing to make it roll smoothly.

•

AK502263AC

Transmission case

Converter housing

Differential assembly

A

When conducting measurements, measure
two or more places, and find the average
value.

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-38

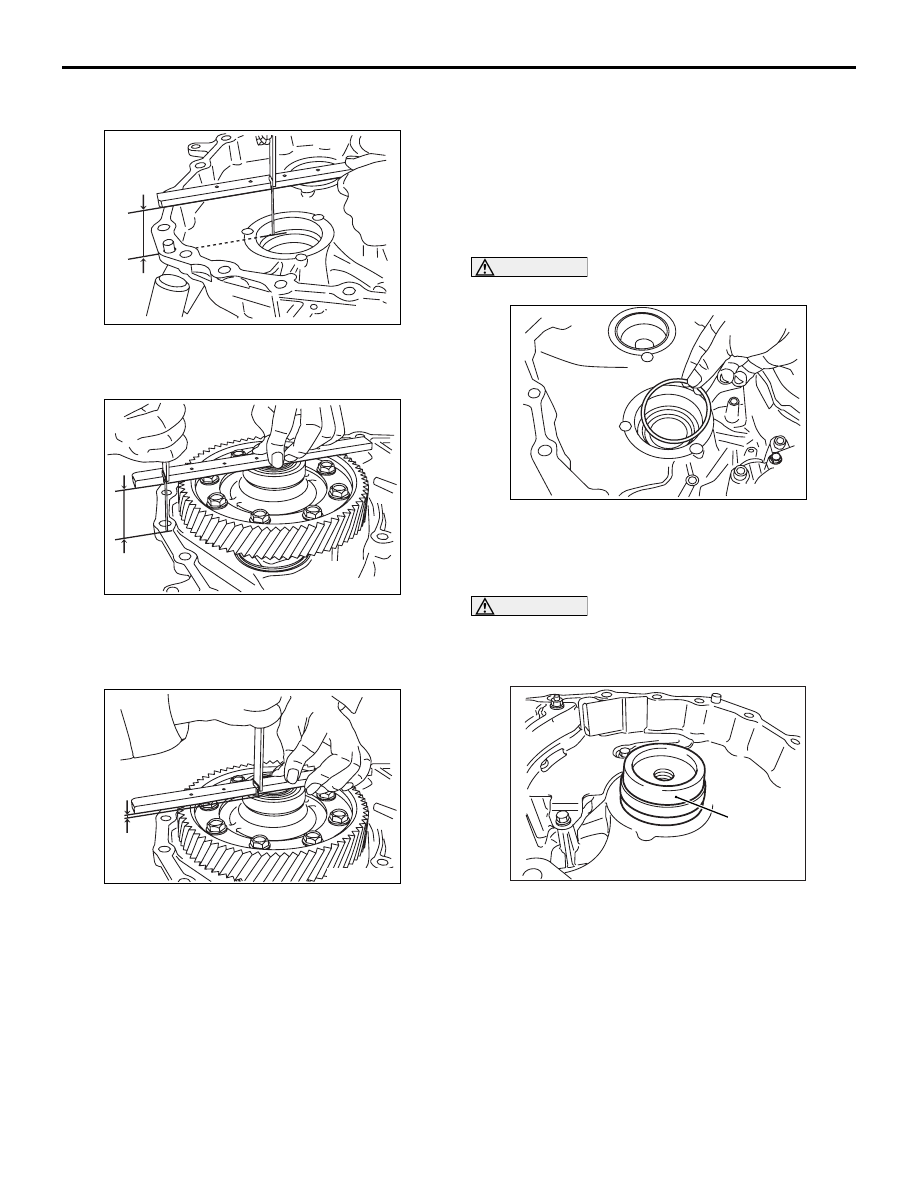

22.Measure the preload A of the differential

assembly in the following way.

AK502264 AC

M3

(1) Measure the distance M3 from the edge of

transmission case to the mounting surface of
adjusting shim.

AK502265

M4

AC

(2) Install the differential assembly on the

converter housing, and measure the distance
M4 from the differential case to the edge of
converter housing.

AK502266

M5

AC

(3) Install the outer race on differential side

bearing, and measure the distance M5 from
the differential case to the outer race of
differential side bearing.

(4) Using the following expression, calculate the

distance M6 from the edge of converter
housing to the outer race of differential side
bearing.

M6 = M4

− M5

(5) Using the following expression, calculate

thickness of the adjusting shim.

Thickness of adjusting shim = M3

− M6 +

preload
Standard value: 0.17

− 0.23 mm

(For differential preload)

CAUTION

Do not re-use the adjusting shim.

AK502239

23.Install the selected shim on the transmission

case. For selection of the adjusting shim, refer to
"SERVICE SPECIFICATIONS."

CAUTION

• Do not re-use the outer race.
•

AK502846AC

MB990780

Replace the outer race together with the inner
race.

24.Using the special tool, Real axle shaft bushing

installer (MB990780), install the outer race of
differential side bearing on the transmission case.

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-39

CAUTION

• Do not re-use the outer race.
•

AK604111AD

MB990938

MB990932

Replace the outer race together with the inner
race.

25.Using the special tools, install the outer race of

reduction gear bearing on the converter housing.

• Installer adapter (MB990932)

• Installer bar (MB990938)

CAUTION

• When adjusting the preload, apply CVT fluid

to the bearing to make it roll smoothly.

•

AK502269AC

A

Reduction gear

Transmission case

Bearing
outer race

When conducting measurements, measure
two or more places, and find the average
value.

26.Measure the preload A of the reduction gear

assembly in the following way.

AK502270

M7

AC

(1) Measure the distance M7 from the edge of

transmission case to the mounting surface of
adjusting shim.

AK502271AC

M8

(2) Install the reduction gear assembly on the

converter housing, and measure the distance
M8 from the edge of reduction gear assembly
to the edge of converter housing.

AK502272 AC

M9

(3) Install the outer race of reduction gear side

bearing on the bearing, and measure the
distance M9 from the edge of reduction gear
assembly to the outer race of reduction gear
bearing.

(4) Using the following expression, calculate the

difference M10 from the outer race of
reduction gear bearing to the edge of
converter housing.

M10 = M8

− M9

(5) Using the following expression, calculate the

thickness of adjusting shim.

Thickness of adjusting shim = M7

− M10 +

preload
Standard value: 0.11

− 0.17 mm

(For reduction gear preload)
