TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-24

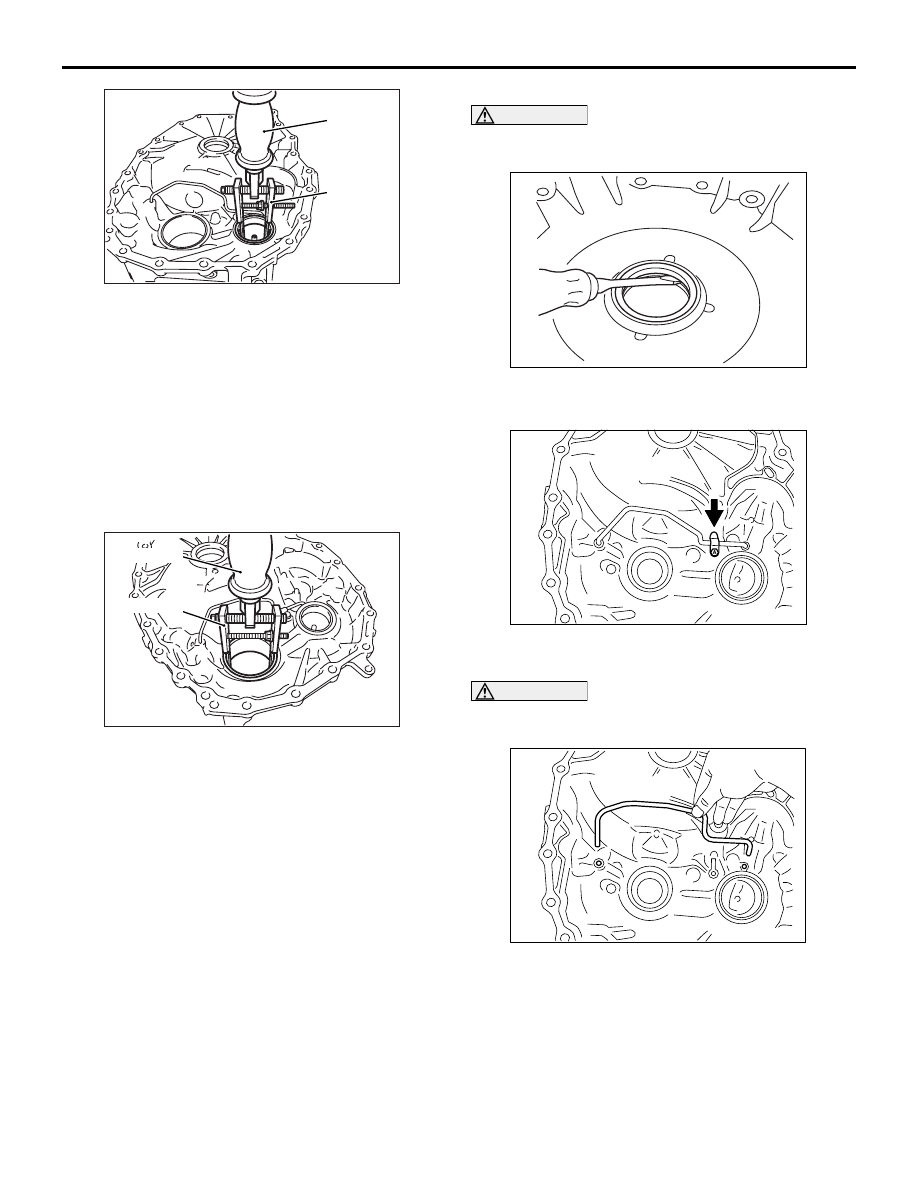

18.Using the special tools, remove the outer race of

reduction gear bearing from the converter
housing.

• Rear axle shaft oil seal remover (MB990590)

• Slide hammer puller (MB992039)

19.Using cylinder gage etc., measure the mounting

bore diameter of reduction gear bearing outer
race at the converter housing side; if the standard
value is not satisfied, then replace the converter
housing.

Standard value:

φ61.949 − 61.979 mm

AK502820AC

MB992039

MB990590

20.Using the special tools, remove the outer race of

differential side bearing from the converter
housing.

• Rear axle shaft oil seal remover (MB990590)

• Slide hammer puller (MB992039)

21.Using cylinder gage etc., measure the mounting

bore diameter of differential side bearing outer
race at the converter housing side; if the standard
value is not satisfied, then replace the converter
housing.

Standard value:

• φ67.949 − 67.979 mm <F1CJA>
• φ84.941 − 84.976 mm <W1CJA>

CAUTION

When removing the oil seal, be careful not to
cause damage to the converter housing.

AK502204

22.Using a flat blade screwdriver etc., remove the

converter housing oil seal from the housing.

AK502975AC

23.Remove the clip.

CAUTION

When removing the pipe, be careful not to strain
it.

AK502976

24.Remove the pipe from the converter housing.

AK603125

<F1CJA>

AG

AK502977

<W1CJA>

AG

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-25

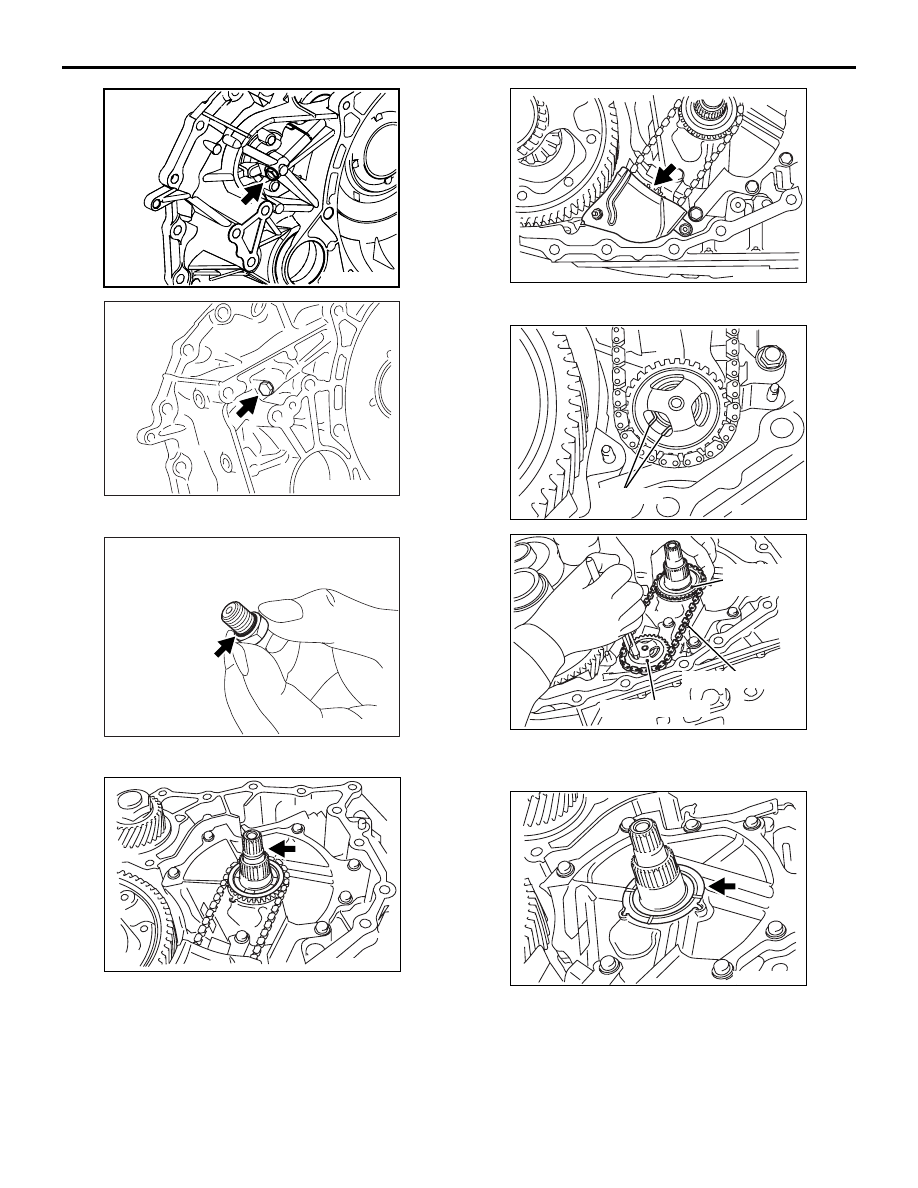

25.Remove the plug from the converter housing.

AK502774AC

26.Remove the O-ring from the plug.

AK502206AD

27.Remove the O-ring from the input shaft.

AK502207AD

28.Remove the chain cover.

AK502208AC

Snap ring

AK502209AC

Driven sprocket

Oil pump chain

Drive
sprocket

29.Expand the snap ring, and remove the driven

sprocket, oil pump chain, and drive sprocket.

AK502210AC

30.Remove the thrust washer from the oil pump

cover.

AK502211AC

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-26

31.Remove the snap ring from the oil pump.

AK502212

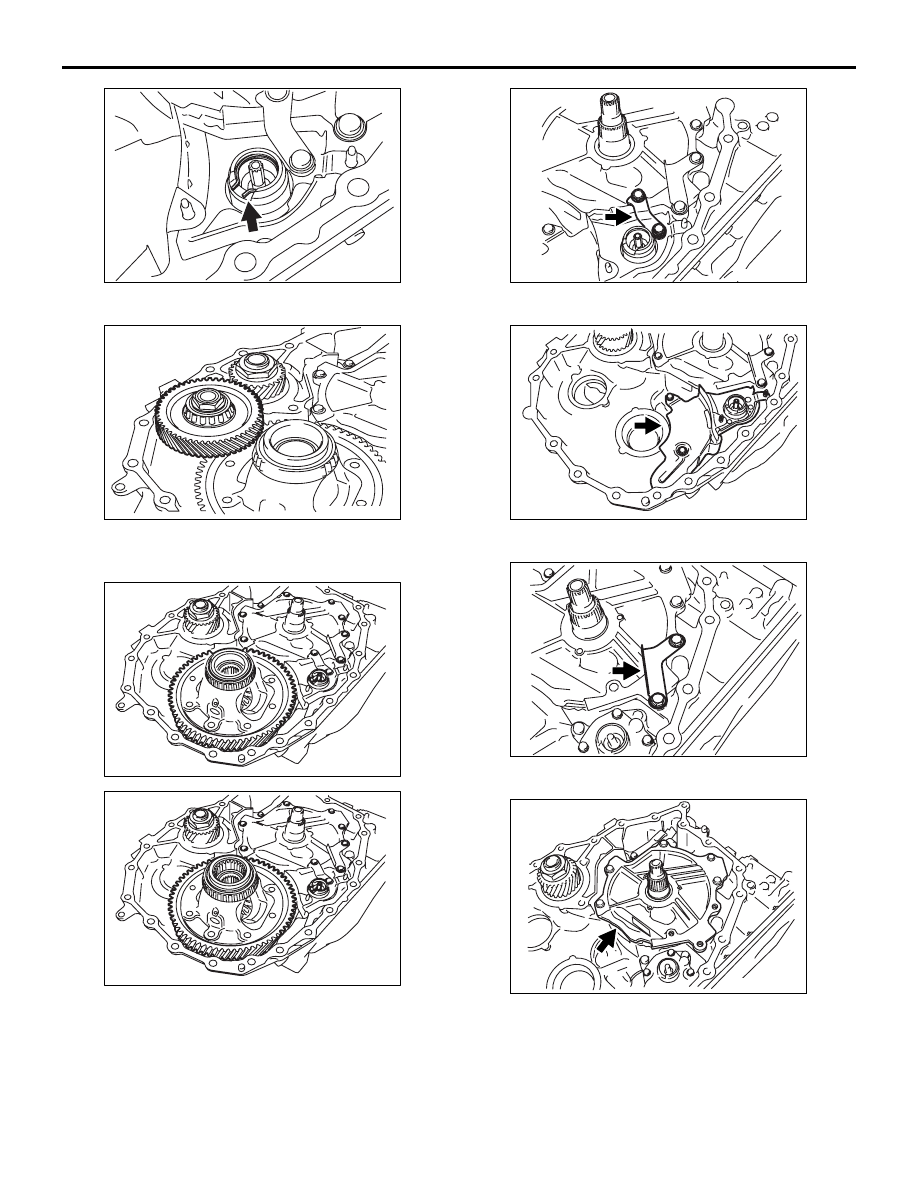

32.Remove the reduction gear assembly from the

transmission case.

AK605044

<F1CJA>

AD

AK502213

<W1CJA>

AE

33.Remove the differential assembly from the

transmission case.

AK502214AC

34.Remove the bracket.

AK502215AD

35.Remove the oil guide.

AK502216AD

36.Remove the baffle plate.

AK502217AC

37.Remove the oil pump cover from the transmission

case.

AK502218AC

TRANSMISSION

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-27

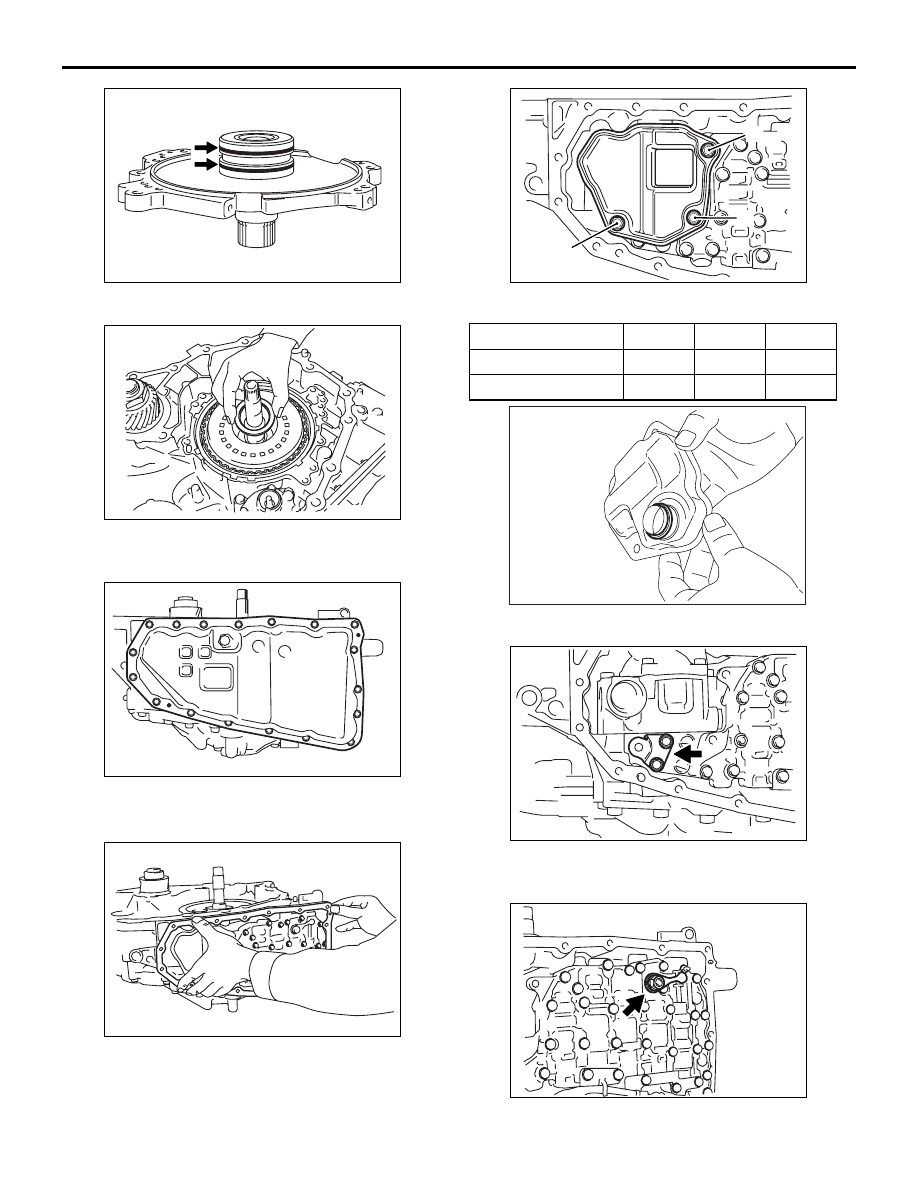

38.Remove the seal ring from the oil pump cover.

AK502219

39.Remove the needle bearing from the forward

clutch assembly.

AK502220

40.Remove the oil pan from the transmission case.

41.Remove the magnet from the oil pan.

AK502221

42.Remove the oil pan gasket from the transmission

case.

AK502222AC

C

B

A

43.Remove the oil strainer.

Bolt symbol

A

B

C

Shank length mm

12

44

12

Quantity

1

1

1

AK502780

44.Remove the O-ring from the oil strainer.

AK502223AC

45.Remove the bracket from the control valve

assembly.

AK502224AC

46.Remove the manual valve lever.
