TORQUE SPECIFICATIONS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-8

Adjusting shims (For adjustment of reduction gear preload)

Thickness mm

Identification

Thickness mm

Identification

0.56

−

1.32

−

0.60

−

1.36

−

0.64

−

1.40

−

0.68

−

1.44

−

0.72

−

1.48

−

0.76

−

1.52

−

0.80

−

1.56

−

0.84

−

1.60

−

0.88

−

1.64

−

0.92

−

1.68

−

0.96

−

1.72

−

1.00

−

1.76

−

1.04

−

1.80

−

1.08

−

1.84

−

1.12

−

1.88

−

1.16

−

1.92

−

1.20

−

1.96

−

1.24

−

2.00

−

1.28

−

TORQUE SPECIFICATIONS

M1233205000784

Transmission

Item

N

⋅m

Detent spring mounting bolt

6.9

Plug

7.5

Clip mounting bolt

5.9

Oil pump mounting bolt (M8 x 1.25 x 70 mm)

19

Oil pump mounting bolt (M8 x 1.25 x 36 mm)

28

Control valve assembly mounting bolt

7.9

Manual valve lever mounting nut

22.1

Bracket mounting bolt

7.9

Oil strainer mounting bolt

7.9

Oil pan mounting bolt

7.9

Drain plug

34.3

Oil guide mounting bolt

5.9

Bracket mounting bolt

26

SEALANTS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-9

Transfer

Item

N

⋅m

Transfer mounting bolt

68

± 9

Cover mounting bolt

12

± 2

SEALANTS

M1233206000345

Transmission

Item

Specified sealant and adhesive

Converter housing

Loctite 509

Transfer

Item

Specified sealant and adhesive

Cover

Mitsubishi Part No. MD997740 or equivalent

FORM-IN-PLACE GASKET (FIPG)

This transmission has several areas where the
form-in-place gasket (FIPG) is used for sealing. To
ensure that the FIPG fully serves its purpose, it is
necessary to observe some precautions when apply-
ing it. Bead size, continuity and location are of para-
mount importance.

Too thin a bead could cause leaks. Too thick a bead,
on the other hand, could be squeezed out of location,
causing blocking or narrowing of fluid passages. To
prevent leaks or blocking of passages, therefore, it is
absolutely necessary to apply the FIPG evenly with-
out a break, while observing the correct bead size.
FIPG hardens as it reacts with the moisture in the
atmospheric air, and it is usually used for sealing
metallic flange areas.

Baffle plate mounting bolt

19

Oil pump cover mounting bolt

19

Chain cover mounting nut

5.9

Converter housing mounting bolt

45

Manual control lever mounting nut

17.2

Inhibitor switch mounting bolt

5.5

Primary pulley speed sensor mounting bolt

5.9

Secondary pulley speed sensor mounting bolt

5.9

CVT fluid cooler mounting bolt

4.2

Plug

7.5

Control cable bracket mounting bolt

25

± 4

Oil filler tube mounting bolt

8.5

± 3.5

Harness bracket mounting bolt

25

± 4

Corrgate clump bracket mounting bolt

25

± 4

Air breather bracket mounting bolt

25

± 4

Roll rod adapter bracket mounting bolt

90

± 10

Reduction gear nut

250

Final gear mounting bolt

130

Item

N

⋅m

LUBRICANT(S)

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-10

CAUTION

When re-applying liquid gasket (FIPG), be sure
that:

1. Residues of FIPG are cleared from all the ins

and outs of parts;

2. Use Mitsubishi genuine parts cleaner

(MZ100387) or equivalent to well degrease the
FIPG-applied surface.

3. FIPG is correctly applied in accordance with

FIPG Application.

Disassembly

Parts sealed with a FIPG can be easily removed
without need for the use of a special method. In
some cases, however, the FIPG in joints may have to
be broken by tapping parts with a mallet or similar
tool.

Surface Preparation

Thoroughly remove all substances deposited on the
FIPG application surface, using a gasket scraper.

Make sure that the FIPG application surfaces is flat
and smooth. Also make sure that the surface is free
from oils, greases and foreign substances. Do not fail
to remove old FIPG that may remain in the fastener
fitting holes.

FIPG Application

Applied FIPG bead should be of the specified size
and free of any break. FIPG can be wiped away
unless it has completely hardened. Install the mating
parts in position while the FIPG is still wet. Do not
allow FIPG to spread beyond the sealing areas dur-
ing installation. Avoid operating the transmission or
letting oils or water come in contact with the sealed
area before a time sufficient for FIPG to harden
(approximately one hour) has passed.
FIPG application method may vary from location to
location. Follow the instruction for each particular
case described later in this manual.

LUBRICANT(S)

M1233200400453

Transmission

Item

Specified lubricant

CVT fluid application parts

MITSUBISHI MOTORS GENUINE CVTF-J4

Vaseline application parts

White vaseline (main ingredient: isoparaffinic
hydrocarbon)

Transfer

Item

Specified lubricant

Transfer oil application parts

MITSUBISHI MOTORS GENUINE super hypoid
gear oil API classification GL-5 SAE80

O-ring

MITSUBISHI MOTORS GENUINE CVTF-J4

Oil seal

Retinax A

SPECIAL TOOLS

M1233207000490

Transmission

Tool

Tool number

Name

Use

MB990590

A

B

MB990590

Real axle shaft oil
seal remover

Removal of outer race of reduction gear
bearing and differential side bearing

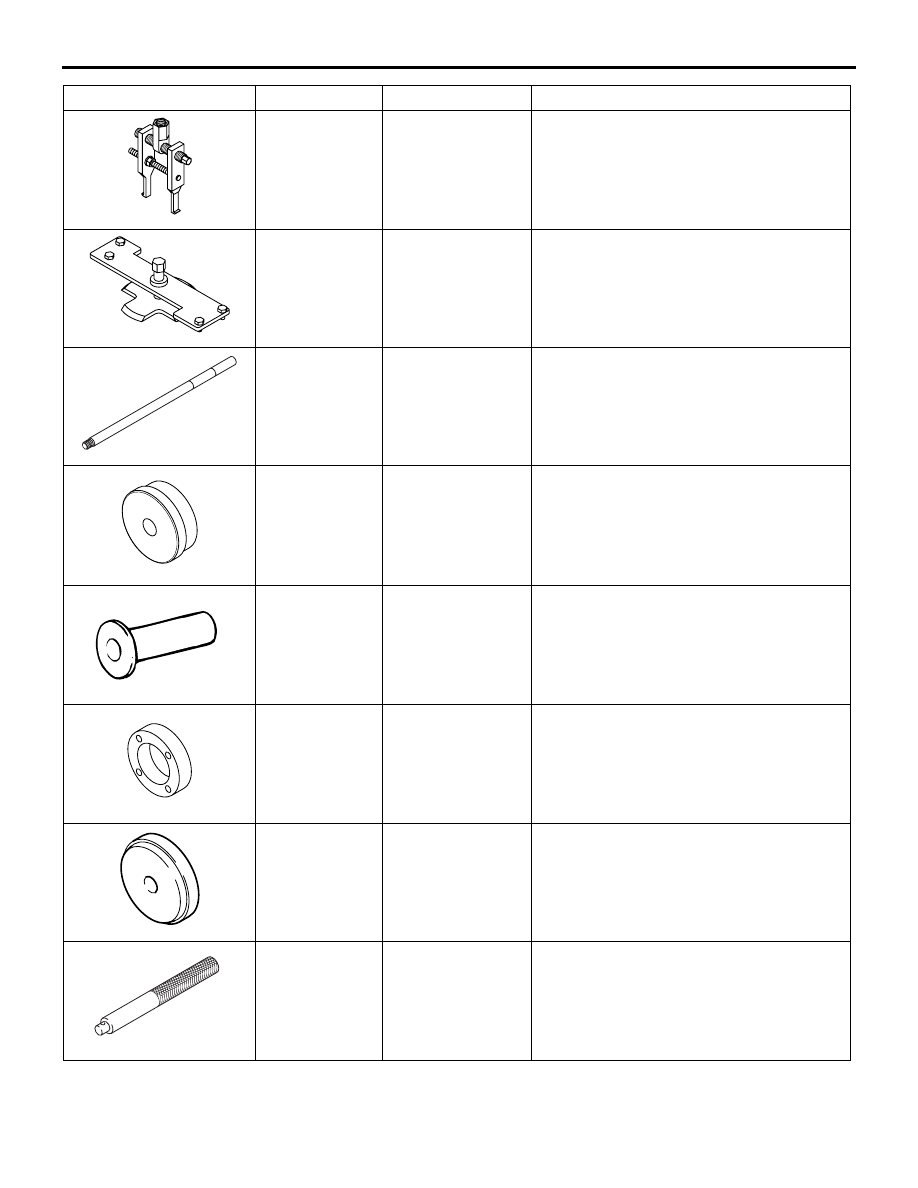

SPECIAL TOOLS

CONTINUOUSLY VARIABLE TRANSMISSION OVERHAUL

23B-11

MB992039

Slide hammer
puller

Removal of outer race of reduction gear
bearing and differential side bearing

MB992139

Spring compressor Removal and installation of reverse brake

MB990779

Bar

Installation of differential side bearing
outer race (converter housing side)
<F1CJA>

MB990780

Real axle shaft
bushing installer

Installation of differential side bearing
outer race (converter housing side
<F1CJA> and transmission case side)

MB991168

MB991168

Differential oil seal
installer

Installation of differential side bearing
outer race (converter housing side)
<W1CJA>

MB991702

Adapter

Installation of differential side bearing
outer race (converter housing side)
<W1CJA>

MB990932

Installer adapter

Reduction gear bearing outer race

MB990938

Installer bar

Reduction gear bearing outer race

Tool

Tool number

Name

Use
