TRANSMISSION CONTROL

CVT

23A-58

TRANSMISSION CONTROL

REMOVAL AND INSTALLATION

M1231203200753

Pre-removal and post-installation operation
• Inhibitor switch and control cable adjustment check (Refer

to

P.23A-49

.)

• Selector lever operation check (Refer to

P.23A-56

.)

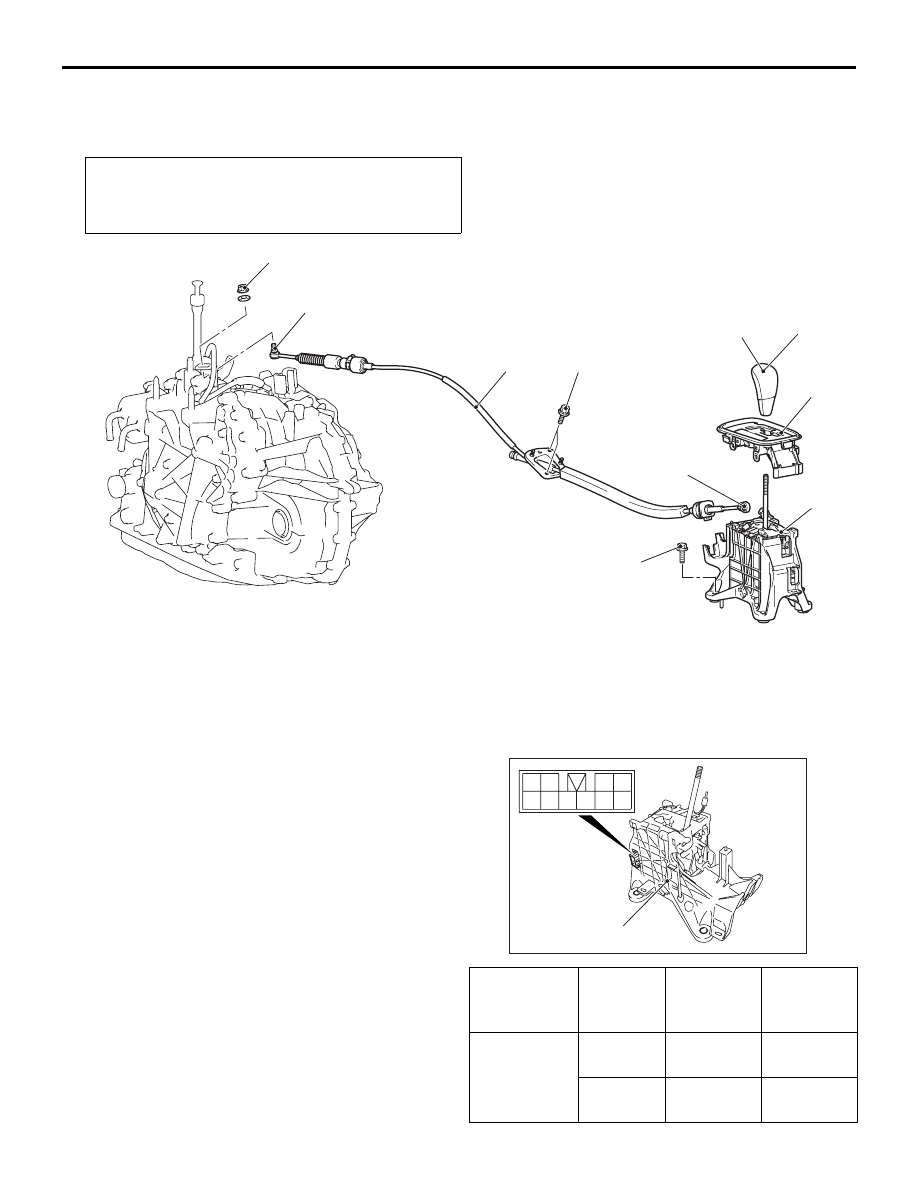

ACC00026AB

3

4

2

6

5

9.5 ± 3.5 N·m

7.0 ± 3.0 N·m

9.5 ± 3.5 N·m

1

4.3 ± 0.7 N·m

Selector lever assembly and
transmission control cable assembly
removal steps

•

Move the selector lever to the N
position.

1. Selector lever knob
2. Shift indicator panel
•

Floor console centre removal (Refer to
GROUP 52A

− Floor Console

Assembly .)

3. Transmission control cable connection

(selector lever side)

•

Connectors and harnesses connections

4. Selector lever assembly
•

Control unit cover, SRS-ECU (Refer to
GROUP 52B

− SRS-ECU .)

•

Battery and battery tray (Refer to
GROUP 54A

− Battery .)

•

Air Cleaner bracket (Refer to GROUP
15

− Air Cleaner .)

5. Transmission control cable connection

(transmission side)

6. Transmission control cable

SELECTOR LEVER ASSEMBLY
CONTINUITY CHECK

M1231220900012

SWITCH CHECK

ACB05437

9

3

2

1
5 6 7 8

4

10

AB

Selector lever assembly

Item

Selector
lever
position

Terminal
number

Continuity

P position
detect switch
<Vehicles
with KOS>

P

4

− 6

No
continuity

Other than
above

4

− 6

Continuity

TRANSMISSION CONTROL

CVT

23A-59

KEY LOCK REKAY CHECK <VEHICLES
WITHOUT KOS>

1. Shift the selector lever to P position.

2. Use a jumper wire to connect terminal No. 5 of the

selector lever assembly connector to the battery
(+) terminal, terminal No. 6 to the battery (-)
terminal. Then apply battery voltage.

3. Check for continuity between the selector lever

assembly connector terminals No. 4 and No. 5.

Jumper wire

Continuity between
terminals No. 4 and No. 5

Connect

Yes (2

Ω or less)

Disconnect

No

P position
detect switch
<Vehicles
without
KOS>

P

5

− 6

No
continuity

Other than
above

5

− 6

Continuity

Ds position
switch
<Vehicles
without
paddle shift>

Ds, L

8

− 9

Continuity

Other than
above

8

− 9

No
continuity

Item

Selector
lever
position

Terminal
number

Continuity

TRANSMISSION ASSEMBLY

CVT

23A-60

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION

M1231203601044

Pre-removal operation
• Engine room under cover removal (Refer to GROUP 51 −

Under Cover ).

• CVT fluid draining (Refer to

P.23A-48

).

• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cle Service ).

• Air cleaner bracket removal (Refer to GROUP 15 − Air

Cleaner ).

• Battery and Battery Tray Removal (Refer to GROUP 54A,

Battery ).

• Engine-ECU removal (Refer to GROUP 13D −

Engine-ECU ).

• Drive shaft removal (Refer to GROUP 26 ).

Post-installation operation
• Drive shaft installation (Refer to GROUP 26 ).
• Battery and battery tray installation (Refer to GROUP

54A, Battery ).

• Engine-ECU installation (Refer to GROUP 13D −

Engine-ECU ).

• Air cleaner assembly installation (Refer to GROUP 15 −

Air Cleaner ).

• Engine room under cover installation (Refer to GROUP 51

− Under cover ).

• Engine Coolant Refilling (Refer to GROUP 14 − On-vehi-

cle Service ).

• CVT fluid refilling (Refer to

P.23A-48

).

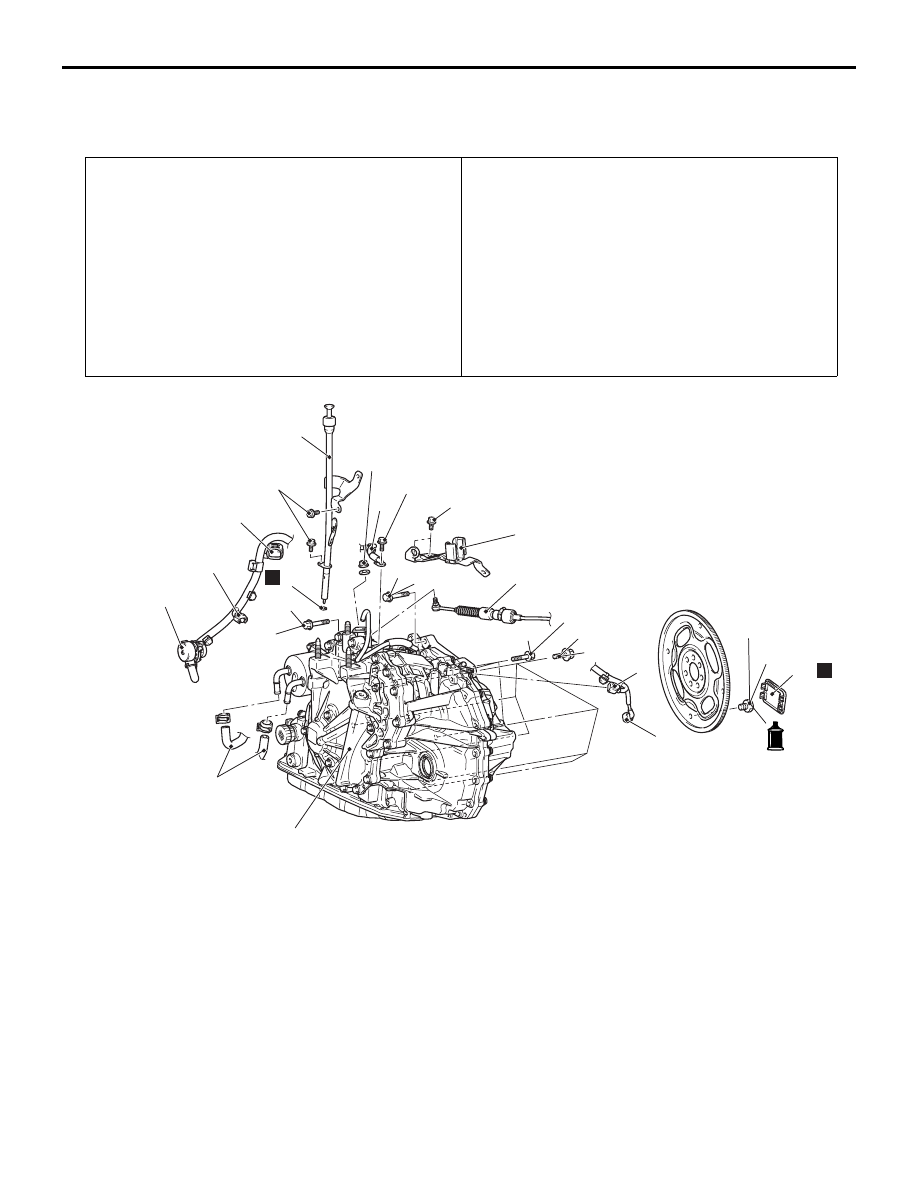

ACB04953AB

3

1

12

2

5

6

8

9

11

7

36 ± 9 N·m

48 ± 6 N·m

10

4

13

13

48 ± 6 N·m

8.5 ± 3.5 N·m

25 ± 4 N·m

25 ± 4 N·m

9.5 ± 3.5 N·m

17

48 ± 6 N·m

16

14

49 ± 3 N·m

15

N

N

(CVT fluid)

Removal steps

>>

C

<<

1.

Transmission control cable
connection

2.

Transmission control cable
bracket

3.

Secondary pulley speed
sensor connector

4.

Crank angle sensor
connector

5.

Battery earth

6.

Water hose connection

<<

A

>>

7.

CVT assembly connector
connection

8.

Primary pulley rotation
sensor connector

9.

Inhibitor switch connector

10. Oil filler tube assembly
11. O-ring
12. Starter mounting bolt

<<

B

>>

13. Transmission assembly

upper part coupling bolt

Removal steps

TRANSMISSION ASSEMBLY

CVT

23A-61

REMOVAL SERVICE POINTS

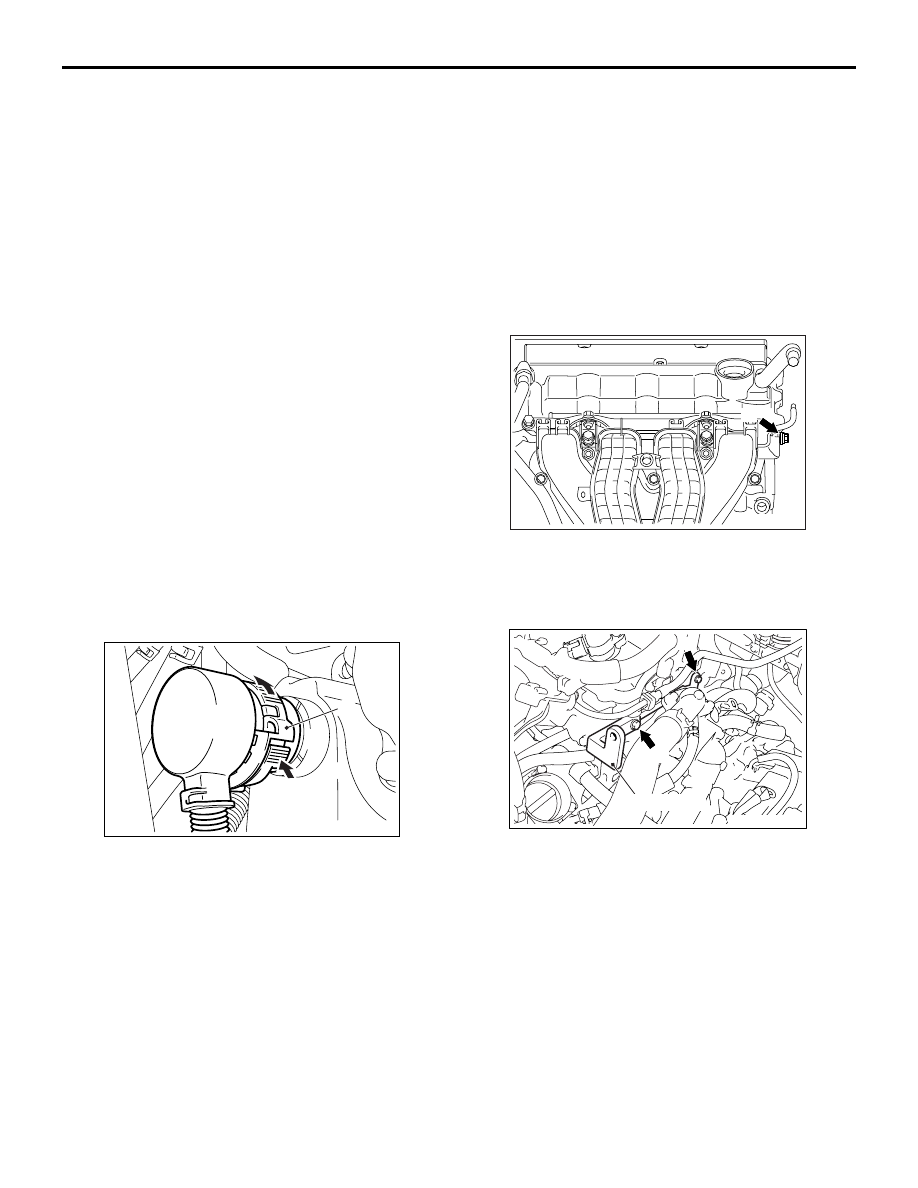

<<A>> CVT ASSEMBLY CONNECTOR
DISCONNECTION

AC610049

AB

A

B

While pressing A in the figure, turn B anti-clockwise
to unlock the CVT assembly connector, and discon-
nect the connector.

<<B>> TRANSMISSION ASSEMBLY
UPPER PART COUPLING BOLT
REMOVAL

Only loosen the bolts from the engine and transmis-
sion assembly (do not remove).

<<C>> TORQUE CONVERTER AND
DRIVE PLATE COUPLING BOLT
REMOVAL

1. Remove the coupling bolts while turning the

crankshaft.

2. Fully push the torque converter into the

transmission side so that it does not remain on the
engine side.

<<D>> INJECTOR PROTECTOR
MOUNTING BOLT REMOVAL

AC905012AB

A

Remove the injector protector mounting bolt (A
shown in the illustration).

<<E>> ENGINE ASSEMBLY HOLDING

ACB01874AB

MB992853

A

B

1. Tighten the engine hanger plate (special tool:

MB992853) to the specified torque at A in the
figure (injector protector rear mounting bolt) and B
in the figure (vacuum pipe assembly mounting
bolt).

Tightening torque: 20

± 2 N⋅m (A in the fig-

ure)
Tightening torque: 11

± 1 N⋅m (B in the fig-

ure)

14. Cover

<<

C

>>

15. Torque converter and drive

plate coupling bolt

•

Engine roll rod assembly
(Refer to GROUP 32

−

Engine Roll Stopper Rod )

•

Transfer assembly (Refer to

P.23A-64

.) <4WD>

•

While supporting the engine
and transmission assembly
with a garage jack.

•

Transmission mounting
bracket (Refer to GROUP 32
− Transmission Mounting )

<<

D

>>

>>

B

<<

•

Injector protector mounting
bolt

•

Vacuum pipe assembly
(Refer to GROUP 14

−

Water Hose and Water Pipe
.)

<<

E

>>

•

Engine assembly holding

16. Transmission assembly

lower part coupling bolt

>>

A

<<

17. Transmission assembly

Removal steps
