Mitsubishi Outlander (2013+). Manual - part 330

AC606019

Retainer

Fuel main pipe

AB

ON-VEHICLE SERVICE

FUEL SUPPLY

13B-4

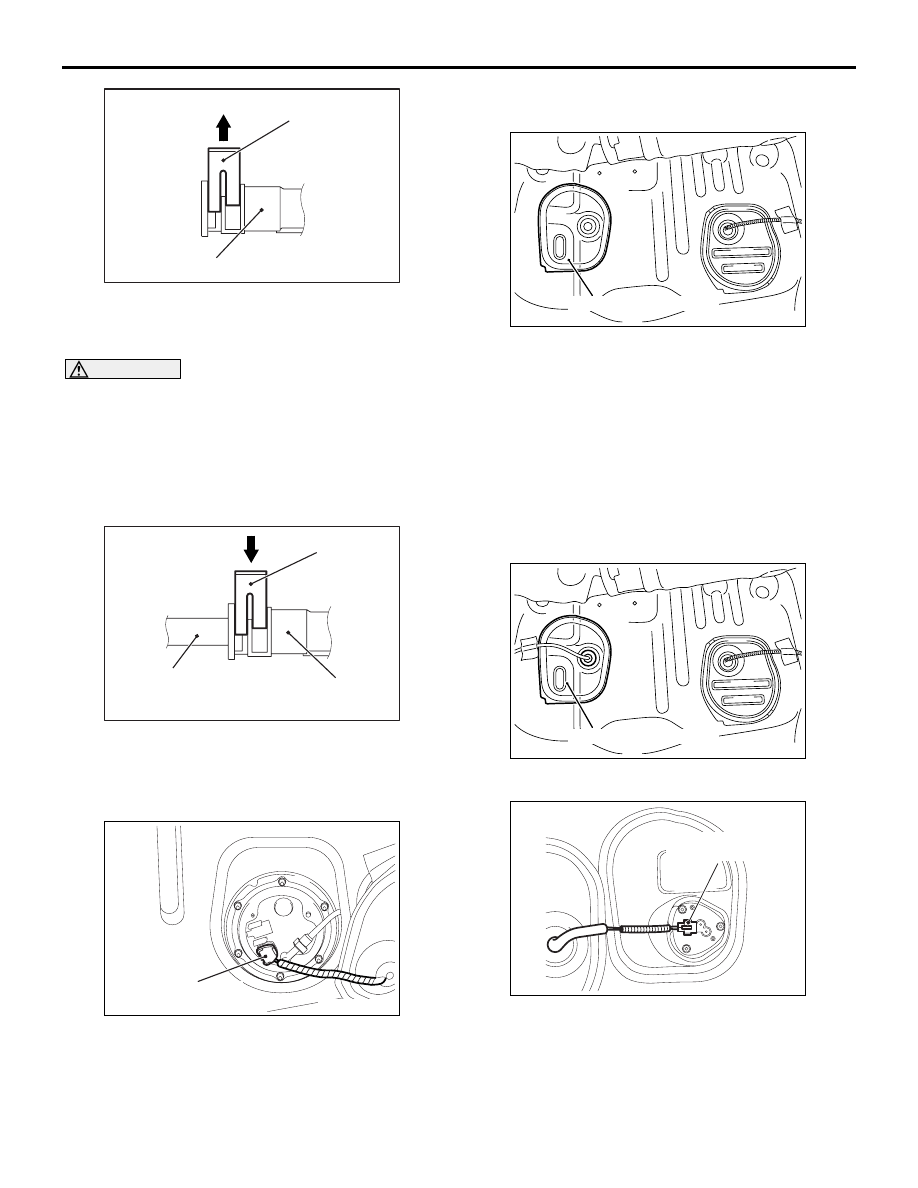

13.Pull up the retainer of fuel main pipe to unlock

before installing.

CAUTION

• When pushing in the retainer of the fuel main

pipe connector, pay attention to avoid dam-
age to the retainer.

•

AC606020

Retainer

Fuel main pipe

AJ

Fuel pump and
gauge assembly

After the installation of the fuel main pipe,
slightly pull the fuel main pipe to check that it
is connected securely. At this time, also
check that there is approximately 1 mm play.

14.Install the fuel main pipe to the fuel pump and

gauge assembly securely and push in the retainer
of the fuel main pipe connector to lock the fuel
main pipe and fuel pump and gauge assembly.

ACB05941AB

Fuel pump and gauge
assembly connector

15.Connect the fuel pump and gauge assembly

connector.

ACB05942

Floor inspection lid (RH)

AB

16.Install the floor inspection lid (LH).

17.Return the floor carpet to the original condition

and install the second seat assembly (Refer to
GROUP 52A

− Second Seat Assembly ).

FUEL GAUGE UNIT REPLACEMENT
<4WD>

M1135001400990

1. Remove the second seat assembly (Refer to

GROUP 52A

− Second Seat Assembly ), and turn

up the floor carpet.

ACB05943

Floor inspection lid (RH)

AB

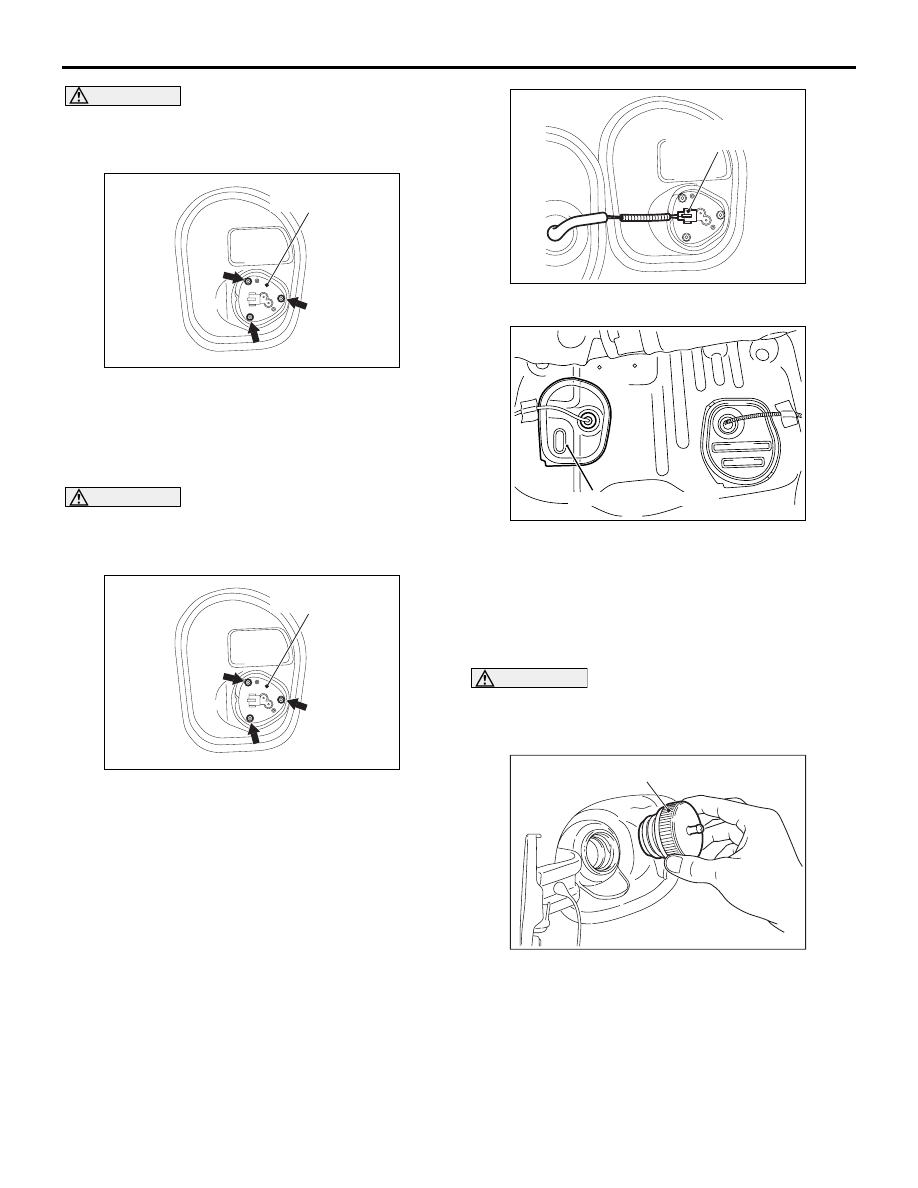

2. Remove the floor inspection lid (RH).

ACB05944AB

Fuel gauge
unit connector

3. Disconnect the fuel gauge unit connector.

ON-VEHICLE SERVICE

FUEL SUPPLY

13B-5

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel gauge unit when withdrawing it
from the service hole.

ACB05945AB

Fuel gauge unit

4. Remove the fuel gauge unit mounting nuts, and

remove the fuel gauge unit from service hole.

5. Replace the fuel gauge unit gasket with a new

one.

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel gauge unit when installing it to
the fuel tank through the service hole.

ACB05945AB

Fuel gauge unit

6. Install the fuel gauge unit to the fuel tank through

the service hole, and tighten the mounting nuts to
the specified torque.

Tightening torque: 2.5

± 0.4 N⋅m

ACB05944AB

Fuel gauge
unit connector

7. Connect the fuel gauge unit connector.

ACB05943

Floor inspection lid (RH)

AB

8. Install the floor inspection lid (RH).

9. Return the floor carpet to the original condition

and install the second seat assembly (Refer to
GROUP 52A

− Second Seat Assembly ).

FUEL LEAK CHECK OF FUEL TANK

M1135005900704

CAUTION

Always check the fuel leak of fuel tank with the
vehicle loaded. If it is checked with the fuel tank
removed, the fuel tank may be damaged.

AC600149

MB992145

AC

1. Remove the fuel tank cap, and install special tool

fuel leak check cap (MB992145).

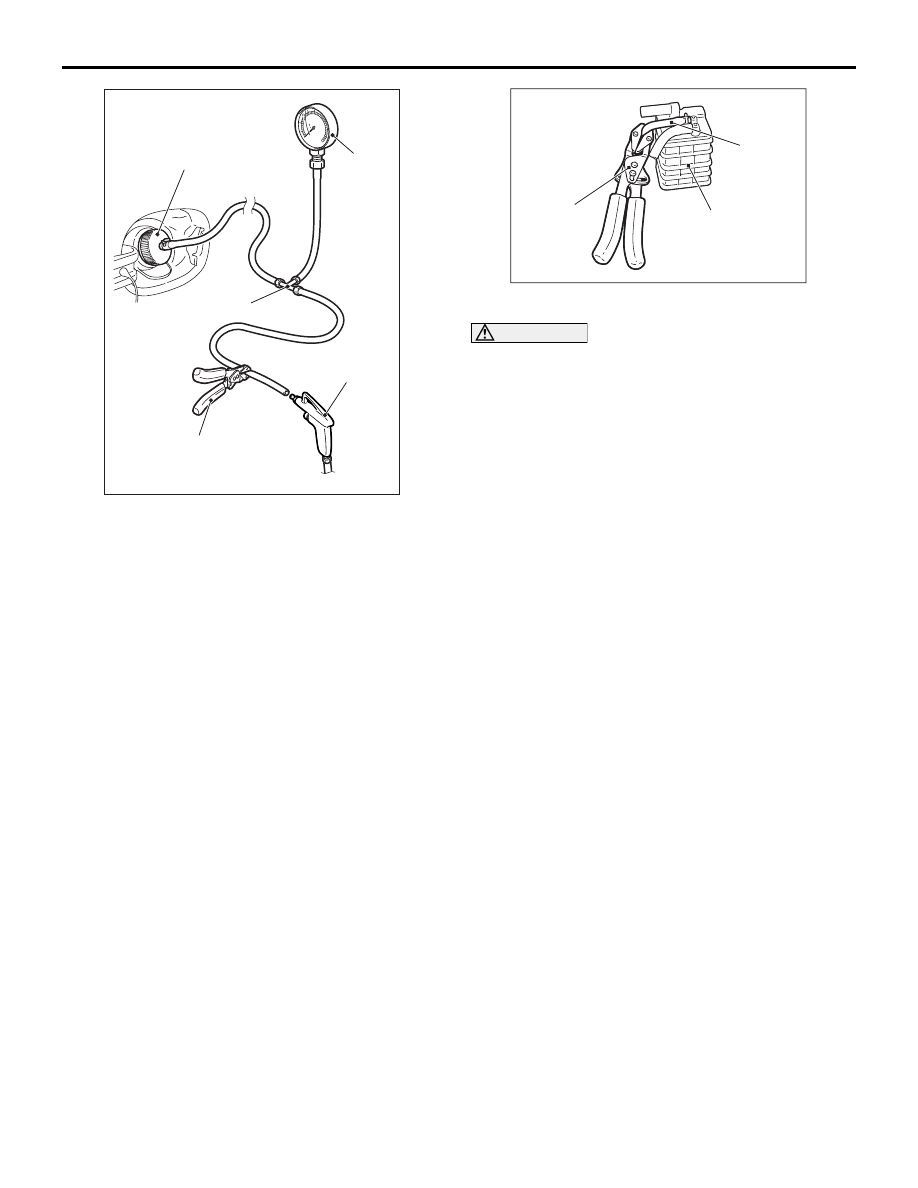

AC600150

MB992145

Pressure
gauge

Trigonal joint

Hose blocking pliers

Air gun

AB

ON-VEHICLE SERVICE

FUEL SUPPLY

13B-6

2. Install the hose and pressure gauge to the special

tool (MB992145) as shown.

AC605625AH

Hose
blocking
pliers

Canister
vapour
hose

Fuel vapour
canister

3. Block the canister vapour hose (fuel tank side).

CAUTION

• Do not pressurize suddenly.
• Do not pressurize 11.76 kPa or more to pre-

vent the damage of components.

4. Pressurize while checking the pressure gauge

and hold if it reaches from 9.80 to 11.76 kPa.

5. Leave it for approximately 3 minutes and check

that the pressure is not weakened.

6. If the pressure is weakened, apply soapy water to

each part with pressurized state and check the
leak while confirming if air bubbles are seen.

FUEL TANK <2WD>

FUEL SUPPLY

13B-7

FUEL TANK <2WD>

REMOVAL AND INSTALLATION <2WD>

M1135001904072

Pre-removal operation
• Fuel Pump Connector Disconnection (Refer to GROUP

13D

− On-vehicle Service, How to Reduce Pressurized

Fuel Lines ).

• Fuel Draining.

• Centre Exhaust Pipe Removal (Refer to GROUP 15 −

Exhaust Pipe and Main Muffler ).

Post-installation operation
• Centre Exhaust Pipe Removal (Refer to GROUP 15 −

Exhaust Pipe and Main Muffler ).

• Fuel Refilling.
• Fuel Leak Check (Refer to

P.13B-5

).

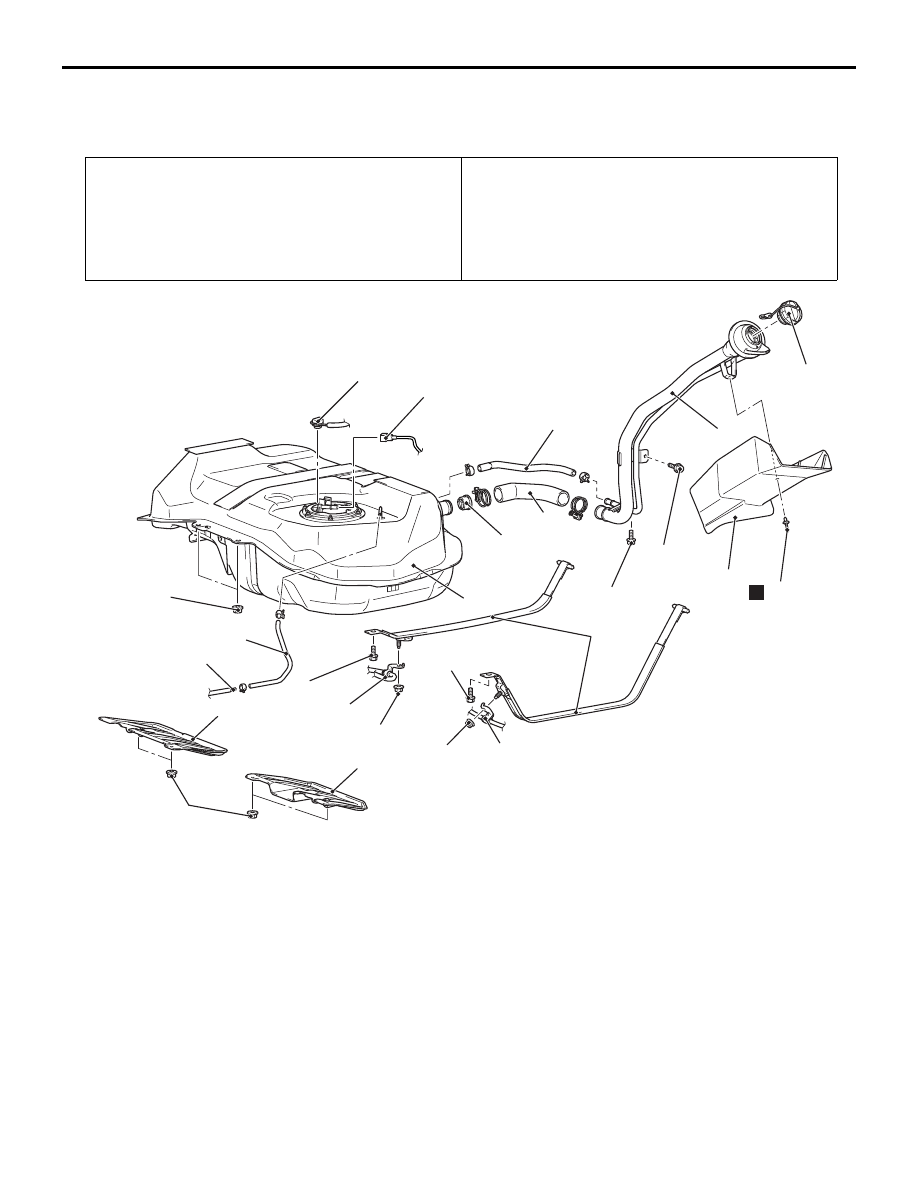

ACB05967

13 ± 2 N·m

13 ± 2 N·m

41 ± 10 N·m

41 ± 10 N·m

22 ± 5 N·m

20 ± 5 N·m

20 ± 5 N·m

9

8

10

11

5

8

6

1

2

3

15

14

7

4

4

13

AB

3.5 ± 1.5 N·m

12

N

Removal steps

•

Second seat assembly (Refer to
GROUP 52A

− Second Seat

Assembly ).

<<

A

>>

1.

Fuel pump and gauge assembly
connector

<<

A

>>

>>

C

<<

2.

Fuel main pipe connection

3.

Fuel vapour pipe connection

4.

Front floor under cover

>>

B

<<

5.

Fuel filler hose

6.

Fuel shut-off valve

7.

Fuel filler neck breather hose

8.

Parking brake rear cable clamp
connection

<<

B

>>

9.

Fuel tank band

<<

B

>>

10. Fuel tank assembly
11. Fuel tank cap

<<

C

>>

>>

A

<<

12. Rivet

<<

C

>>

>>

A

<<

13. Fuel filler neck protector
14. Fuel filler neck assembly
15. Fuel vapour hose

Removal steps (Continued)
