OIL PAN AND TIMING CHAIN CASE

ENGINE OVERHAUL

11B-22

REMOVAL SERVICE POINTS

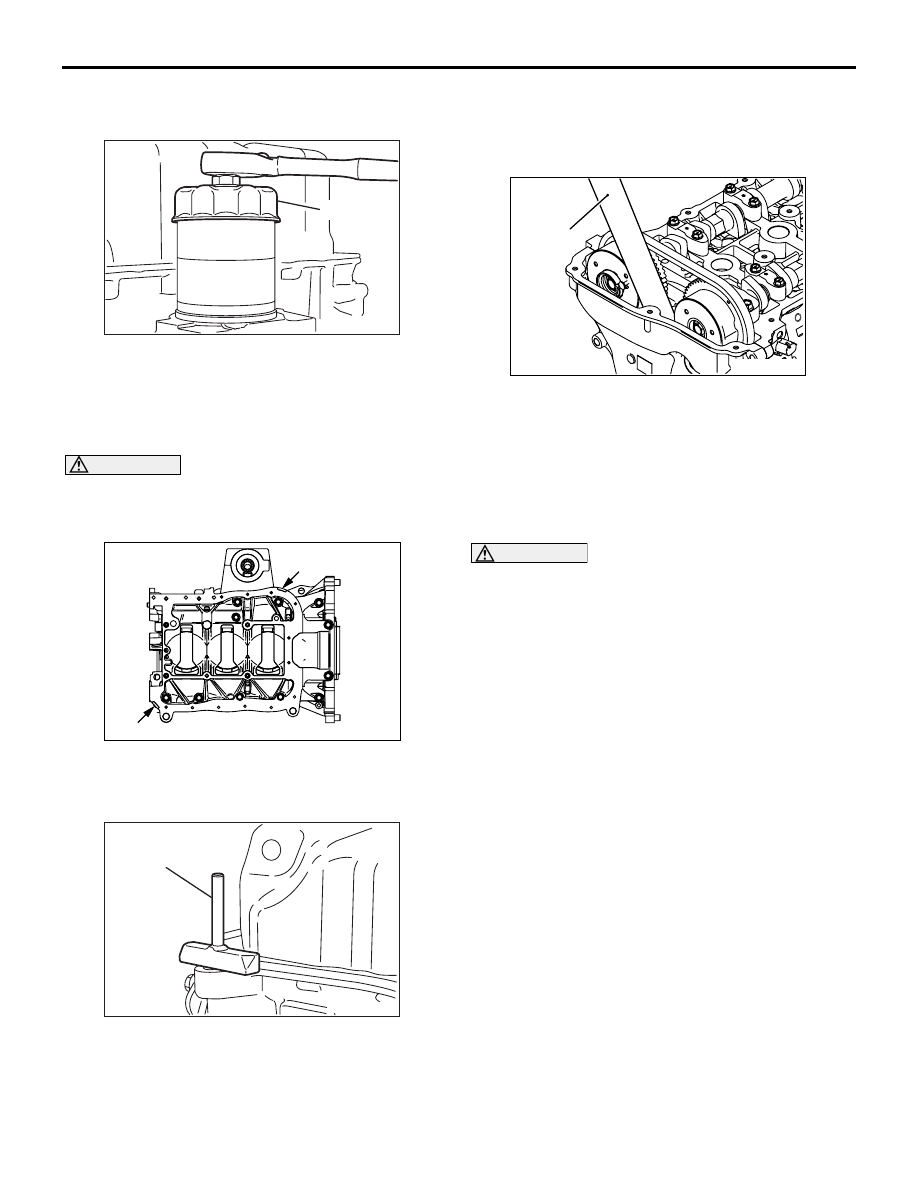

<<A>> OIL FILTER REMOVAL

AK502733AC

MB991396

Use special tool Oil filter wrench (MB991396) to
remove the oil filter.

<<B>> OIL PAN REMOVAL

1. Remove oil pan tightening bolts.

CAUTION

Lightly tap the oil pan FIPG cutter to drive in, tak-
ing care not to damage the ladder frame and oil
pan sealed area.

AK502874AC

Groove

Groove

2. Lightly tap special tool Oil pan FIPG cutter

(MD998727) to drive in the illustrated groove of
the oil pan and ladder frame.

AK502732AC

MD998727

3. Lightly tap and slide special tool Oil pan FIPG

cutter (MD998727) to remove the oil pan.

<<C>> TIMING CHAIN CASE REMOVAL

AK901126AC

Hammer

If the timing chain case is difficult to remove, insert a
hammer handle as shown in the illustration and
lightly pry it.

INSTALLATION SERVICE POINTS

>>A<< TIMING CHAIN CASE INSTALLA-
TION

CAUTION

• Completely remove all the old liquid gasket,

which might be remaining in the installation
hole, the O-ring groove or among the compo-
nents such as the cylinder head gasket.

• Sufficiently check that there is no residual oil

on the place where degreasing is performed.
If fingerprints are left, do not touch it with
bare hands after the degreasing, since the
oils from your fingers will harm the seal abil-
ity.

1. Completely remove liquid gasket adhering to the

timing chain case, cylinder block and cylinder
head.

2. Degrease the surface where the liquid gasket is

applied and the contact surface between the
cylinder block and the cylinder head.

AK703733

4.5 ± 0.5 mm

3 ± 0.5 mm

1 ± 0.5 mm

3 ± 0.5 mm

A

A

B-B view

A-A view

2.5 mm

D

AE

B

A

A

G

C

C-C view

C

B

B

7.5 ± 0.5 mm

Ø4.5 ± 0.5 mm

Ø2.5 ± 0.5 mm

Ø2.5 ± 0.5 mm

Ø2.5 ± 0.5 mm

Ø2.5 ± 0.5 mm

OIL PAN AND TIMING CHAIN CASE

ENGINE OVERHAUL

11B-23

CAUTION

Install the timing chain case within three minutes
after applying the liquid gasket.

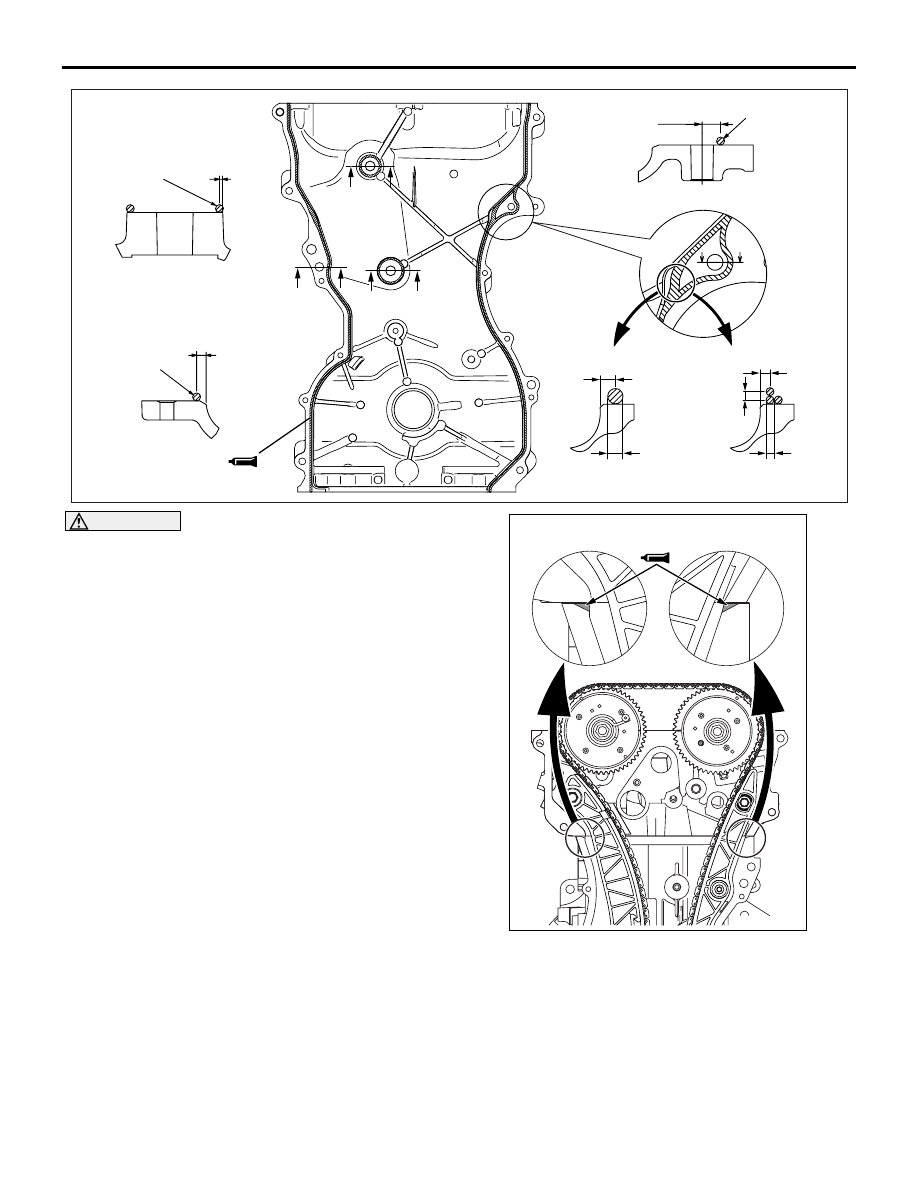

3. Apply liquid gasket of 2.5

± 0.5 mm in thickness to

the timing chain case. For the place "D" shown in
the illustration, however, apply the liquid gasket
whose diameter is 4.5

± 0.5 mm or pile up the

liquid gasket of 2.5

± 0.5 mm as shown in the

illustration.

Specified sealant:

ThreeBond 1217G or equivalent

AK703734AC

4. The engine oil staying at the cylinder gasket

oozes to the 3-plane contact surface described in
Step 2 and 3. Swiftly apply the liquid gasket to this
area after degreasing.

Specified sealant:

ThreeBond 1217G or equivalent

AK502378

A

A

A

A

A

A

B

B

B

B

B

B

C

D

AI

A: M8 × 30
B: M6 × 25

C: M6 × 25

D: M8 × 10

OIL PAN AND TIMING CHAIN CASE

ENGINE OVERHAUL

11B-24

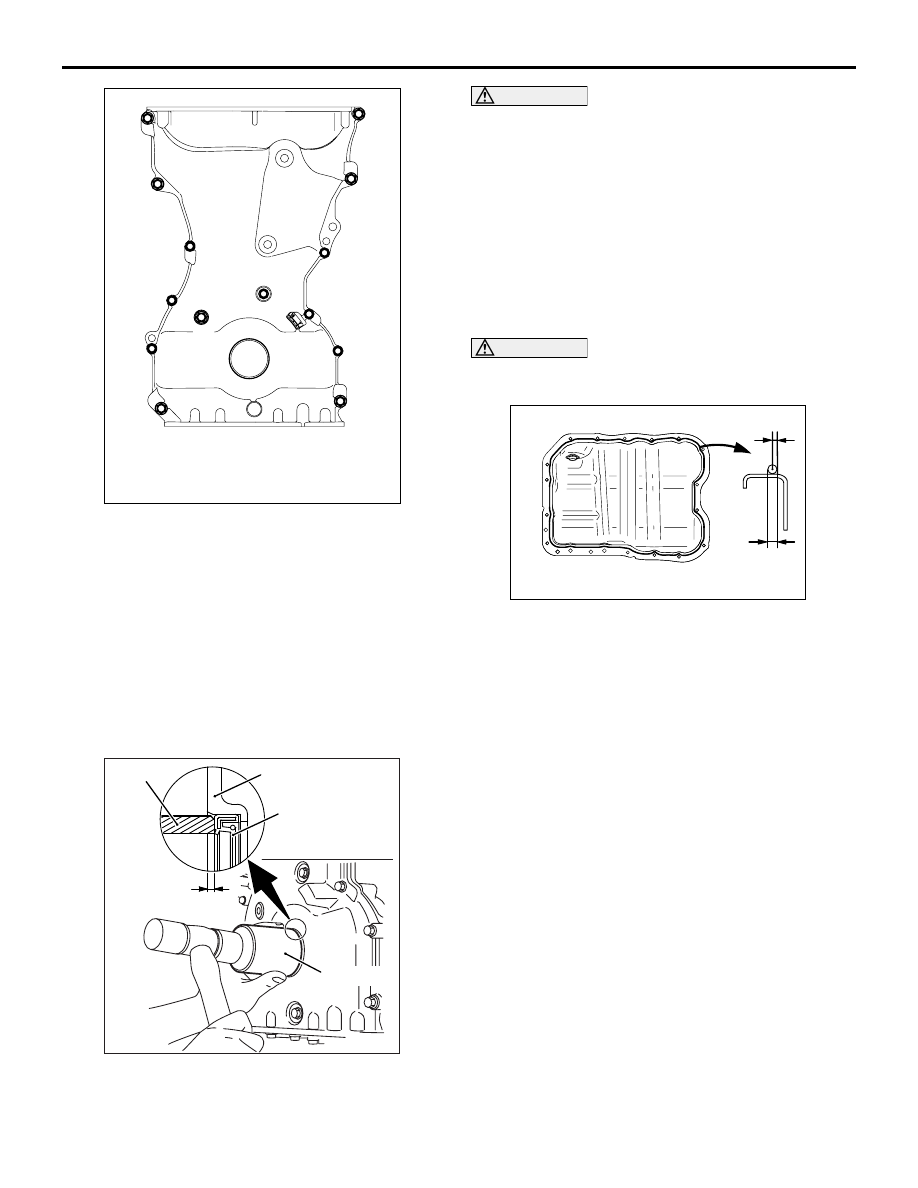

5. Tighten timing chain case mounting bolts to the

specified torque.

Tightening torque

A: 24

± 4 N⋅m

B: 10

± 2 N⋅m

C: 10

± 2 N⋅m

D: 13

± 1 N⋅m

>>B<< FRONT OIL SEAL INSTALLATION

1. Apply a small amount of engine oil to the entire

inner diameter of the front oil seal lip.

AK800005

1.5 – 2.5 mm

AB

MB991448

Chain case

Oil seal

MB991448

CAUTION

The front oil seal must not be a strong press fit.
The strong press fit can possibly cause the oil
leakage, damaging the front oil seal.
2. Use special tool Bush remover and installer base

(MB991448) in order to press-fit the front oil seal
into the timing chain case as shown in the
illustration.

>>C<< OIL PAN INSTALLATION

1. Completely remove liquid gasket adhering to the

cylinder block and oil pan.

CAUTION

Install the oil pan within three minutes after liquid
gasket is applied.

AK502377AC

1 mm

2.5 ± 0.5 mm

Ø

2. Apply liquid gasket of

φ2.5 ± 0.5 mm of thickness

in diameter to the illustrated area of the oil pan.

Specified sealant:

ThreeBond 1217G or equivalent

3. Tighten the oil pan to the specified torque of 10

±

2 N

⋅m (M6) and 29 ± 2 N⋅m (M8).

>>D<< CYLINDER HEAD COVER
INSTALLATION

1. Completely remove liquid gasket adhering to the

cylinder head cover, timing chain case and
cylinder head.

2. Degrease the surface where the liquid gasket is

applied and the contact.

AK901127



4 mm

2 mm



4 mm

2 mm

AC

Timing chain case

Cylinder head

OIL PAN AND TIMING CHAIN CASE

ENGINE OVERHAUL

11B-25

CAUTION

Install the cylinder head cover immediately after
liquid gasket is applied.
3. Appropriately use a minimum amount of sealant.

Besides, be careful not to allow sealant to
squeeze out from the application area.

Apply liquid gasket of 4 mm of thickness in
diameter.

Specified sealant:

ThreeBond 1217G or equivalent

AKB00057AB

8

14

13

12

15

16

1

3

9

10

7

4

2

5

6

11

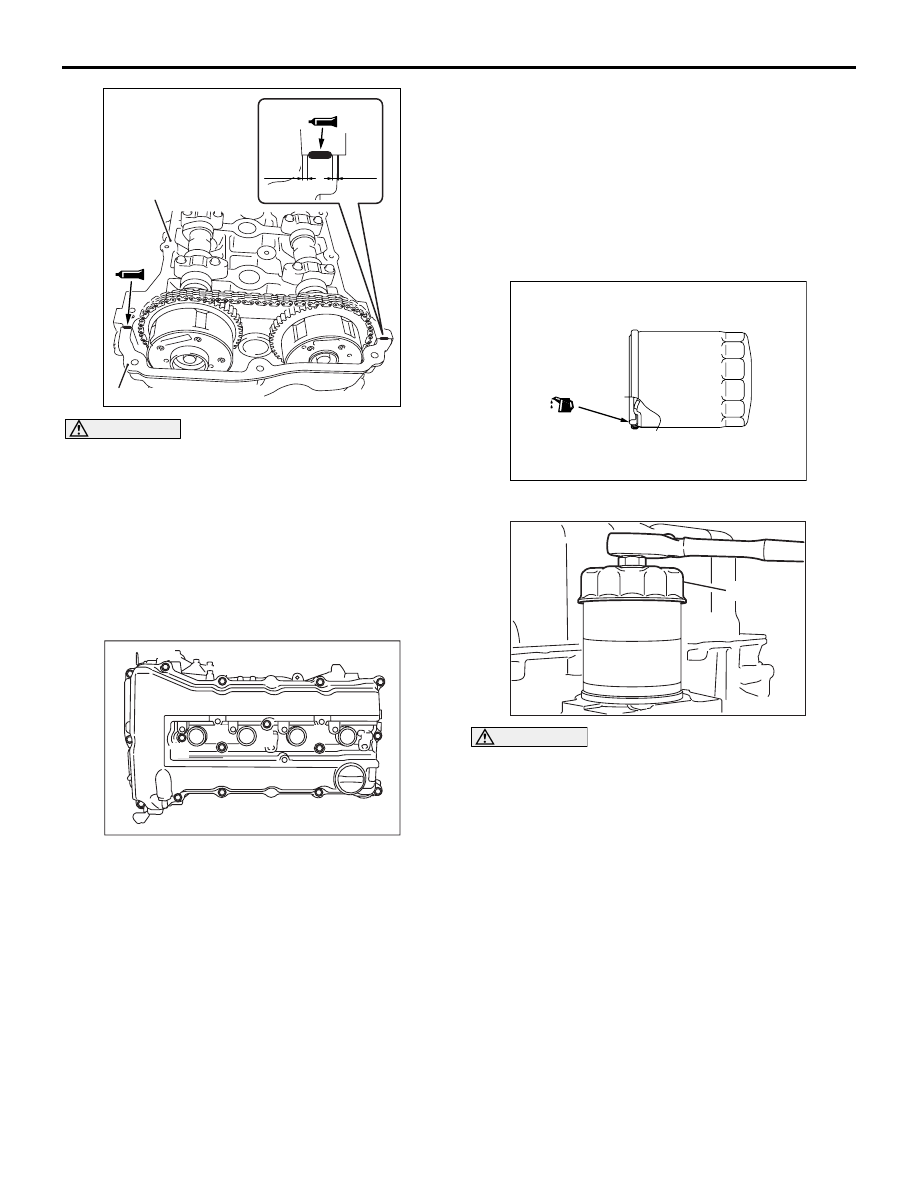

4. Tighten the cylinder head cover to the tightening

torque of 3.0

± 1.0 N⋅m in the order shown in the

illustration.

5. Then, tighten it to the specified torque of 5.5

± 0.5

N

⋅m in the same order.

>>E<< OIL FILTER INSTALLATION

1. Clean the oil filter mounting surface of the ladder

frame.

AK305422AB

2. Apply engine oil to the O-ring of the oil filter.

AK502733AC

MB991396

CAUTION

Use special tool Filter wrench (MB991396) to
install the oil filter. Tightening it by hand causes
oil leakage due to lack of torque.
3. Screw in the oil filter. When the O-ring contacts

the mounting surface, use a filter wrench to
tighten it 1 turns (14

± 2 N⋅m).
