COMBINATION METER

CHASSIS ELECTRICAL

54A-26

SERVICE REMINDER

When the inspection interval (alert start point in table
below) is due in accordance with the predetermined
schedule (see table below), the service reminder
indicator will be displayed when the ignition switch is
turned to the ON position. However, even if the warn-

ing condition is met, the indicator does not display
immediately. It illuminates next time when the ignition
switch is turned ON. The impending inspection inter-
val can be displayed by changing the LCD section by
the meter information switch. The service reminder
indicator will go off when it is reset by operating the
meter information switch according to the specified

procedure

*

, or the warning criteria (end point) shown

in the table below is satisfied.

NOTE:

.

•

*

: For details about the meter information switch

special operation, refer to the Workshop Manual.

SCHEDULE TABLE

WARNING CRITERIA (WARNING START AND END POINTS)

MULTI INFORMATION DISPLAY <HIGH
CONTRAST METER>

M2545500500548

In the multi-information display, followings are dis-
played; "Drive mode indicator", "Caution mark",
"FCM OFF", "LDW indicator", "ECO mode indicator",
"Cruise control", "TRIP A", "TRIP B", "Meter illumina-
tion control", "Driving range" and "ECO drive assist",
"Average fuel consumption", "Average speed/Instant
fuel consumption", "AS&G status", "ECO score indi-

cator", "Service reminder

*

", "Function setting

*

",

"Selector lever position", "Engine coolant tempera-
ture", "Fuel remaining", "AS&G status display
screen", "Odometer", "Outside temperature". Dis-
played contents can be switched by operating the
meter information switch.

NOTE:

.

•

*

: Is not displayed during driving.

ACC01997AB

Service reminder indicator

Schedule

Warning type

Warning criteria

Normal

Elapsed time (month)

Every 12 elapsed months

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning start
point

Warning end
point

Warning start
point

Warning end
point

Warning start
point

Warning end
point

−30 days

+30 days

− 500 km

+500 km

− 300 miles

+300 miles

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-27

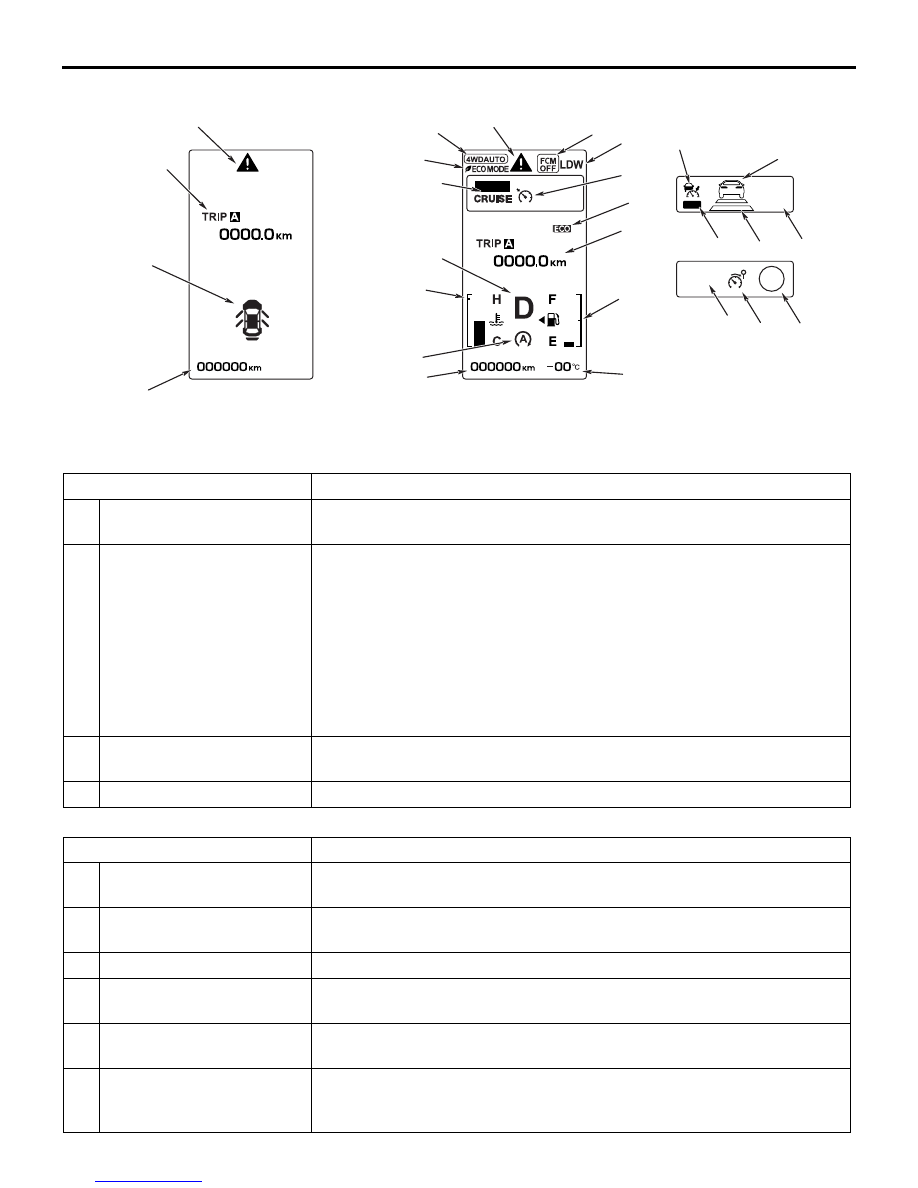

WHEN THE IGNITION SWITCH IS IN THE LOCK (OFF) POSITION (DISPLAYED WHEN A DOOR IS OPEN
OR THE MULTI INFORMATION METER SWITCH IS OPERATED.)

WHEN THE IGNITION SWITCH IS ON POSITION

Item

Content

1

Caution mark display
screen

It indicates when some warnings have occurred or existence of warning
on background. Except for frost warning and service interval indication.

2

Information screen/interrupt
display screen

• When the meter information switch is operated, the displayed

information contents are changed in the following order.
1. TRIP A (To reset the trip meter, press and hold the switch.)
2. TRIP B (To reset the trip meter, press and hold the switch.)
3. AS&G status (To reset the AS&G status, press and hold the switch.)
4. Service reminder (When service reminder function is enabled.)
5. Warning screen display (When a warning is present.)

• An interrupt display of appropriate contents is performed when a

warning is issued.

3

Door-ajar warning display
screen

Displays the door or tailgate that is open.

4

Odometer display screen

Displays the odometer.

ACC01940

SET

SET

120

km/h

OVER
LIMIT

120

km/h

AB

When the ignition switch is LOCK (OFF), ACC position

When the ignition switch is ON position

1

2

3

4

9

10

17

16

19

22

6

5

21

7

8

10

11

11

11

12

13

14

12

18

20

15

10

Item

Content

5

Drive mode indicator
display screen

Displays which driving mode is selected.

6

Caution mark display
screen

It indicates when some warnings have occurred or existence of warning
on background. Except for frost warning and service interval indication.

7

FCM OFF display screen

Is displayed when the FCM is turned off.

8

LDW indicator display
screen

Changes according to the LDW status.

9

ECO mode indicator
display screen

Displayed when the ECO mode switch is on.

10

ACC/Cruise control/speed
limiter symbol display
screen

Displayed when the ACC/cruise control/speed limiter system is on.

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-28

11

ACC main/cruise
control/speed limiter status
display screen

Displays a ACC/cruise control system/speed limiter status.

12

Display screen for ACC set
speed/speed limiter set
speed

Displays the vehicle speed which the driver sets.

13

Display screen for
recognising a vehicle
travelling ahead for ACC
system

Displays when the ACC system detects a vehicle travelling ahead. The
graphic icon is outlined on a coloured background when the system is
READY. When the system becomes active, that icon will be highlighted.

14

Display screen for set
vehicle distance from a
vehicle travelling ahead for
ACC system

Changes according to the vehicle distance which is set by using "Vehicle
distance set switch" of the cruise control switch.

15

ECO lamp indicator display
screen

Displayed when the ECO lamp indicator makes the driver aware of
economical driving to reduce fuel consumption.

16

Information screen/interrupt
display screen

• When the meter information switch is operated, the displayed

information contents are changed in the following order.
1. Trip meter (A) (To reset the trip meter, press and hold the switch.)
2. Trip meter (B) (To reset the trip meter, press and hold the switch.)
3. Driving range and ECO drive assist
4. Average fuel consumption (To reset the average fuel consumption,

press and hold the switch.)

5. Average speed/Instant fuel consumption (To reset the average

speed/Instant fuel consumption, press and hold the switch.)

6. AS&G status/ECO score indicator (To reset the AS&G status, press

and hold the switch.)

7. Service reminder (When service reminder function is enabled.)
8. Function setting screen (Appears when the vehicle is stopped, the

selector lever is in the "P" position, and the parking brake is ON) (To
display the setting screen, press and hold the switch.)

9. Warning screen display (When a warning is present.)

• An interrupt display of appropriate contents is performed when a

warning is issued.

17

Selector lever position
display screen

Displays the selector lever position.

18

Engine coolant temperature
display screen

Displays the engine coolant temperature.

19

Fuel remaining display
screen

Displays the remaining fuel amount.

20

AS&G status display
screen

Displays a AS&G system status.

21

Odometer display screen

Displays the odometer.

22

Outside temperature
display screen

Displays the ambient temperature.

Item

Content

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-29

METER ILLUMINATION CONTROL

The brightness of the combination meter can be
adjusted in eight stages (LEVEL 1 to LEVEL 8) by
pushing the rheostat illumination switch when the
meter is illuminated. Current illumination level will be
displayed each time the rheostat illumination switch
is pushed. The illumination level can be changed by
operating the rheostat illumination switch according

to specified procedure

*

. The brightness of each

brightness level is as described in the table below.

NOTE: The brightness can be set separately for the
daytime and nighttime. The configured information is
stored in the RAM. In the initial setting of brightness,
the daytime is set at LEVEL 8 and the nighttime is
set at LEVEL 7.

BRIGHTNESS LEVEL TABLE

SERVICE REMINDER FUNCTION

When the inspection interval (alert start point in table
below) is due in accordance with the predetermined
schedule (see table below), the service reminder
indicator will be displayed when the ignition switch is
turned to the ON position. However, even if the warn-
ing condition is met, the indicator does not display
immediately. It illuminates next time when the ignition
switch is turned ON. The impending inspection inter-
val can be displayed by changing the LCD section by

the meter information switch. The service reminder
indicator will go off when it is reset by operating the
meter information switch according to the specified

procedure

*

, or the warning criteria (end point) shown

in the table below is satisfied.

NOTE:

*

: For details about the meter information

switch special operation, refer to the Workshop Man-
ual.

SCHEDULE TABLE

WARNING CRITERIA (WARNING START AND END POINTS)

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

LEVEL 8

100%

100%

100%

100%

100%

100%

LEVEL 7

90%

22.3%

90%

22.3%

90%

19%

LEVEL 6

81%

10.9%

81%

10.9%

81%

9.3%

LEVEL 5

71%

5.3%

71%

5.3%

71%

4.6%

LEVEL 4

61%

2.5%

61%

2.5%

61%

2.3%

LEVEL 3

51%

1.2%

51%

1.2%

51%

1.1%

LEVEL 2

42%

0.5%

42%

0.5%

42%

0.6%

LEVEL 1

32%

0.2%

32%

0.2%

32%

0.3%

Schedule

Warning type

Warning criteria

Normal

Elapsed time (month)

Every 12 elapsed months

Driving distance (miles)

Every 12,500 miles of driving distance

Driving distance (km)

Every 20,000 km of driving distance

Elapsed time

Driving distance (km)

Driving distance (miles)

Warning start
point

Warning end
point

Warning start
point

Warning end
point

Warning start
point

Warning end
point

−30 days

+30 days

− 500 km

+500 km

− 482.80 km

+300 miles
