GENERAL INFORMATION

WHEEL AND TYRE

31-2

GENERAL INFORMATION

M2310000102022

The wheels and tyres of the following specifications
have been established.

SPECIFICATIONS

Road wheel and tyre

<2000>

<2400>

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

Spare wheel and tyre

NOTE: PCD indicates the pitch circle diameter of the wheel installation holes.

Item

Standard

Option <4WD>

Wheel

Type

Steel type

Aluminium type

Aluminium type

Size

16

× 6.5JJ

16

× 6.5J

18

× 7J

Amount of wheel offset mm

38

38

38

PCD mm

114.3

114.3

114.3

Tyre

Size

215/70R16 100H

215/70R16 100H

225/55R18 98H

Item

Standard

Option

Wheel

Type

Aluminium type

Aluminium type

Size

16

× 6.5J

18

× 7J

Amount of wheel offset mm

38

38

PCD mm

114.3

114.3

Tyre

Size

215/70R16 100H

225/55R18 98H

Item

Standard

Option

Wheel

Type

Steel type

Aluminium type

Size

16

× 6.5JJ

18

× 7J

Amount of wheel offset mm

38

38

PCD mm

114.3

114.3

Tyre

Size

215/70R16 100H

225/55R18 98H

Downloaded from

www.Manualslib.com



manuals search engine



32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL INFORMATION . . . . . . . .

32-2

Downloaded from

www.Manualslib.com



manuals search engine



GENERAL INFORMATION

POWER PLANT MOUNT

32-2

GENERAL INFORMATION

M2320000101503

New pendulum engine mounting system reduces
noise and vibration, which has the following features.

• The power train mass is supported in line with the

axis of inertia and torque reaction is controlled by
roll-rod stopper with longitudinal force in stead of
vertical force, sensitive to noise and vibration.

• Roll-rod stopper has two rubber-to-metal bush-

ings including large voided bushing and reduces
vibration and noise doubly.

• Enlarged right-hand engine mount, incorporating

a hydraulic chamber, reduces transmission of
noise and vibration in common use and
enhances ride quality on rough roads.

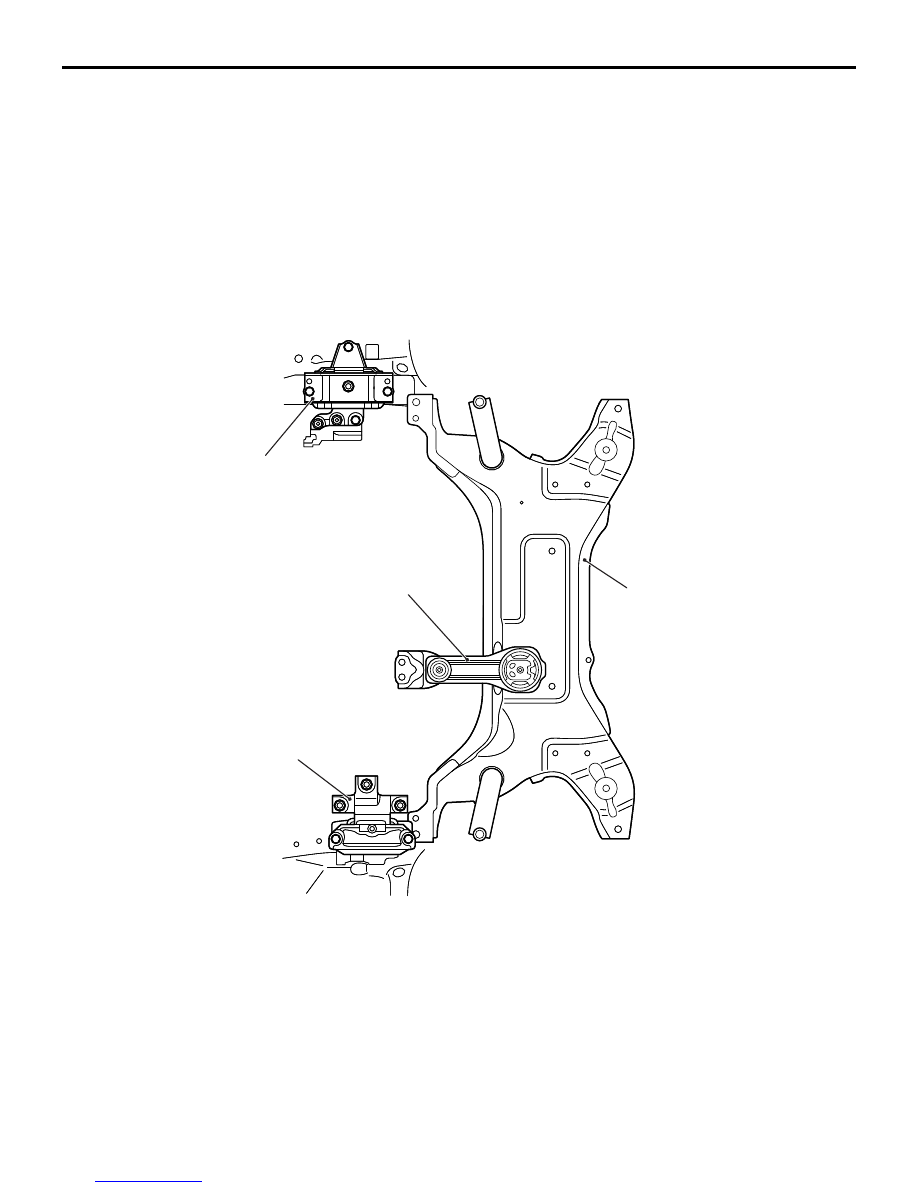

CONSTRUCTION DIAGRAM

ACB05015

ACB05015

Engine mounting
insulator

Transmission mounting
insulator

AB

Engine roll stopper rod
assembly

Front suspension crossmember
