15-1

GROUP 15

INTAKE AND

EXHAUST

CONTENTS

AIR INTAKE SYSTEM . . . . . . . . . . . .

15-2

AIR DUCT AND AIR CLEANER . . . . . . . . .

15-2

INLET MANIFOLD  . . . . . . . . . . . . . . . . . . .

15-2

EXHAUST SYSTEM . . . . . . . . . . . . . .

15-3

EXHAUST MANIFOLD  . . . . . . . . . . . . . . . .

15-3

EXHAUST PIPE AND MUFFLER  . . . . . . . .

15-3

Downloaded from

www.Manualslib.com



manuals search engine



AIR INTAKE SYSTEM

INTAKE AND EXHAUST

15-2

AIR INTAKE SYSTEM

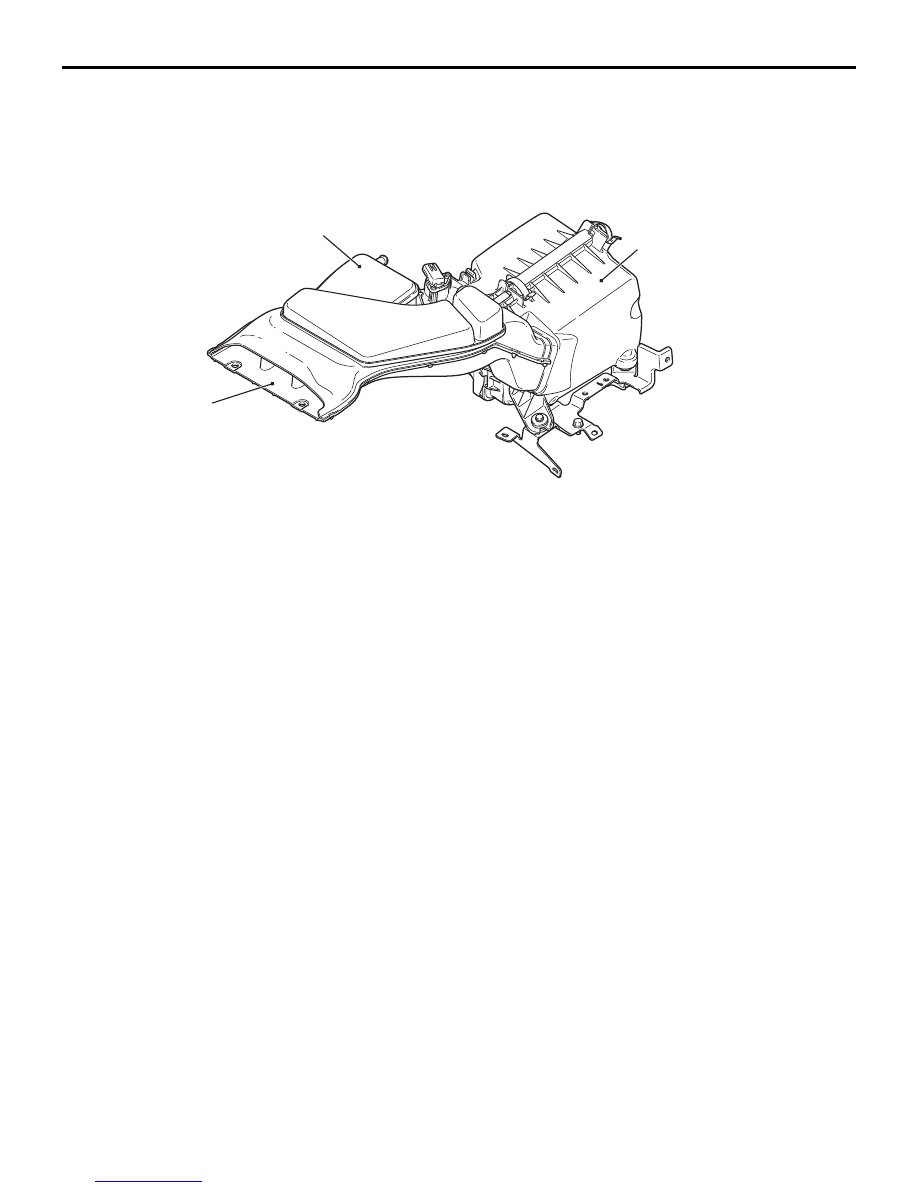

AIR DUCT AND AIR CLEANER

M2150004001381

CONSTRUCTION DIAGRAM

In order to save weight, an air cleaner element with-
out plastics is used and the panel thicknesses of the
cover and the housing are optimised.

INLET MANIFOLD

M2150010000666

The inlet manifold is made of plastic for weight
reduction, and the surface roughness of the inner
walls of the ports has been improved to reduce
intake resistance.

ACB05021AB

Resonator

Air cleaner assembly

Air duct

Downloaded from

www.Manualslib.com



manuals search engine



EXHAUST SYSTEM

INTAKE AND EXHAUST

15-3

EXHAUST SYSTEM

EXHAUST MANIFOLD

M2150006001105

The exhaust manifold incorporates a catalytic con-
verter. In order to reduce vibration, a spherical joint is
used at the front pipe connection.

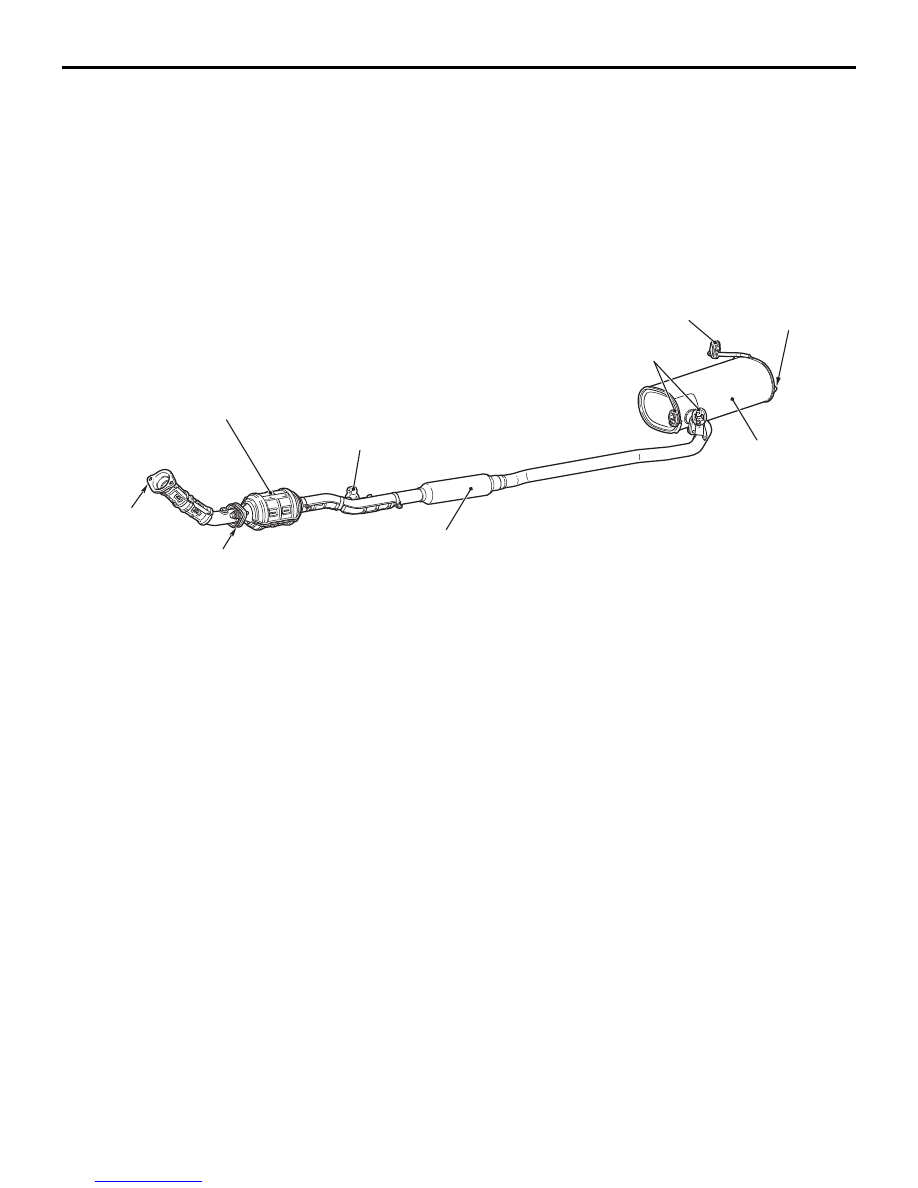

EXHAUST PIPE AND MUFFLER

M2150003001775

CONSTRUCTION DIAGRAM

Exhaust pipe and muffler consisting of two separa-
tion system has the following features:

• Improve emission gas cleaning ability by adopt-

ing rear exhaust system and placing front cata-
lytic converter by engine as close as possible.

• A 4-point exhaust muffler hanger has been

adopted for optimisation of position, which
reduces vibration to the vehicle.

• The spherical joint has been adopted for connec-

tion between the front exhaust pipe and the
exhaust manifold, and between the exhaust pipe
and the centre exhaust pipe, which reduces
vibration to the vehicle.

ACB05022AB

Annular joint

Annular joint

Catalytic converter

Hanger bracket

Main muffler

Sub muffler

Tail pipe

Hanger bracket

Hanger bracket
