GENERAL INFORMATION
HEATER, AIR CONDITIONER AND VENTILATION
55-2
GENERAL INFORMATION
M2551000101826

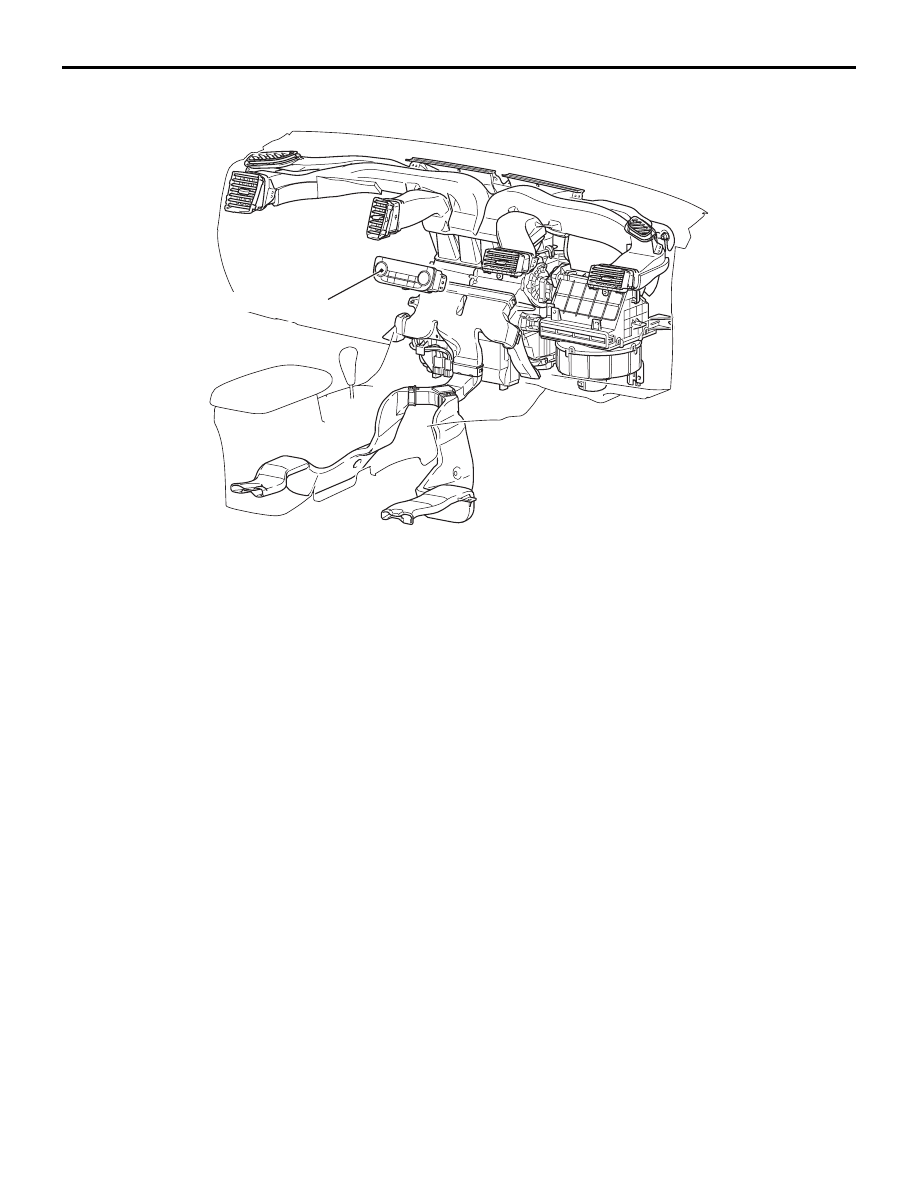

The new heater unit integrates blower, and evapora-
tor, it increases the air flow but reduces air flow
resistance and air flow noise.
FEATURES
ENHANCEMENTS IN COMFORT
• With the adoption of automatic A/C system, the
inlets (fresh air/recirculation air), the vents, tem-
perature at the vents and fan speed are automat-
ically the controlled according to the outside
temperature and cabin temperature so that the
optimum air conditioner is achieved.
• By the adoption of clean air filter, the air quality in
the cabin has been kept.
• Improves the cooling performance by optimal
refrigerant line routing and prevents potential
refrigerant leaks by reducing refrigerant line con-
nections.
• Independent air conditioner control function
allows individual temperature adjustment at the
right and left depending on which the customer
prefers.<Vehicles with DUAL-ZONE AUTO A/C>
ENHANCEMENTS IN OPERATION
PERFORMANCE
• To enhance luxurious appearance and conven-
ience, a liquid crystal display panel has been
adopted.
• Customize function has been added for the
enhanced convenience.
ENHANCEMENTS IN FUEL ECONOMY
• The 3D-profile high efficiency compressor has
been installed, thus improving the fuel economy.
• The idle-up speed is controlled in two steps to
secure the air cooling performance during sum-
mer and to enhance the fuel economy in the
moderate seasons.
• The cooling fan control depending on the refriger-
ant pressure and on the vehicle speed reduce
alternator load, thus enhancing the fuel economy.
ENHANCEMENT IN SAFETY
• A/C system will shut down automatically if the air
bags are open.
• Crushable space has been adopted into heater
unit to reduce the risk of passenger injuries if a
collision occurred.
GLOBAL ENVIRONMENT PROTECTION
• Refrigerant system (HFC134a) has been
adopted.
• Clean air filter media and its cover are separated
to reduce waste materials, when replacing the fil-
ter.
ENHANCEMENTS IN SERVICE QUALITY
• Reduction of refrigerant gas leakage and
enhancement in serviceability by incorporating
condenser and receiver
• Clean air filter is installed to the backside of glove
box to facilitate the filter replacement.
ENHANCEMENTS IN RESPONSIBILITY
Reliable information transmission is achieved by
connecting A/C-ECU and each ECU via CAN com-
munication.
SPECIFICATIONS
Item
Specification
Air conditioner switch type
LCD push button
Compressor type
QS90
Cooling output kW
5.5
Heating output kW
5.7
Refrigerant
Type
HFC-134a
Charge quantity g
480 - 520
