LIGHTING

CHASSIS ELECTRICAL

54A-16

CUSTOMISATION FUNCTION

M2544300700880

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Turn power
source

Adjustment of
turn-signal lamp
operation condition

ACC or IG1

Operable with ACC or ON position

IG1

Operable with ON position (initial
condition)

Comfort flasher

With/without
comfort flasher
function

Disable

No function

Enable

With function (initial condition)

Comfort flasher
switch time

Switch operation
time to activate the
comfort flasher
function

Normal

0.4 second (initial condition)

Long

0.8 second

Hazard answer
back

Adjustment of the
number of keyless
hazard warning
lamp answer back
flashes

Lock:1, Unlock:2

LOCK: Flashes once, UNLOCK: Flashes
twice (initial condition)

Lock:1, Unlock:0

LOCK: Flashes once, UNLOCK: No flash

Lock:0, Unlock:2

LOCK: No flash, UNLOCK: Flash twice

Lock:2, Unlock:1

LOCK: Flash twice, UNLOCK: Flash once

Lock:2, Unlock:0

LOCK: Flash twice, UNLOCK: No flash

Lock:0, Unlock:1

LOCK: No flash, UNLOCK: Flash once

Lock:0, Unlock:0

No function

Sensitivity for
auto lamp

Lighting control
sensor sensitivity
(illumination
intensity) <vehicles
with lighting control
sensor>

Level 1 bright

High ambient brightness

Level 2 bright

Standard ambient brightness (initial
condition)

Level 3

Low ambient brightness

Level 4 dark

Low-low ambient brightness

Room lamp
delay timer with
door

Adjustment of
interior lamp delay
shutdown time

0 sec

0 second (no delay shutdown time)

7.5 sec

7.5 seconds

15 sec

15 seconds (initial condition)

30 sec

30 seconds

60 sec

60 seconds

120 sec

120 seconds

180 sec

180 seconds

Head lamp auto
cut customise

Adjustment of
headlamp
automatic shutdown
function

Disable

No function

Enable (B-spec.)

With function (initial condition)

COMBINATION METER

CHASSIS ELECTRICAL

54A-17

COMBINATION METER

GENERAL INFORMATION

M2545500201067

There are two types of the combination meter; stand-
ard meter and high contrast meter. A speedometer is
located at the right, a liquid crystal display at the cen-
tre lower part, a tachometer at the left, and a meter
information switch <Standard meter> or rheostat illu-
mination switch <High contrast meter> at the right
lower part. The combination meter has the following
features:

Standard meter

• A segment-type LCD is adopted. For details refer

to

P.54A-19

.

High contrast meter

• A colour liquid crystal display has been adopted.

For details refer to

P.54A-21

.

• A navigation indicator has been adopted. <Vehi-

cles with MMCS>

• A meter information switch is located in the

instrument panel.

Interior lamp
auto cut timer

Adjustment of
interior lamp
automatic shutdown
function operation
time

Disable

No function

3 min

3 minutes

30 min

30 minutes (initial condition)

60 min

60 minutes

Coming home
light

Disabling or
enabling coming
home light function

Disabled

No function

15 sec

The headlamps illuminate for 15 seconds.

30sec

The headlamps illuminate for 30 seconds.
(initial condition)

60 sec

The headlamps illuminate for 60 seconds.

180 sec

The headlamps illuminate for 180 seconds.

Welcome light

Disabling or
enabling welcome
light function

Disabled

No function

Small lamp

The tail lamps illuminate. <initial condition>

Head lamp

The headlamps illuminate.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

COMBINATION METER

CHASSIS ELECTRICAL

54A-18

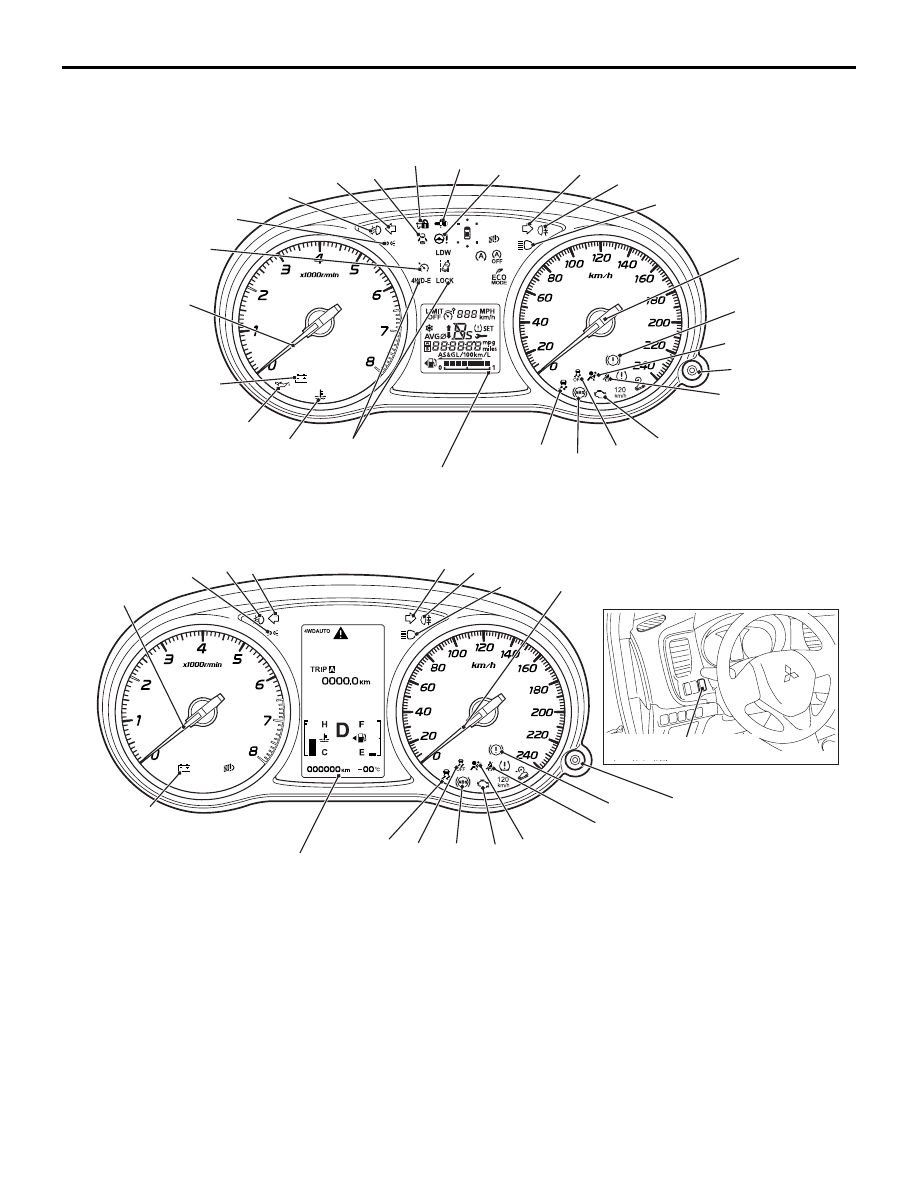

CONSTRUCTION DIAGRAM

Standard meter

1. Position lamp indicator lamp
2. Front fog lamp indicator lamp
3. Turn-signal lamp indicator/hazard warning indica-

tor lamp (LH side)

4. Door-ajar warning lamp
5. Immobilizer/electric steering lock warning lamp
6. Keyless operation system indicator lamp
7. Electric power steering system warning lamp
8. Turn-signal lamp indicator/hazard warning indica-

tor lamp (RH side)

9. Rear fog lamp indicator lamp

10. High-beam indicator lamp
11. Brake warning lamp
12. Supplemental restraint system warning lamp
13. Driver’s seat belt warning lamp
14. Check engine warning lamp
15. Active stability control system OFF indicator lamp
16. Anti-skid braking system warning lamp
17. Active stability control system ON indicator lamp
18. 4WD-ECO indicator lamp

ACB05440AB

2

Multi-information display

6

4

<Standard meter>

11

13

12

14

16

20

21

22

17

15

18, 19

8

10

9

7

3

5

23

1

Tachometer

Speedometer

Meter information
switch

ACB05441

ACB06027

ACB05980

AB

Multi-information display

<High contrast meter>

Tachometer

Speedometer

14

2

3

1

4

6

5

7

8

9

10

11

13

12

Meter information switch

Rheostat illumination
switch

COMBINATION METER

CHASSIS ELECTRICAL

54A-19

19. 4WD-lock indicator lamp
20. Coolant temperature warning lamp
21. Oil pressure warning lamp
22. Charging warning lamp
23. Cruise control system indicator lamp

High contrast meter

1. Position lamp indicator lamp
2. Front fog lamp indicator lamp
3. Turn-signal lamp indicator/hazard warning indica-

tor lamp (LH side)

4. Turn-signal lamp indicator/hazard warning indica-

tor lamp (RH side)

5. Rear fog lamp indicator lamp
6. High-beam indicator lamp
7. Brake warning lamp
8. Driver’s seat belt warning lamp
9. Supplemental restraint system warning lamp

10. Check engine warning lamp
11. Anti-skid braking system warning lamp
12. Active stability control system OFF indicator lamp
13. Active stability control system ON indicator lamp
14. Charging warning lamp

MULTI-INFORMATION DISPLAY
<STANDARD METER>

M2545500500515

In the multi-information display, the followings are
displayed; "Odometer", "TRIP A", "TRIP B", "Meter
illumination control", "Driving range", "Average fuel
consumption", "Outside temperature and frost warn-

ing", "Service reminder

*

".

NOTE:

.

*

: Is not displayed during driving.

METER ILLUMINATION CONTROL

The brightness of the combination meter can be
adjusted in eight stages (LEVEL 1 to LEVEL 8) by
pushing the meter information switch when the meter
is illuminated. Current illumination level will be dis-
played each time the meter information switch is
pushed. The illumination level can be changed by
operating the meter information switch according to

specified procedure

*

. The brightness of each bright-

ness level is as described in the table below.

NOTE: The brightness can be set separately for the
daytime and nighttime. The configured information is
stored in the RAM. In the initial setting of brightness,
the daytime is set at LEVEL 8 and the nighttime is
set at LEVEL 7.

BRIGHTNESS LEVEL TABLE

ACB06035

Current brightness level

Display

Brightness level

Level 5, 6

Level 7, 8

Level 3, 4

Level 1, 2

AB

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

LEVEL 8

100%

100%

100%

100%

100%

35%

LEVEL 7

90%

58.8%

90%

58.8%

90%

19%

LEVEL 6

81%

34.3%

81%

34.3%

81%

10.4%

LEVEL 5

71%

20.3%

71%

20.3%

71%

5.5%

LEVEL 4

61%

11.8%

61%

11.8%

61%

3.1%
