DOOR AND TAILGATE

BODY

42A-15

KEYLESS ENTRY HAZARD LAMP
ANSWERBACK FUNCTION

When LOCK signal from the keyless entry transmit-
ter is input to the ETACS-ECU, all doors (including
tailgate) are locked and the hazard warning lamp
flashes once. When UNLOCK signal is input, all
doors (including tailgate) are unlocked and the haz-
ard warning lamp flashes twice.

KEYLESS ENTRY ROOM LAMP
ANSWER-BACK FUNCTION

When the LOCK signal from the transmitter is input
to ETACS-ECU via the receiver antenna, all doors
(including tailgate) are locked, and the room lamp is
turned off in synchronisation with hazard lamp
answerback (when the room lamp is illuminated, the
lamp is turned off). Also, when the UNLOCK signal
from the transmitter is input to ETACS-ECU via the
receiver antenna, all doors (including tailgate) are
unlocked, and the room lamp is illuminated for 15
seconds in synchronisation with hazard lamp
answerback.

KEYLESS ENTRY TIMER LOCK TIME

If any door is not opened or closed within 30 seconds
after the doors (including tailgate) are unlocked by
the keyless entry system, ETACS-ECU automatically
outputs the door lock signal to lock the doors (includ-
ing tailgate). This function prevents the doors (includ-
ing tailgate) from being unlocked unexpectedly by
operation errors. Using a customisation feature, the
keyless entry timer lock time can be changed (Refer
to

P.42A-37

).

OPERATION INHIBITION CONDITIONS

The operation of the keyless entry system is inhibited
in the following conditions.

• When the ignition key is inserted into the ignition

switch.

• When either door (including tailgate) is open (the

door switch: ON). (including door ajar)

AC207001AB

ON

OFF

OFF

ON

OFF

LOCK

UNLOCK

Illuminate

Extinguish

Keyless entry
transmitter
switch

Lock relay output

Unlock relay output

Hazard
warning lamp

AC404883AB

c

b

b

a

a: 0.6 second
b: 1.2 seconds
c: 15 seconds

OFF

ON

ON

OFF

Illuminate

Extinguish

Lock relay output

OFF

ON

Door unlock switch

output

OFF

ON

Door lock switch

output

Unlock relay output

Room lamp

DOOR AND TAILGATE

BODY

42A-16

POWER WINDOW

M2420022000735

The power window has the following features:

• The safety mechanism has been adopted.

• The power window timer function has been

adopted.

• The power window lock switch has been

adopted.

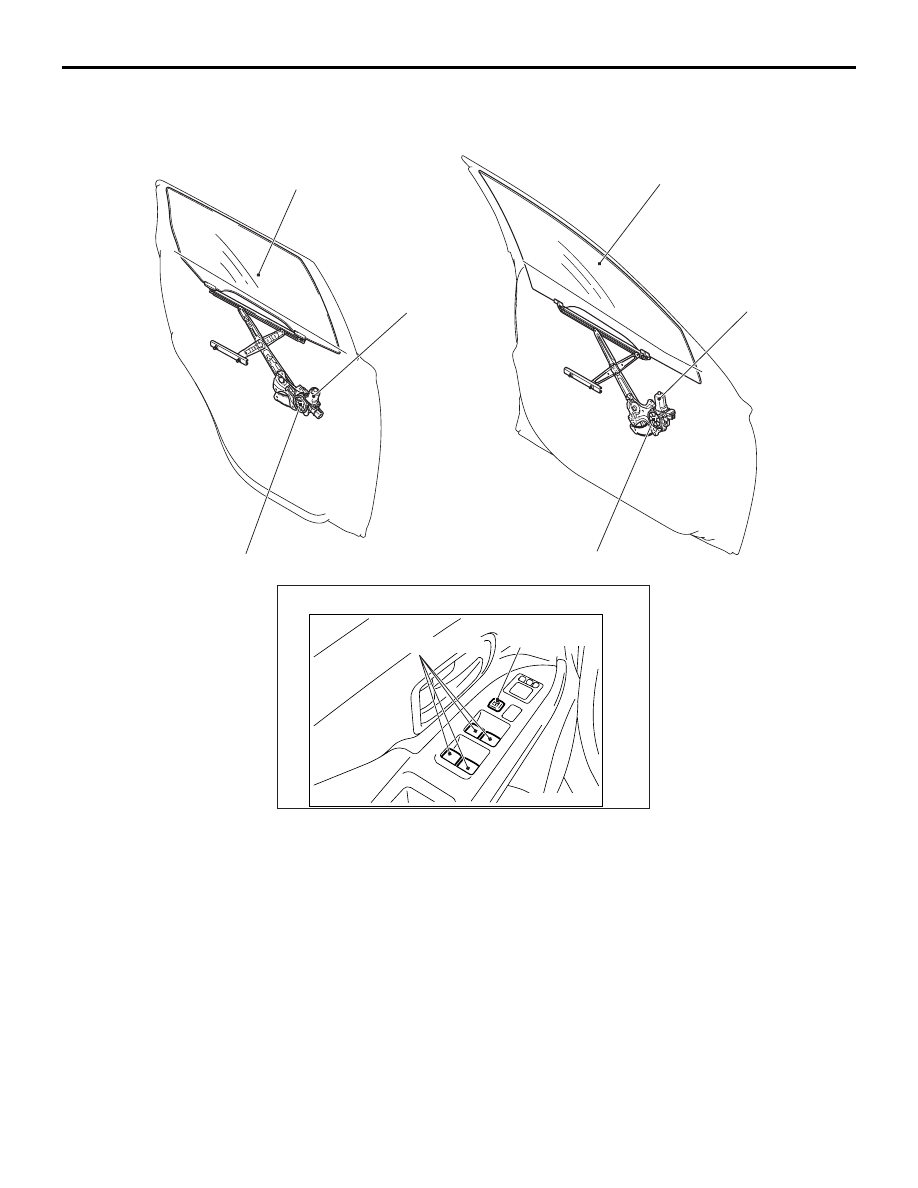

DESCRIPTION OF CONSTRUCTION AND
OPERATION

POWER WINDOW SYSTEM

The power window switch has a waterproofing struc-
ture which prevents water (such as rain drops) enter-
ing from above. Should water enters, it is drained
through the hole located on the lower area of the
switch, and no water may be accumulated.

SAFETY MECHANISM

The power window with the safety mechanism has
been adopted. To enhance safety, if any obstacle
such as a hand or a head is detected to be pinched
during a window glass closing operation, the window
glass is opened by approximately 150 mm.

POWER WINDOW SWITCH

The power window switch has employed the
push-pull operation method to enhance safety. To
open a door window glass, press in the switch knob,
and to close, pull it up. The one-touch opening/clos-
ing mechanism has been adopted to the driver's
power window switch to fully open or close any door
window glass in a single operation.

ACC00214

ACB04936

ACB05643

AB

Power window main switch (Driver's side)

Door window glass

Door window glass

Power window motor

Power window motor

<Front door>

<Rear door>

Power window
lock switch

Power window switch

Power window regulator assembly

Power window regulator assembly

DOOR AND TAILGATE

BODY

42A-17

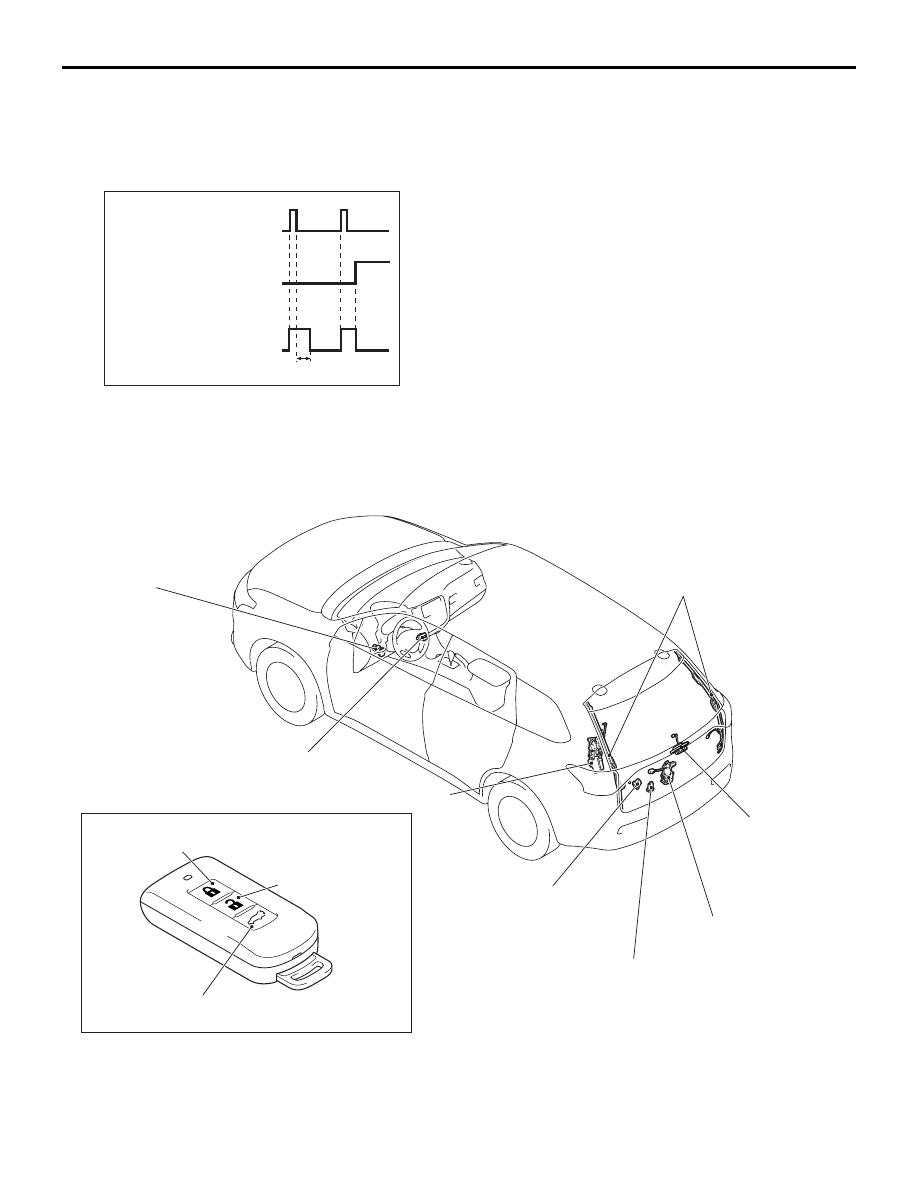

POWER WINDOW TIMER FUNCTION

• The power window can be opened or closed after

the ignition switch is turned OFF by the timer
function. Using a customise feature, the timer
period can be changed. (Refer to

P.42A-37

.)

•

Even after the ignition is switched off, the

ETACS-ECU keeps the power window relay acti-
vated for approximately 30 seconds, enabling
raising or lowering of the power windows by using
the power window switches (timer function). After
approximately 30 seconds, the power window
relay is deactivated.

During this timer operation, if the driver’s or front

passenger’s door is opened, the power window
relay is deactivated from that moment.

POWER WINDOW LOCK SWITCH

The driver power window switch is equipped with the
lock switch. This switch disables the opening/closing
operation of the door window glass using each pas-
senger's power window switch. Using a customise
feature, the lock switch operation can be changed
(Refer to

P.42A-37

).

ELECTRIC TAILGATE

M2420001900078

The electric tailgate has been adopted as an option.
There are the following features.

• The electric tailgate can be opened and closed

automatically by using the electric tailgate switch
of the keyless operation key. (Refer to GROUP
42B

− Keyless Entry Function .)

ZC600258

AC607043

ON

OFF

ON

OFF

t

AI

Ignition switch
(IG1)

ON
(Open)
OFF
(Close)

t: 30 seconds

Power window
relay

Driver's or front
passenger's
door switch

ACC00271

ACB05461

ACB05433

AB

Electric tailgate buzzer

Electric tailgate close switch

Electric tailgate control unit

Tailgate lock
release handle

Tailgate sensor

Tailgate latch assembly

Electric tailgate switch

Lock switch

Electric tailgate switch

Unlock switch

Keyless operation key

Electric tailgate main switch

DOOR AND TAILGATE

BODY

42A-18

• The electric tailgate can be automatically opened

and closed using the electric tailgate switch.

• The electric tailgate can be closed fully by using

its close switch.

• The electric tailgate can be opened fully by using

its tailgate lock release handle.

• The safety mechanism has been adopted.

• A safety mechanism prevents the electric tailgate

from lowering.

• A mechanism, which prevents a sudden opening

and closing, has been adopted.

• The easy closer system has been adopted.
