GENERAL INFORMATION

FRONT AXLE

26-2

GENERAL INFORMATION

M2260000101533

For the front axle, the multi-line angular contact ball
bearing with an integral oil seal is adopted as a
wheel bearing, and EBJ-PTJ type constant velocity
joint as a driveshaft.
It has the following features:

• The lightweight and compact EBJ-type constant

velocity joint is installed on the wheel side of the
driveshaft, and the vibration reduced PTJ-type
constant velocity joint is installed on the differen-
tial side.

• For the driveshaft (RH), instead of the conven-

tional output shaft, the long stem integrated with
the differential side constant velocity joint is
adopted to streamline the structure. <4WD>

• Dynamic damper is mounted on driveshaft (RH)

to reduce differential booming noise. <2000>

• Lead-free grease for the constant velocity joint is

adopted.

• Hexavalent chromium is eliminated from the dust

cover material.

• The number of parts is reduced by integrating the

magnetic encoder for ABS wheel speed detection
into the wheel bearing.

NOTE:

.

EBJ (High Efficiency Compact Undercut Joint):

the lighter and smaller constant velocity joint com-
pared with the conventional BJ has been achieved
by adopting the eight small balls.

PTJ (Pillow Tripod Joint)

SPECIFICATIONS

NOTE: *: Indicates the distance between each joint centre.

Item

Specifications

Wheel bearing

Bearing type

Unit bearing (Double-row angular contact ball
bearing)

Bearing (Outer diameter

× inside

diameter) (mm)

80

× 43

Drive shaft

Joint type

Outside

EBJ

Inside

PTJ

Shaft length*

× shaft

diameter (mm)

LH

392.5

× 25.4

RH

708.0

× 34.0 <2WD>, 509.0 × 29.0 <4WD>

GENERAL INFORMATION

FRONT AXLE

26-3

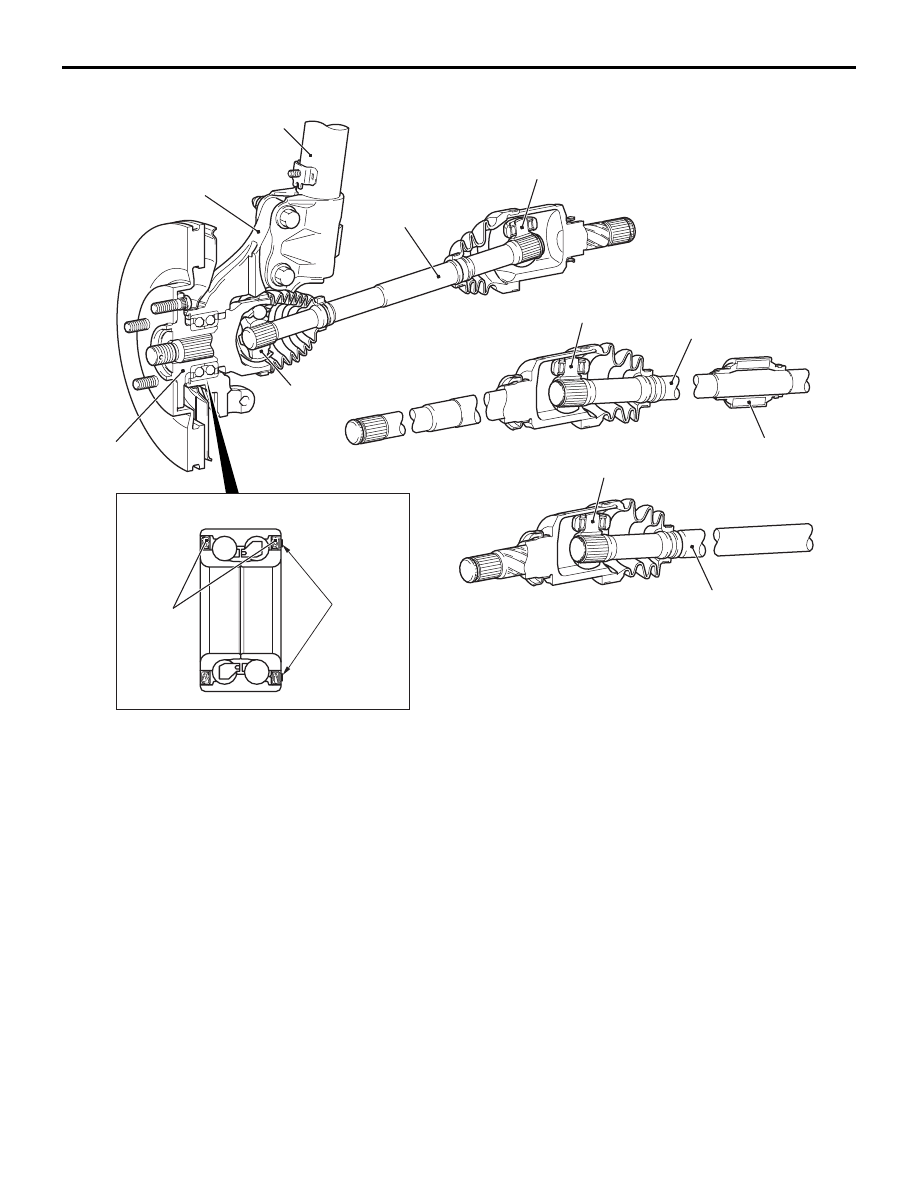

CONSTRUCTION DIAGRAM

ACC00499

AC602514

AC504925

ACB04894

Knuckle

Strut assembly

Driveshaft (LH)

PTJ

PTJ

Front hub

Driveshaft (RH)

EBJ

Dynamic damper

PTJ

Driveshaft (RH)

<RH - 2WD>

<RH - 4WD>

<LH>

Wheel bearing

Magnetic
encoder

Oil seal

AB

27-1

GROUP 27

REAR AXLE

CONTENTS

REAR AXLE <2WD> . . . . . . . . . . . . .

27-2

REAR AXLE <4WD> . . . . . . . . . . . . .

27-2

DIFFERENTIAL . . . . . . . . . . . . . . . . .

27-3

ELECTRONICALLY CONTROLLED 4WD



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27-5

GENERAL INFORMATION . . . . . . . . . . . . .

27-5

4WD-ECU  . . . . . . . . . . . . . . . . . . . . . . . . . .

27-11

4WD SWITCH . . . . . . . . . . . . . . . . . . . . . . .

27-13

ELECTRONIC CONTROL COUPLING . . . .

27-13

REAR AXLE <2WD>

REAR AXLE

27-2

REAR AXLE <2WD>

M2270002000325

The rear axle has the following features:

• The wheel bearing is a unit ball bearing (dou-

ble-row angular contact ball bearing) which incor-
porates the oil seals and is highly resistant to
thrust loads.

• The number of parts has been reduced by inte-

grating the magnetic encoder for ABS wheel
speed detection into the wheel bearing.

SPECIFICATIONS

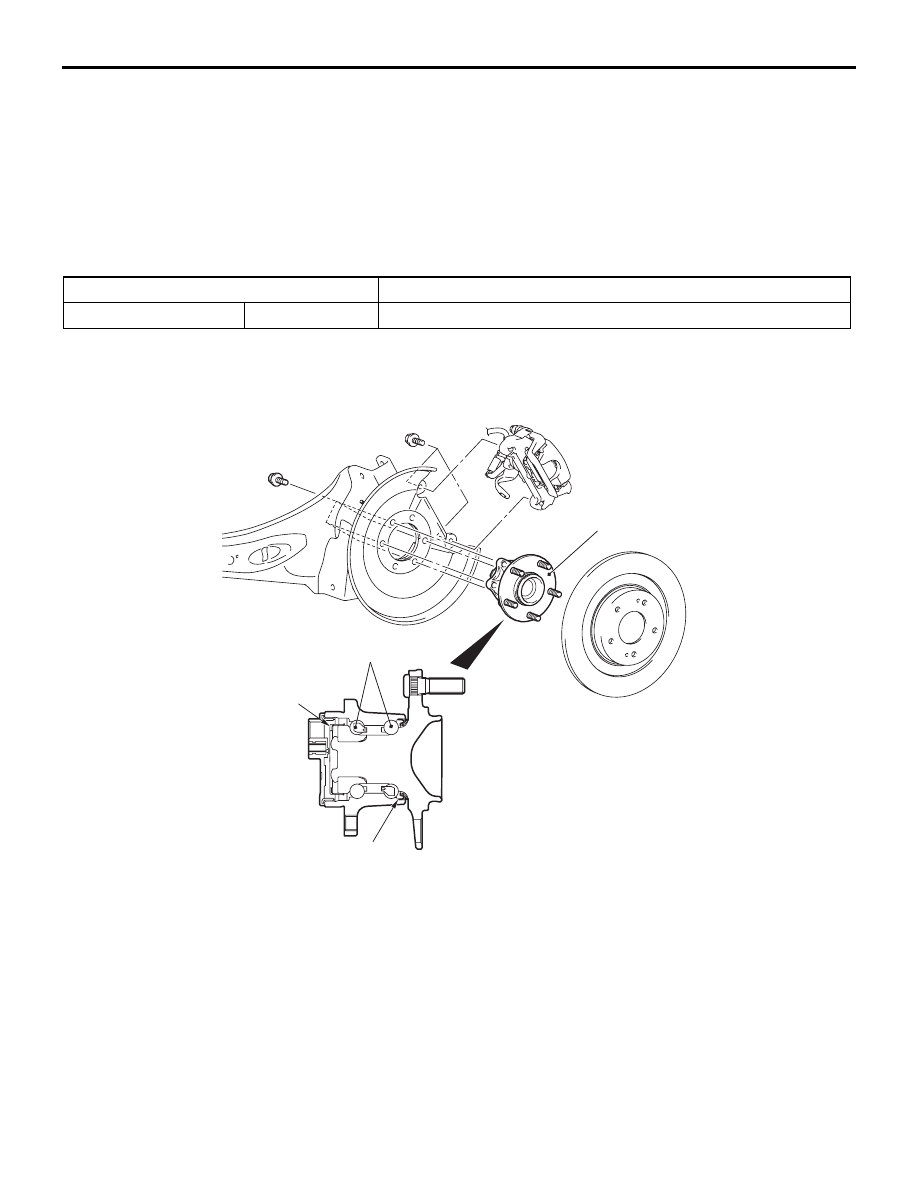

CONSTRUCTION DIAGRAM

REAR AXLE <4WD>

M2270003000436

For the rear axle, the unit ball bearing (double-row
angular contact ball bearing) in which the hub and
ball bearing are incorporated has been adopted for
the wheel bearing, and the EUJ

−ETJ type constant

velocity joint for the driveshaft.
The following features are also available.

• The lightweight and compact EUJ type constant

velocity joint has been installed on the wheel side
of the driveshaft, and the lightweight compact
ETJ type constant velocity joint has been
installed on the differential side.

• Adoption of the electronic control 4WD optimizes

the size of the driveshaft constant velocity joint
and achieves the weight saving.

Item

Specification

Wheel bearing

Bearing type

Unit ball bearing (double-row angular contact ball bearing)

ACB05764AB

Rear hub

Oil seal

Ball bearing

Magnetic encoder
