ACTUATOR
MULTIPOINT FUEL INJECTION (MPI)
13A-20
ACTUATOR
M2132002001129
INJECTOR

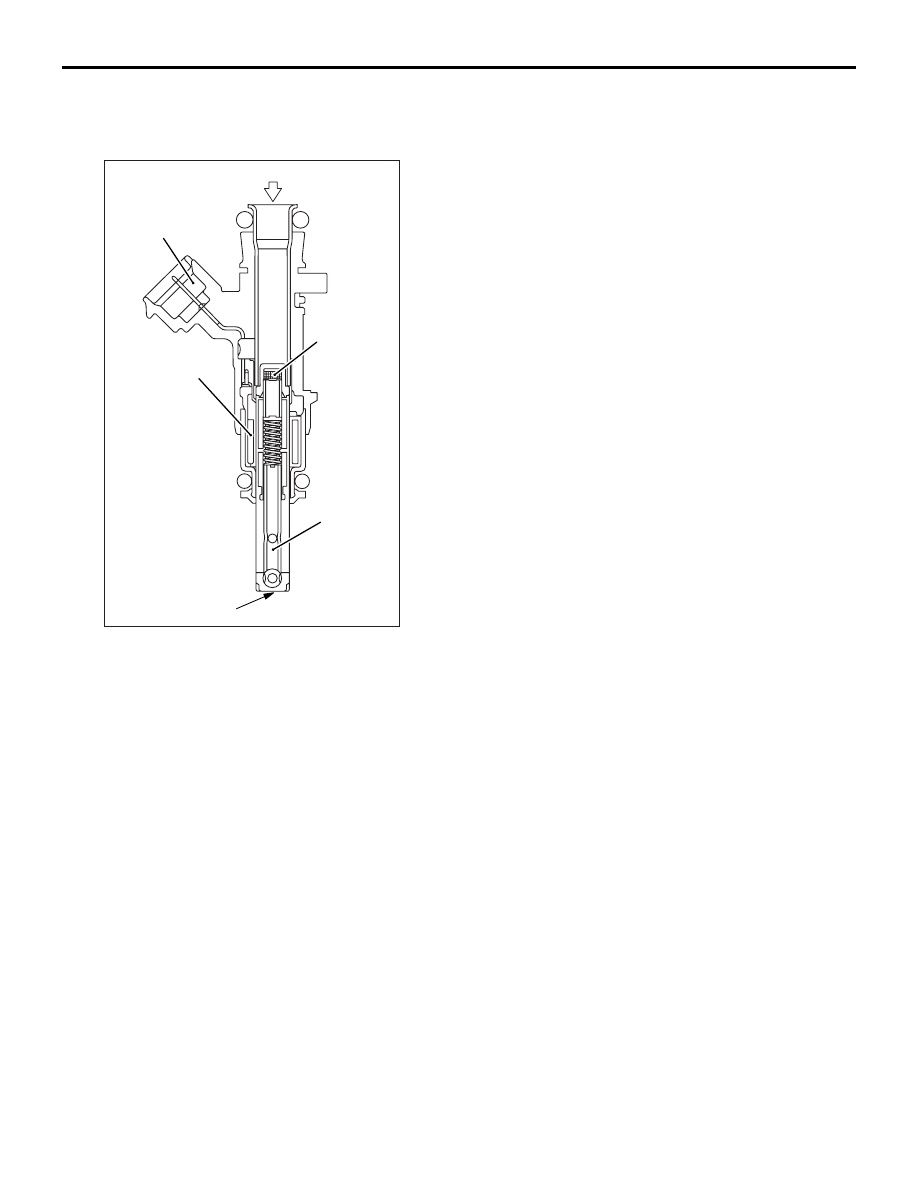

An injector is an injection nozzle with the electromag-
netic valve that injects fuel based on the injection sig-
nal sent by engine-ECU. 1 injector is installed in the
inlet manifold of each cylinder and fixed to the deliv-
ery pipe. When electricity flows through the solenoid
coil, the needle gets sucked in. The needle gets
pulled till the fully open position so that the injection
hole is fully open and the fuel gets injected.
AK800561
Fuel
Plate
Solenoid coil
Connector
Filter
Needle
AE
