CENTRE PILLAR

WELDED PANEL REPLACEMENT

3-13

ABB00947

B

B

A

A

AB

C

C

90 mm

F

The same position as the
new centre outer pillar part

Sound dampening
foam material

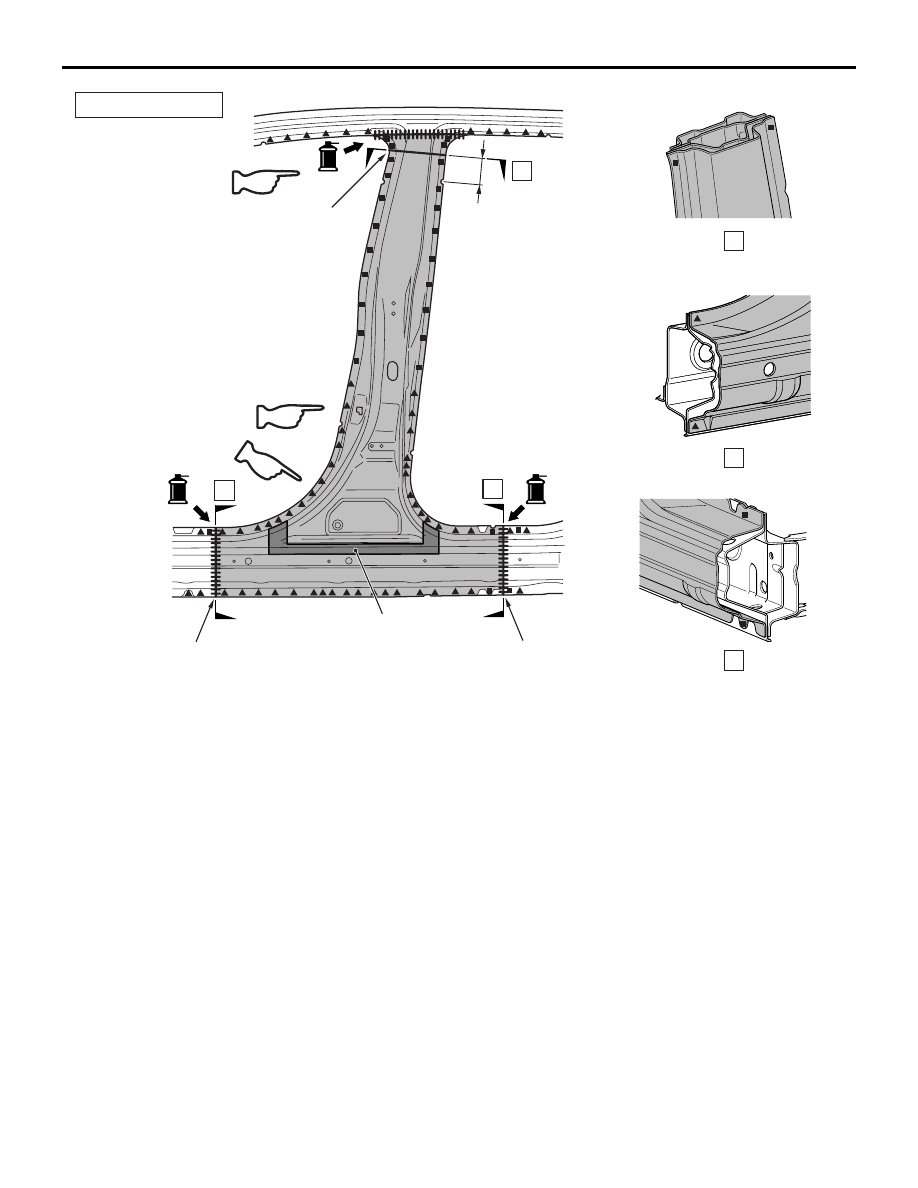

REPAIR WELDS

Cutting position

The same position as the
new centre outer pillar part

E

D

CENTRE PILLAR

WELDED PANEL REPLACEMENT

3-14

NOTE ON REPAIR WORK

REMOVAL

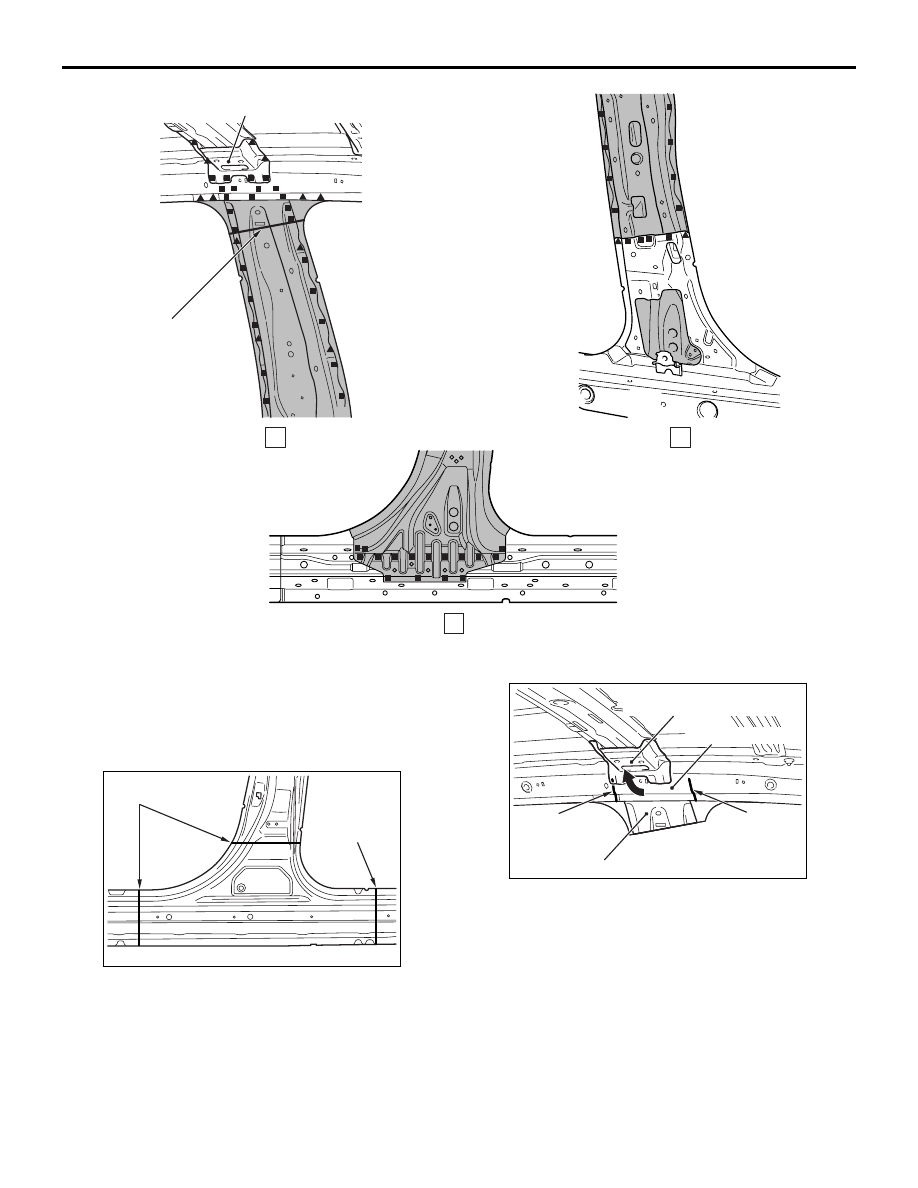

1. To cut the welding points between the centre pillar

reinforcement and side sill reinforcement outer
rear, cut the side outer panel as shown.

2. Remove the roof rail extension rear inner as the

centre pillar inner upper remains on the vehicle
body and cannot be removed. Slit the roof side rail
inner as shown, and pull it towards you to remove
it.

ABB00948

D

E

AB

F

(With the side outer panel removed)

Roof rail extension rear inner
<Vehicles without sunroof>

Cutting position

ABB00901AB

Cutting
position

Cutting
position

ABB00902

ABB00902

AB

Centre pillar inner upper

Roof rail extension rear inner
<Vehicles without sunroof>

Cutting
position

Cutting
position

Roof side rail inner

SIDE SILL

WELDED PANEL REPLACEMENT

3-15

INSTALLATION

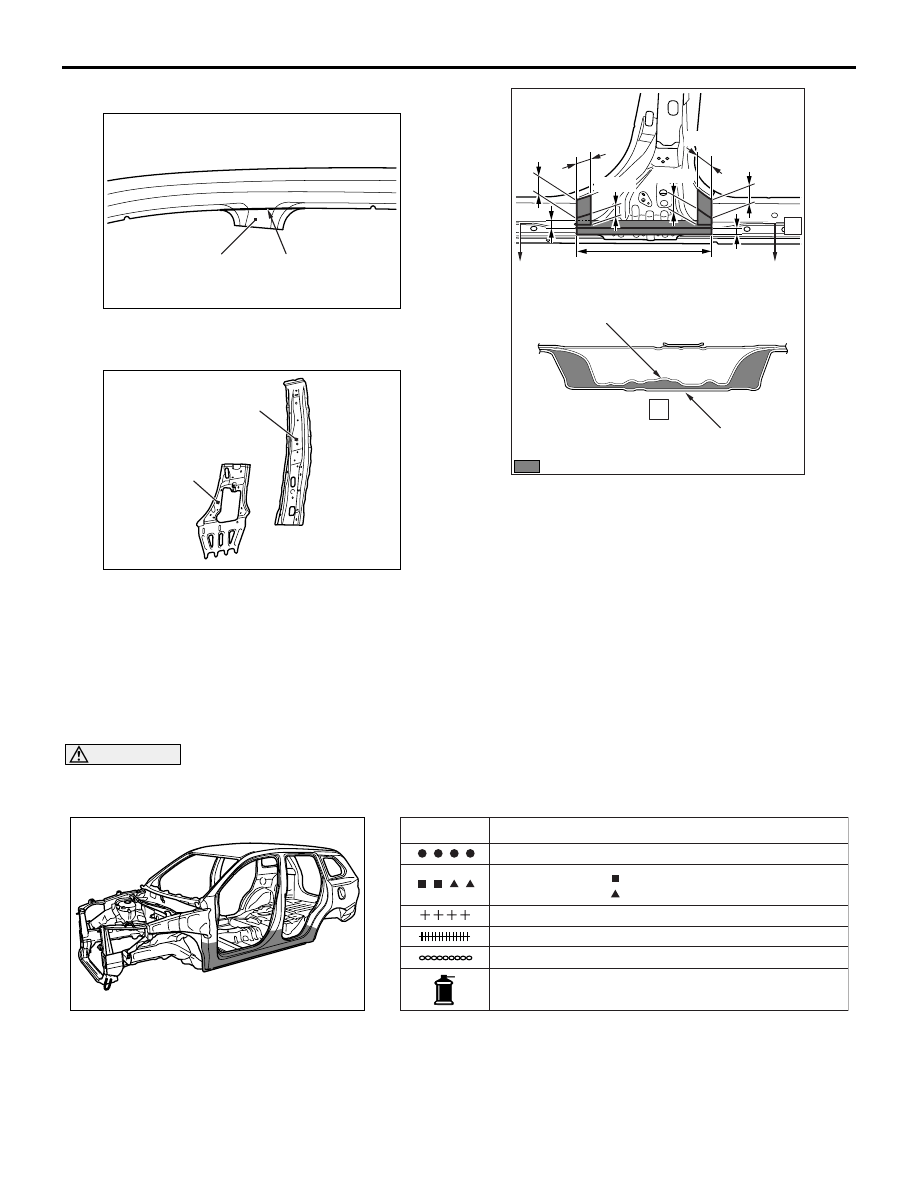

1. To guarantee the strength of the centre pillar

cut-off area, cut off the side outer panel as shown.

2. When installing the new centre inner pillar parts,

remove the centre pillar inner lower from the
centre inner pillar.

3. When installing the new centre outer pillar part,

because the sound dampening foam material
cannot be filled into the centre pillar, machine the
body loose panel cushion (MR565301 or
MR435765) as a substitute according to the
method shown in the figure, and then attach it to
the body.

SIDE SILL

M4030007001677

CAUTION

When repairing the area using sound dampening foam material do not use firing tools since the
sound dampening foam material may burn.

ABB00944AB

Cutting position

Side outer
panel

ABB00900 AB

Centre pillar
inner lower

Centre pillar
inner upper

ABB00903

AB

A

A

60 mm

60 mm

25 mm

50 mm

450 mm

75 mm

20 mm

75 mm

50 mm

Side outer
panel

Centre pillar
reinforcement

 : Body loose panel cushion

NOTE:

ABC00016

AB

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

SIDE SILL

WELDED PANEL REPLACEMENT

3-16

ABB00916

A

40 mm

50 mm

25 mm

AB

B

C

A

B

C

E

D

Sound dampening
foam material

Sound dampening
foam material

Sound dampening
foam material

(With the side outer panel removed)

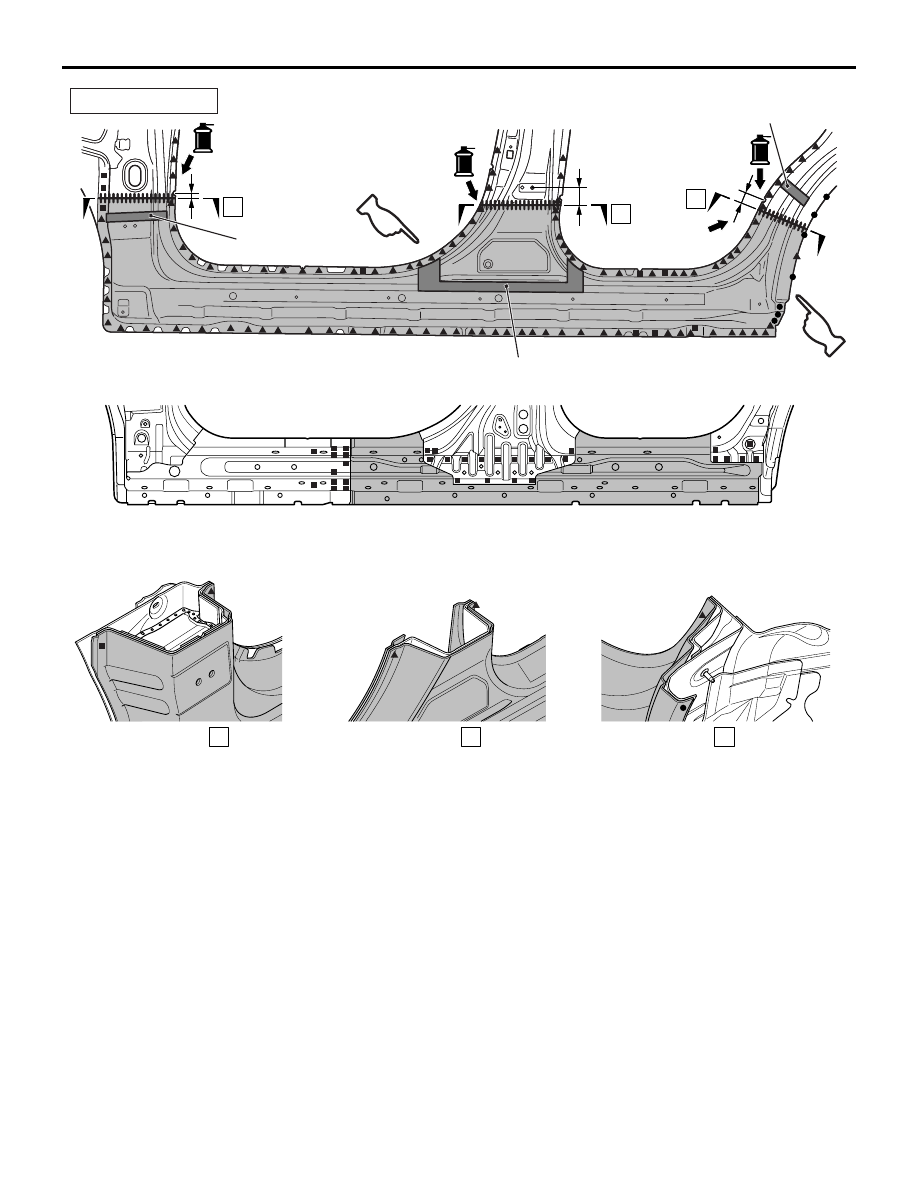

REPAIR WELDS
