Mitsubishi Outlander (2013+). Manual - part 4





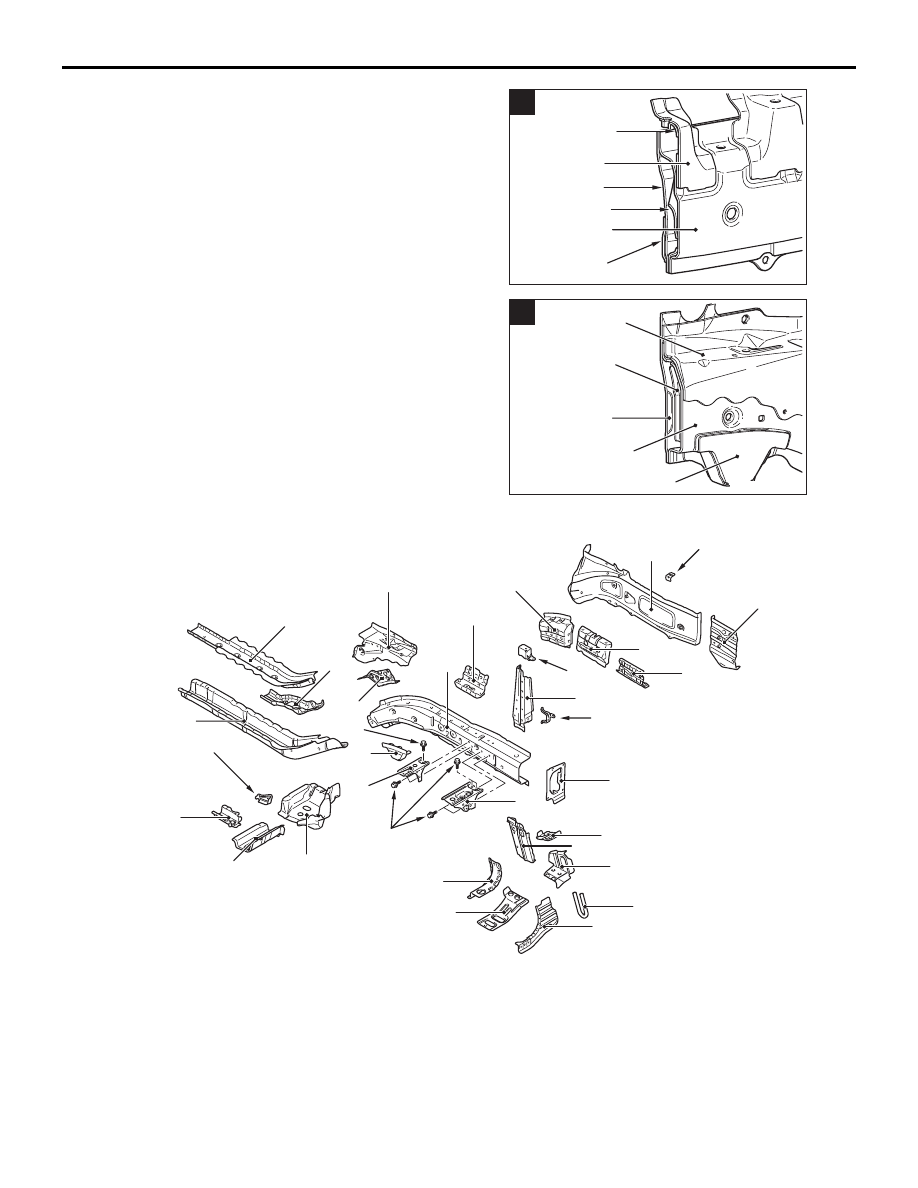

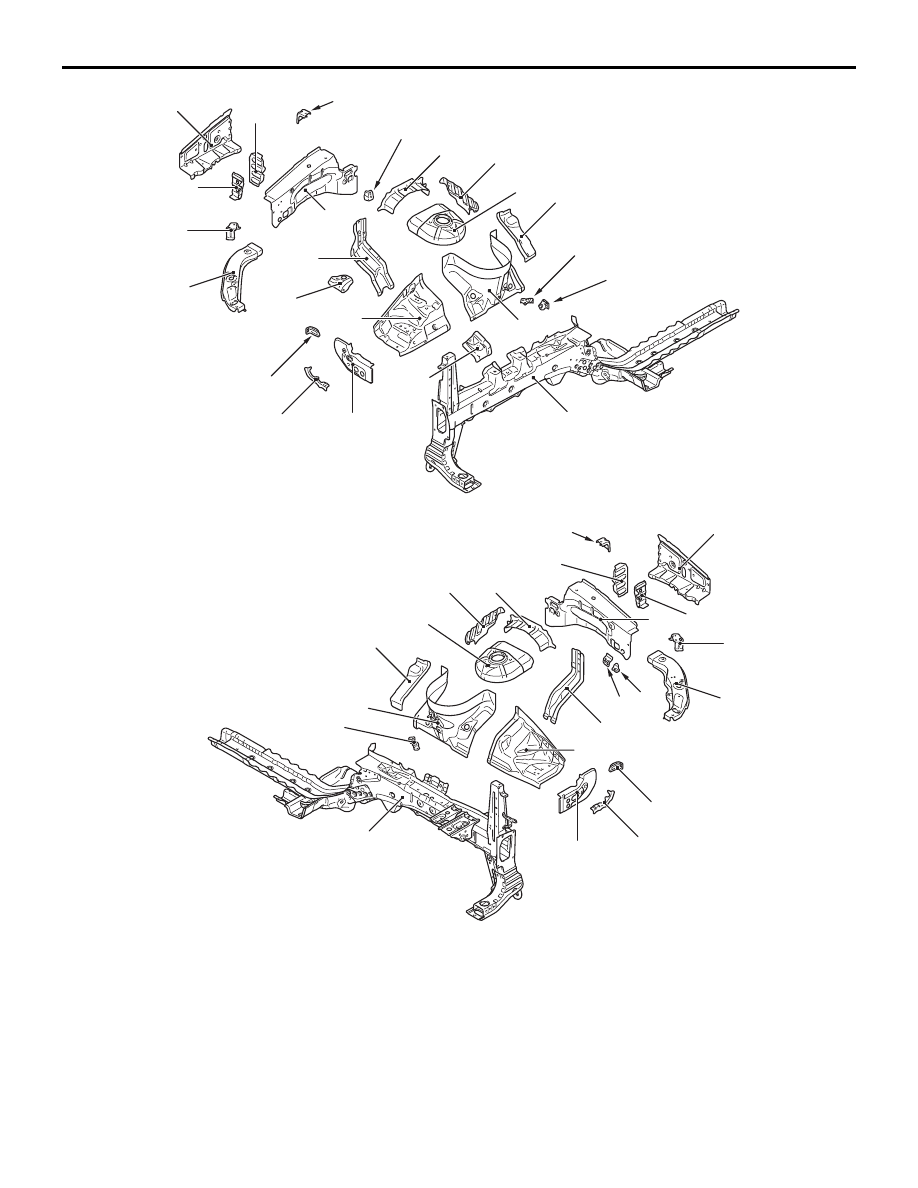

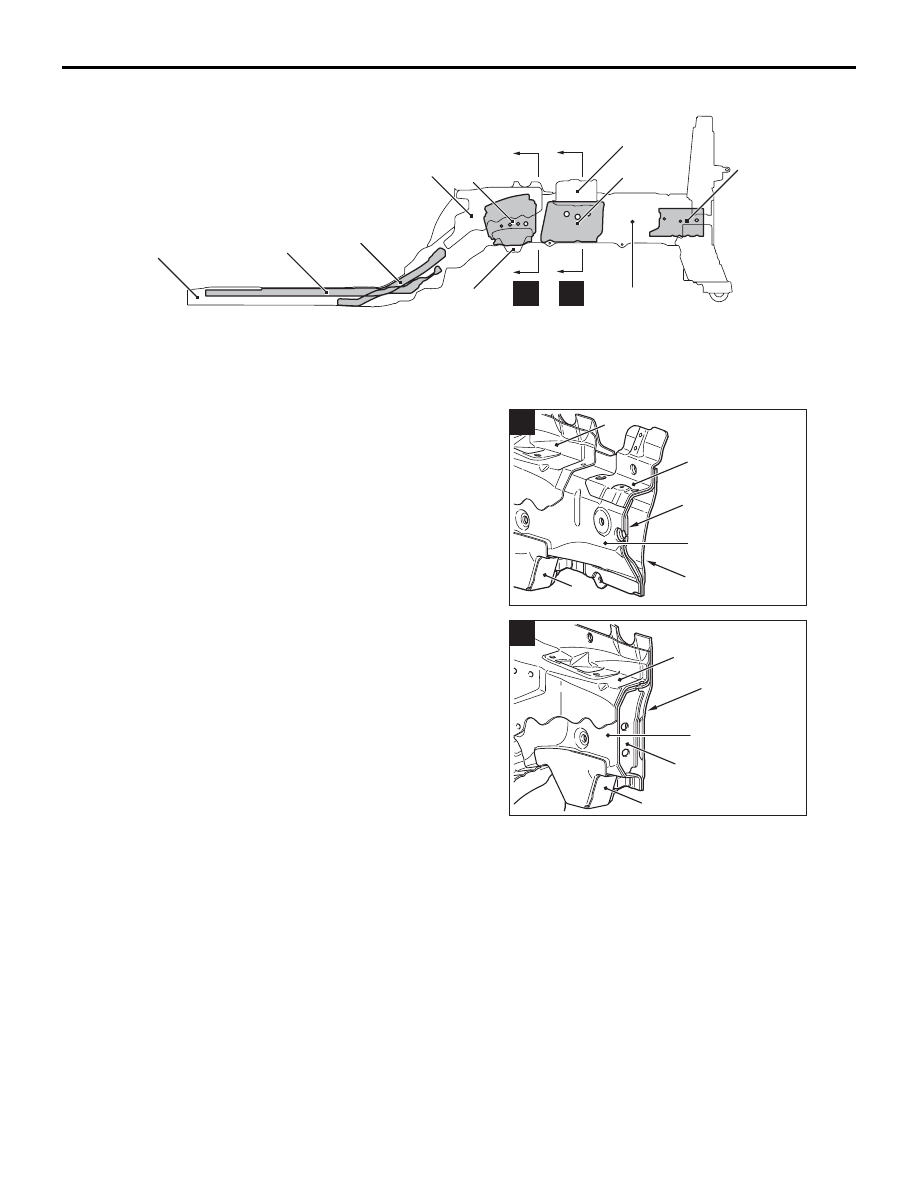

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-10

ABB00718

1

2

3

7

8

11

13

12

10

9

6

5

4

14

15

16

18

19

20

21

22

23

AB

17

(Right side)

ABB00719

1

2

3

7

8

11

13

12

10

9

4

15

16

18

27

26 25

21

23

AB

17

24

(Left side)

1.

Fender gusset

2.

Fender shield extension

3.

Fender bracket lower

4.

Front fender shield

5.

Condense tank reinforcement

6.

Engine mounting gusset

7.

Front end upper bar side

8.

Front fender bracket

9.

Front upper inner frame

10. Upper frame centre bulkhead
11. Front deck frame front upper

12. Upper frame rear bulkhead
13. Front fender bracket rear
14. Horn bracket
15. Spring house bracket reinforcement
16. Spring house corner gusset
17. Spring house bracket front
18. Spring house panel rear
19. Suction hose bracket
20. Spring house harness bracket
21. Spring house panel
22. Engine mounting bracket upper

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-11

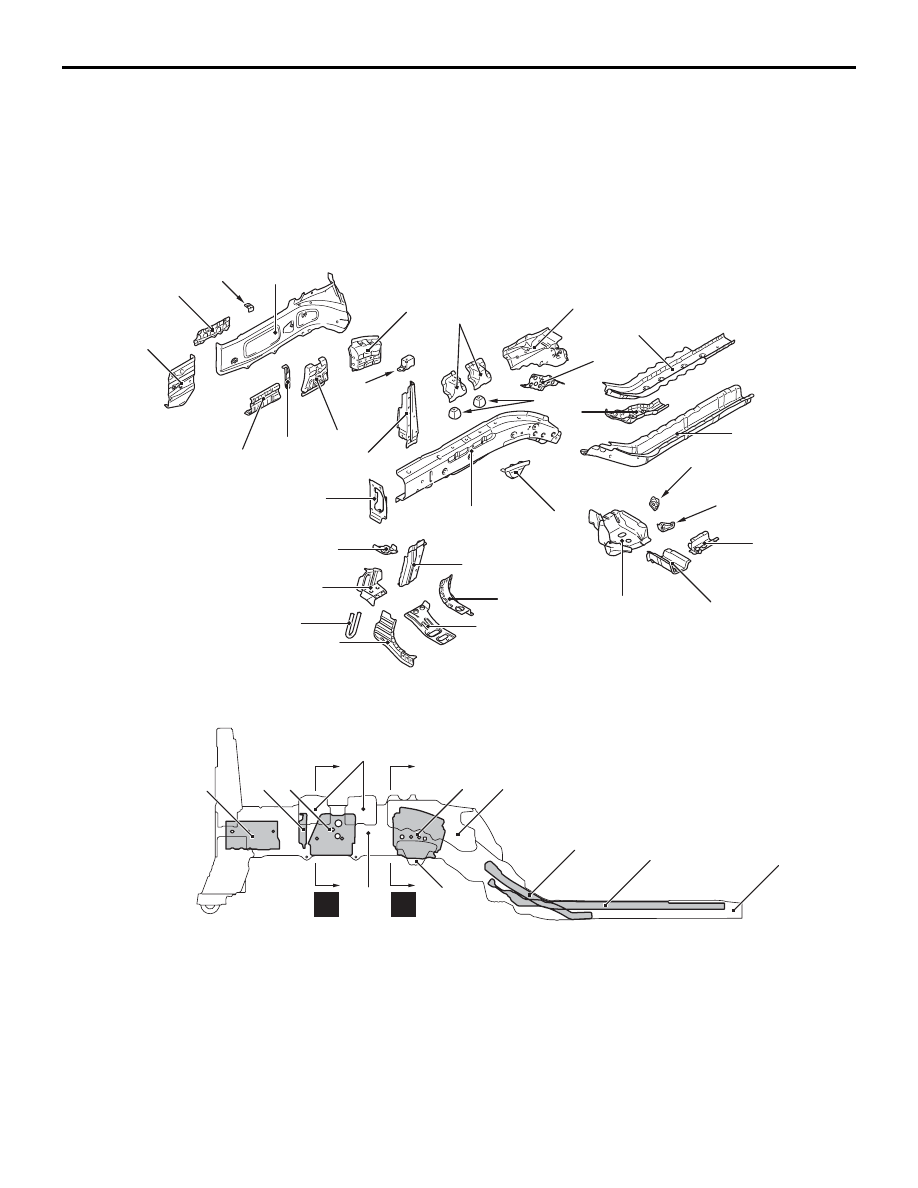

FRONT SIDEMEMBER REINFORCEMENT

The 590-MPa class high tensile strength steel panels
have been adopted for the front sidemember exten-
sion, front sidemember rear reinforcement lower,
front sidemember rear bulkhead, front sidemember
rear, backbone sidemember extension and front
sidemember inner reinforcement to improve the fron-
tal collision characteristics.

23. Front sidemember
24. Engine-ECU bracket
25. Relay box bracket
26. Relay box bracket rear
27. Transmission mounting gusset

ABB00720

1*

6*

8

9

7*

5*

23

AB

15

16

17

10*

18

19

20

21

22

2

3

4

(Right side)

25

26

28

30

31

32

29*

27

11

13

12

14

24

*: Indicates 590MPa-high-tensile steel panels.

NOTE:

ABB00721AB

23

24

14

13

25

27

26

28

5

7

6

A

B

1.

Front sidemember extension

2.

Sidemember front outer reinforcement

3.

Brake hose bracket

4.

Front sidemember outer

5.

Front sidemember rear reinforcement lower

6.

Front sidemember rear bulkhead

7.

Front sidemember rear

8.

Height sensor bracket

9.

Dash crossmember lower bulkhead

10. Backbone sidemember extension

11. Dash crossmember extension lower
12. Front body frame to side sill brace
13. Front suspension crossmember bracket front
14. Front sidemember inner
15. Subframe support panel inner
16. Radiator bracket lower
17. Front end crossmember extension lower
18. Front sidemember plate front lower
19. Towing hook
20. Subframe support panel outer

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-12

21. Subframe bulkhead support
22. Front sidemember plate
23. Front sidemember inner reinforcement front
24. Front sidemember bulkhead front
25. Engine mounting bulkhead
26. Front suspension crossmember bulkhead
27. Engine mounting bracket
28. Front sidemember brace upper
29. Front sidemember inner reinforcement
30. Engine mounting reinforcement
31. Headlamp support panel
32. Front end upper bar bracket

ABB00722 AB

25
14

27

2

A

4

30

ABB00723AB

B

26

13

14

4

28

ABB00724

1

2

3*

6*

8

11

10*

9

7*

5*

4

22

23*

AB

27

28

29

30

31

12

19

13

14

15

16

17

18

20

21

(Left side)

25

26

24

24 ± 4 N·m

24 ± 4 N·m

*: Indicates 590MPa-high-tensile steel panels.

NOTE:

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-13

ABB00725AB

27

26

24

21

22

25

28

6

7

5

A

B

1.

Front body frame to side sill brace

2.

Dash crossmember extension lower

3.

Backbone sidemember extension

4.

Dash crossmember lower bulkhead

5.

Front sidemember rear

6.

Front sidemember rear bulkhead

7.

Front sidemember rear reinforcement lower

8.

Front outer sidemember

9.

Brake hose bracket

10. Front sidemember extension
11. Front sidemember plate
12. Subframe bulkhead support
13. Subframe support panel inner
14. Subframe support panel outer
15. Towing hook
16. Front sidemember plate front lower
17. Front end crossmember extension lower
18. Radiator bracket lower
19. Battery tray stay front
20. Battery tray stay rear
21. Front suspension crossmember bracket front
22. Front sidemember inner
23. Front sidemember inner reinforcement
24. Front sidemember brace upper
25. Transmission mounting reinforcement
26. Front suspension crossmember bulkhead
27. Transmission mounting bulkhead
28. Front sidemember inner reinforcement front
29. Horn bracket

30. Headlamp support panel
31. Front end upper bar bracket

ABB00726AB

27

25

24

22

21

8

A

ABB00727AB

B

24

26

22

8

21
