SENSORS

AUTOMATIC AIR CONDITIONER

55B-103

SENSORS

REMOVAL AND INSTALLATION

M1554001900099

AC301526AB

1

2

3

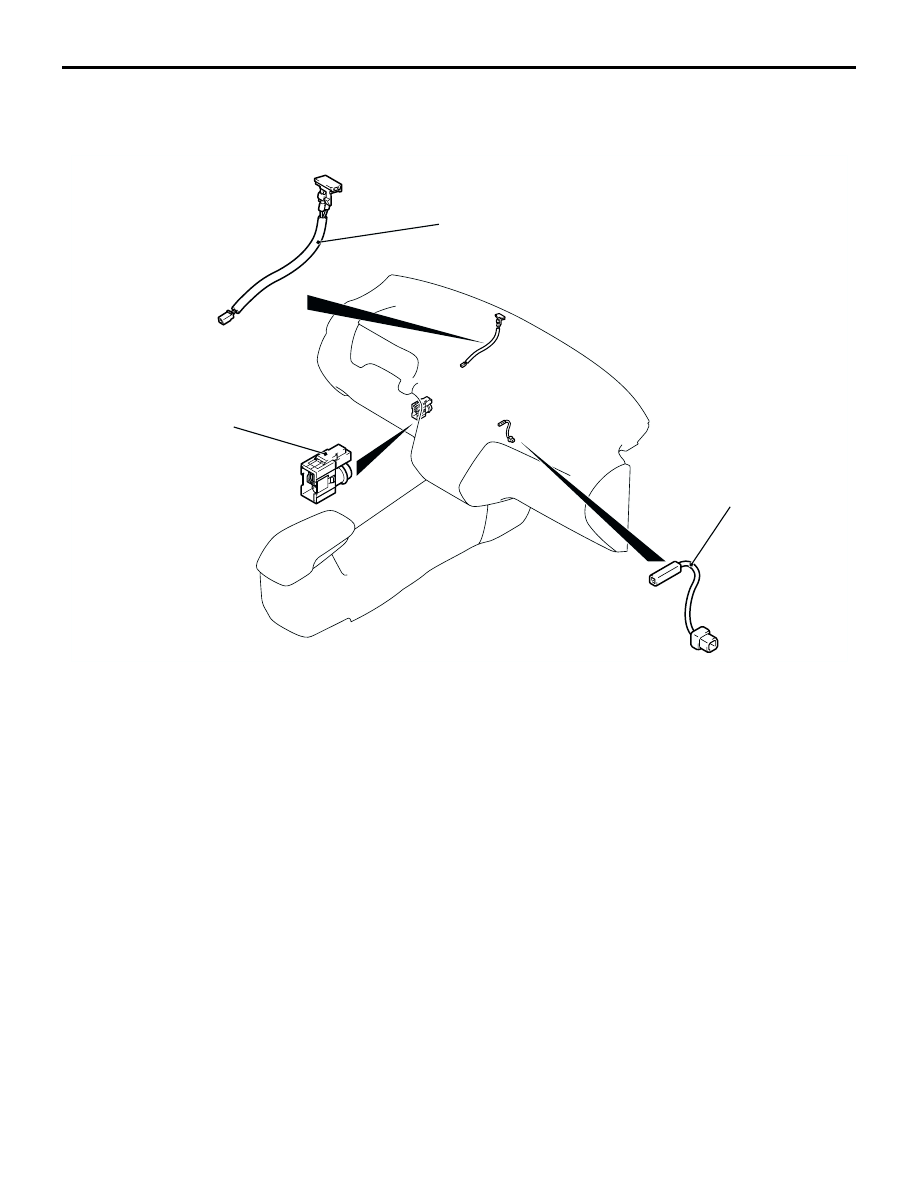

Interior temperature sensor
removal steps

•

Instrument lower panel (Refer to
GROUP 52A, Instrument Panel
<LHD>

P.52A-2

  or Instrument

Panel <RHD>

P.52A-8

).

1.

Interior temperature sensor

Heater water temperature sensor
removal steps

•

Foot duct <front passenger's side>
(Refer to GROUP 55A, Ventilator

P.55A-79

).

2.

Heater water temperature sensor
Photo sensor removal steps

•

Instrument lower panel (Refer to
GROUP 52A, Instrument Panel
<LHD>

P.52A-2

  or Instrument

Panel <RHD>

P.52A-8

).

<<A>>

>>A<<

3.

Photo sensor

SENSORS

AUTOMATIC AIR CONDITIONER

55B-104

REMOVAL SERVICE POINTS

<<A>> PHOTO SENSOR REMOVAL

Binding the photo sensor connector with a cord and
rapping a tape around the connector as its surface is
flatly to pull out the photo sensor toward the
instrument panel upper.

INSTALLATION SERVICE POINTS

>>A<< PHOTO SENSOR INSTALLATION

Tape the photo sensor under the defroster nozzle.

INSPECTION

M1552014300767

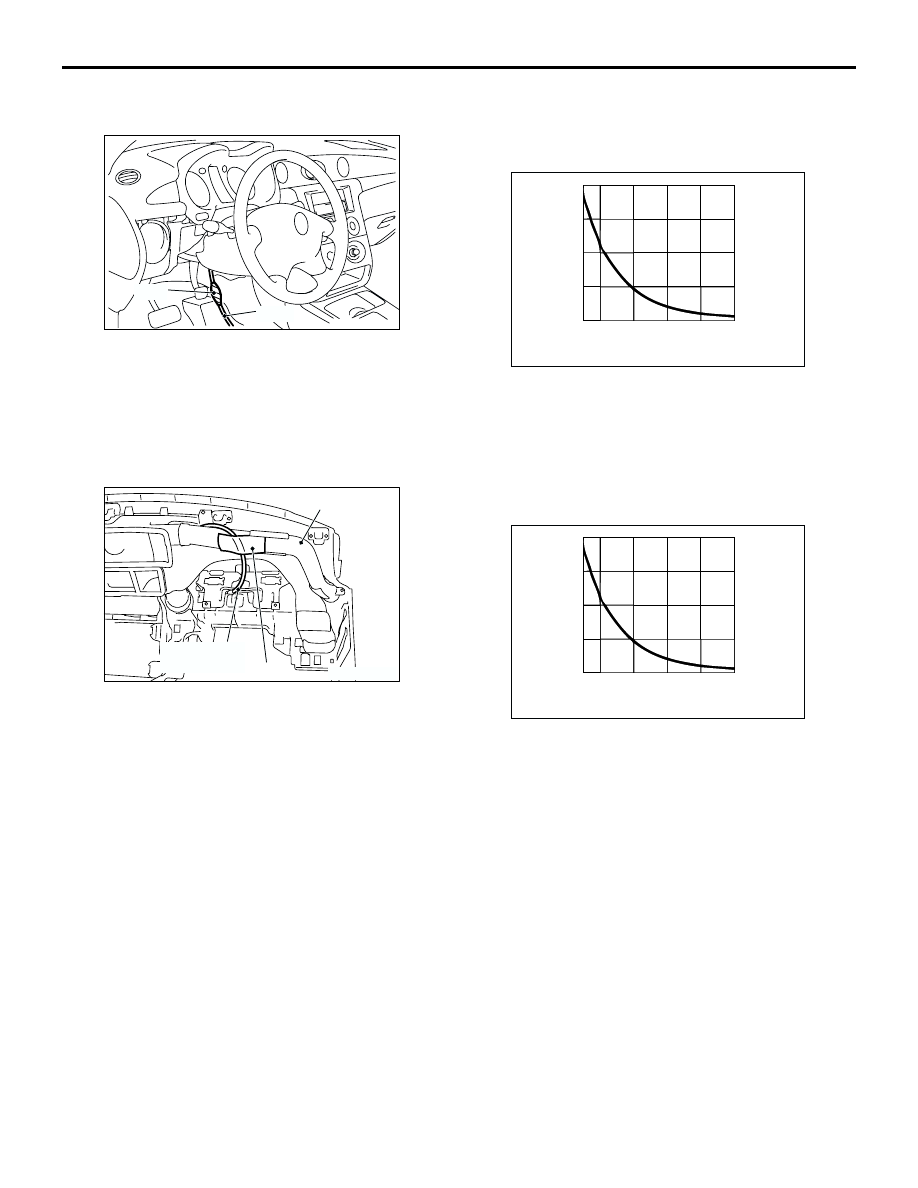

INTERIOR TEMPERATURE SENSOR
CHECK

Check to see that the resistance shown in the graph
is almost satisfied when measuring the resistance
between the terminals under two or more different
temperature conditions.

HEATER WATER TEMPERATURE
SENSOR CHECK

Check to see that the resistance shown in the graph
is almost satisfied when measuring the resistance
between the terminals under two or more different
temperature conditions.

PHOTO SENSOR CHECK

Check that the blower rotation comes down if the
photo sensor is covered with hands, when the
automatic A/C is operating (in summer sunbeam). If
not the rotation comes down, replace the photo
sensor.

AC301536

String

AB

Tape

AC301539

AB

Defroster nozzle

Tape

Photo sensor
harness

AC103488

20

15

10

5

0

-10 0

20

40

60

80

AB

Resis
tance
(k

Ω

)

Temperature (˚C)

AC103488

20

15

10

5

0

-10 0

20

40

60

80

AB

Resis
tance
(k

Ω

)

Temperature (˚C)

EVAPORATOR ASSEMBLY

AUTOMATIC AIR CONDITIONER

55B-105

EVAPORATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1552003600195

Refer to GROUP 55A, Evaporator assembly

P.55A-68

.

INSPECTION

M1552014300734

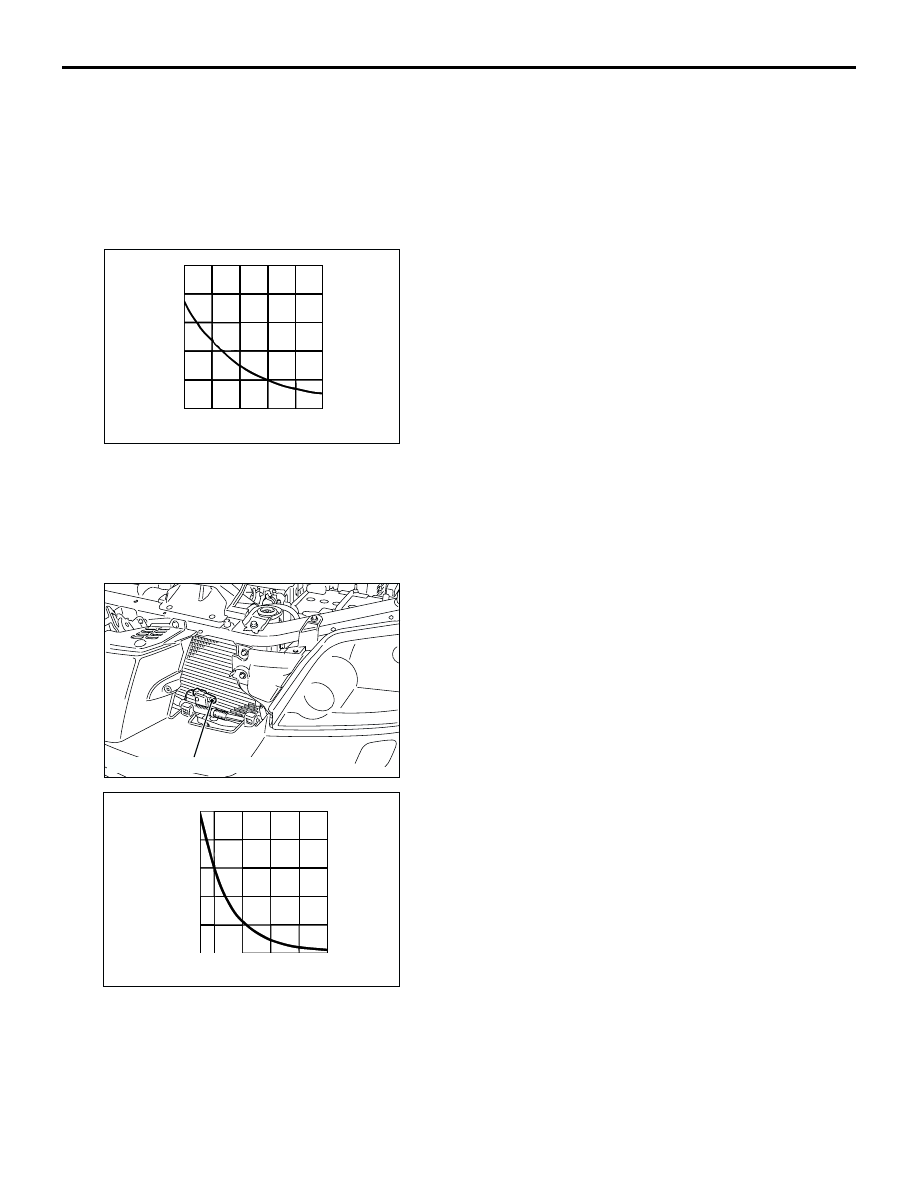

AIR THERMO SENSOR CHECK

Check to see that the resistance shown in the graph
is almost satisfied when measuring the resistance
between the terminals under two or more different
temperature conditions.
NOTE: The temperature should be within the shown
range.

AMBIENT TEMPERATURE SENSOR

INSPECTION

M1552014300745

Check to see that the resistance shown in the graph
is almost satisfied when measuring the resistance
between the sensor terminals under two or more
different temperature conditions.

AC103661

25

20

15

10

5

0

-10

0

10

20 30 40

AB

Resistance

(k

Ω

)

Temperature (˚C)

AC301106

Ambient air temperature sensor

AC

AC103489AB

50

40

30

20

10

0

-30 -20

0

20

40 60

Resistance

(k

Ω

)

Temperature (˚C)

OTHER PARTS

AUTOMATIC AIR CONDITIONER

55B-106

OTHER PARTS

OTHER PARTS

M1554004000073

The following maintenance service points are the
same as for the manual A/C.

Item

Reference
page

On-vehicle
service

Refrigerant level test

P.55A-51

Magnetic clutch test

P.55A-51

Compressor drive
belt adjustment

P.55A-51

A/C pressure sensor
simple check

P.55A-51

Charging

P.55A-52

Correcting low
refrigerant level in
case the service can
in used

P.55A-54

Discharging system

P.55A-55

Refilling of oil in the
A/C system

P.55A-55

Performance test

P.55A-55

Refrigerant leak
repair procedure

P.55A-56

Compressor noise
check

P.55A-57

Power relay
continuity check

P.55A-57

Idle-up operation
check

P.55A-58

Clean air filter
replacement
procedure

P.55A-59

Heater unit and blower assembly

P.55A-63

Blower motor and outside/inside
air selection damper control motor

P.55A-66

Evaporator and air thermo sensor

P.55A-68

A/C compressor

P.55A-70

Condenser and condenser fan
motor

P.55A-74

Refrigerant line

P.55A-77

Ventilators

P.55A-79

Item

Reference
page
