INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-369

Step 4. Check the wiring harness from C-03 fog
lamp switch connector terminal No.2 <L.H. drive
vehicles> or terminal No.6 <R.H. drive vehicles>
to body earth.

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 5. Connector check: C-219 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

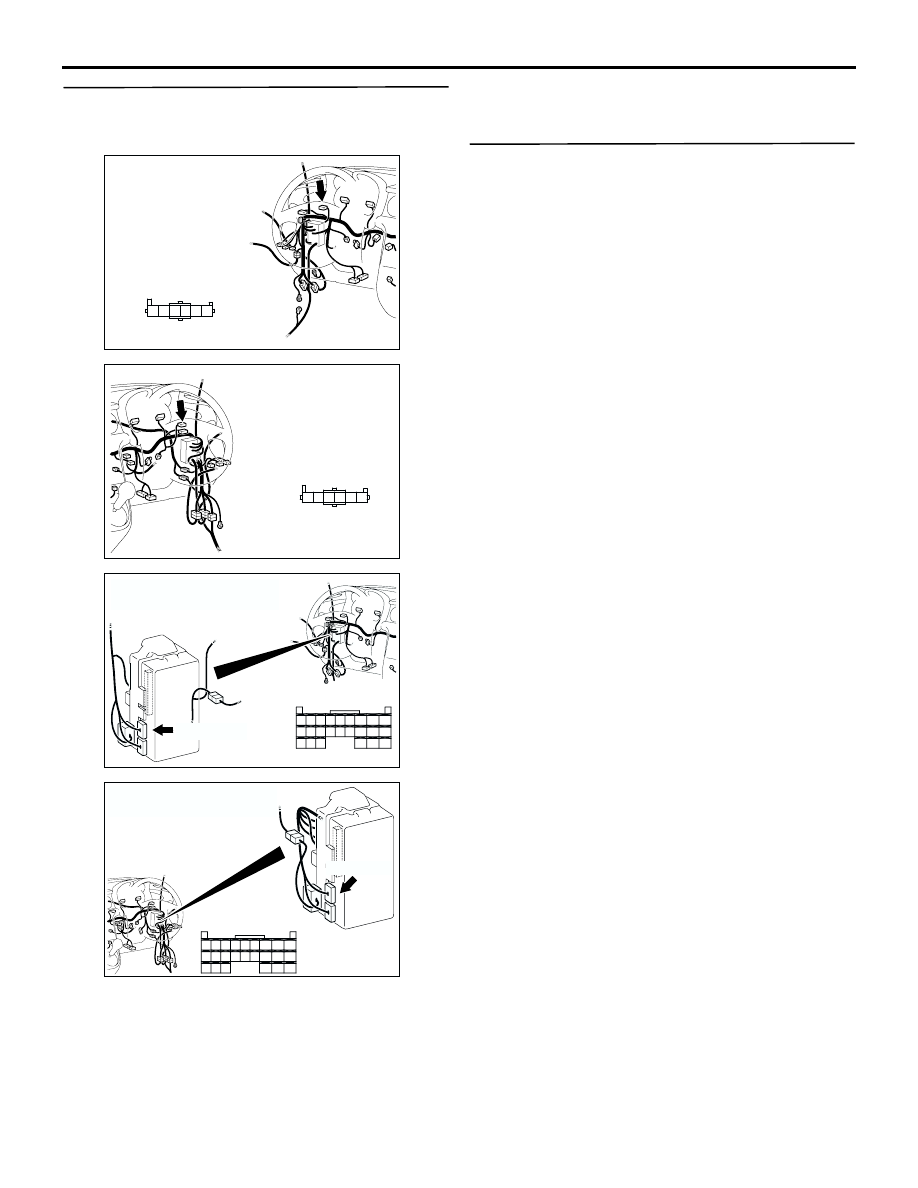

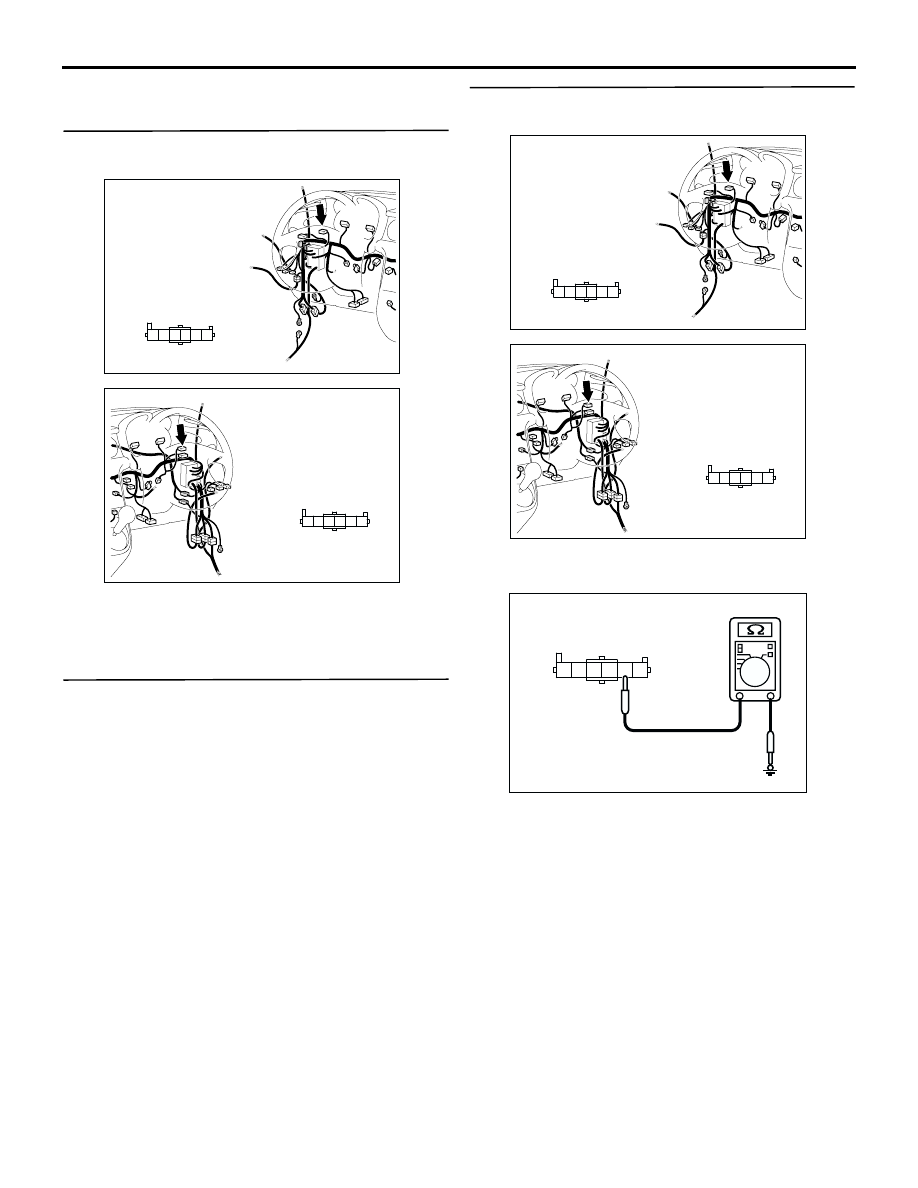

AC308716

AE

1

5

6

4 3 2

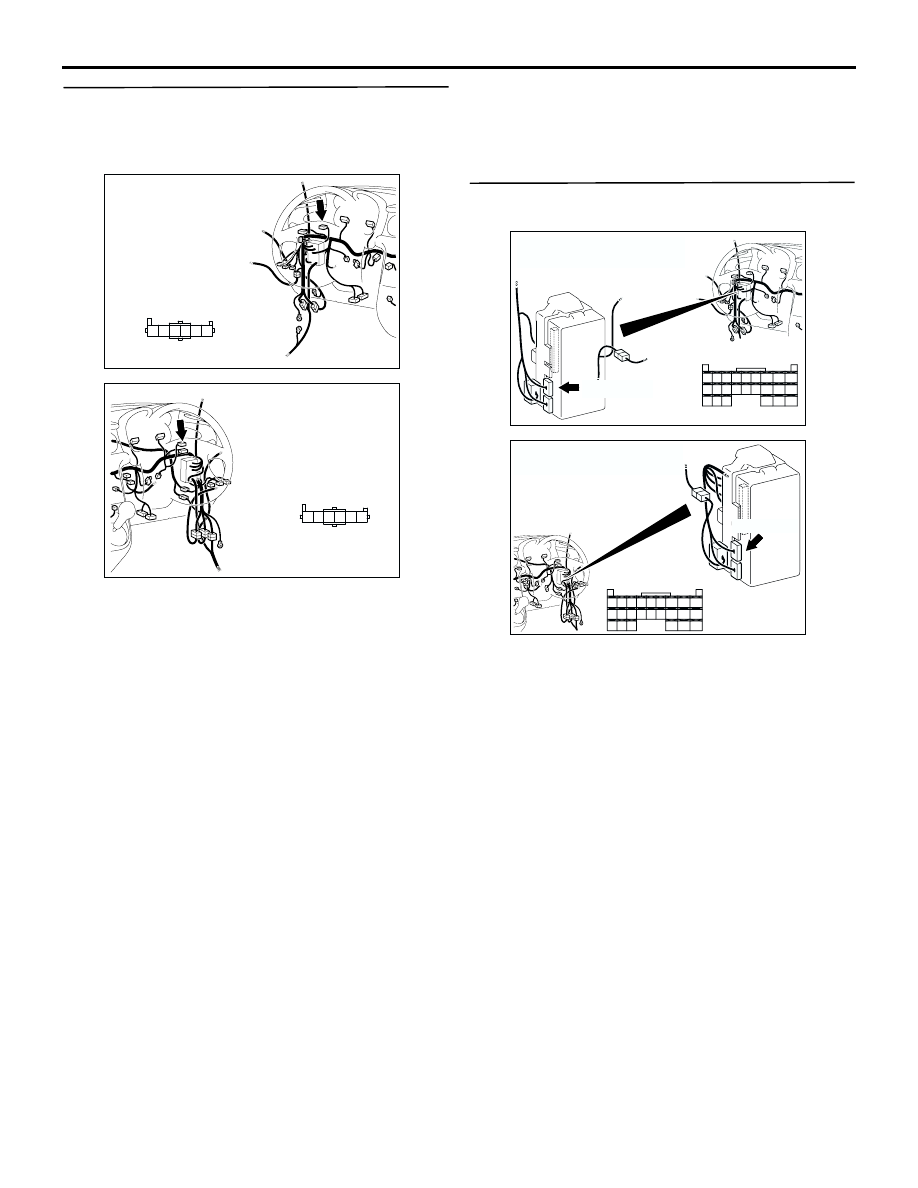

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-370

Step 6. Check the wiring harness from C-219
ETACS-ECU connector No.54 to C-03 fog lamp
switch connector terminal No.5.

Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the front fog lamp switch signal is
received normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308716

AE

1

5

6

4 3 2

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC308722

Connector: C-219

Junction block (Rear view)

AH

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

<LHD>

AC308776

Connector: C-219  <RHD>

Junction block (Rear view)

AE

68

74

63

66

72

73

67

6564

61

70

71

62

69

60

57

58

59

5655

52

54 53

51

Harness side

C-219(GR)

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-371

INSPECTION PROCEDURE N-16: The rear fog lamp switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM
Input signal from the rear fog lamp switch is used to
operate the rear fog lamps. If the signal is abnormal,
the rear fog lamps will not illuminate and extinguish
normally.

POSSIBLE CAUSES

Malfunction of the fog lamp switch

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

ETACS-
ECU

FOG LAMP
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

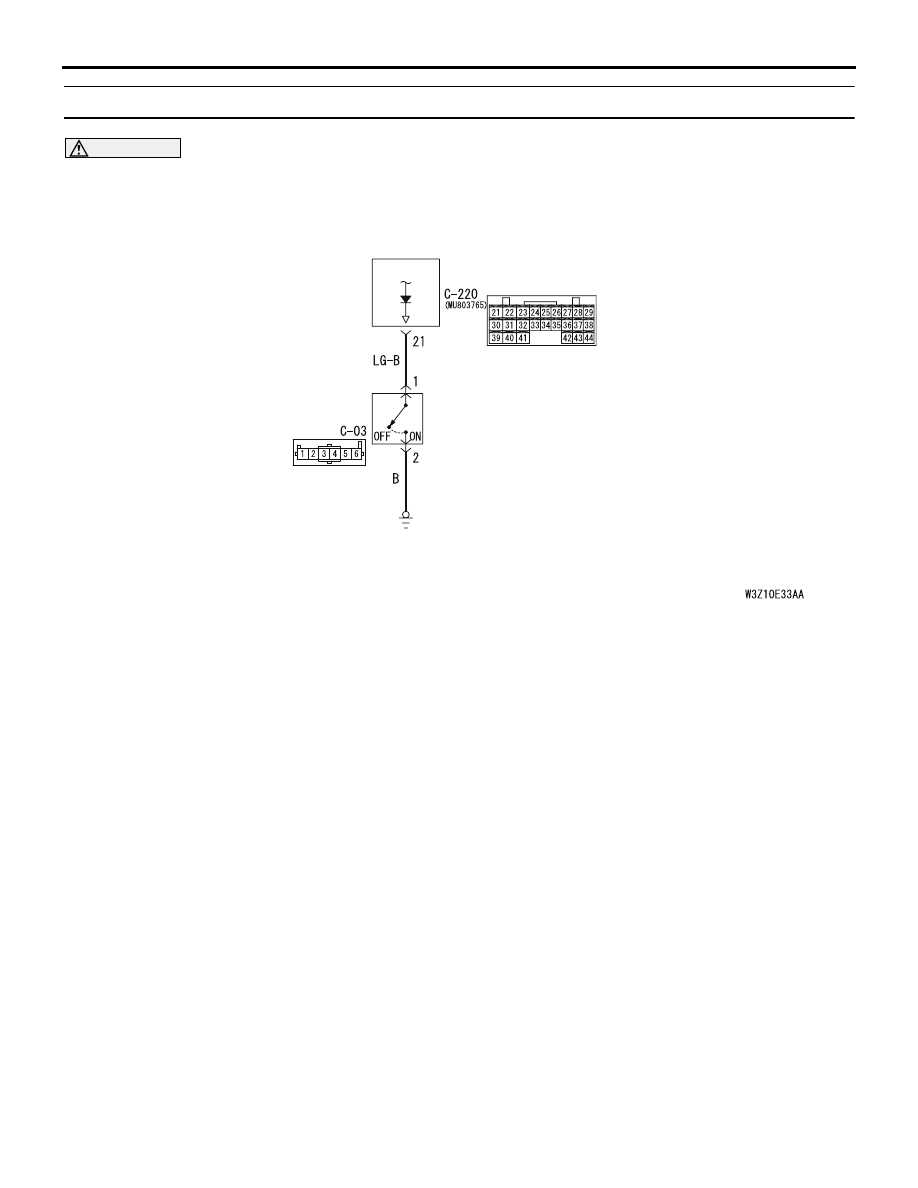

Rear Fog Lamp Switch Input Circuit

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-372

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-03 fog lamp switch
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the rear fog lamp switch.

Refer to GROUP 54A

 Rear fog lamp

P.54A-85

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the fog lamp switch.

Step 3. Measure the resistance at the C-03 fog
lamp switch connector.

(1) Remove the fog lamp switch, and measure at the

wiring harness side.

(2) Continuity between C-03 fog lamp switch

connector terminal No.2 and body earth

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC308716

AE

1

5

6

4 3 2

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC308716

AE

1

5

6

4 3 2

Connector: C-03
<LHD>

Harness side

AC308769

AE

1

5

6

4 3 2

Connector: C-03 <RHD>

Harness side

AC301541 AN

Connector C-03
(Harness side)

1

5

6

4 3 2
