SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-257

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-14 <side RH>, C-116
<front or side LH> or D-31 <rear RH (L.H. drive
vehicles)> and junction block connector C-202
<front, side and rear LH (R.H. drivevehicles)>, C-209
<rear (L.H. drivevehicles)> or C-221 <rear RH (R.H.
drivevehicles)> or C-205 <turn-signal indicator
lamp>, and repair if necessary.

•

Check the output lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

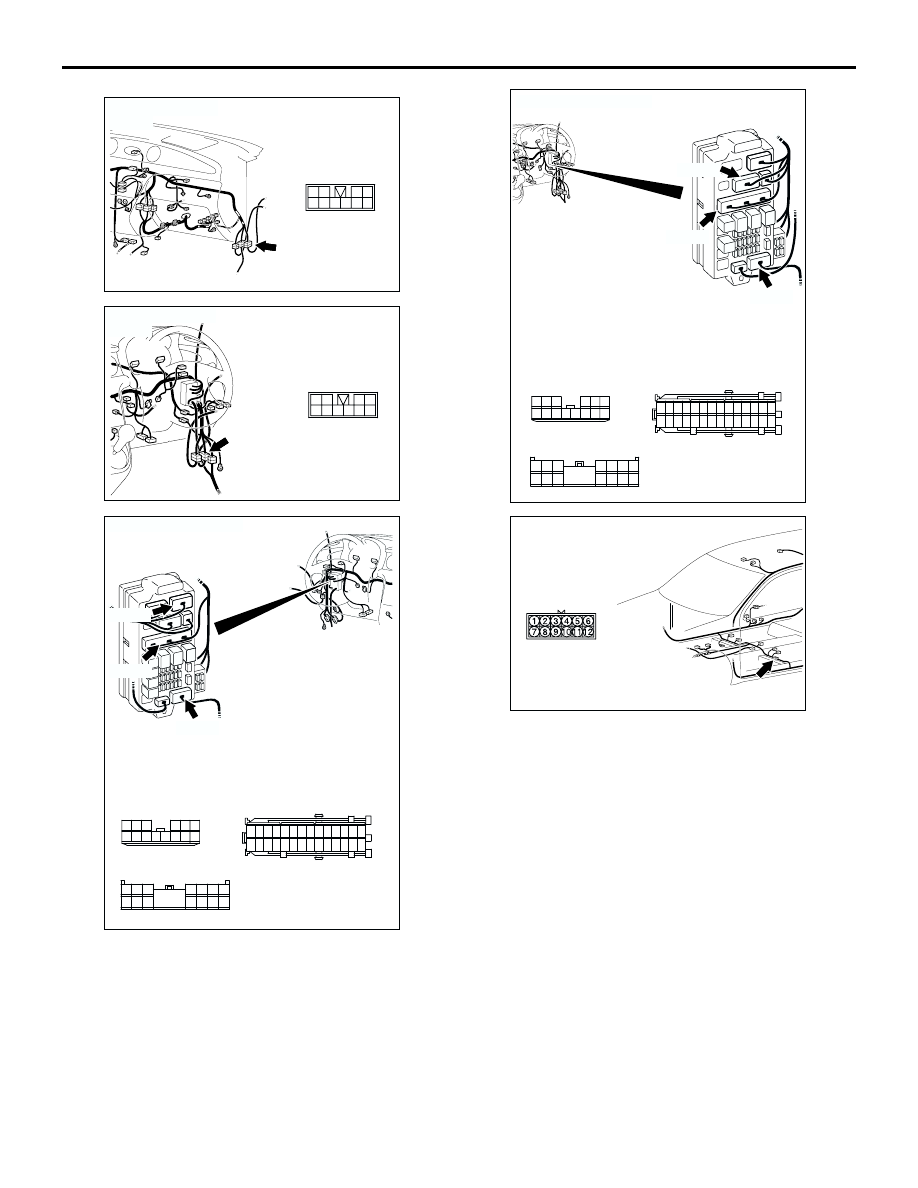

AC308718

Connector: C-14

AI

9

3

2

1
5 6 7 8

4

10

<LHD>

AC308769

Connector: C-14

AM

9

3

2

1
5 6 7 8

4

10

<RHD>

AC308721

Connectors: C-202, C-205, C-209

AF

Junction block (Front view)

C-202

C-205

Harness side

C-205

C-202

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-209

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

C-209

<LHD>

AC308773

Connectors: C-202, C-205, C-209

AH

Junction block (Front view)

C-202

C-205

Harness side

C-205

C-202

10

1

6

14

5

12

13

4

11

7

2

3

8

9

C-221

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

7

15

5

6

1413

2

9

12

4 3

10

11

1

8

C-209

<RHD>

AC308781

Connector: D-31

AD

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-258

Step 7. Retest the system.

Check that the turn-signal lamps and the indicator
lamps illuminate normally.

Q: Is the check result normal?

The lamps illuminate normally at both high and low
beams. :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

The front turn-signal lamps do not illuminate. :

Replace the socket.

The side turn-signal lamps do not illuminate. :

Replace the socket.

The rear turn-signal lamps do not illuminate. :

Replace the socket assembly.

The turn-signal indicator lamps do not illuminate. :

Replace the combination meter.

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-259

FOG LAMP

INSPECTION PROCEDURE L-1: The front fog lamps do not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

OPERATION
The ETACS-ECU operates this function in
accordance with the input signals below.

•

Tail lamp switch

•

Headlamp switch

•

Front fog lamp switch

If the front fog lamps do not illuminate normally,
these input signal circuit(s) or the ETACS-ECU may
be defective.

POSSIBLE CAUSES

•

Malfunction of the column switch

•

Malfunction of the front fog lamp switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

BATTERY

RELAY
BOX

FRONT FOG
LAMP RELAY

FRONT-ECU

COMBINATION
METER

FRONT
FOG LAMP
(LH)

FRONT
FOG LAMP
(RH)

<LHD>

<RHD>

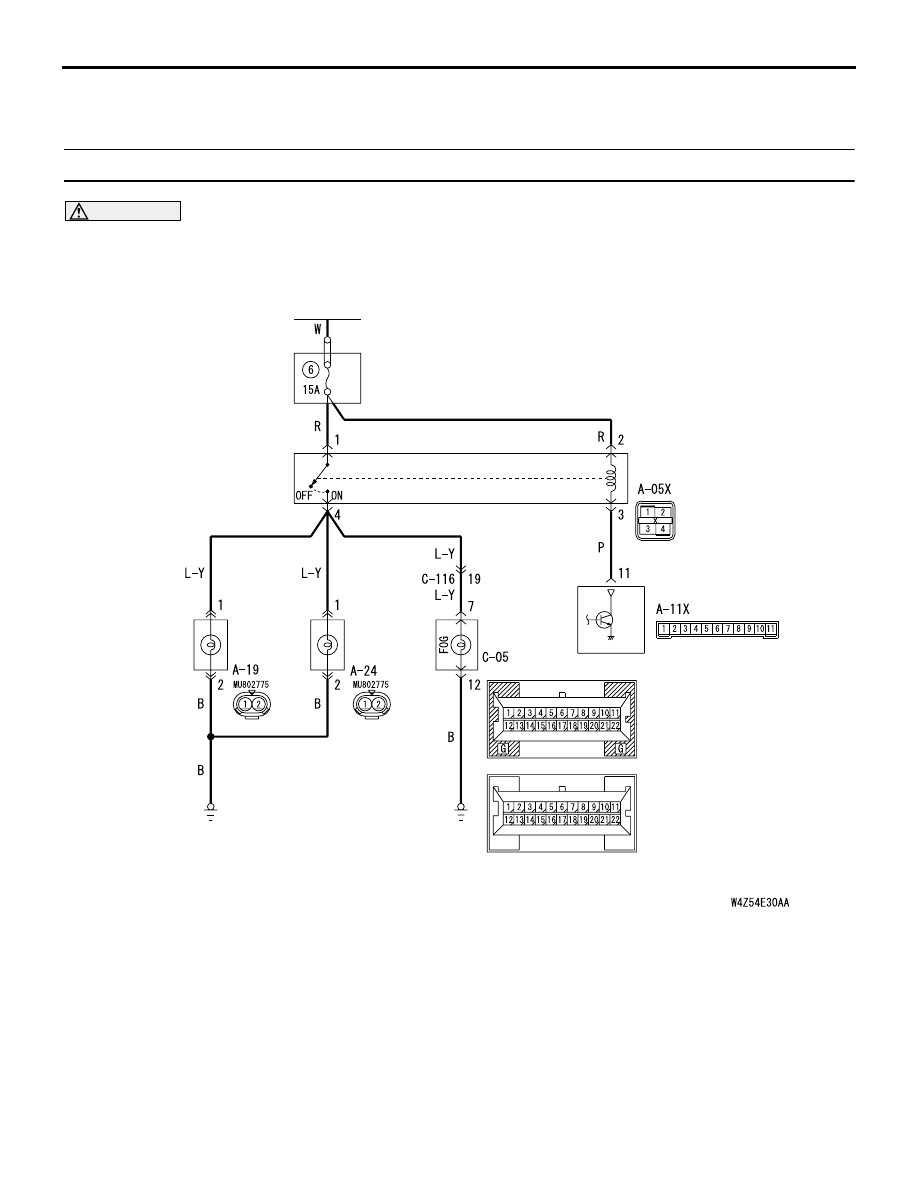

Front Fog Lamp Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-260

DIAGNOSTIC PROCEDURE

Step 1. Check that the tail lamps and headlamps
operate.

Check that the tail lamps and headlamps illuminate
normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Check the tail lamps and the headlamps
(Refer to trouble symptom chart

P.54B-41

).

Step 2. Pulse check

Check the input signals below, which are related to
the front fog lamps.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-301

."

The tail lamp switch signal is not received. :

Refer

to inspection procedure N-5 "The column
switch (lighting and turn-signal lamp switch)
signal is not received

P.54B-319

."

The headlamp switch signal is not received. :

Refer to inspection procedure N-5 "The
column switch (lighting and turn-signal lamp
switch) signal is not received

P.54B-319

."

The front fog lamp switch signal is not received. :

Refer to inspection procedure N-15 "The
front fog lamp switch signal is not received

P.54B-367

."

Step 3. Connector check: A-05X front fog lamp
relay connector.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the front fog lamp relay.

Refer to GROUP 54A

−

 Front fog lamp

P.54A-82

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the front fog lamp relay.

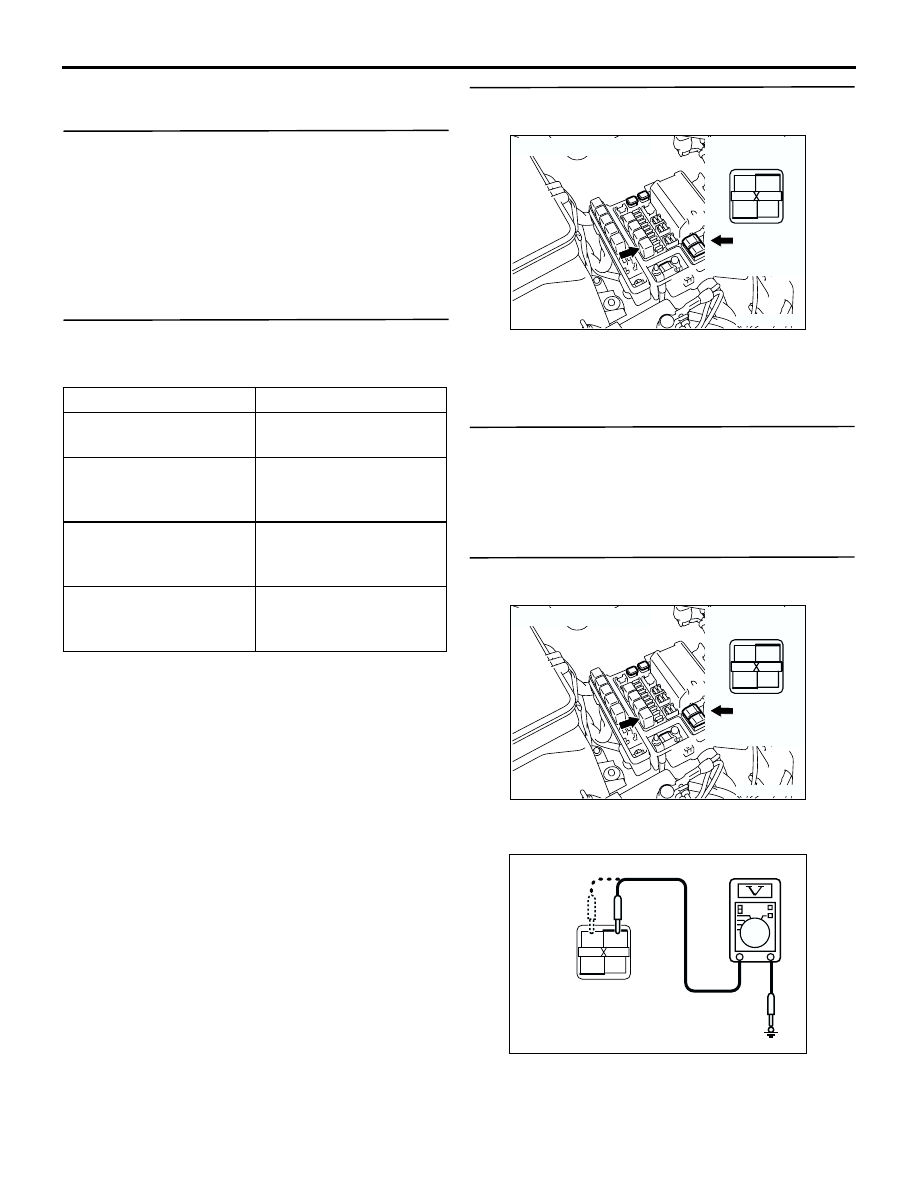

Step 5. Measure the voltage at the A-05X front fog
lamp relay connector.

(1) Remove the front fog lamp relay, and measure at

the relay box side.

(2) Check the voltage between the front fog lamp

System switch

Check condition

Ignition switch (IG1)

When turned from ACC
to ON

Tail lamp switch

When the lighting switch
is turned to the TAIL
position

Headlamp switch

When the lighting switch
is turned to the
HEADLAMP position

Front fog lamp switch

When the front fog lamp
switch is turned from off
to on

AC301515 AF

Connector: A-05X

1

3

2

4

Front of
vehicle

Relay box side

AC301515 AF

Connector: A-05X

1

3

2

4

Front of
vehicle

Relay box side

AC301541AC

Connector A-05X
(Relay box side)

2

4

1

3
