SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-125

INSPECTION PROCEDURE D-4: Front and/or rear passenger's power window(s) do not work by
means of the power window main switch.

FRONT
 (RH)

REAR
 (RH)

REAR
 (LH)

POWER WINDOW
MAIN SWITCH

LOCK
SWITCH

POWER WINDOW
SUB SWITCH
(FRONT: RH)

POWER WINDOW
SUB SWITCH
(REAR: LH)

POWER WINDOW
SUB SWITCH
(REAR: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

CPU

CPU

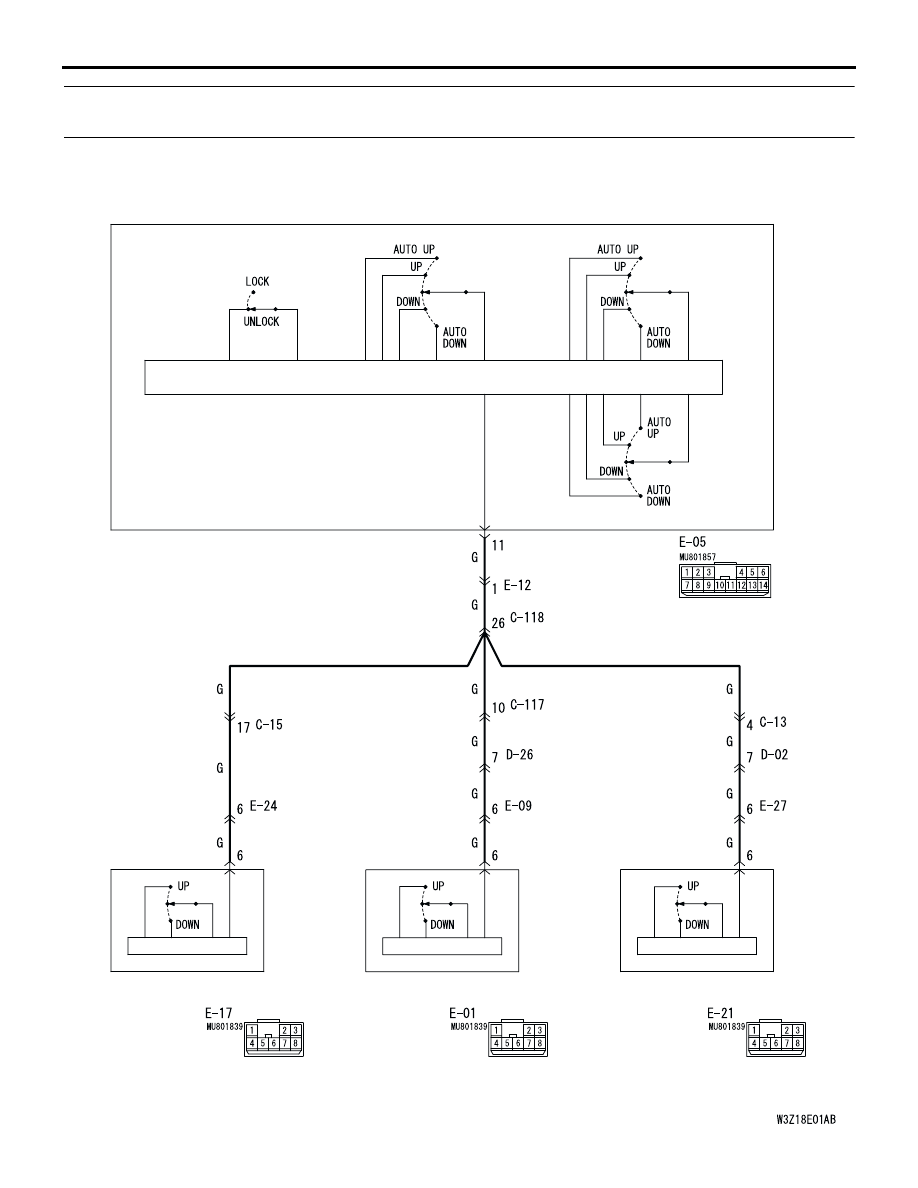

Power Window Circuit <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-126

FRONT
 (LH)

REAR
 (RH)

REAR
 (LH)

POWER WINDOW
MAIN SWITCH

LOCK
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

CPU

CPU

POWER WINDOW
SUB SWITCH
(FRONT: LH)

POWER WINDOW
SUB SWITCH
(REAR: LH)

POWER WINDOW
SUB SWITCH
(REAR: RH)

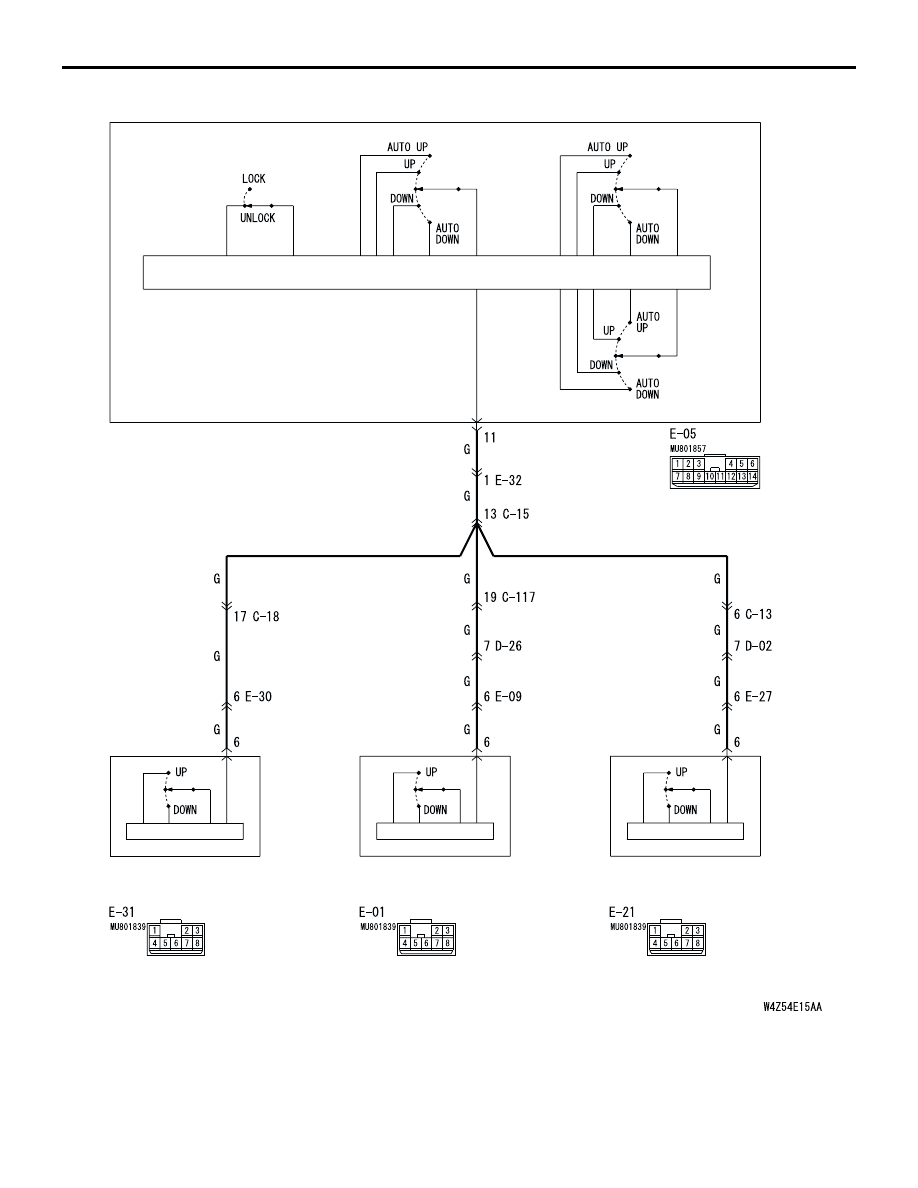

Power Window Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-127

COMMENTS ON TROUBLE SYMPTOM
If the passenger's and/or rear power window does
not work by means of the power window main switch,
the power window main switch or the respective
power window sub switch(es) may be defective.

POSSIBLE CAUSES

•

Malfunction of the power window main switch

•

Malfunction of the power window sub switch
(front, RH), power window sub switch (rear, RH)
or power window sub switch (rear, LH)

•

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.

Check that the driver's power window works by
means of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure D-2 "Driver's
power window does not work by means of
the power window main switch

P.54B-97



<L.H. drive vehicles> or

P.54B-102

 <R.H.

drive vehicles>."

Step 2. Check the power window sub switch.

Check that each power window works by means of
the respective power window sub switch when the
power window lock switch is turned off.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure D-3 "Relevant
power window(s) do not work by means of
the front and rear passenger's power
window sub switches

P.54B-107

."

Step 3. Determine a trouble spot.

Q: Which power window does not work when the

power window main switch is operated?

Front passenger's door :

Go to Step 4.

Rear right door :

Go to Step 7.

Rear left door :

Go to Step 10.

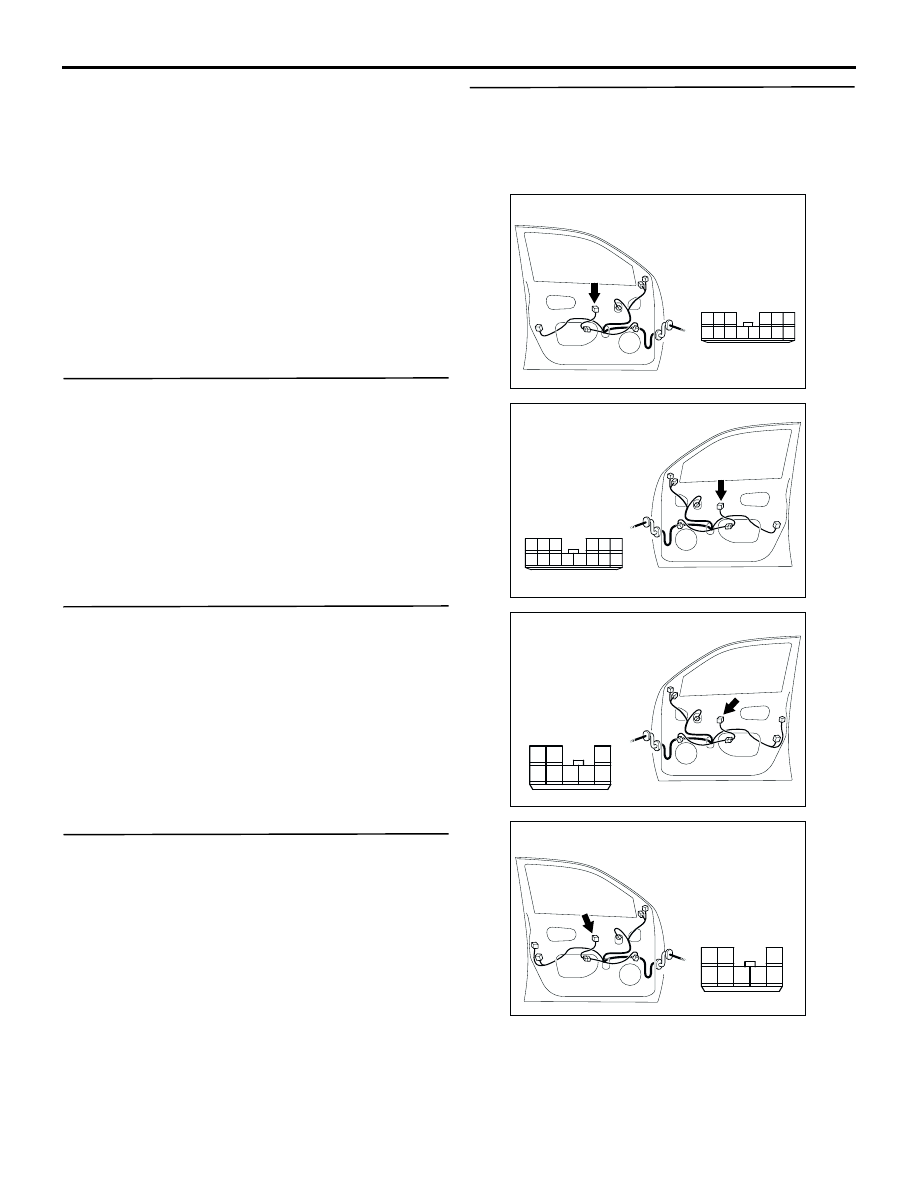

Step 4. Connector check: E-05 power window
main switch connector and E-17 power window
sub switch (front RH) connector <L.H. drive
vehicles> or E-31 power window sub switch
(front LH) connector <R.H. drive vehicles>

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

AC308791

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

Connector: E-05

Harness side

<LHD>

AC308797

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC

Connector: E-05

Harness side

<RHD>

AC308793

Connector: E-17
<LHD>

Harness side

AE

1

4

5

3 2

7 6

8

AC308805

Connector: E-31
<RHD>

Harness side

AE

1

4

5

3 2

7 6

8

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-128

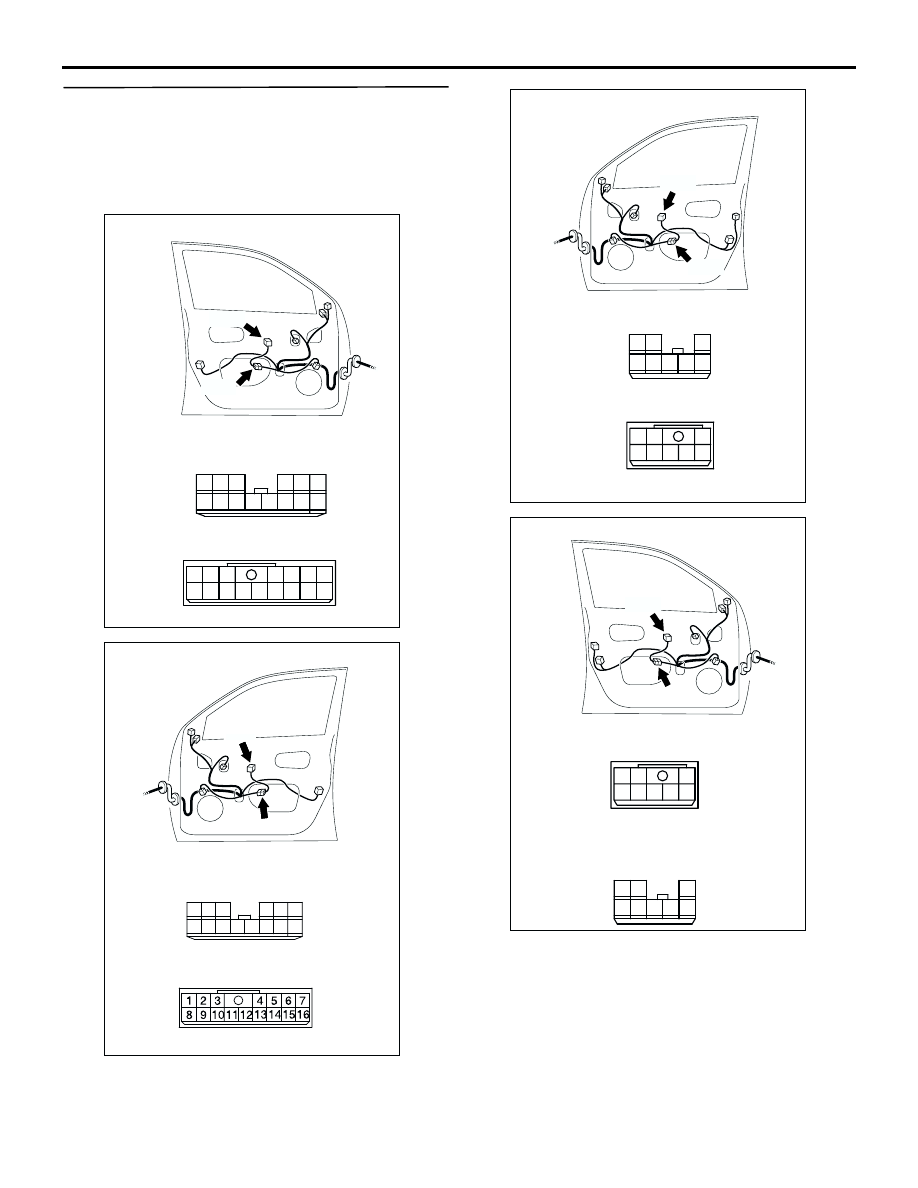

Step 5. Check the wiring harness between E-05
power window main switch connector terminal
No.11 and E-17 power window sub switch (front
RH) connector <L.H. drive vehicles> or E-31
power window sub switch (front LH) connector
<R.H. drive vehicles> terminal No.6.

AC308792

Connectors: E-05, E-12
<LHD>

E-05

Harness side

E-05

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AE

E-12

E-12

10

2
9

1
8

3

12

11

4

13

6

15

5

14

7

16

AC308798AB

Connector: E-05, E-32

<RHD>

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Harness side

E-05

E-32

E-05

E-32

AC308794

Connectors: E-17, E-24
<LHD>

AB

E-17

Harness side

E-24

E-17

E-24

1

4

5

3 2

7 6

8

4

1

5

2

7

6

8

3

AC308806

Connectors: E-30, E-31
<RHD

AD

E-30

E-31

Harness side

E-30

E-31

1

4

5

3 2

7 6

8

4

1

5

2

7

6

8

3
