TROUBLESHOOTING

WHEEL AND TYRE

31-7

WHEEL BALANCER CALIBRATION
CHECKING FLOW CHART

AC000040

Balance wheel.

Rotate wheel 1/2 turn.

Imbalance = 5g or less

Imbalance = more than 5g

Rebalance wheel.

Rotate wheel 1/4 turn.

Imbalance = 5g or less

Imbalance = more than 5g

Verify wheel is properly centered.
Verify cones, cup, and wing nut are clean,
undamaged, and appropriate for wheel.
Make necessary corrections, then recheck
wheel balance.

Attach a 5g weight to the outer rim.
Is the imbalance 5 ± 2g at 170

 190˚

away from the 5g weight?

YES

NO

Attach a 5g weight to the inner rim at 180˚
opposite the weight on the outer rim.
Is the imbalance 5 ± 2g at 170

 190˚

away from both 5g weights?

YES

NO

Balancer does not require
calibration.

Balancer requires calibration.
Contact balancer manufacturer.

ZERO CALIBRATION
CHECK

STATIC BALANCE
CHECK

DYNAMIC BALANCE
CHECK

AB

ON-VEHICLE SERVICE

WHEEL AND TYRE

31-8

ON-VEHICLE SERVICE

TYRE INFLATION PRESSURE CHECK

M1311000900293

NOTE: For information on tyre inflation pressure,
refer to the label attached to the centre pillar on the
driver's side.

TYRE WEAR CHECK

M1311001000301

Measure the tread depth of the tyres.

Minimum limit: 1.6 mm

If the remaining tread depth is less than the minimum
limit, replace the tyre.
NOTE: When the tread depth of the tyres is reduced
to 1.6 mm  or less, wear indicators will appear.

WHEEL RUNOUT CHECK

M1311001100427

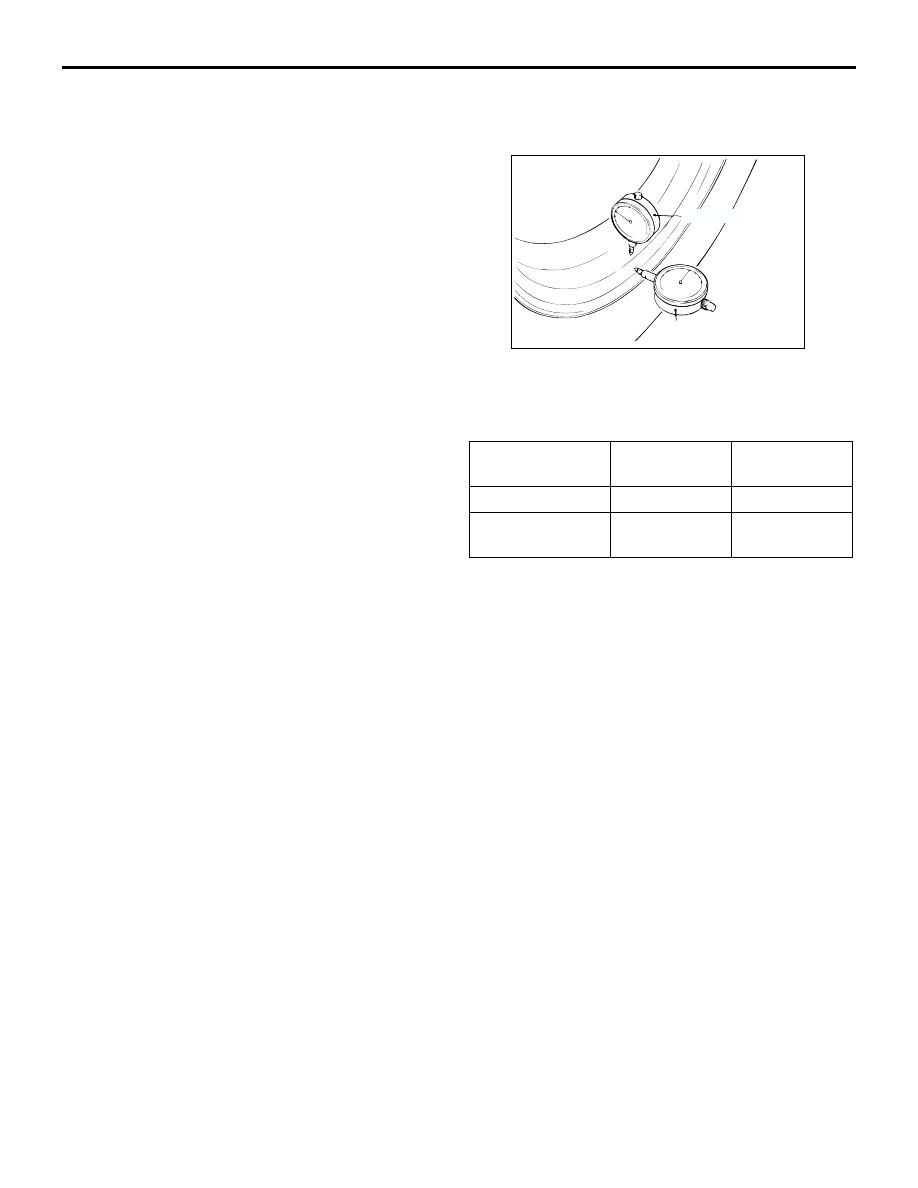

Jack up the vehicle so that the wheels are clear of
the floor. While slowly turning the wheel, measure
wheel runout with a dial indicator.
Limit:

If wheel runout exceeds the limit, replace the wheel.

WHEEL AND TYRE

INSTALLATION SERVICE POINT

M1311001300261

Tighten the wheel nuts to the specified torque.

Tightening torque: 98

±

 10 N

m

Item

Steel wheel

Aluminium
wheel

Radial runout mm 1.2

1.0

Lateral runout
mm

1.2

1.0

ACX00651AB

Lateral

Radial

32-1

GROUP 32

POWER PLANT

MOUNT

CONTENTS

GENERAL INFORMATION . . . . . . . .

32-2

SERVICE SPECIFICATION . . . . . . . .

32-4

SPECIAL TOOL . . . . . . . . . . . . . . . . .

32-4

ENGINE MOUNTING . . . . . . . . . . . . .

32-5

REMOVAL AND INSTALLATION . . . . . . . .

32-5

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

32-5

TRANSMISSION MOUNTING <M/T>

32-6

REMOVAL AND INSTALLATION . . . . . . . .

32-6

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

32-7

TRANSMISSION MOUNTING <A/T>.

32-8

REMOVAL AND INSTALLATION . . . . . . . .

32-8

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

32-9

ENGINE ROLL STOPPER,
CENTREMEMBER <4G63> . . . . . . . .

32-10

REMOVAL AND INSTALLATION . . . . . . . .

32-10

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

32-11

ENGINE ROLL STOPPER,
CENTREMEMBER <4G69> . . . . . . . .

32-12

REMOVAL AND INSTALLATION . . . . . . . .

32-12

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

32-13

CROSSMEMBER . . . . . . . . . . . . . . . .

32-14

REMOVAL AND INSTALLATION . . . . . . . .

32-14

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

32-18

GENERAL INFORMATION

POWER PLANT MOUNT

32-2

GENERAL INFORMATION

M1321000100414

The inertia axial mount system has been adopted for
the engine mount system.

On vehicles with 4G63 or 4G69-A/T engine,
pressurized liquid-filled longitudinally installed
cylindrical engine front mounting bracket is
adopted to reduce vibration during acceleration
and cornering.

On vehicles with 4G69-M/T engine, liquid-filled
cylindrical engine front mounting bracket is
adopted to reduce vibration during acceleration
and cornering.

The liquid-filled transmission mount body side
bracket improves riding comfort by its refined
insulator.

Installation of engine rear roll stopper bracket or
engine roll stopper rod assembly in the upper
area limits engine rolling. Further more, large
diameter insulator reduces idle vibration.

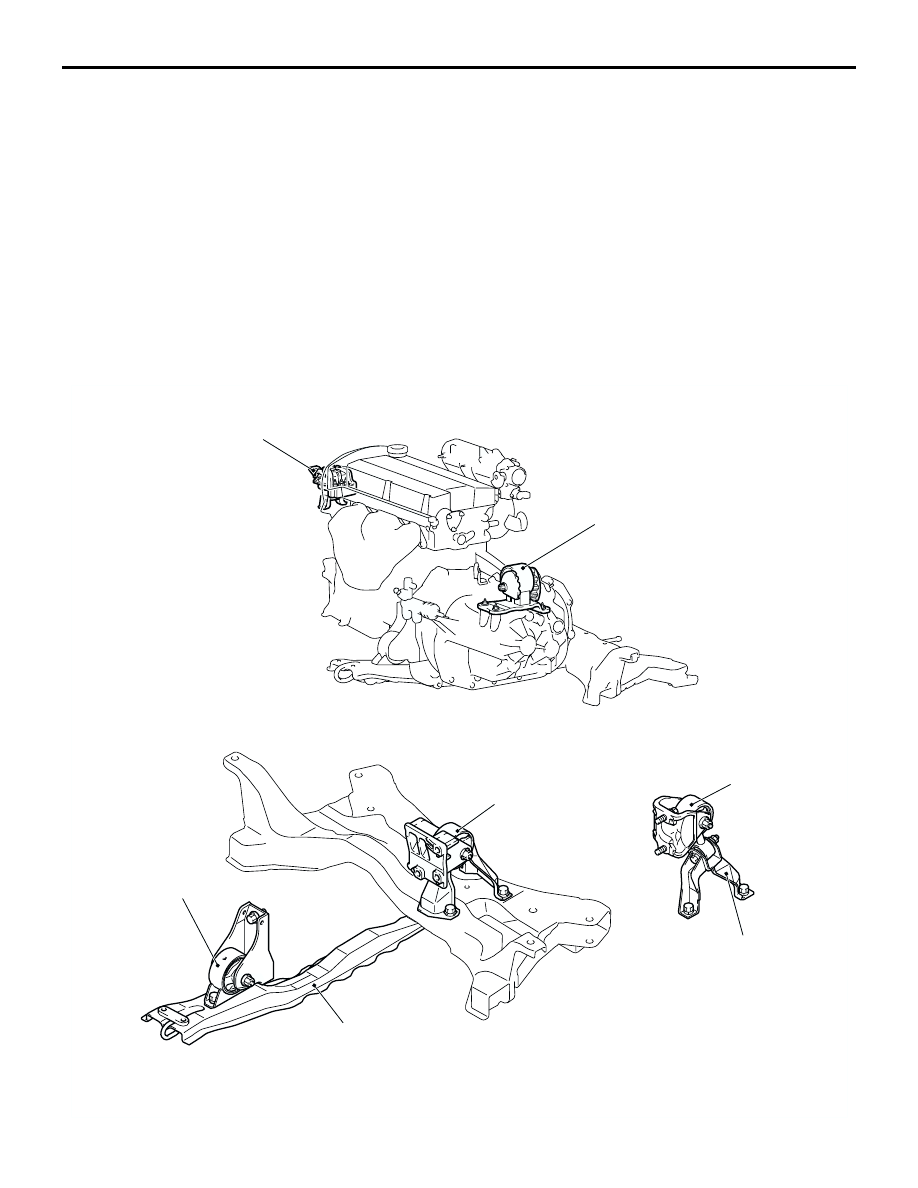

CONSTRUCTION DIAGRAM

AC107318

AC301341

AC301640

Centremember

Engine rear roll
stopper bracket

Engine roll stopper
rod bracket

Engine roll stopper
rod assembly

Engine roll stopper bracket

Engine front mounting bracket

Transmission mounting
body side bracket

<2WD>

<4WD>

AD

<4G63>
