DIFFERENTIAL CARRIER ASSEMBLY

REAR AXLE <4WD>

27B-19

DISASSEMBLY

M1272002200203

AC301212AB

24

25 26

32

27

28

22

19

12

18

17

13

16

15

14

17

18

10

15

16

11

8

1

5

10

11

9

9

3

34

31

30

29

23

21

20

N

N

33

N

N

6

N

9

N

2

4

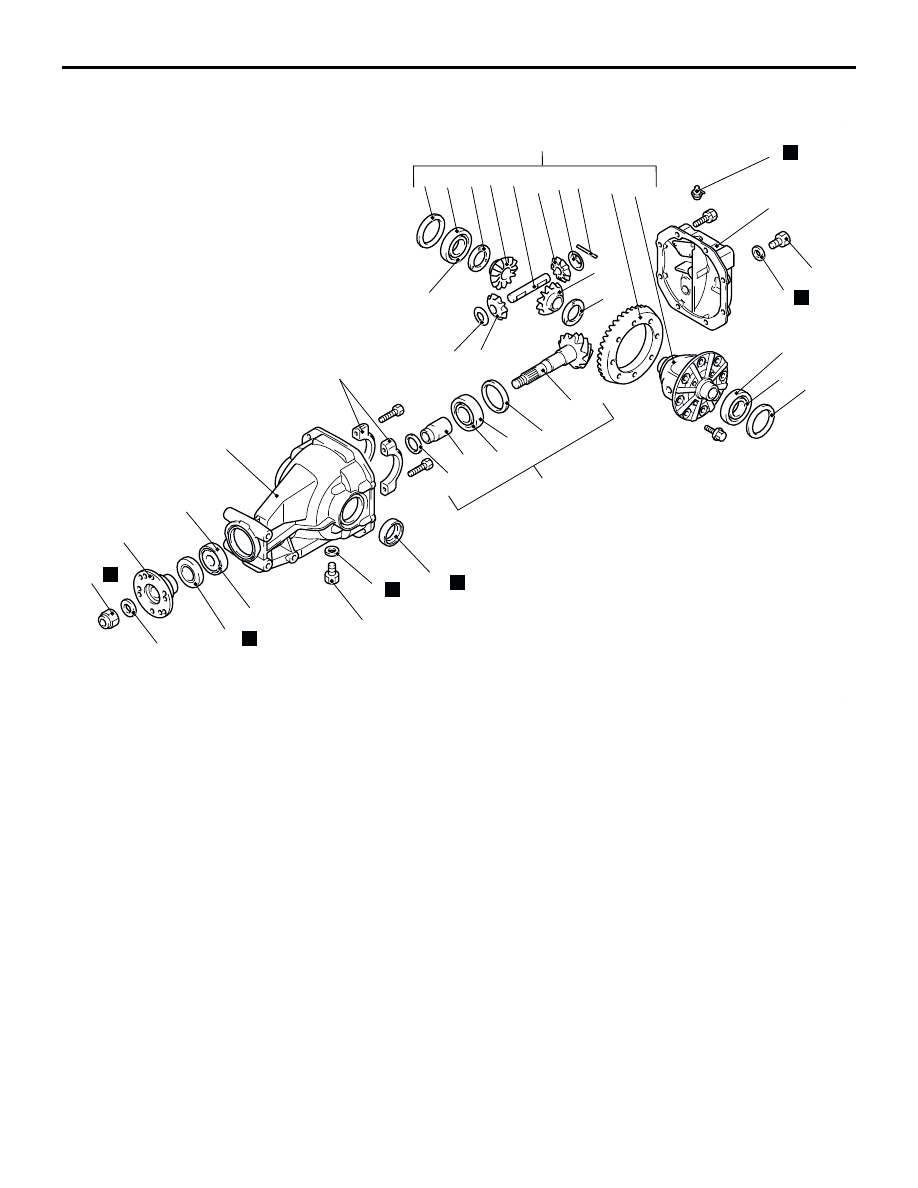

Disassembly steps

•

Inspection before disassembly (Refer
to

P.27B-20

).

1. Filler plug
2. Gasket
3. Drain plug
4. Packing
5. Differential cover
6. Vent plug
7. Bearing cap

<<A>>

8. Differential case assembly

<<A>>

9. Differential side bearing spacer

<<A>>

10. Differential side bearing outer race

<<B>>

11. Differential side bearing inner race

<<C>>

12. Drive gear

<<D>>

13. Lock pin
14. Pinion shaft
15. Pinion gear
16. Pinion washer
17. Side gear

18. Side gear spacer
19. Differential case

<<E>>

20. Self-locking nut
21. Washer

<<F>>

22. Drive pinion assembly

<<F>>

23. Companion flange
24. Drive pinion front shim (For adjusting

preload of drive pinion)

25. Drive pinion spacer

<<G>>

26. Drive pinion rear bearing inner race
27. Drive pinion rear shim (for adjusting

drive pinion height)

28. Drive pinion

<<H>>

29. Oil seal

<<H>>

30. Drive pinion front bearing inner race

<<H>>

31. Drive pinion front bearing outer race

<<I>>

32. Drive pinion rear bearing outer race
33. Oil seal
34. Differential carrier

Disassembly steps (Continued)

DIFFERENTIAL CARRIER ASSEMBLY

REAR AXLE <4WD>

27B-20

INSPECTION BEFORE DISASSEMBLY

1. Remove the cover.

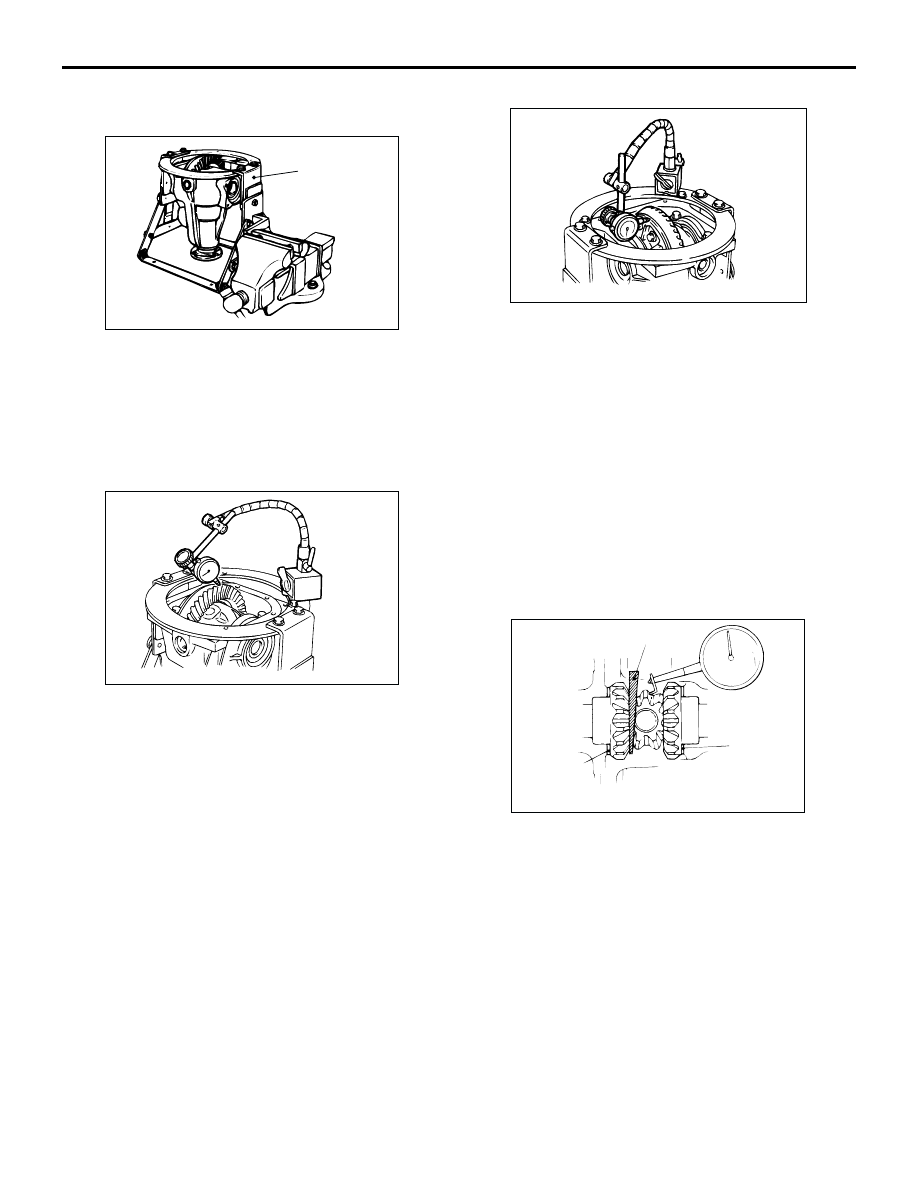

2. Hold the following special tools in a vise, and

install the differential carrier assembly to the
special tool.

•

Working base (MB990909)

•

Working base adapter (MB991116)

FINAL DRIVE GEAR BACKLASH

1. With the drive pinion locked in place, use a dial

gauge to measure the drive gear backlash in four
or more places on the drive gear.

Standard value: 0.11

−

 0.16 mm

2. If the backlash is not within the standard value,

adjust the final drive gear backlash (Refer to

P.27B-25

).

3. After the adjustment, inspect the final drive gear

tooth contact.

DRIVE GEAR RUNOUT

1. Measure the drive gear runout at the shoulder on

the reverse side of the drive gear.

Limit: 0.05 mm

2. When runout exceeds the limit value, check for

foreign material between drive gear rear side and
differential case, or for loose drive gear
installation bolts.

3. When step (2) gives normal results, reposition the

drive gear and differential case and remeasure.

4. If adjustment is impossible, replace the differential

case, or replace the drive gear and pinion as a
set.

DIFFERENTIAL GEAR BACKLASH

1. Insert a wedge between the side gear and the

pinion shaft to lock the side gear.

2. While locking the side gear with the wedge,

measure the differential gear backlash with a dial
indicator on the pinion gear.
Use the measurement procedure for the other
pinion gear.

Standard value: 0

−

 0.076 mm

Limit: 0.2 mm

3. If the backlash exceeds the limit value, adjust it by

replacing the side gear spacers.

4. If adjustment is not possible, replace the side

gears and pinion gears as a set.

AC102883

MB990909
and
MB991116

AC

AC102884

AC102886

AC102885

Wedge

Side gear
spacer

AC

Side gear
spacer

DIFFERENTIAL CARRIER ASSEMBLY

REAR AXLE <4WD>

27B-21

FINAL DRIVE GEAR TOOTH CONTACT
Check the tooth contact of drive gear by following the
steps below.

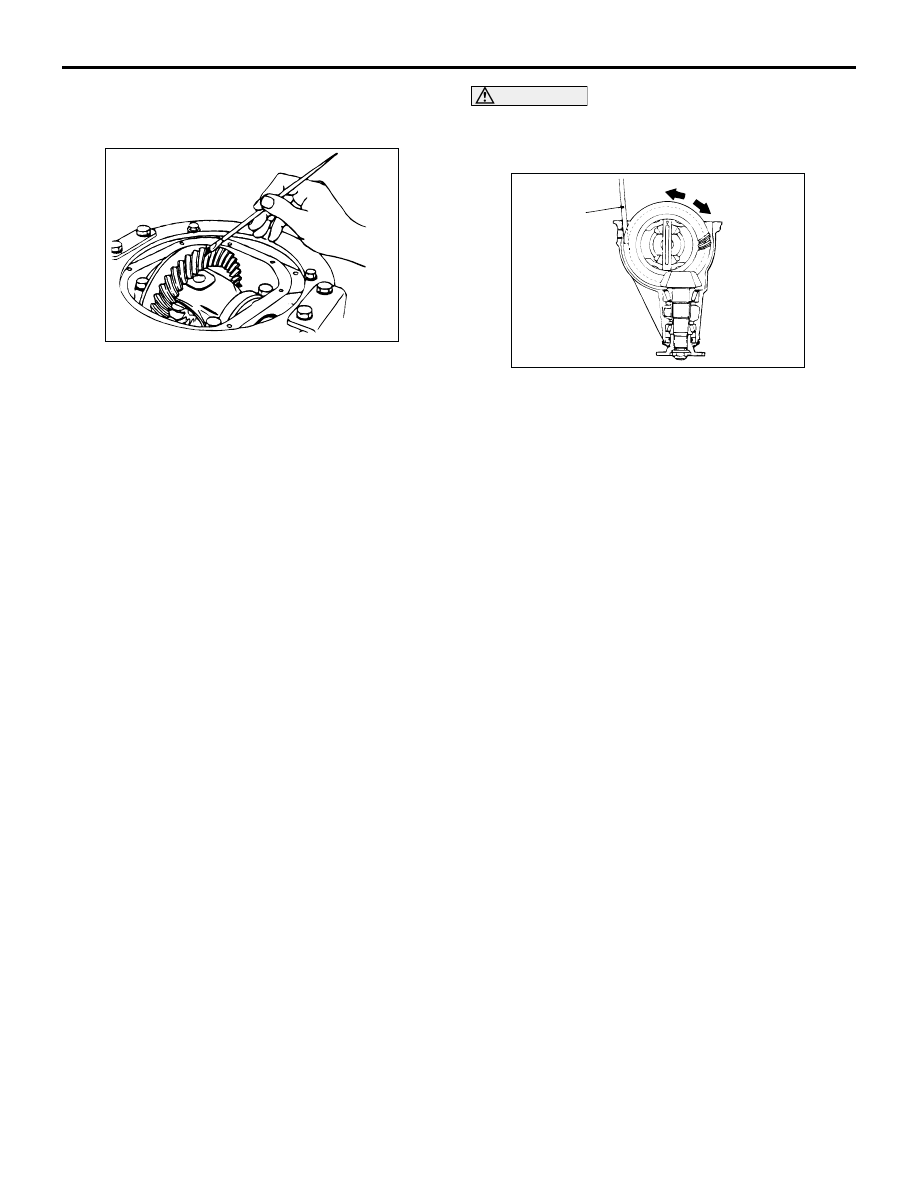

1. Apply a thin, uniform coat of machine blue to both

surfaces of the drive gear teeth.

CAUTION

If the drive gear is rotated too much, the tooth
contact pattern will become unclear and difficult
to check.

2. Insert special tool brass bar (MB990939) between

the differential carrier and the differential case,
and then rotate the companion flange by hand
(once in the normal direction, and then once in the
reverse direction) while applying a load to the
drive gear so that the revolution torque
(approximately 2.5

−

 3.0 N

⋅

m) is applied to the

drive pinion.

3. Check the tooth contact condition of the drive gear

and drive pinion.

AC102887

AC102888

MB990939

AC

DIFFERENTIAL CARRIER ASSEMBLY

REAR AXLE <4WD>

27B-22

NOTE: Check the tooth contact pattern to confirm
that the adjustments of the pinion height and
backlash have been done properly. Continue to
adjust the pinion height and backlash until the
tooth contact pattern resembles the standard

pattern. If, even after adjustments have been
made, the correct tooth contact pattern cannot be
obtained, it means that the drive gear and the
drive pinion have become worn beyond the
allowable limit. Replace the gear set.

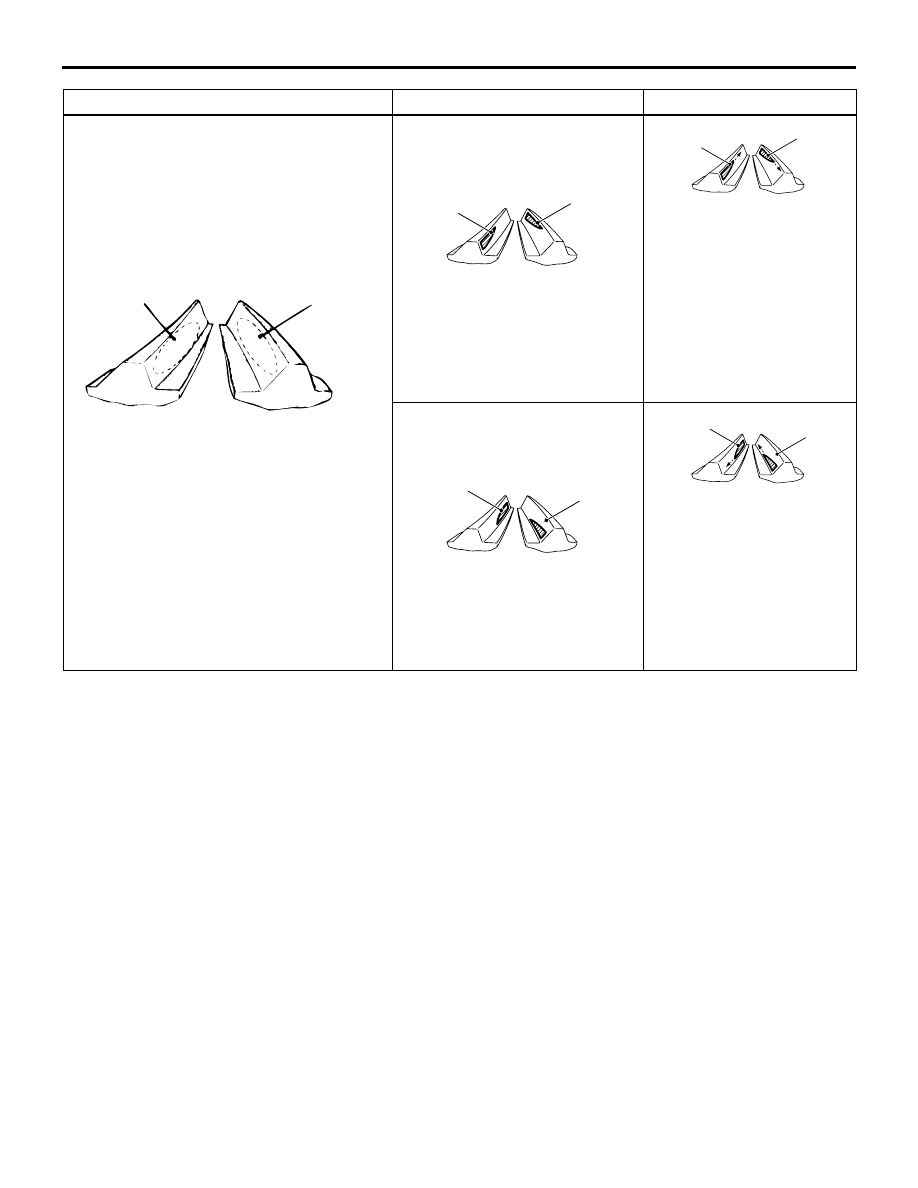

Standard tooth contact pattern

Problem

Solution

1. Narrow tooth side
2. Drive-side tooth surface (the side
applying power during forward movement)
3. Wide tooth side
4. Coast-side tooth surface (the side
applying power during reverse movement)


Tooth contact pattern resulting
from excessive pinion
height

The drive pinion is positioned too
far from the centre of the drive
gear.

Increase the thickness of
the drive pinion rear shim,
and position the drive pinion
closer to the centre of the
drive gear. Also, for
backlash adjustment,
position the drive gear
farther from the drive
pinion.

Tooth contact pattern resulting
from insufficient pinion
height.

The drive pinion is positioned too
close to the centre of the drive
gear.

Decrease the thickness of
the drive pinion rear shim,
and position the drive pinion
farther from the centre of
the drive gear. Also, for
backlash adjustment,
position the drive gear
closer to the drive pinion.

ACX01039 AF

1

3

4

2

AC107260

1

2

3

4

AB

AC107261AB

1

2

3

4

AC107262

1

2

3

4

AB

AC107263

1

2

3

4

AB
