ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-147

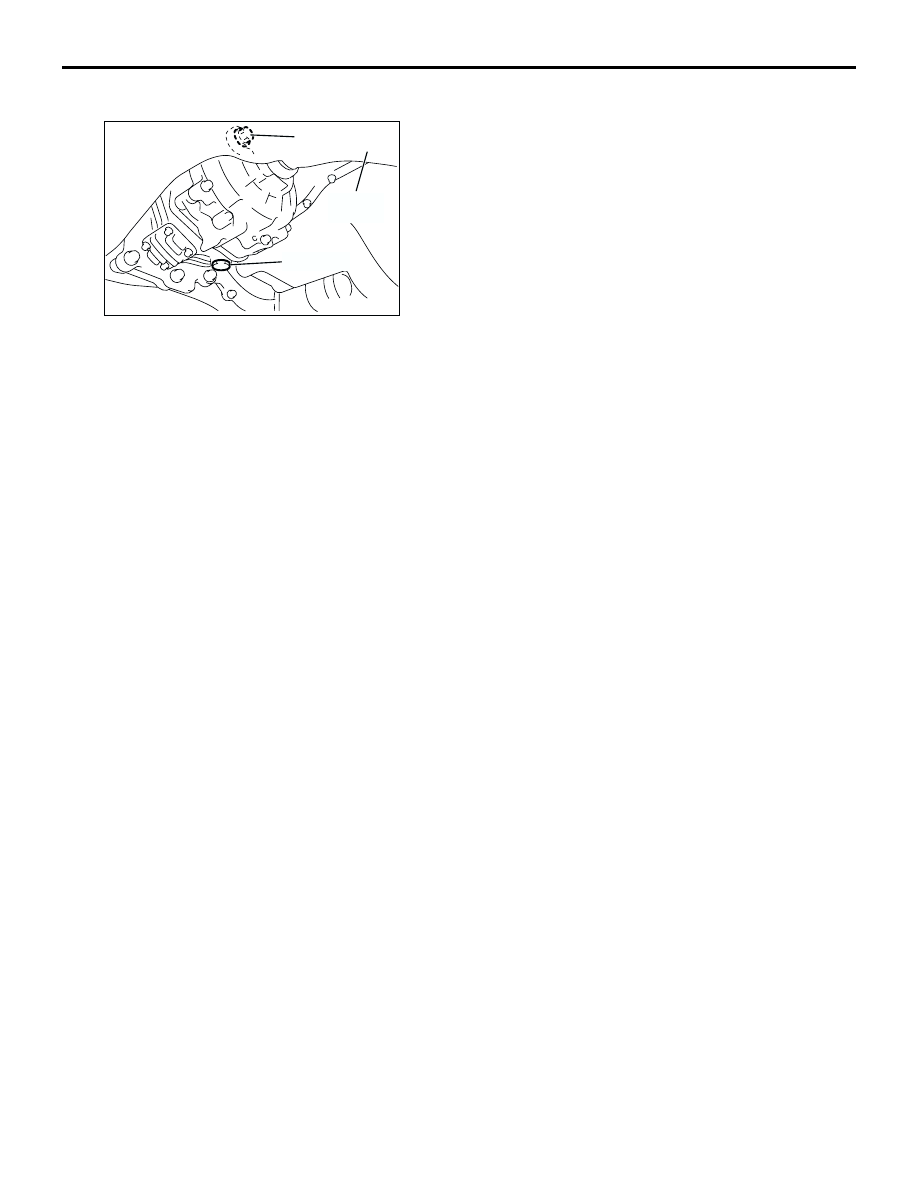

TRANSFER OIL REPLACEMENT

M1231001200139

1. Remove the drain plug and discharge the oil.
2. Tighten the drain plug to the specified torque.

Tightening torque: 32

±

 2 N

⋅

m

3. Remove the oil filer plug and pour in oil until it

reaches the bottom the oil filer plug hole.
Specified oil: Hypoid gear oil API

classification GL-5 SAE 90

Quantity: 0.55 L

4. Tighten the filler plug to the specified torque.

Tightening torque: 32

±

 2 N

⋅

m

AC101739AF

Filler plug

Cross
member

Drain plug

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-148

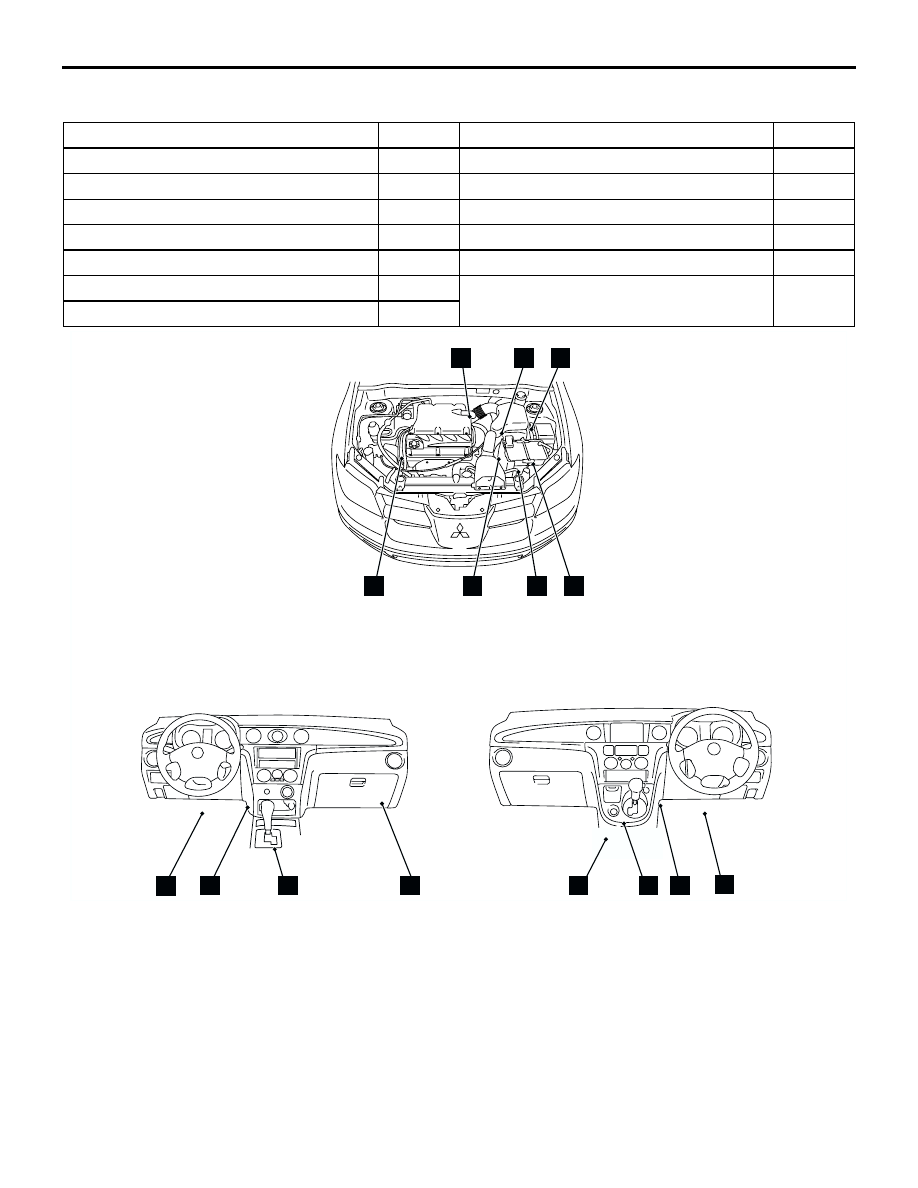

A/T CONTROL COMPONENT LOCATION

M1231008600398

Name

Symbol

Name

symbol

A/C compressor relay

C

Inhibitor switch

F

A/T control relay

C

Input shaft speed sensor

E

A/T control solenoid valve assembly

G

Output shaft speed sensor

B

A/T fluid temperature sensor

G

Shift switch assembly

K

Crank angle sensor

D

Stop lamp switch

H

Diagnosis connector

J

Throttle position sensor (TPS)

A

Engine-A/T-ECU

L

AC309369

B

A

C

D

E

F

G

<LHD>

<RHD>

H

J

K

L

J

L

K

AB

H

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-149

A/T CONTROL COMPONENT CHECK

INHIBITOR SWITCH CHECK

M1231001400597

Refer to

P.23A-145

.

CRANK ANGLE SENSOR CHECK

M1231009000399

Refer to GROUP 13B

−

 Troubleshooting, Inspection

Procedure using an Oscilloscope

P.13B-418

.

STOP LAMP SWITCH CHECK

M1231010100118

Refer to GROUP 35A

−

 Brake pedal, Inspection

P.35A-14

.

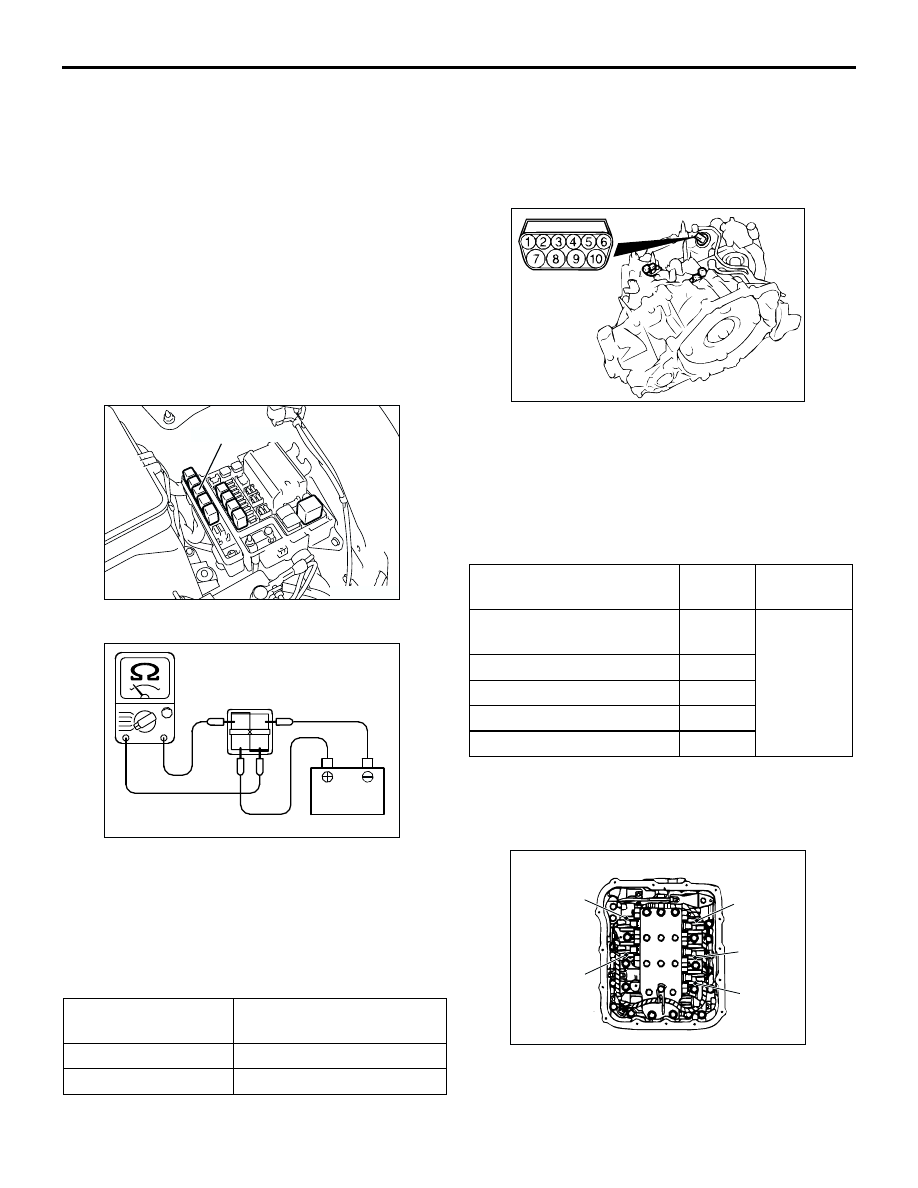

A/T CONTROL RELAY CHECK

M1231009300282

1. Removal the A/T control relay.

2. Use the jumper leads to connect A/T control relay

terminal 2 to the negative battery terminal and
terminal 3 to the positive battery terminal.

3. Check the continuity between A/T control relay

connector terminals 1 and 4 while alternately
connecting and disconnecting the jumper leads
from the battery terminals.

4. If there is a malfunction, replace the A/T control

relay.

A/T CONTROL SOLENOID VALVE
ASSEMBLY CHECK

M1231009400308

1. Use the MUT-II/III to measure the ATF

temperature and check that the ATF temperature
is 20

°

C.

2. Disconnect the A/T control solenoid valve

assembly connector.

3. Measure the resistance between the solenoid

valve terminals.

4. Check that the measured values are within the

standard values at items 1 and 3.

Standard value:

5. If within the standard value, check the power

supply and the earth circuits.

6. If not within the standard value, drain the ATF and

remove the valve body cover.

7. Disconnect the solenoid valve connectors.

Jumper leads

Continuity between
terminals 1 and 4

Connected

Less than 2

Ω

Disconnected

Open circuit

AC103000AH

A/T control relay

AC100115

1 2
3 4

AQ

Name

Terminal
No.

Resistance
value

Damper clutch control
solenoid valve

7

−

 10

2.7

−

 3.4

Ω



(A/T fluid
temperatur
e 20

°

C)

Low-reverse solenoid valve 6

−

 10

Second solenoid valve

4

−

 9

Underdrive solenoid valve

3

−

 9

Overdrive solenoid valve

5

−

 9

AC202402 AB

AC002219

OD

solenoid

valve

LR

solenoid

valve

UD

solenoid

valve

2ND

solenoid

valve

DCC

solenoid

valve

CO

ON-VEHICLE SERVICE

AUTOMATIC TRANSMISSION (FF)

23A-150

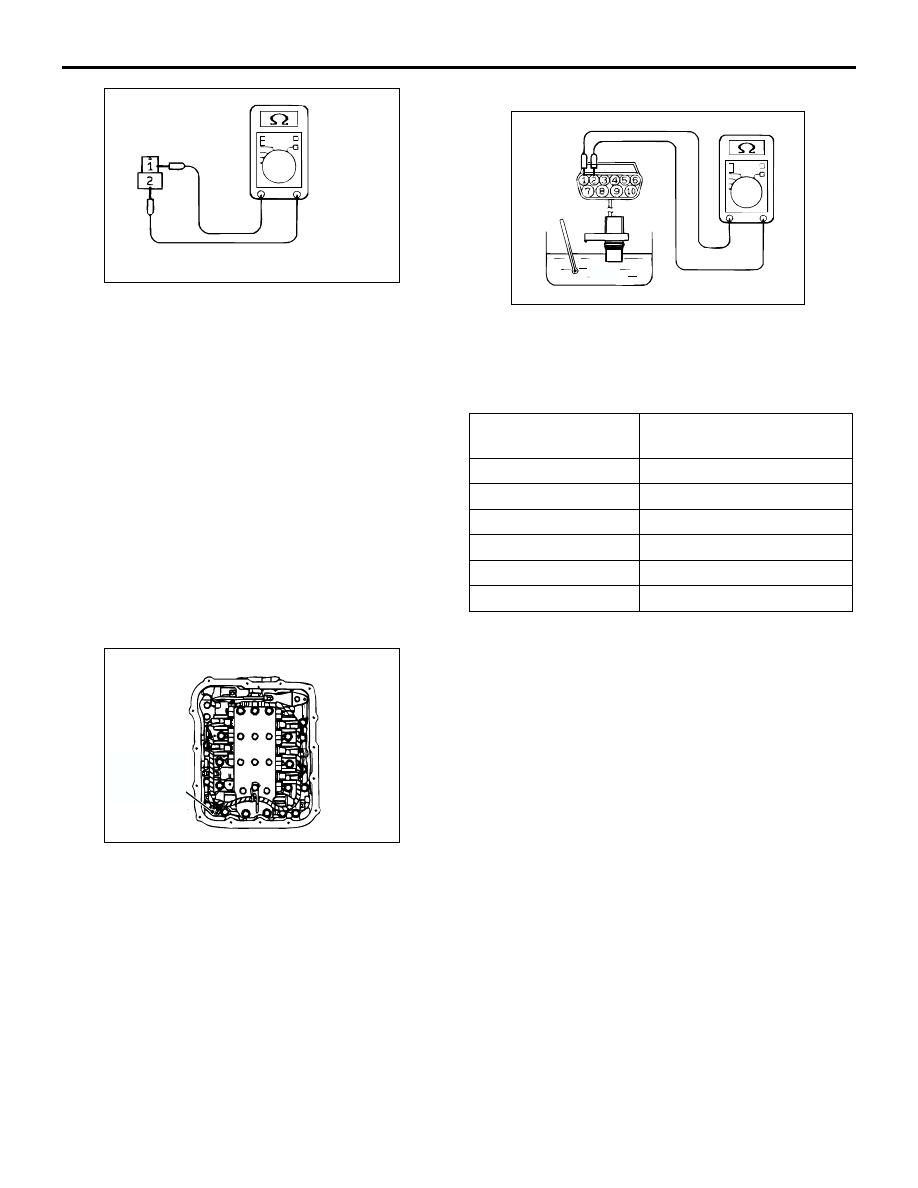

8. Measure the resistance between terminals 1 and

2 at each solenoid valve side.

Standard value: 2.7

−

 3.4

Ω

 (A/T fluid

temperature 20

°

C)

9. If not within the standard value, replace the

solenoid valve.

10.If within the standard value, check the harness

wire between A/T control solenoid valve assembly
connector and each solenoid valve connector. If a
problem is not found at the steps above, check
the solenoid valve O-rings and replace if
necessary.

A/T FLUID TEMPERATURE SENSOR
CHECK

M1231004500281

1. Drain the ATF and remove the valve body cover.

2. Remove the A/T fluid temperature sensor.

3. Measure the resistance between A/T control

solenoid valve assembly connector terminals 1
and 2.

Standard value:

NOTE: The A/T fluid temperature warning lamp
on the combination meter flashes when the
temperature reaches approximately 125

°

C or

higher and then stops flashing when the
temperature drops below approximately 115

°

C.

4. If the A/T fluid temperature sensor resistance and

the temperature when the N range indicator is
flashing or switched off are outside the standard
value ranges, replace the A/T fluid temperature
sensor.

AC002289

AC002219CF

A/T fluid
temperature
sensor

Fluid temperature
(

°

C)

Resistance value (

Ω

)

0

16.7

−

 20.5

20

7.3

−

 8.9

40

3.4

−

 4.2

60

1.9

−

 2.2

80

1.0

−

 1.2

100

0.57

−

 0.69

AC103441

ATF

AB
