TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-63

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

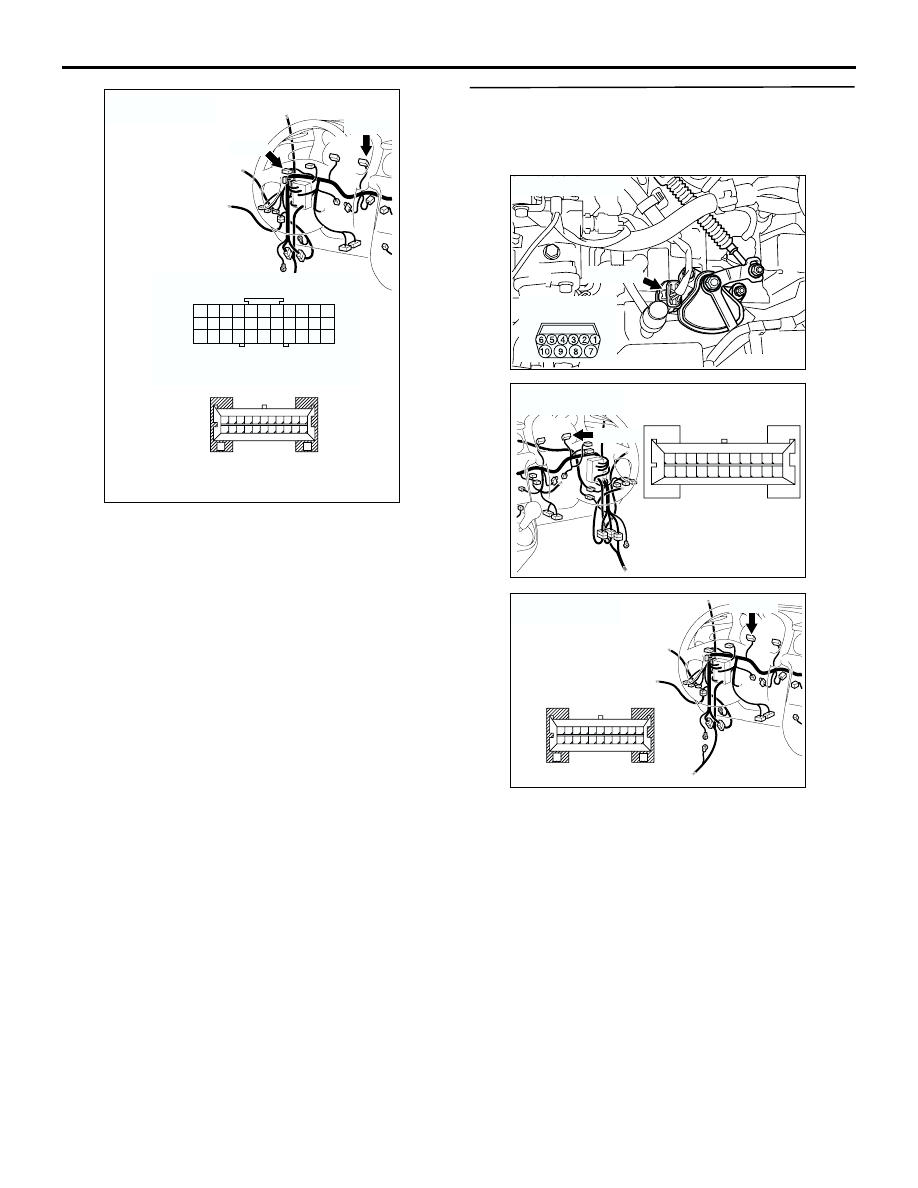

STEP 5. Check the harness between inhibitor
switch connector B-35 terminal No.3, 7, 4 and
combination meter  connector C-05 terminal
No.4, 3, 2.

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

AC308717

C-02

AV

C-05 (L)

Connectors: C-02, C-05
<LHD>

C-02

C-05

Harness side

1

12

23

2

13

24

3

14

25

4

15

26

5

16

27

6

17

28

7

18

29

8

19

30

9

20

31

10
21

32

11
22

33

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC308769

AW

C-05 (L)

Connector: C-05

<RHD>

Harness side

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC308716

AT

C-05 (L)

Connector: C-05
<LHD>

Harness side

G

G

22

11

5

16

19

20

21

17

18

8

10 9

7 6

13

1514

12

2

4 3

1

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-64

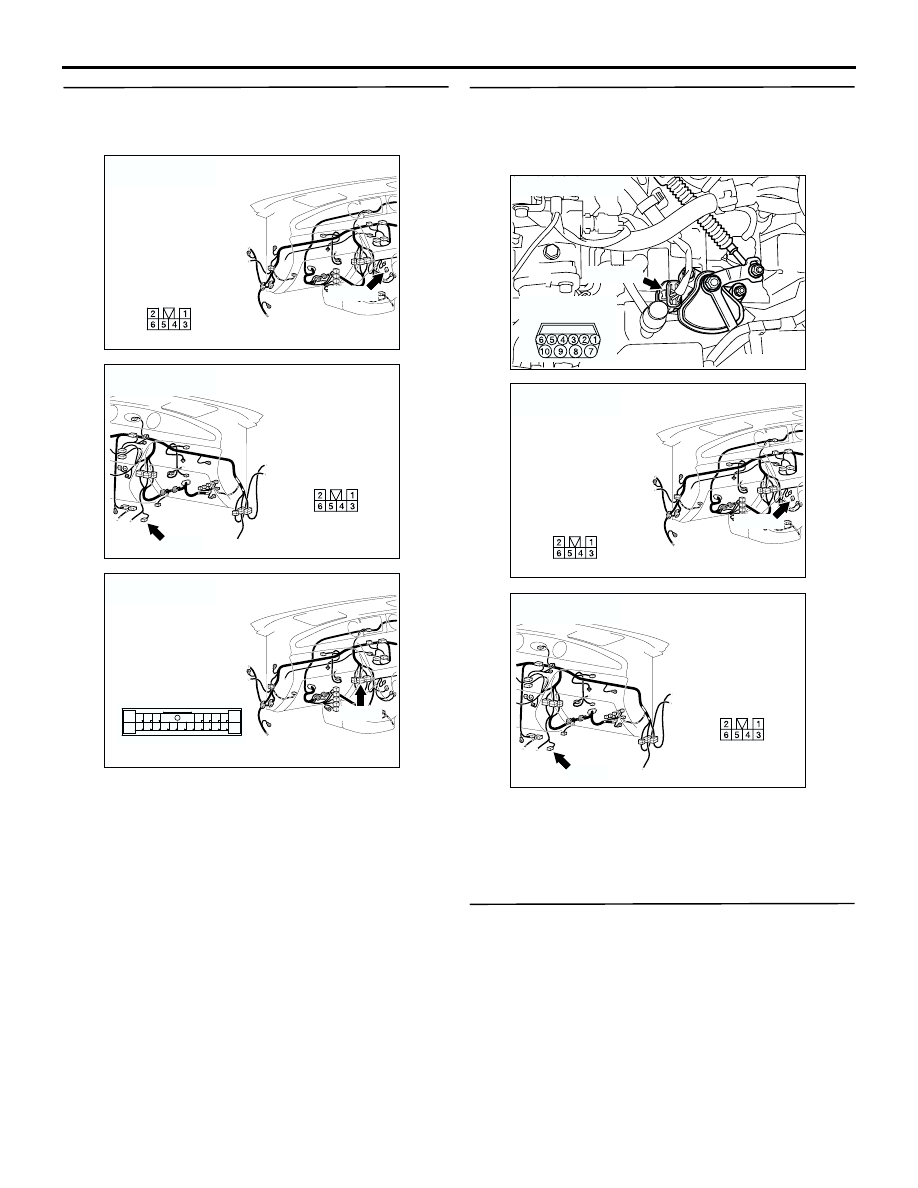

STEP 6. Connector check: C-129 <RHD>, C-143
<LHD>  shift switch assembly connector, C-105
intermediate connector <RHD>

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

STEP 7. Check the harness between inhibitor
switch connector B-35 terminal No.1 and shift
switch assembly connector C-129 <RHD>, C-143
<LHD> terminal No.1.

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

STEP 8. MUT-II/III data list

Item 61: Inhibitor switch

P.23A-133

 (Refer to data list

reference table).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

).

NO :

Replace the engine-A/T-ECU.

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

AC308735

AW

C-105

Connector: C-105
<RHD>

10

1

21

16

13

4

11

2

12

3

1415

1718

5

20

7

19

6

8

22

9

AC103395

Connector: B-35

AN

B-35 (B)

Harness side

AC308735

BI

C-129

Harness side

Connector: C-129
<RHD>

AC308718

BD

C-143

Connector: C-143
<LHD>

Harness side

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-65

Code No.31: Low-reverse solenoid valve system

OPERATION

•

Solenoid valve closes or opens according to the
signals from the engine-A/T-ECU.

•

The engine-A/T-ECU energizes or deenergizes
solenoid valve, based on input signals such as
throttle position sensor opening angle, inhibitor
switch, etc.

diagnosis code set conditions
If the drive terminal voltage of the low-reverse
solenoid valve is 3.0 V or less, it is judged that there
is a short circuit or open circuit in the low-reverse
solenoid valve, and diagnosis code 31 is set.
If diagnosis code 31 is output 4 times, the
transmission is fixed in 3rd as a fail-safe measure.

BATTERY

RELAY
BOX

A/T
CONTROL
RELAY

A/T CONTROL
SOLENOID
VALVE ASSEMBLY

ENGINE-
A/T-ECU

UNDERDRIVE
SOLENOID
VALVE

SECOND
SOLENOID
VALVE

OVERDRIVE
SOLENOID
VALVE

TORQUE
CONVERTER
CLUTCH
CONTROL
SOLENOID
VALVE

LOW AND
REVERSE
SOLENOID
VALVE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AC309567AB

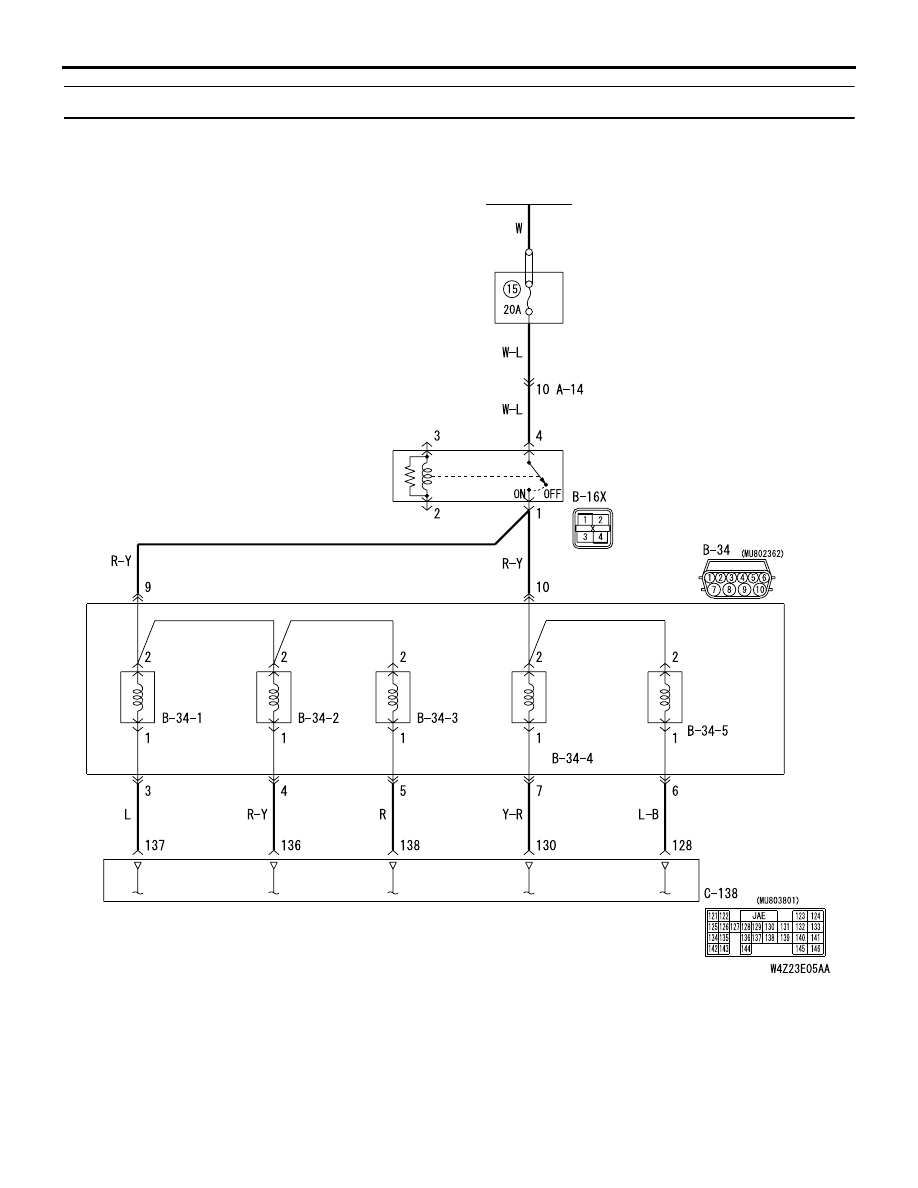

Solenoid valve system circuit

TROUBLESHOOTING <A/T>

AUTOMATIC TRANSMISSION (FF)

23A-66

Possible causes

•

Malfunction of low-reverse solenoid valve

•

Damaged harness wires and connectors

•

Malfunction of the engine-A/T-ECU

DIAGNOSIS

STEP 1. MUT-II/III diagnosis code

Q: Is diagnosis code 36 set?

YES :

Go to Step 9.

NO :

Go to Step 2.

STEP 2. MUT-II/III actuator test

Item 01: Low-reverse solenoid valve

OK: Operating sound can be heard.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

−

 How to Cope with Intermittent

Malfunction

P.00-6

.)

NO :

Go to Step 3.

STEP 3. Connector check: B-34 A/T control
solenoid valve assembly connector

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

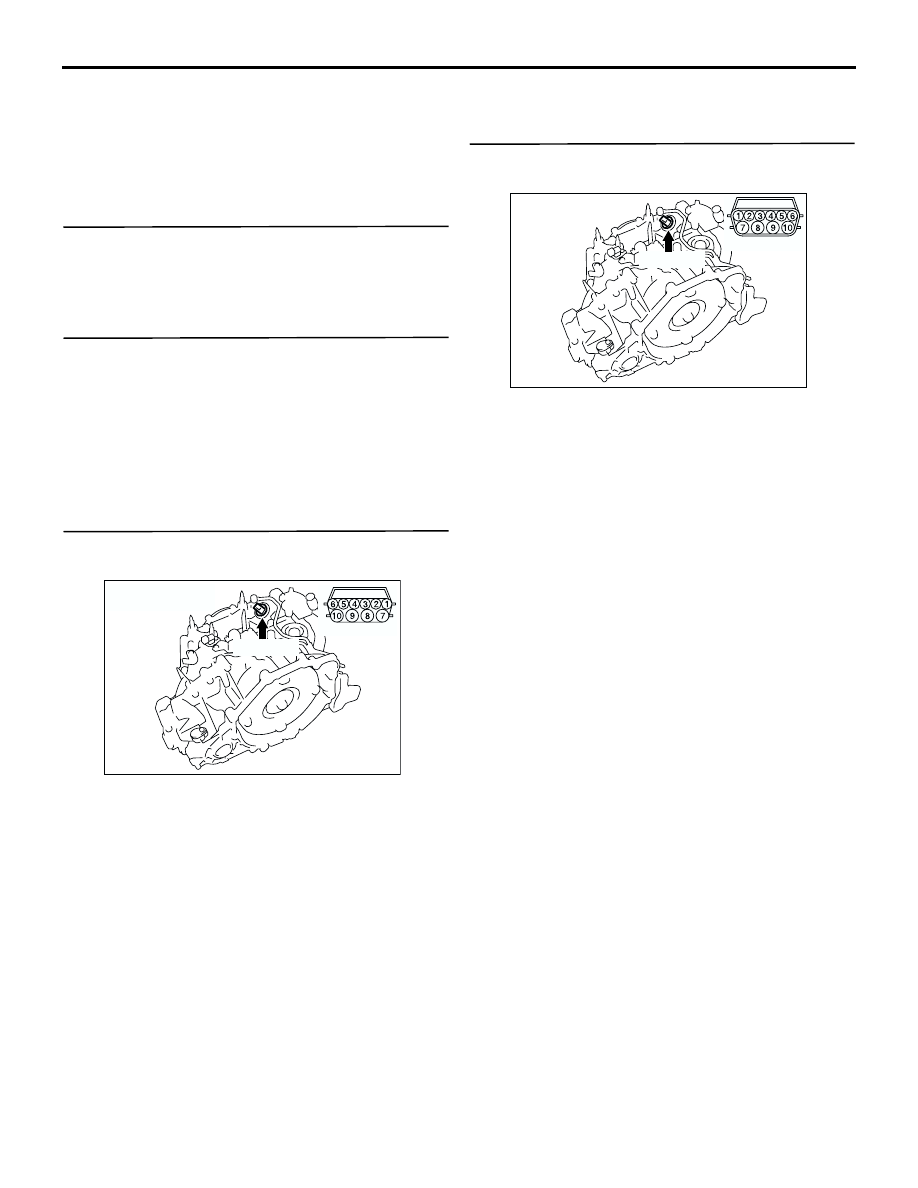

STEP 4. Measure the resistance at A/T control
solenoid valve assembly connector B-34.

Disconnect the connector, and measure the
resistance between terminal No.6 and No.10 at the
solenoid valve side.

OK: 2.7

−

 3.4

Ω

 (A/T fluid temperature 20

°

C)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Check the low-reverse solenoid valve and
solenoid valve harness.

AC309511

B-34 (GR)

Harness side

AB

Connector: B-34

AC309511AC

B-34 (GR)

Connector: B-34

Sensor side
