TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-243

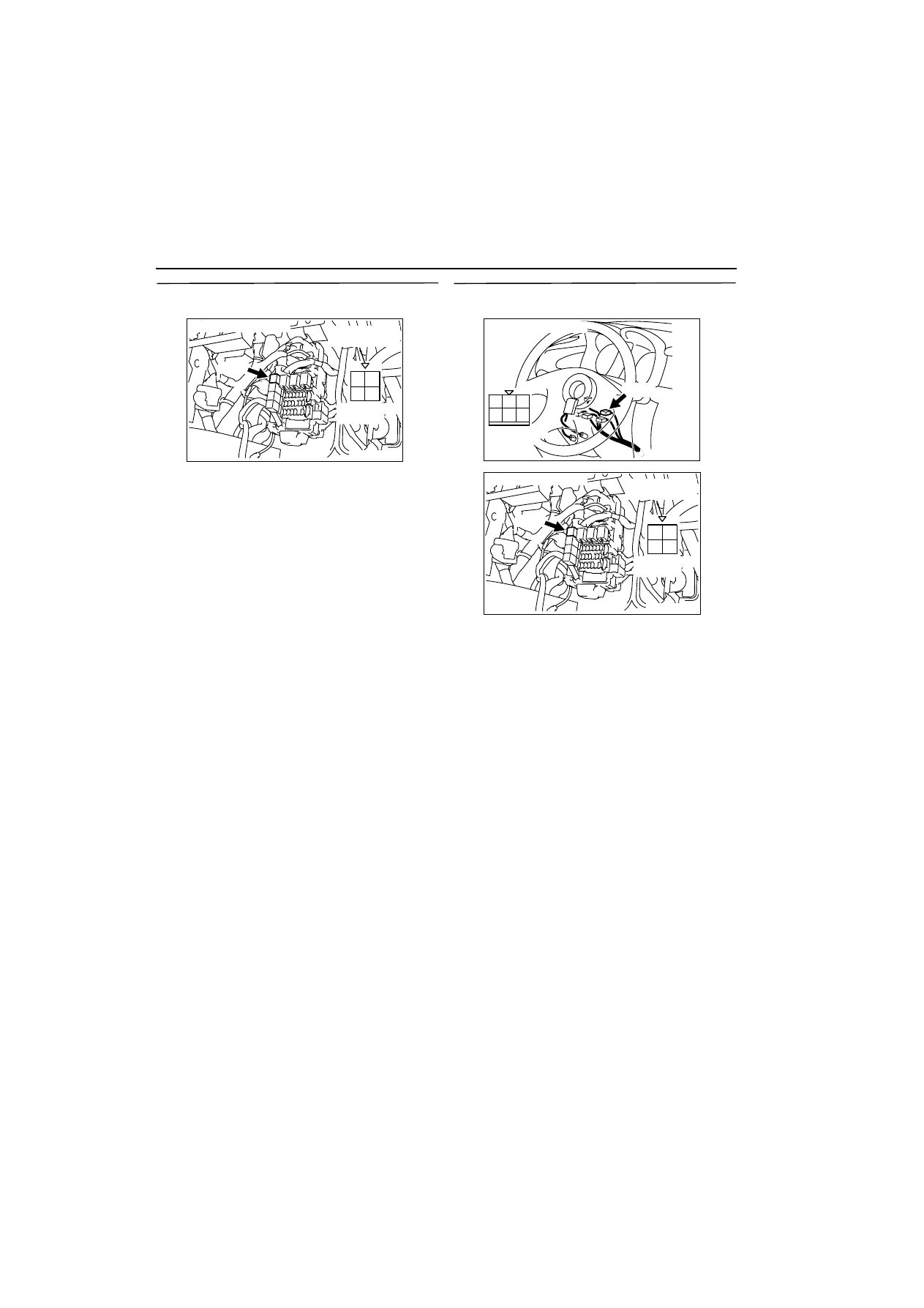

STEP 4. Measure voltage at C-215 fuel pump
relay (1) connector.

œ

Remove relay, and measure at junction block
side.

œ

Ignition switch: ON

œ

Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 5 .

STEP 5. Connector check: C-303 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connector C-203, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between C-215 (terminal No. 3)
fuel pump relay (1) connector and C-303
(terminal No. 2) ignition switch connector.

œ

Check power supply line for open
circuit and damage.

NO :

Repair.

AK300313

2 1

3

4

AB

CONNECTOR: C-215

C-215

Harness side
connector

Junction block’s
triangle marks

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300313

2 1

3

4

AB

CONNECTOR: C-215

C-215

Harness side
connector

Junction block’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-244

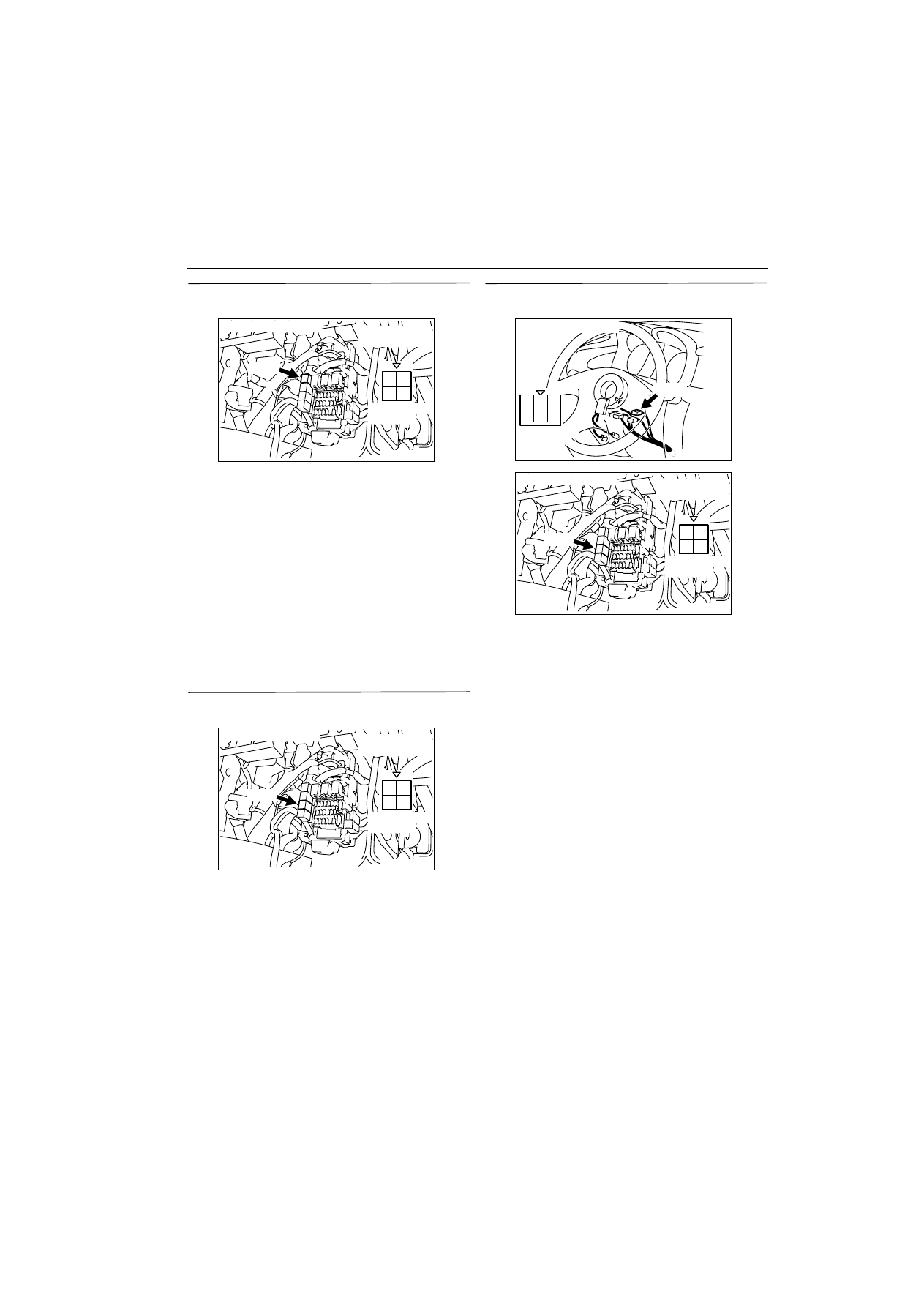

STEP 6. Measure voltage at C-215 fuel pump
relay (1) connector.

œ

Remove relay, and measure at junction block
side.

œ

Voltage between terminal No. 4 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check intermediate connectors C-116 and

C-202, and repair if necessary. If
intermediate connectors are normal, check
and repair harness between C-215 (terminal
No. 4) fuel pump relay (1) connector and
battery.

œ

Check power supply line for
open/short circuit.

STEP 7. Measure voltage at C-213 fuel pump
relay (2) connector.

œ

Remove relay, and measure at junction block
side.

œ

Ignition switch: ON

œ

Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 8 .

STEP 8. Connector check: C-303 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connector C-203, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between C-303 (terminal No. 2)
ignition switch connector and C-213
(terminal No. 3) fuel pump relay (2)
connector.

œ

Check power supply line for
open/short circuit.

NO :

Repair.

AK300313

2 1

3

4

AB

CONNECTOR: C-215

C-215

Harness side
connector

Junction block’s
triangle marks

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

1

2

3

4

5

6

AK300304

CONNECTOR: C-303

C-303

Harness side
connector

AB

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-245

STEP 9. Connector check: C-134 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair.

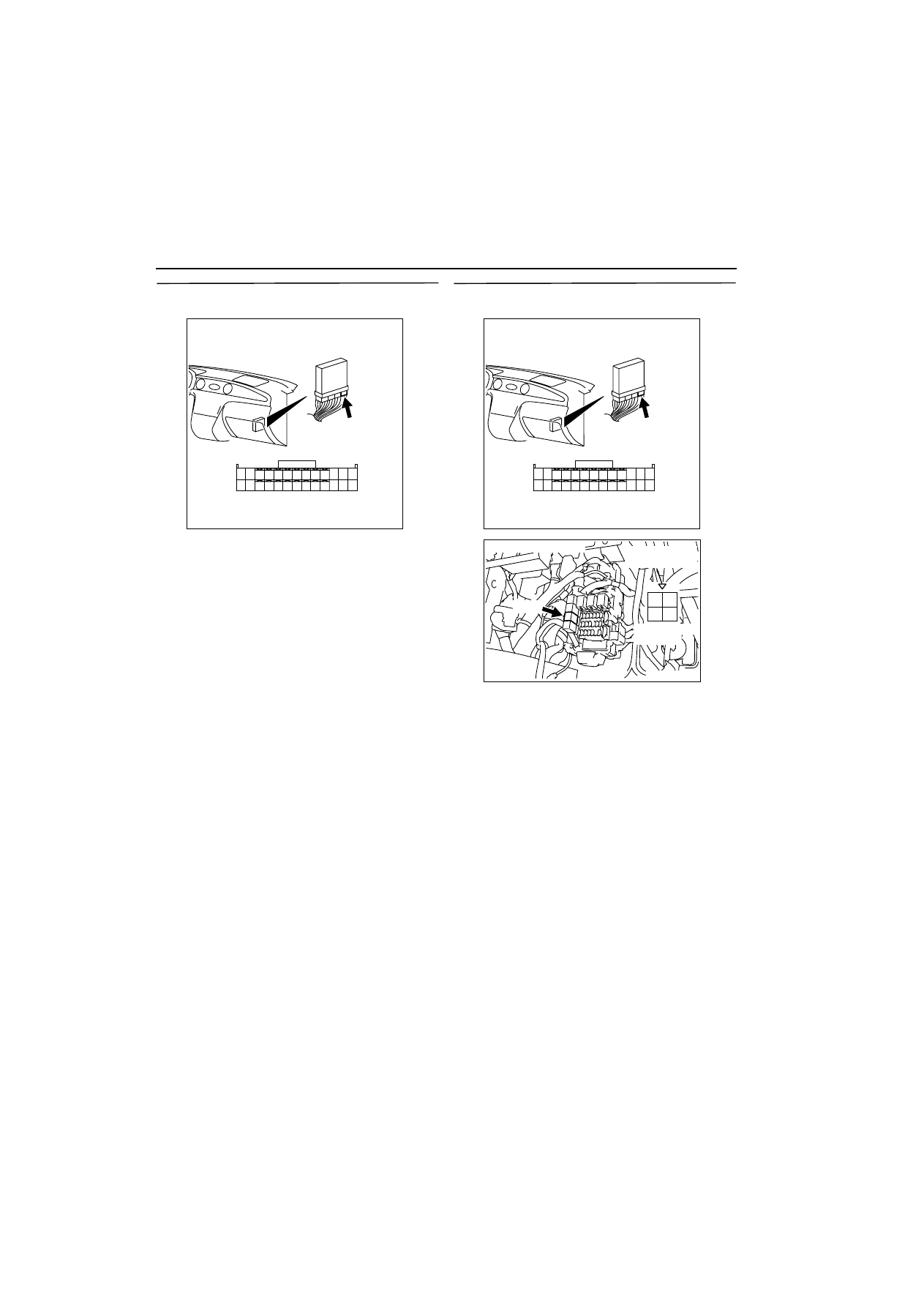

STEP 10. Measure voltage at C-134 engine-ECU
connector.

œ

Disconnect connector, and measure at harness
side.

œ

Ignition switch: ON

œ

Voltage between terminal No. 22 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Check intermediate connectors C-106 and

C-205, and repair if necessary. If
intermediate connectors are normal, check
and repair harness between C-213 (terminal
No. 2) fuel pump relay (2) connector and C-
134 (terminal No. 22) engine-ECU
connector.

œ

Check earthing line for open/short
circuit.

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

AK300257

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

13 12

23

24

25

26

21

3

10

11

AB

CONNECTOR: C-134

C-134

Harness side connector

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-246

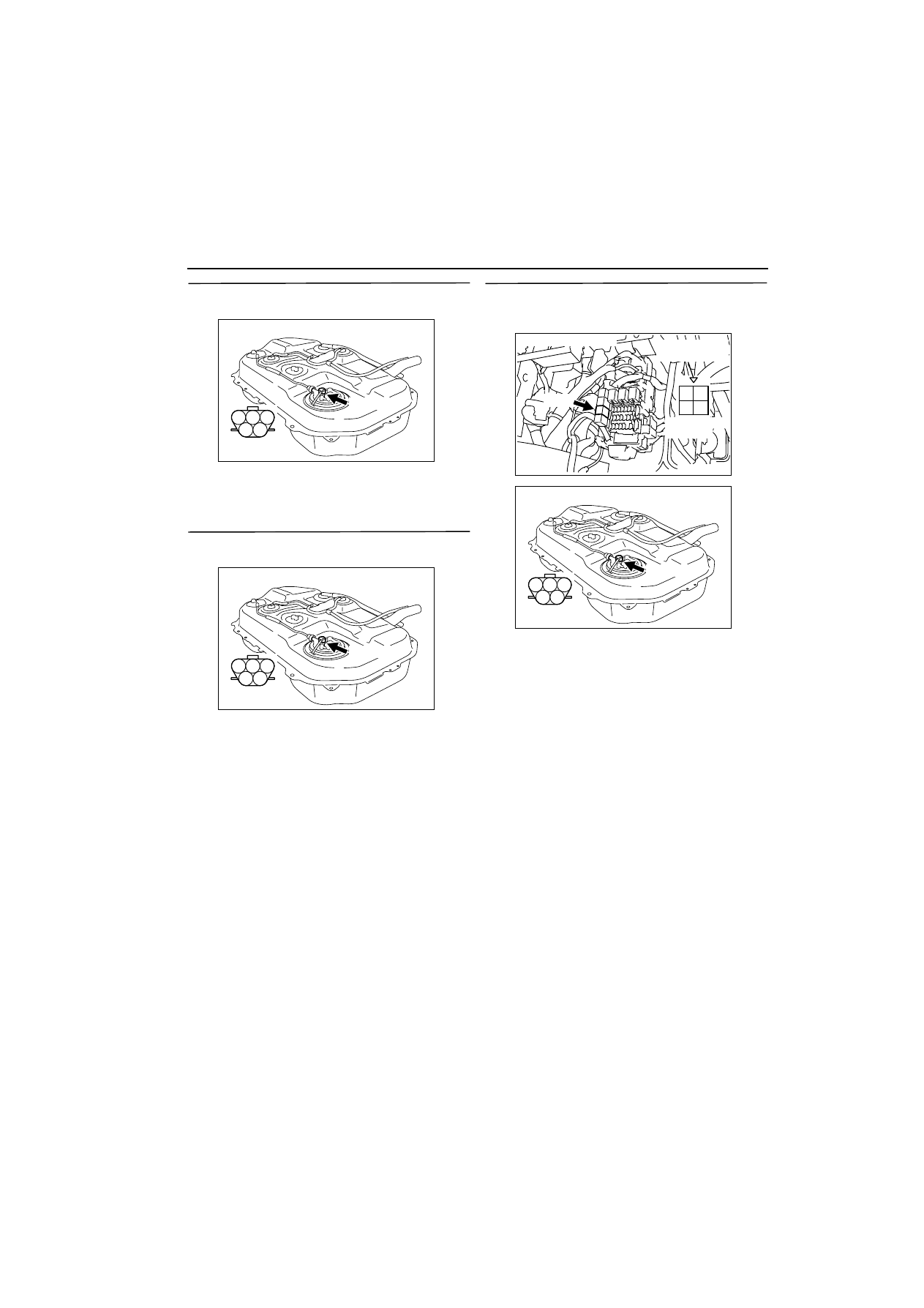

STEP 11. Connector check: D-16 fuel pump
connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair.

STEP 12. Measure voltage at D-16 fuel pump
connector.

œ

Disconnect connector, and measure at harness
side.

œ

Ignition switch: ON

œ

Using a jumper wire, connect C-134 (terminal No.
22) engine-ECU connector and earth.

œ

Voltage between terminal No. 5 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Go to Step 13 .

STEP 13. Check harness between C-213 (terminal
No. 4) fuel pump relay (2) connector and D-16
(terminal No. 5) fuel pump connector.

NOTE: Before checking harness, check intermediate
connectors D-209 and D-24, and repair if necessary.

œ

Check output line for open/short circuit and dam-
age.

Q: Is the check result normal?

YES :

Replace engine-ECU.

NO :

Repair.

1

2

3

4

5

AK203431AC

Connector: D-16

Harness side
connector

D-16 (GR)

1

2

3

4

5

AK203431AC

Connector: D-16

Harness side
connector

D-16 (GR)

AK300321

2 1

3

4

AB

CONNECTOR: C-213

C-213

Harness side
connector

Junction block’s
triangle marks

1

2

3

4

5

AK203431AC

Connector: D-16

Harness side
connector

D-16 (GR)
