TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-127

STEP 7. Check harness between B-29 (terminal
No. 2) crank angle sensor connector and C-137
(terminal No. 89) engine-ECU connector.

œ

Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

STEP 8. MUT-II data list

œ

Refer to Data list reference table

3

13A



.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

-

 How to Use

Troubleshooting/Inspection Service Points

3

00



).

NO :

Replace engine-ECU.

STEP 9. Measure voltage at B-29 crank angle
sensor connector.

œ

Disconnect connector, and measure at harness
side.

œ

Ignition switch: ON

œ

Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Go to Step 10 .

AK300276

1

2

3

AB

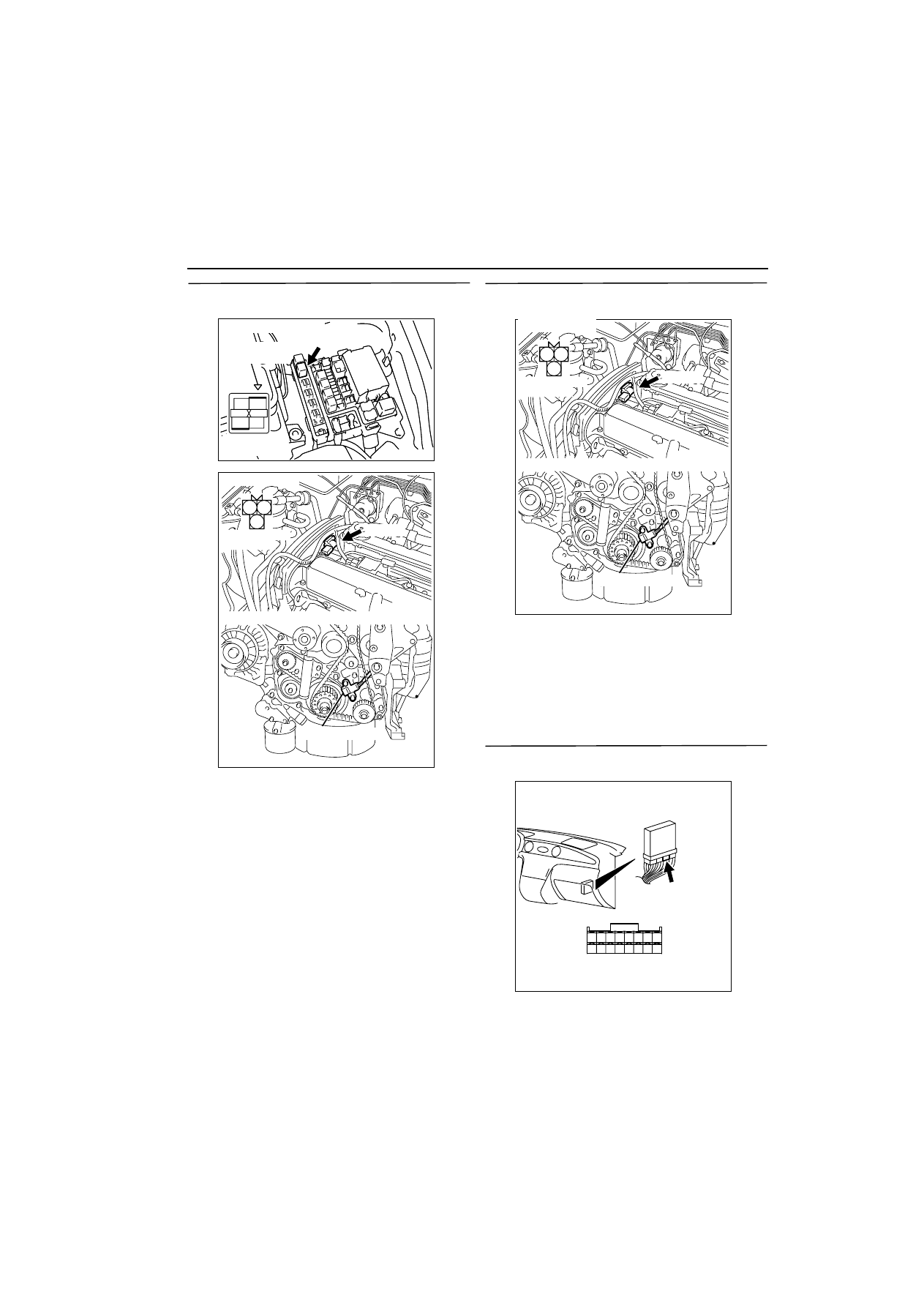

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

AK300254

82

78

8180

89

90

91

92

79

87

71

74 73 72

76 75

77

85

88

83

84

86

AB

CONNECTOR: C-137

C-137

Harness side connector

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-128

STEP 10. Connector check: B-17X engine control
relay connector

Q: Is the check result normal?

YES :

Check and repair harness between B-29

(terminal No. 3) crank angle sensor
connector and B-17X (terminal No. 1)
engine control relay connector.

œ

Check power supply line for
open/short circuit.

NO :

Repair.

STEP 11. Measure resistance at B-29 crank angle
sensor connector.

œ

Disconnect connector, and measure at harness
side.

œ

Resistance between terminal No. 1 and earth.

OK: 2

W

 or less

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Go to Step 12 .

STEP 12. Connector check: C-135 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair.

AK300255

2

1

3

4

Relay box’s
triangle marks

AB

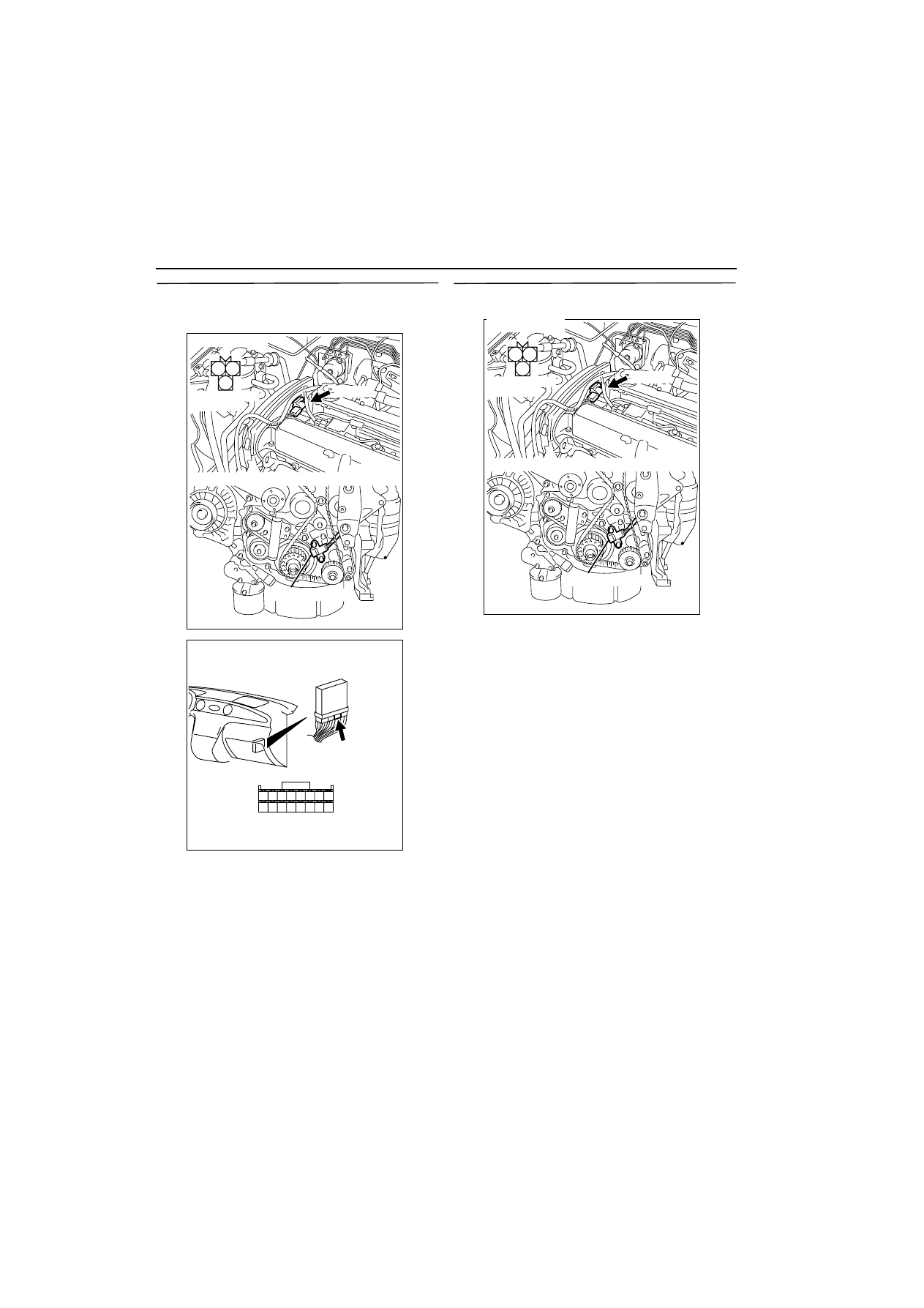

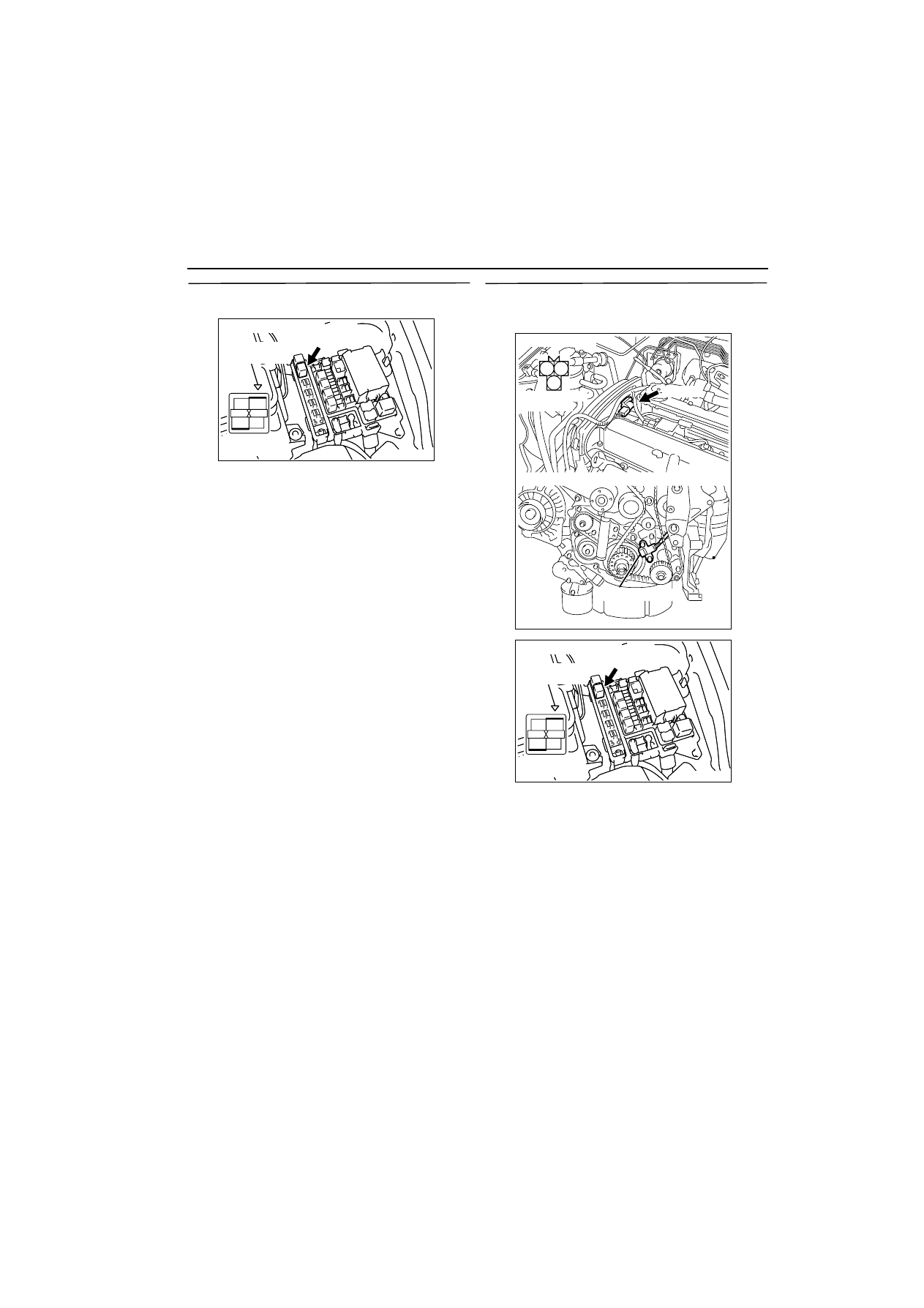

CONNECTOR: B-17X

B-17X

Harness side
connector

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

AK300256

34 33 32

36 35

37

42

45

31

39

38

46

40

41

43

44

AB

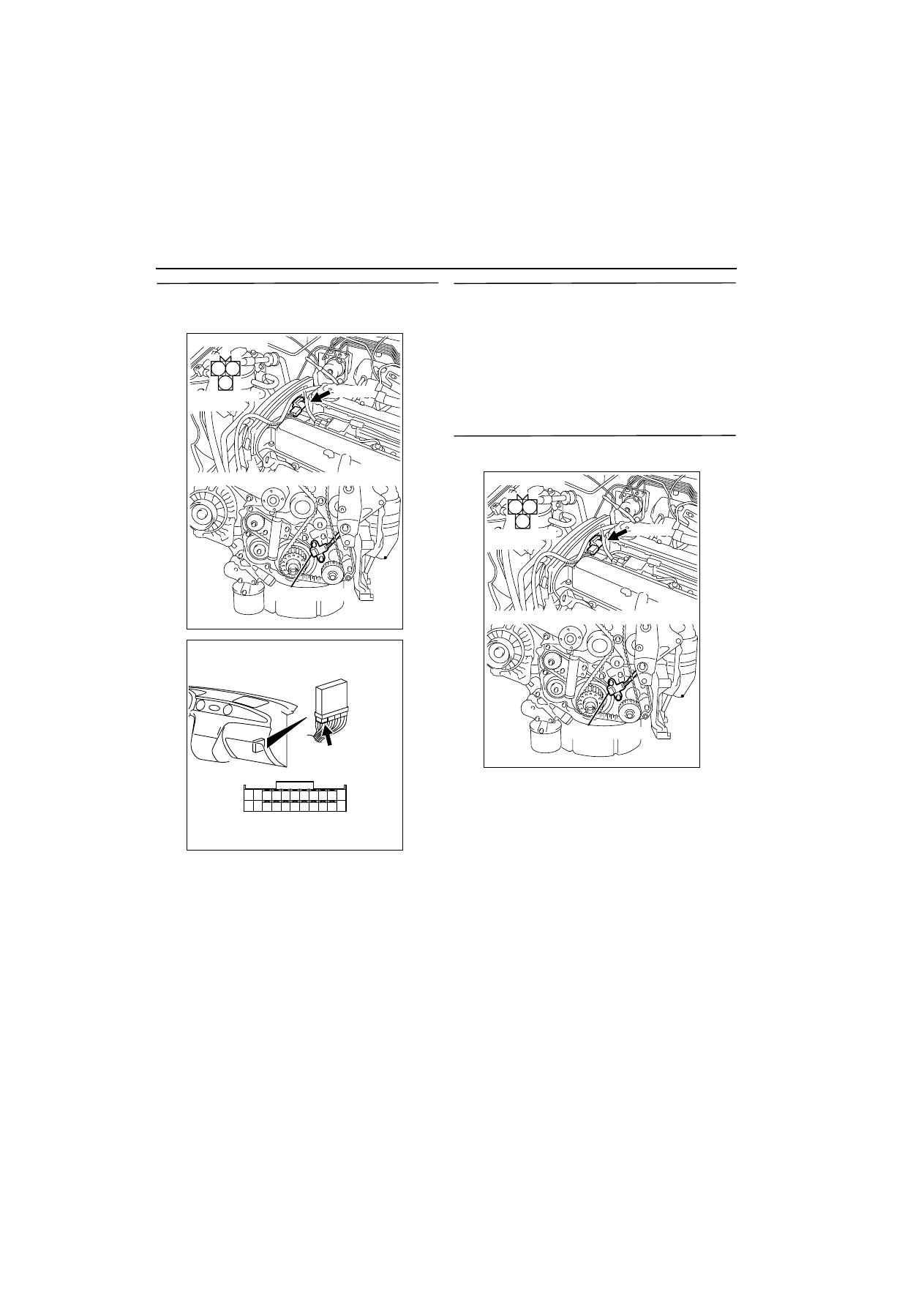

CONNECTOR: C-135

C-135

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-129

STEP 13. Check harness between B-29 (terminal
No. 1) crank angle sensor connector and C-135
(terminal No. 40) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector C-16, and repair if necessary.

œ

Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

STEP 14. Measure output waveform at B-29 crank
angle sensor connector (Use oscilloscope).

œ

Use special tool test harness (MB998478) to con-
nect connector, and measure at pick-up harness.

œ

Engine: Idling

œ

Transmission: Neutral

œ

Voltage between terminal No. 2 and earth.

OK: Waveforms should be displayed on
Inspection procedure using an oscilloscope
(Refer to

3

13A



), its maximum value

should be 4.8 V or more, and its minimum
value should be 0.6 V or less with no noise in
waveform.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 15 .

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

AK300256

34 33 32

36 35

37

42

45

31

39

38

46

40

41

43

44

AB

CONNECTOR: C-135

C-135

Harness side connector

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MFI)

13A-130

STEP 15. Connector check: B-17X engine control
relay connector

Q: Is the check result normal?

YES :

Go to Step 16 .

NO :

Repair.

STEP 16. Check harness between B-29 (terminal
No. 3) crank angle sensor connector and B-17X
(terminal No. 1) engine control relay connector.

œ

Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 17 .

NO :

Repair.

AK300255

2

1

3

4

Relay box’s
triangle marks

AB

CONNECTOR: B-17X

B-17X

Harness side
connector

AK300276

1

2

3

AB

Connector: B-29

B-29 (B)

Harness side
connector

Crank angle sensor

AK300255

2

1

3

4

Relay box’s
triangle marks

AB

CONNECTOR: B-17X

B-17X

Harness side
connector
