36-1

GROUP 36

PARKING BRAKES

CONTENTS

GENERAL INFORMATION . . . . . . . .

36-2

ON-VEHICLE SERVICE. . . . . . . . . . .

36-2

PARKING BRAKE LEVER STROKE
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36-2

PARKING BRAKE SWITCH CHECK  . . . . .

36-3

PARKING BRAKE LEVER  . . . . . . . .

36-4

REMOVAL AND INSTALLATION . . . . . . . .

36-4

PARKING BRAKE CABLE. . . . . . . . .

36-5

REMOVAL AND INSTALLATION . . . . . . . .

36-5

SPECIFICATIONS  . . . . . . . . . . . . . . .

36-5

SERVICE SPECIFICATIONS . . . . . . . . . . .

36-5

GENERAL INFORMATION

TSB Revision

PARKING BRAKES

36-2

GENERAL INFORMATION

M1361000100366

The parking brake is lever type of an mechanical
rear-wheel brake construction in all vehicles.

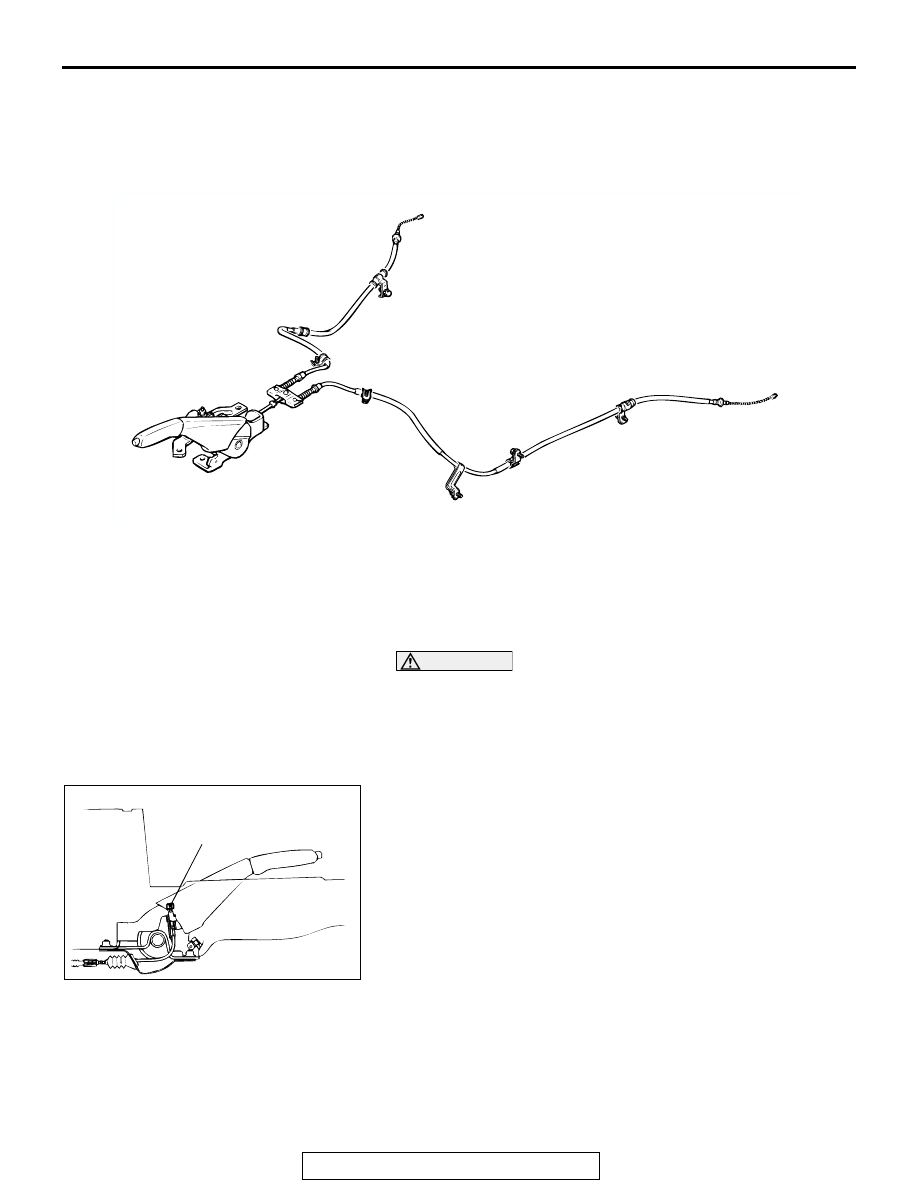

CONSTRUCTION DIAGRAM

ON-VEHICLE SERVICE

PARKING BRAKE LEVER STROKE CHECK

M1361000900395

CAUTION

The 196 N (44 pounds) force of he parking brake lever must
be strictly observed.
1. Pull the parking brake lever with a force of approximately

196 N (44 pounds) and count the number of notches.

Standard value: 6

− 7 notches

2. Lever Stroke Adjustment

Remove the switch panel (Refer to GROUP 52A, Floor
Console

P.52A-40

.) then loosen the adjusting nut as far as

the end of the cable rod as shown in the illustration. Then
release the parking brake cable to adjust the parking brake
lever stroke by the following procedures.

3. With the engine idling, depress the brake pedal five or six

times fully and confirm that the pedal stroke does not
change.
NOTE: If the pedal stroke does not change, the auto-
matic-adjusting mechanism is functioning normally, and
clearance between the shoe and drum is correct.

AC004551

AC004552

ADJUSTING NUT

AB

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-3

CAUTION

If the number of the brake lever notches engaged is less
than the standard value, the cable has been pulled exces-
sively. Be sure to adjust it to the standard value.
4. Turn the adjusting nut to adjust the parking brake lever

stroke to within the standard value range.

5. Check that there is no play between the adjusting nut and

the parking brake lever.

6. Release the parking brake lever, and jack up the rear of the

vehicle.

7. Turn the rear wheel to confirm that the rear brakes are not

dragging.

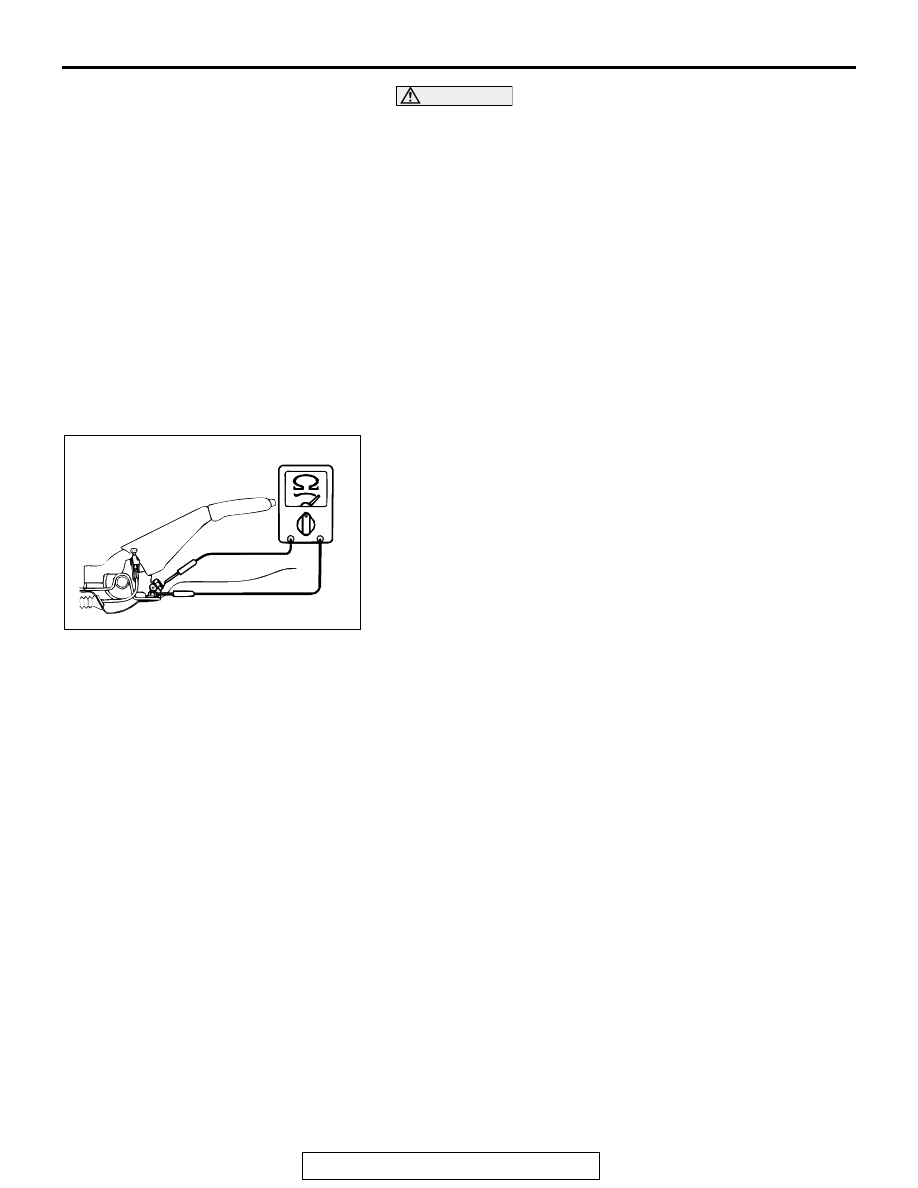

PARKING BRAKE SWITCH CHECK

M1361003300444

1. Remove the rear floor console assembly. (Refer to GROUP

52A, Floor Console

P.52A-40

.)

2. Disconnect the connector of the parking brake switch, and

connect an ohmmeter between the parking brake switch and
the switch installation bolt.

3. The parking brake switch is good if there is continuity when

the parking brake lever or parking brake pull rod is pulled,
and there is no continuity when it is released.

AC004553

PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-4

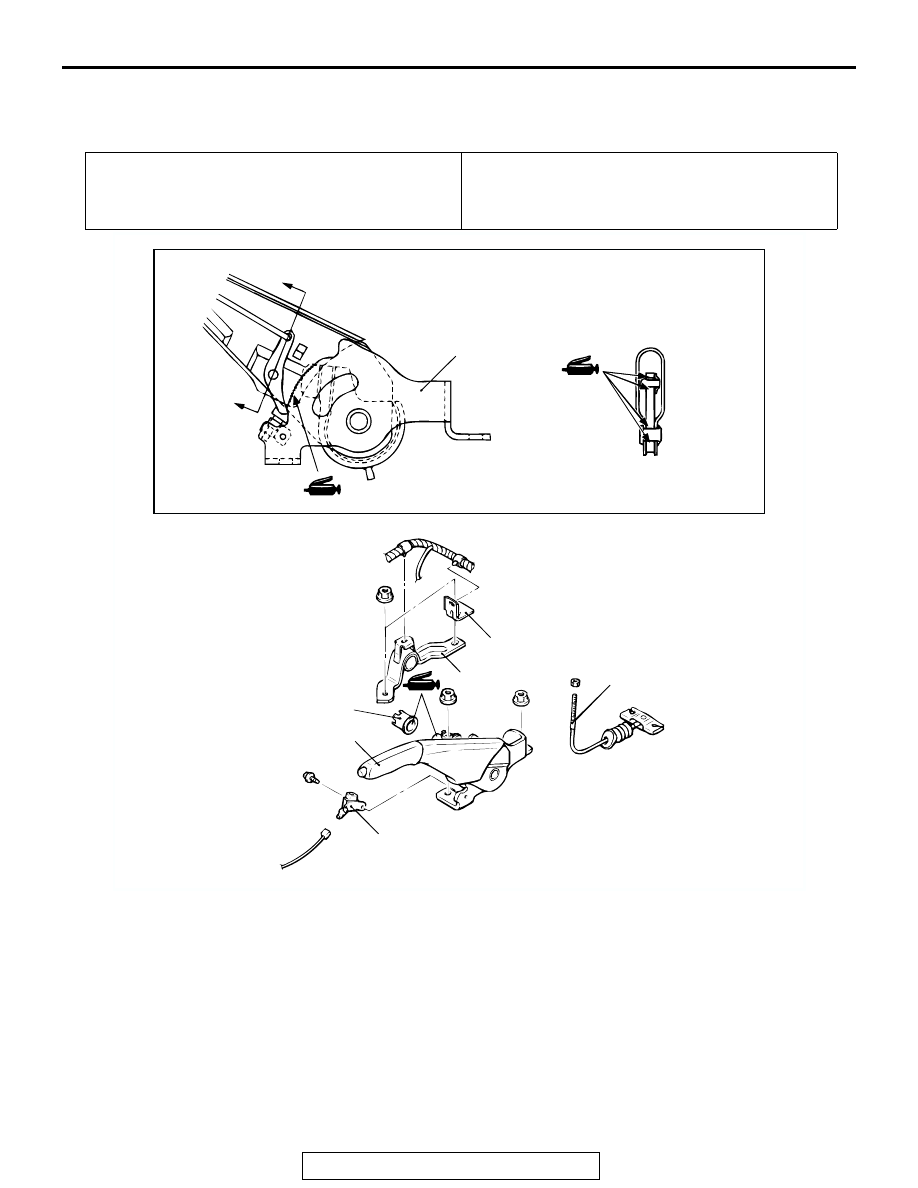

PARKING BRAKE LEVER

REMOVAL AND INSTALLATION

M1361001300385

Pre-removal Operation
• Rear Floor Console Removal (Refer to GROUP 52A,

Floor Console

P.52A-40

.)

Post-installation Operation
• Parking Brake Lever Stroke Adjustment (Refer to

P.36-2

.)

• Rear Floor Console Installation (Refer to GROUP 52A,

Floor Console

P.52A-40

.)

AC004556AB

3

4

5

6

1

2

6

A

A

SECTION A - A





REMOVAL

STEPS





1.

PARKING BRAKE LEVER
CONNECTION





2.

PARKING BRAKE SWITCH





3.

BRACKET <VEHICLES WITH REAR
HEATER>





4.

PARKING BRAKE LEVER STAY

5.

PARKING BRAKE LEVER BUSHING

6.

PARKING BRAKE LEVER





REMOVAL

STEPS

(Continued)
