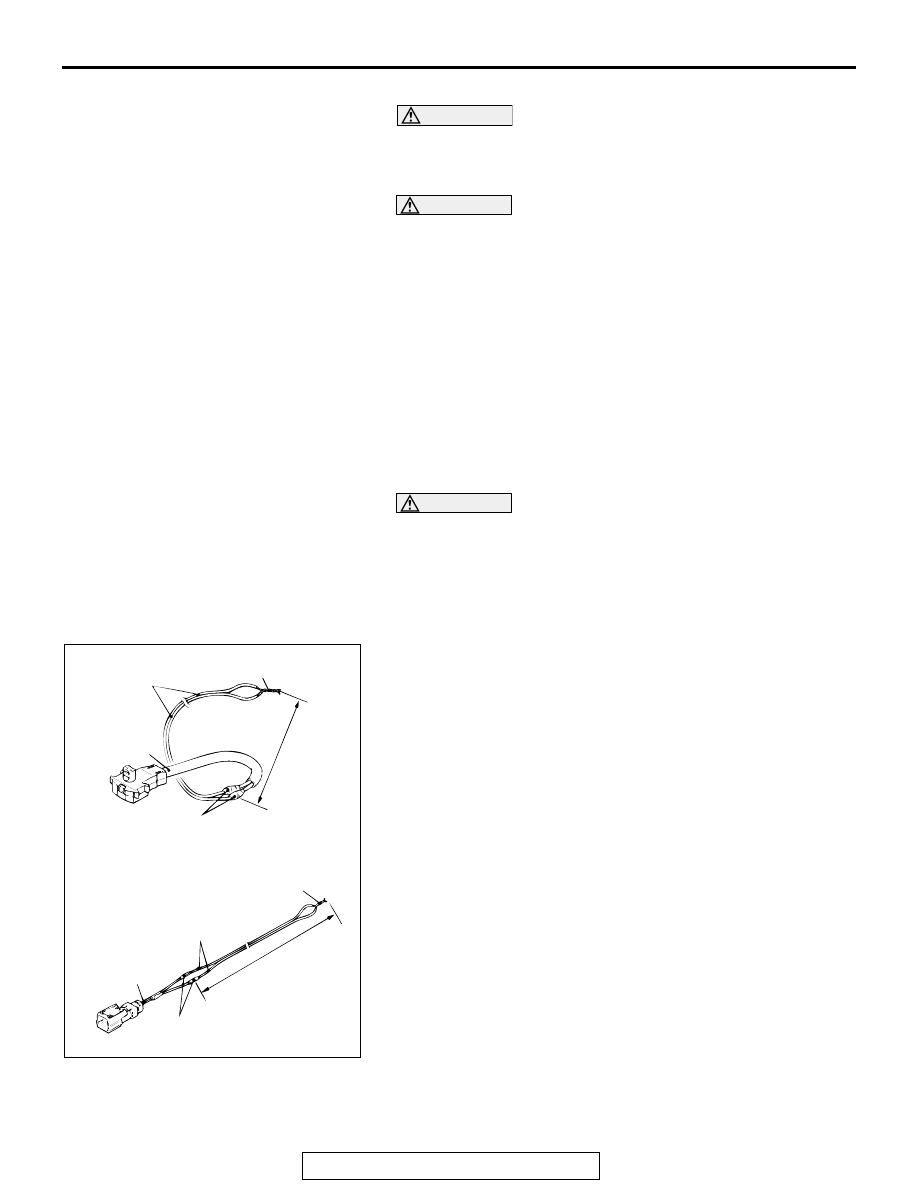

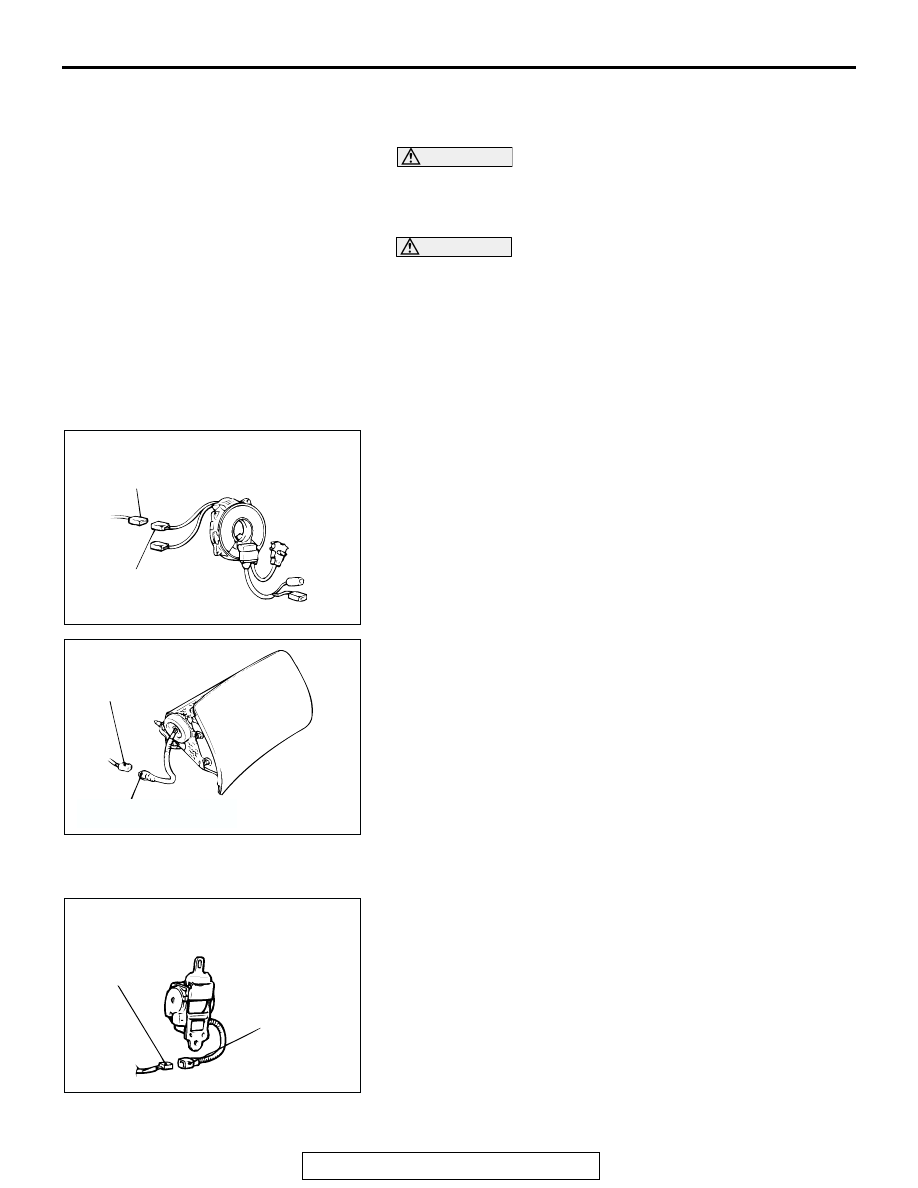

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-97

DEPLOYMENT INSIDE THE VEHICLE (when disposing of a
vehicle)
1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work. (Refer to

P.52B-17

.)

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. To deploy the air bag module (driver's side):

(1) Remove the steering column cover lower.
(2) Remove the connection between the clock spring two-pin

connector (red) and the body wiring harness connector.
NOTE: If the clock spring connector is disconnected from
the body wiring harness, both electrodes of the clock
spring connector will be automatically shorted to prevent
unintended deployment of the air bag due to static elec-
tricity, etc.

4. To deploy the air bag module (front passenger's side):

(1) Loosen the stopper to remove the glove box. (Refer to

P.52A-37

.)

(2) Remove the connection between the air bag module

(front passenger's side) connector (red two-pin) and the
body wiring harness connector.

5. To operate the seat belt pre-tensioner:

(1) Remove the center pillar trim, lower. (Refer to

P.52A-41

.)

(2) Remove the connection between the seat belt

pre-tensioner two-pin connector (red) and the floor wiring
harness connector (two-pin, red).
NOTE: If the seat belt pre-tensioner connector is discon-
nected from the floor wiring harness, both electrodes of
the seat belt pre-tensioner connector will be automatically
shorted to prevent unintended operation of the seat belt
pre-tensioner due to static electricity, etc.

AC003320

BODY WIRING HARNESS
CONNECTOR (TWO-PIN)

CLOCK SPRING TWO-PIN
CONNECTOR (RED)

AC

AC003321

AC

AIR BAG MODULE TWO-PIN
CONNECTOR (RED)

BODY WIRING HARNESS
CONNECTOR (TWO-PIN)

AC004293

FlOOR WIRING
HARNESS
CONNECTOR
(TWO-PIN, RED)

SEAT BELT
PRE-TENSIONER
CONNECTOR
(TWO-PIN, RED)

AB

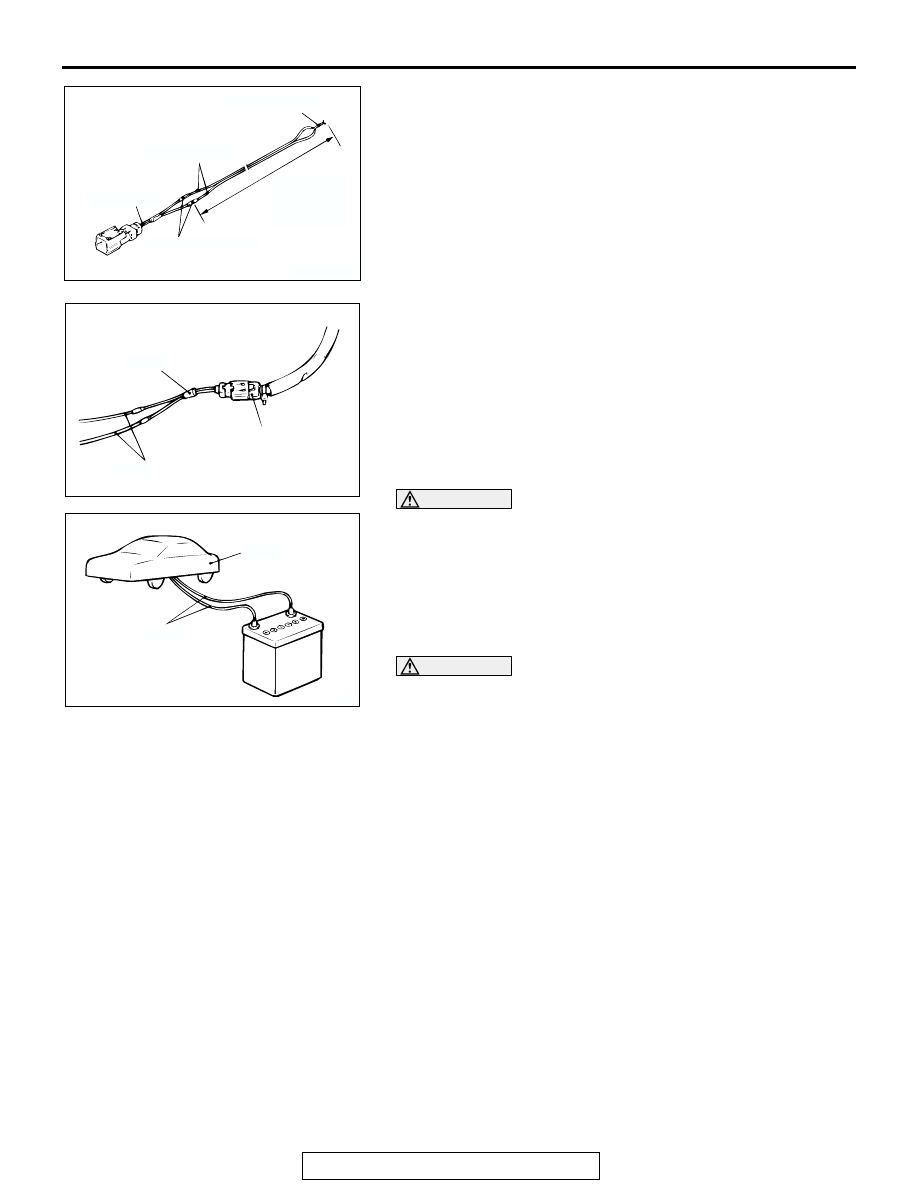

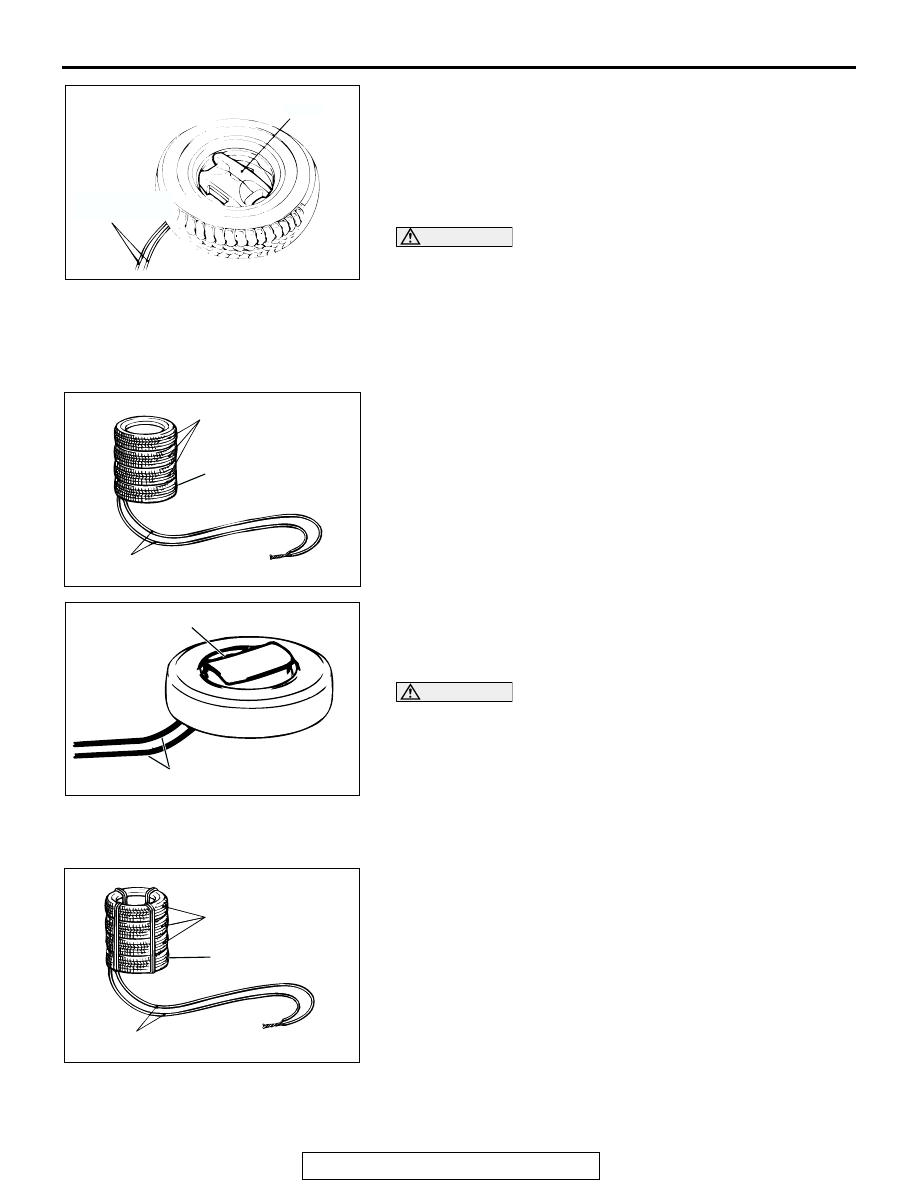

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-98

6. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB686560 and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag and operate the seat belt pre-tensioner.

7. Connect the clock spring or air bag module (front

passenger's side) or seat belt pre-tensioner two-pin
connector (red) to special tool MB686560 and move the
deployment wires out of the vehicle.

WARNING

If the glass is scratched, air bag deployment or seat
belt pre-tensioner operation could cause it to crack
and fly out of the vehicle, so always put a cover over
the vehicle.

8. To suppress the operation sound as much as possible

completely close all door windows, close the door and put
the cover on the vehicle.

WARNING

•

Before deploying the air bag and operating the
seat belt pre-tensioner in this manner, first check
to be sure that there is no one in or near the vehi-
cle. Wear safety glasses.

•

After the air bag has been deployed or the seat belt
pre-tensioner has been triggered, the inflator is
very hot. So wait for at least thirty minutes before
the inflator is handled. See Deployed Air Bag Mod-
ule and Seat Belt pre-tensioner Disposal Proce-
dures (Refer to

P.52B-103

) for post-deployment

handling instructions.

•

Just in case that the air bag module could not
been deployed or the seat belt pre-tensioner could
not been operated, contact the MMNA Tech Line.

9. At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag and
operating the seat belt pre-tensioner.

10.For the disposal of an deployed air bag module or seat belt

pre-tensioner, see the Deployed Air Bag Module Disposal
Procedures .

.

AC001932

CONNECTION

DEPLOYMENT WIRES

MR686560

INSULATOR TAPE

6 m (20 ft)
LONG OR
MORE

AB

AC000406AB

MB686560

2-PIN CONNECTOR
(RED)

DEPLOYMENT WIRES

ACX01308AC

DEPLOYMENT WIRE
6 m (20 ft)OR LONGER

COVER

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-99

DEPLOYMENT OUTSIDE THE VEHICLE

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work. (Refer to

P.52B-17

.)

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag or operate the seat belt pre-ten-
sioner in a wide, flat area at least 6 m (20 feet)
away from obstacles and other people.

•

Do not perform deployment or operation outside if
a strong wind is blowing. If there is a slight breeze,
place the air bag module or seat belt pre-tensioner
downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

Store the deployed air bag module or seat belt
pre-tensioner the correct way up with its padded sur-
face or its operation surface uppermost on a flat sur-
face. Do not place anything on top of them.

2. Remove the air bag module and seat belt with pre-tensioner

from the vehicle. (Refer to

P.52B-84

 and

P.52B-93

.)

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB628919 or
MR203491 <drive's side> or special tool MB686560 <front
passenger's side and seat belt pre-tensioner>, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module operation seat belt pre-tensioner.

AC004295 AB

<DRIVER'S SIDE>

<FRONT PASSENGER'S SIDE AND
SEAT BELT PRE-TENIONER>

DEPLOYMENT
WIRES

MB628919 OR
MB203491

6 m (20 ft)
LONG OR
MORE

INSULATION TAPE

CONNECTION

DEPLOYMENT
WIRES

MB686560

6 m (20 ft)
LONG OR MORE

INSULATION TAPE

CONNECTION

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-100

4. Prepare the air bag modules and seat belt pre-tensioner as

follows:

(1) Air bag module (driver's side)

a. Take special tool MB628919 or MR203491 that is

connected to the deployment wires, pass it beneath an
old tire wheel assembly, and connect it to the air bag
module.

CAUTION

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the air bag deploys could
damage the adapter harness.

b. Pass the thick wire through the air bag module

mounting hole, and then secure the air bag module to
an old tire with a wheel in it so that the pad on the
module is facing upwards.

c. Place three old tires without wheels on top of the tire

secured to the air bag module.

(2) Air bag module (font passenger's side)

a. Connect the deployment wires to special tool

MB686560, pass it beneath the tire and wheel
assembly, and connect it to the air bag module.

CAUTION

• The adapter harness below the wheel should be loose.

If it is too tight, the reaction when the air bag deploys
could damage the adapter harness.

• During deployment, the connector of special tool

MB686560 must not be between the tires.

b. Pass the thick wires into the hole of the air bag module

bracket, and secure it to the wheel of the old tire with
wheel (four locations), with the air bag facing upwards.

c. Place three old tires without wheels on top of the tire

secured to the air bag module, and secure all tires
together with ropes (four locations).

AC000407AB

DEPLOYMENT
WIRES

AIR BAG MODULE

ACX00610

TIRES WITHOUT
WHEELS

AIR BAG MODULE
INSIDE

DEPLOYMENT WIRES

AC

ACX01314

AIR BAG MODULE

DEPLOYMENT WIRES

AC

ACX00611

TIRES WITHOUT
WHEELS

DEPLOYMENT
WIRES

AIR BAG MODULE
INSIDE

AC
