DOOR MIRROR

TSB Revision

EXTERIOR

51-27

2. Pull the mirror downward to remove it from the claws.

INSPECTION

M1511006500190

ELECTRIC REMOTE CONTROL MIRROR
OPERATION CHECK

Follow the table below to check the electric remote control mir-
ror operation.

.

<VEHICLES WITHOUT HEATED MIRROR>
 Check that the mirror moves as described in the table when
each terminal is connected to the battery.

.

<VEHICES WITH HEATED MIRROR>
Check that the mirror moves as described in the table when
each terminal is connected to the battery.

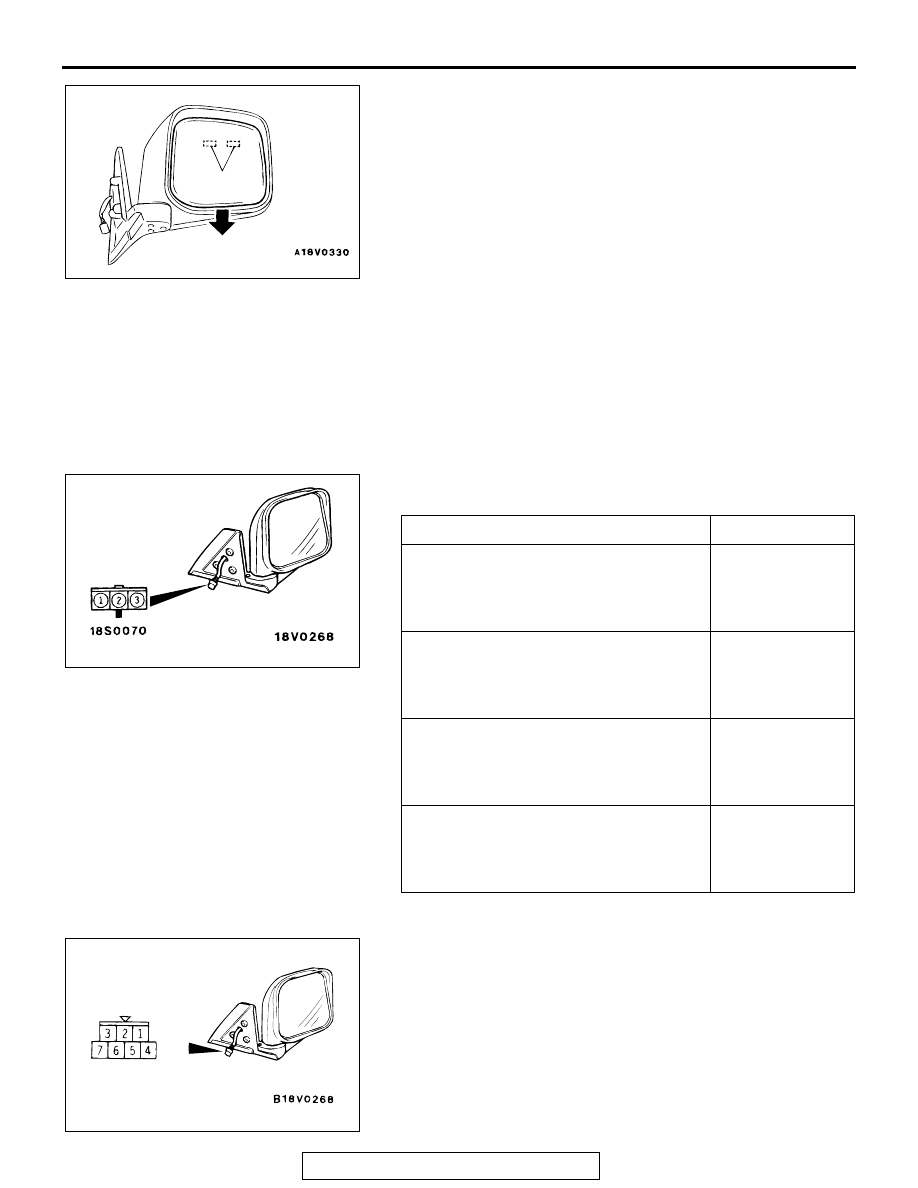

AC003989

CLAWS

AB

BATTERY CONNECTION

MIRROR GLASS:

• Connect terminal 3 to the positive

battery terminal

• Connect terminal 1 to the negative

battery terminal

Tilts up.

• Connect terminal 1 to the positive

battery terminal

• Connect terminal 3 to the negative

battery terminal

Tilts down.

• Connect terminal 2 to the positive

battery terminal

• Connect terminal 1 to the negative

battery terminal

Turns to the right.

• Connect terminal 1 to the positive

battery terminal

• Connect terminal 2 to the negative

battery terminal

Turns to the left.

AC003990

AC003991

DOOR MIRROR

TSB Revision

EXTERIOR

51-28

HEATED MIRROR OPERATION CHECK

Ensure that there is continuity between terminal 1 and terminal
4 of the door mirror connector.

DOOR MIRROR CONTROL SWITCH CONTINUITY
CHECK

Follow the table below to check the door mirror control switch
for continuity.

BATTERY CONNECTION

MIRROR GLASS:

• Connect terminal 7 to the positive

battery terminal

• Connect terminal 5 to the negative

battery terminal

Tilts up.

• Connect terminal 5 to the positive

battery terminal

• Connect terminal 7 to the negative

battery terminal

Tilts down.

• Connect terminal 6 to the positive

battery terminal

• Connect terminal 5 to the negative

battery terminal

Turns to the right.

• Connect terminal 5 to the positive

battery terminal

• Connect terminal 6 to the negative

battery terminal

Turns to the left.

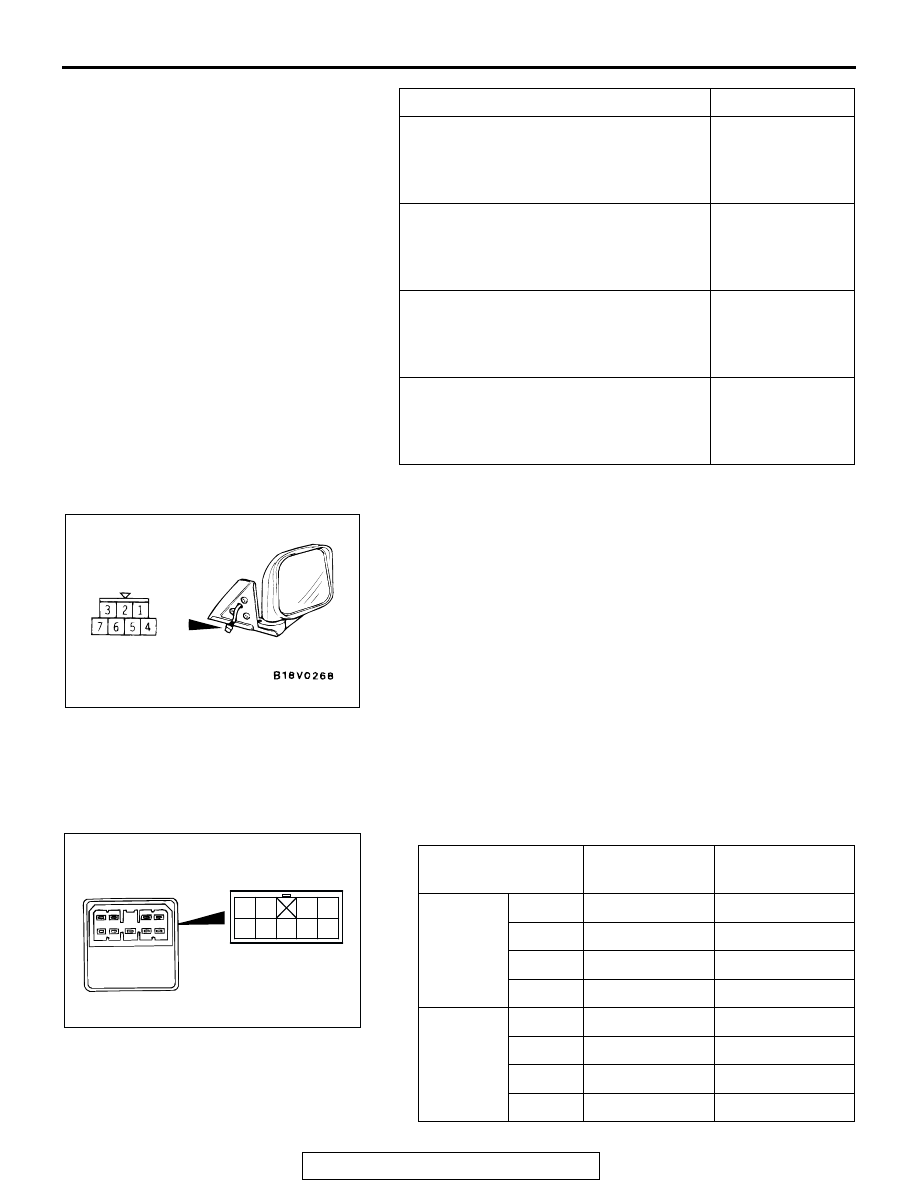

AC003991

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

Left side

Up

4

− 8, 6 − 7

Less than 2 ohms

Down

4

− 7, 6 − 8

Less than 2 ohms

Right

3

− 6, 4 − 7

Less than 2 ohms

Left

3

− 4, 6 − 7

Less than 2 ohms

Right side Up

2

− 4, 6 − 7

Less than 2 ohms

Down

2

− 6, 4 − 7

Less than 2 ohms

Right

4

− 7, 6 − 9

Less than 2 ohms

Left

4

− 9, 6 − 7

Less than 2 ohms

5

4

6

3

2

1

9

8

7

AC001682

SPECIFICATIONS

TSB Revision

EXTERIOR

51-29

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1511015300183

SERVICE SPECIFICATIONS

M1511000300187

SEALANTS AND ADHESIVES

M1511000500170

ITEM

SPECIFICATION

Front bumper
Fog light bracket screw

0.7 N

⋅m (6.2 in-lb)

Fog light  screw

2.5 N

⋅m (22 in-lb)

Lift gate garnish
Lift gate garnish nut

4.9 N

⋅m (43 in-lb)

Rear wiper and washer
Wiper arm and blade assembly nut

7.5 N

⋅m (65 in-lb)

Wiper motor

4.9 N

⋅m (43 in-lb)

Side step
Side step pipe assembly

11 N

⋅m (98 in-lb)

Under floor spare tire carrier
Spare tire carrier bolt

12 N

⋅m (104 in-lb)

Windshield wiper and washer
Washer tank bolt

4.9 N

⋅m (43 in-lb)

Wiper arm and blade assembly nut

13 N

⋅m (113 in-lb)

Wiper link assembly nut

4.9 N

⋅m (43 in-lb)

Wiper motor bolt

4.9 N

⋅m (43 in-lb)

ITEM

STANDARD VALUE

Windshield wiper blade position
installation mm (in)

Driver's side

26

± 5 (1.0 ± 0.2)

Passenger's side

30

− 40 (1.2 − 1.5)

Rear wiper blade position installation mm (in)

70

± 5 (2.8 ± 0.2)

ITEM

SPECIFICATION

Door molding

Adhesive tape: Double-sided tape, <A, C, E [1.2 mm
(0.05 in) thickness], B [5 mm (0.2 in) width and 1.2 mm
(0.05 in) thickness], D [12 mm (0.5 in) width and 1.2
mm (0.05 in) thickness]>

Side step molding

Adhesive tape: Double-sided tape [23 mm (0.9 in)
wide and 0.8 mm (0.03 in) thickness]

Delta cover inner

Adhesive tape: Double-sided tape [5 mm (0.2 in) width
and 0.4 mm (0.02 in) thickness]
