CONDENSER AND CONDENSER FAN MOTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-55

REMOVAL SERVICE POINT

.

<<A>> DISCHARGE HOSE/LIQUID PIPE A DISCONNEC-
TION

CAUTION

Seal the hoses completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly dam-
aging the compressor and deteriorating performance.
Plug the disconnected hose, pipe and condenser nipple to pre-
vent foreign matter from getting into them.

INSTALLATION SERVICE POINT

.

>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill with a specified amount of
compressor oil and install it (to the vehicle).

Compressor oil: SUN PAG56

Quantity: 20 cm

3

(0.7 floz)

INSPECTION

M1556001100129

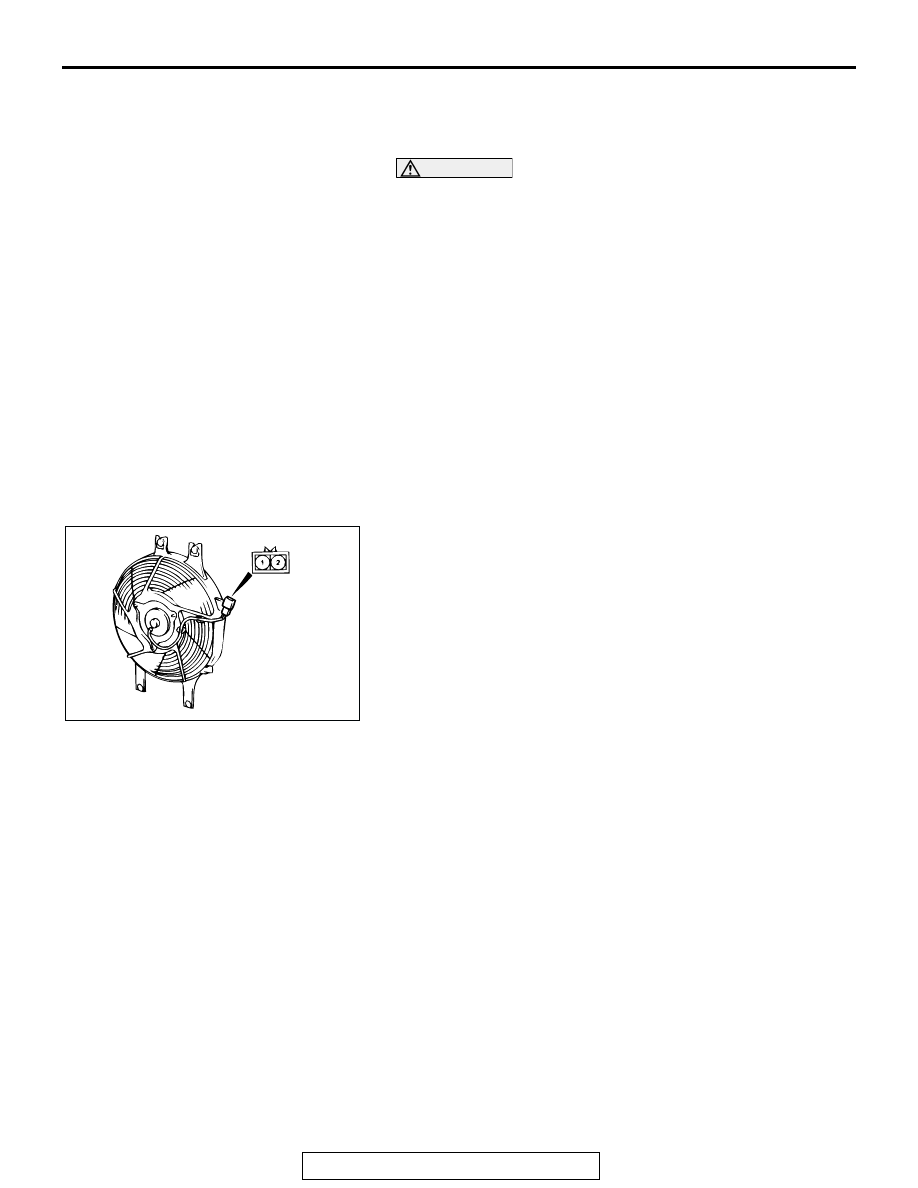

CONDENSER FAN MOTOR CHECK

Check to be sure that the condenser fan motor operates when
battery voltage is applied to terminal 1 and terminal 2
grounded.

AC002870AB

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-56

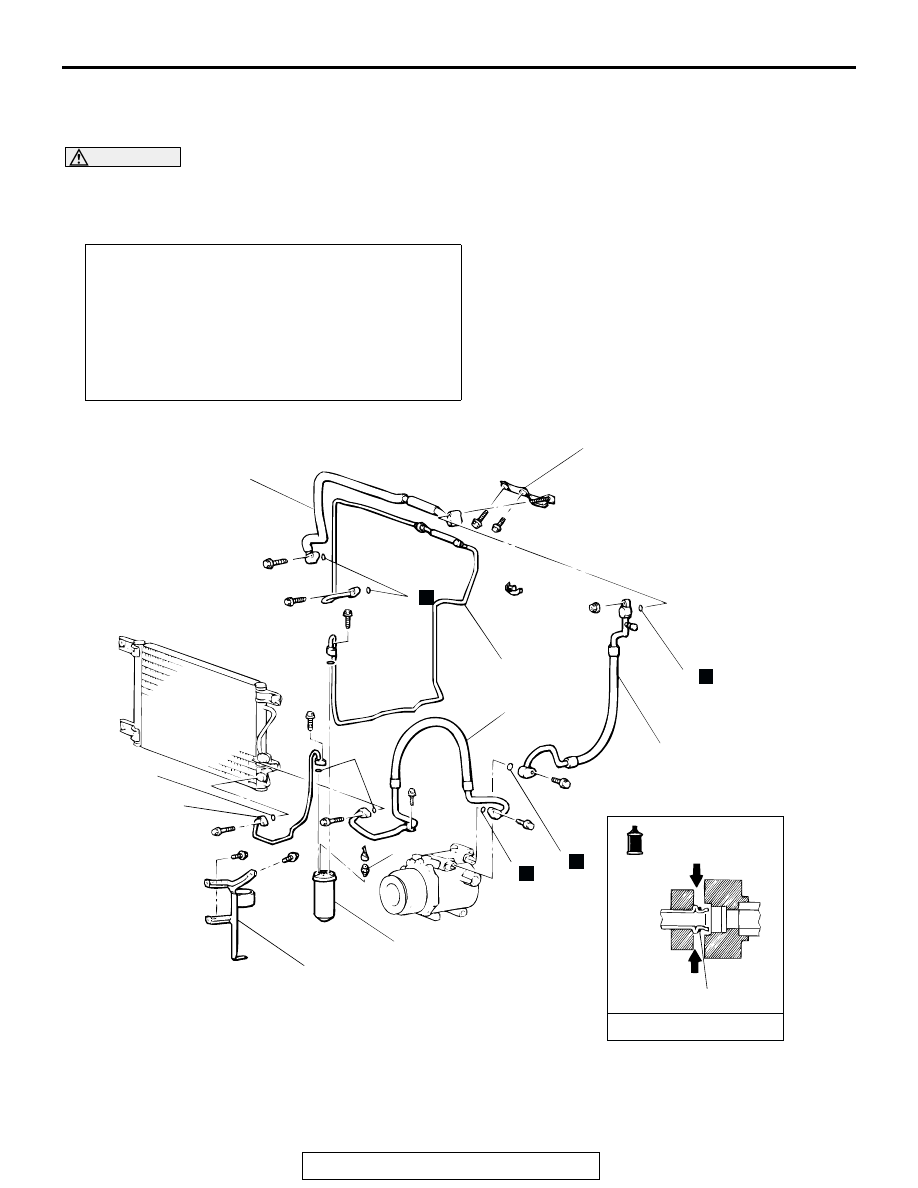

REFRIGERANT LINE

REFRIGERANT LINE

M1552006400253

WARNING

When removing and installing the suction pipe or discharge pipe C from vehicles equipped
with SRS, do not let it bump against the front impact sensor (RH).

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
• Refrigerant Discharging and Charging (Refer to

P.55-28

.)

• Radiator Grill Removal and Installation (Refer to GROUP

51,Grill, Molding and Garnish

P.51-6

.)

• Front Bumper Removal and Installation (Refer to GROUP

51, Front Bumper

P.51-2

.)

• Battery Removal and installation

• Windshield Washer Tan Removal and Installation (Refer

to GROUP 51, Windshield Wiper and Washer

P.51-16

.)

AC002871 AB

1

2

3

4

5

6

7

8

9

10

PIPING CONNECTION

COMPRESSOR OIL:

SUN PAG56

N

6

N

6

N

6

N

6

REMOVAL STEPS

 >>A<<

1.

SUCTION HOSE

<<A>>

2.

SUCTION PIPE A

<<A>>

3.

LIQUID PIPE A

<<A>>

4.

DISCHARGE HOSE

REMOVAL STEPS (Continued)

REFRIGERANT LINE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-57

REMOVAL SERVICE POINT

.

<<A>> HOSE, PIPE AND RECEIVER ASSEMBLY DISCON-
NECTION

CAUTION

Seal the hoses completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly dam-
aging the compressor and deteriorating performance.
Plug the disconnected hose, pipe, condenser, compressor and
heater unit nipple to prevent foreign matter from getting into
them.

INSTALLATION SERVICE POINT

.

>>A<< SUCTION HOSE/RECEIVER ASSEMBLY INSTALLA-
TION

CAUTION

Seal the hoses completely, otherwise the compressor oil
and receiver will absorb water vapor easily, possibly dam-
aging the compressor and deteriorating performance.
Plug the disconnected hose, pipe, condenser, compressor and
heater unit nipple to prevent foreign matter from getting into
them.

Compressor oil: SUN PAG56

Quantity: Suction hose: 10cm

3

 (0.3 floz)

Receiver assembly: 10 cm

3

 (0.3 floz)

<<A>>

5.

LIQUID PIPE

6.

O-RING

7.

SUCTION PIPE BRACKET

<<A>>

 >>A<<

8.

RECEIVER ASSEMBLY

9.

DUAL PRESSURE SWITCH

10. RECEIVER BRACKET

REMOVAL STEPS (Continued)

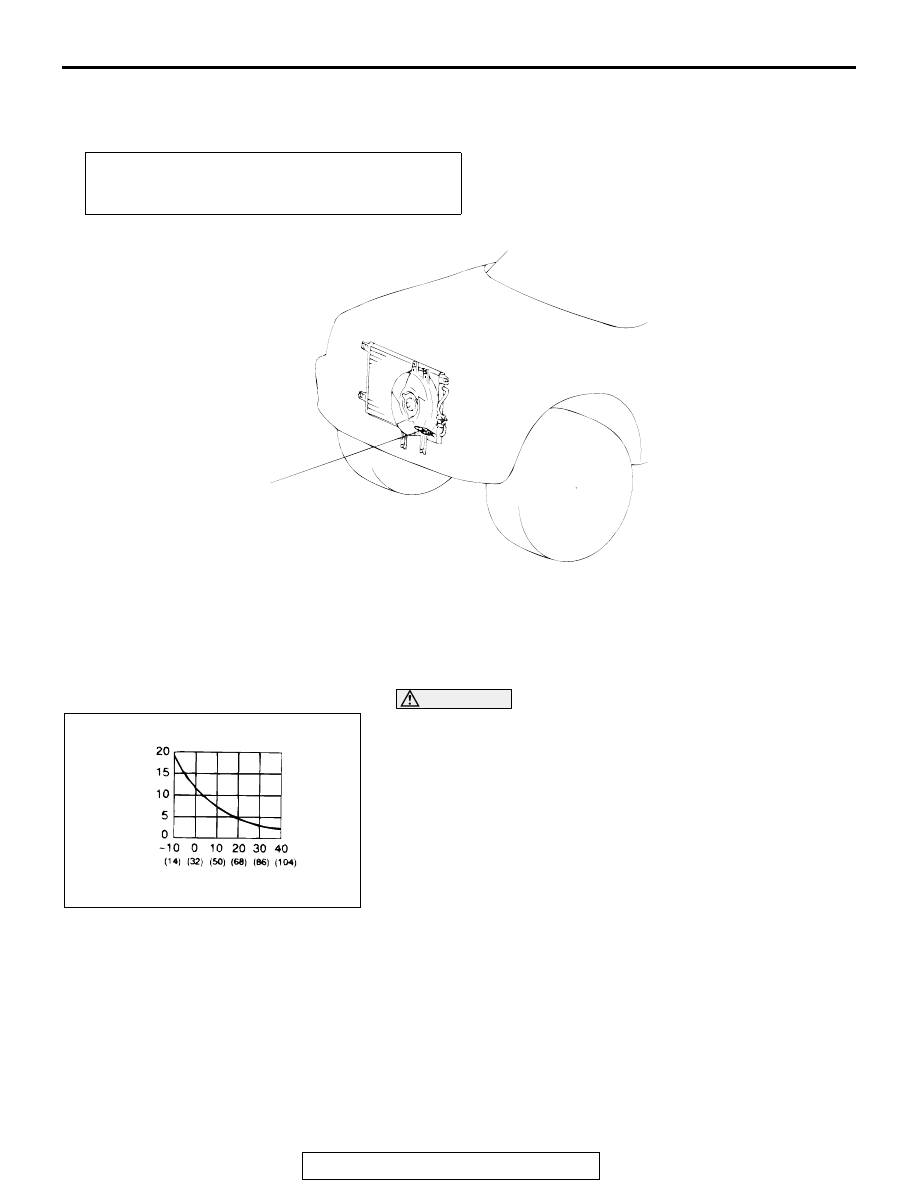

AMBIENT AIR TEMPERATURE SENSOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55-58

AMBIENT AIR TEMPERATURE SENSOR

REMOVAL AND INSTALLATION

M1554017500012

INSPECTION

M1556001100174

AMBIENT AIR TEMPERATURE CHECK

WARNING

The temperature conditions when checking should
not exceed the range shown in the diagram.

When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions the resistance
should approximately satisfy the illustrated values.

Pre-removal and Post-installation Operation
Front Bumper Removal and Installation (Refer to GROUP
51, Front Bumper

P.51-2

.)

AC002872

AMBIENT AIR TEMPERATURE
SENSOR

AD

AC003135

RESISTANCE

Ω

k

TEMPERATURE ˚C  (˚F)

AB
