Mitsubishi Montero Sport (2004+). Manual - part 557

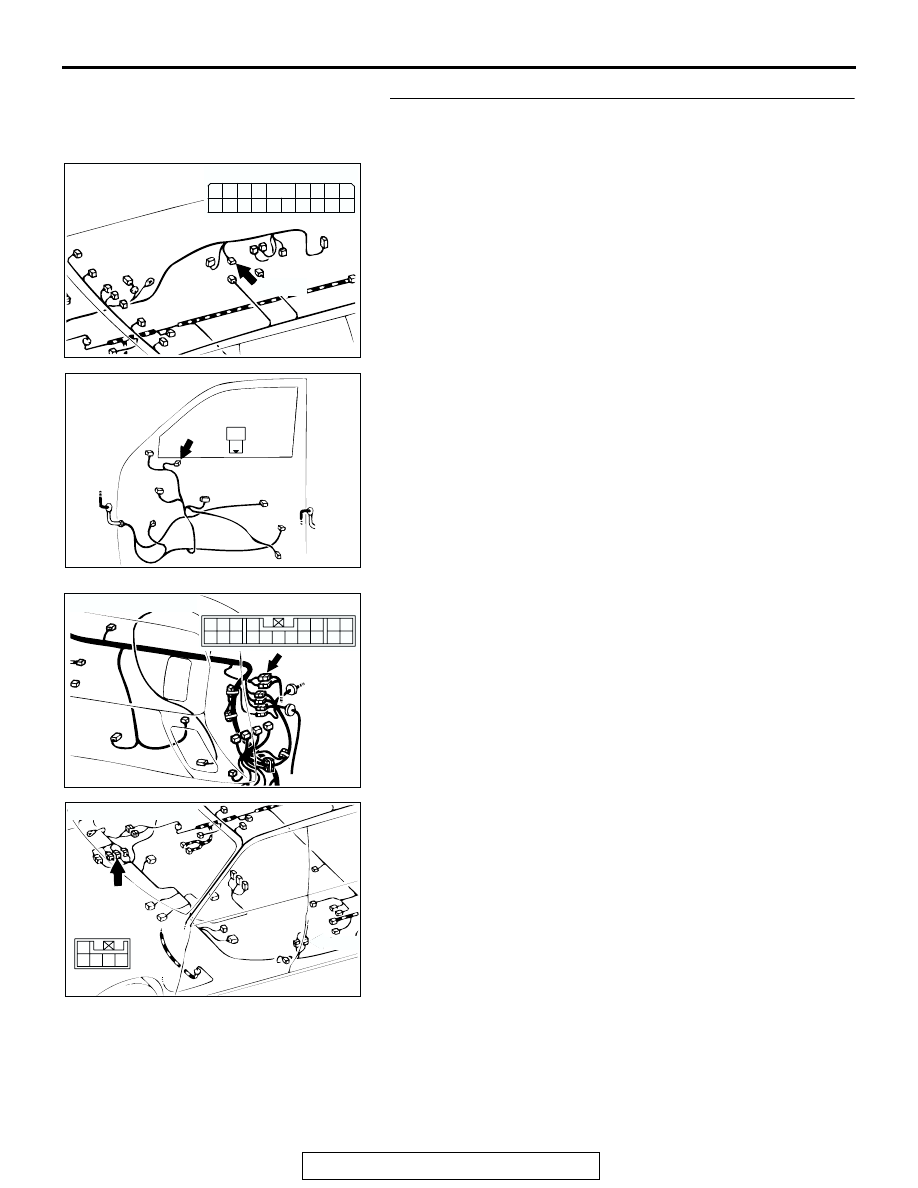

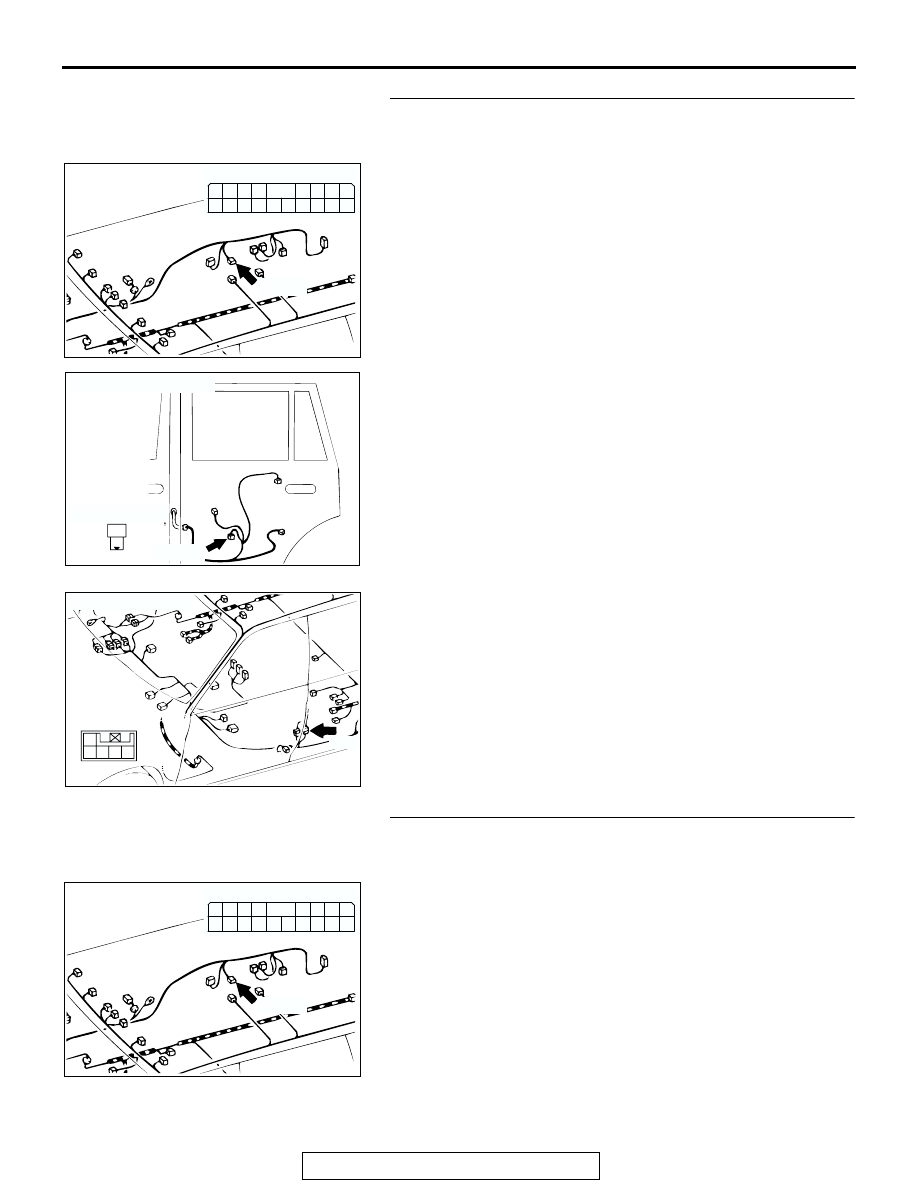

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-215

STEP 39. Check the harness wires between amplifier
connector E-11 (terminal No.15 and 16) and front door
speaker (RH) connector F-25 (terminal No. 1 and 2).

NOTE: After inspecting intermediate connectors C-12 and
E-43, inspect the wire. If intermediate connectors C-12 and
E-43 are damaged, repair or replace them. Refer to GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Are the harness wires between amplifier connector E-11

and front door speaker (RH) connector F-25 in good
condition?
YES : Go to Step 40.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

AC200776

CONNECTOR: E-11

AC

COMPONENT SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

E-11(B)

AC201721

2

1

CONNECTOR: F-25

COMPONENT
SIDE

AB

FRONT
DOOR
 (RH)

F-25 (B)

AC201697

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTOR: C-12

AB

C-12

AC201725

4 5

3

1
2

CONNECTOR: E-43

AB

E-43

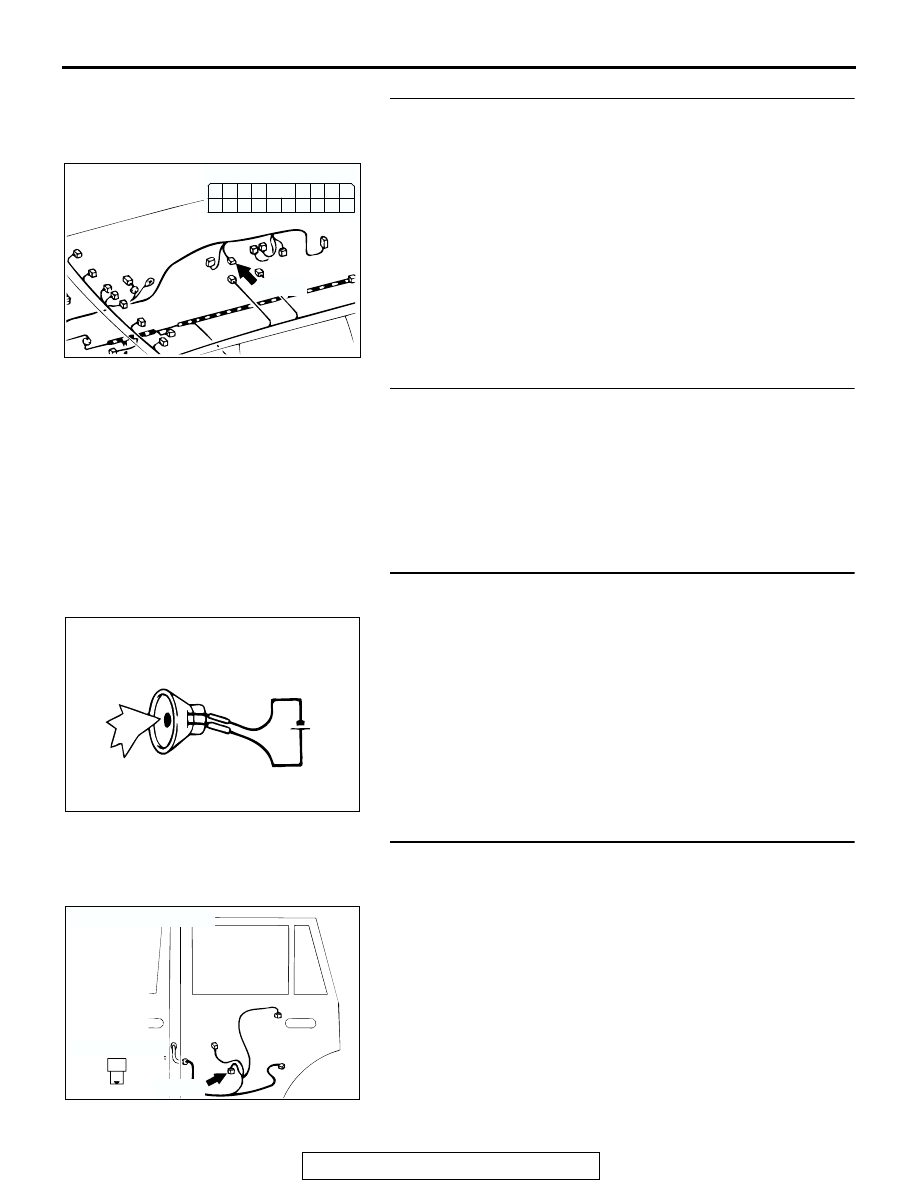

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-216

STEP 40. Check amplifier connector E-11 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is the amplifier connector E-11 in good condition?

YES : Go to Step 41.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

STEP 41. Recheck for malfunction.
Q: Is a malfunction eliminated?

YES : This procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Point

− How to

Cope with Intermittent Malfunction

P.00-7

.)

NO :  Go to Step 37.

STEP 42. Check the rear door speaker (LH).
(1) Remove the rear door speaker (LH).

(2) Check that the rear door speaker (LH) generates noise

when a five-volt voltage is applied on the speaker terminal.

Q: Is the rear door speaker (LH) generating noise?

YES : Go to Step 43.
NO :  Replace the speaker. The rear door speaker (LH)

should sound.

STEP 43. Check rear door speaker (LH) connector F-10 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is rear door speaker (LH) connector F-10 in good

condition?
YES : Go to Step 44.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The rear door speaker

(LH) should sound.

AC200776

CONNECTOR: E-11

AC

COMPONENT SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

E-11(B)

ACX01868AB

5V

AC201726

2

1

CONNECTOR: F-10

AB

COMPONENT
SIDE

REAR
DOOR
(LH)

F-10 (B)

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-217

STEP 44. Check the harness wires between amplifier
connector E-11 (terminal No.17 and 18) and rear door
speaker (LH) connector F-10 (terminal No.1 and 2).

NOTE: After inspecting intermediate connectors E-31, inspect
the wire. If intermediate connectors E-31 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

.

Q: Are the harness wires between amplifier connector E-11

(terminal No.17 and 18) and rear door speaker (LH)
connector F-10 (terminal No.1 and 2) in good condition?
YES : Go to Step 45.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

STEP 45. Check amplifier connector E-11 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q: Is the amplifier connector E-11 in good condition?

YES : Go to Step 46.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

AC200776

CONNECTOR: E-11

AC

COMPONENT SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

E-11(B)

AC201726

2

1

CONNECTOR: F-10

AB

COMPONENT
SIDE

REAR
DOOR
(LH)

F-10 (B)

AC201727

4 5

3

1
2

CONNECTOR: E-31

AB

E-31

AC200776

CONNECTOR: E-11

AC

COMPONENT SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

E-11(B)

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-218

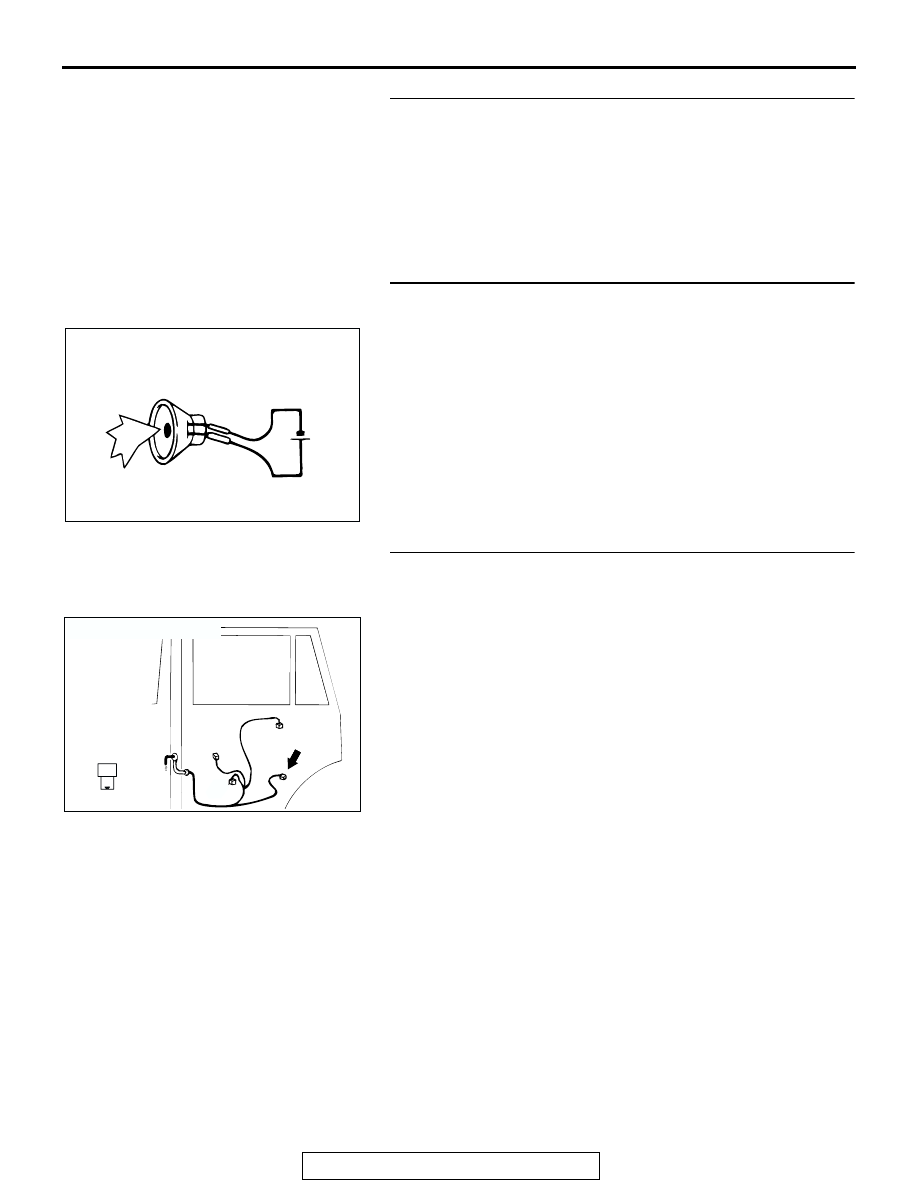

STEP 46. Recheck for malfunction.
Q: Is a malfunction eliminated?

YES : This procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Point

− How to

Cope with Intermittent Malfunction

P.00-7

.)

NO :  Go to Step 42.

STEP 47. Check the rear door speaker (RH).
(1) Remove the rear door speaker (RH).

(2) Check that the rear door speaker (RH) generates noise

when a five-volt voltage is applied speaker terminal.

Q: Is rear door speaker generating noise?

YES : Go to Step 48.
NO :  Replace the speaker. The rear door speaker (RH)

should sound.

STEP 48. Check rear door speaker (RH) connector F-22 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is rear door speaker (RH) connector F-22 in good

condition?
YES : Go to Step 49.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. The rear door speaker

(RH) should sound.

ACX01868AB

5V

AC201710

CONNECTOR: F-22

REAR
DOOR
(RH)

2

1

AB

COMPONENT
SIDE

F-22 (B)
