ACCESSORY SOCKET

TSB Revision

CHASSIS ELECTRICAL

54-179

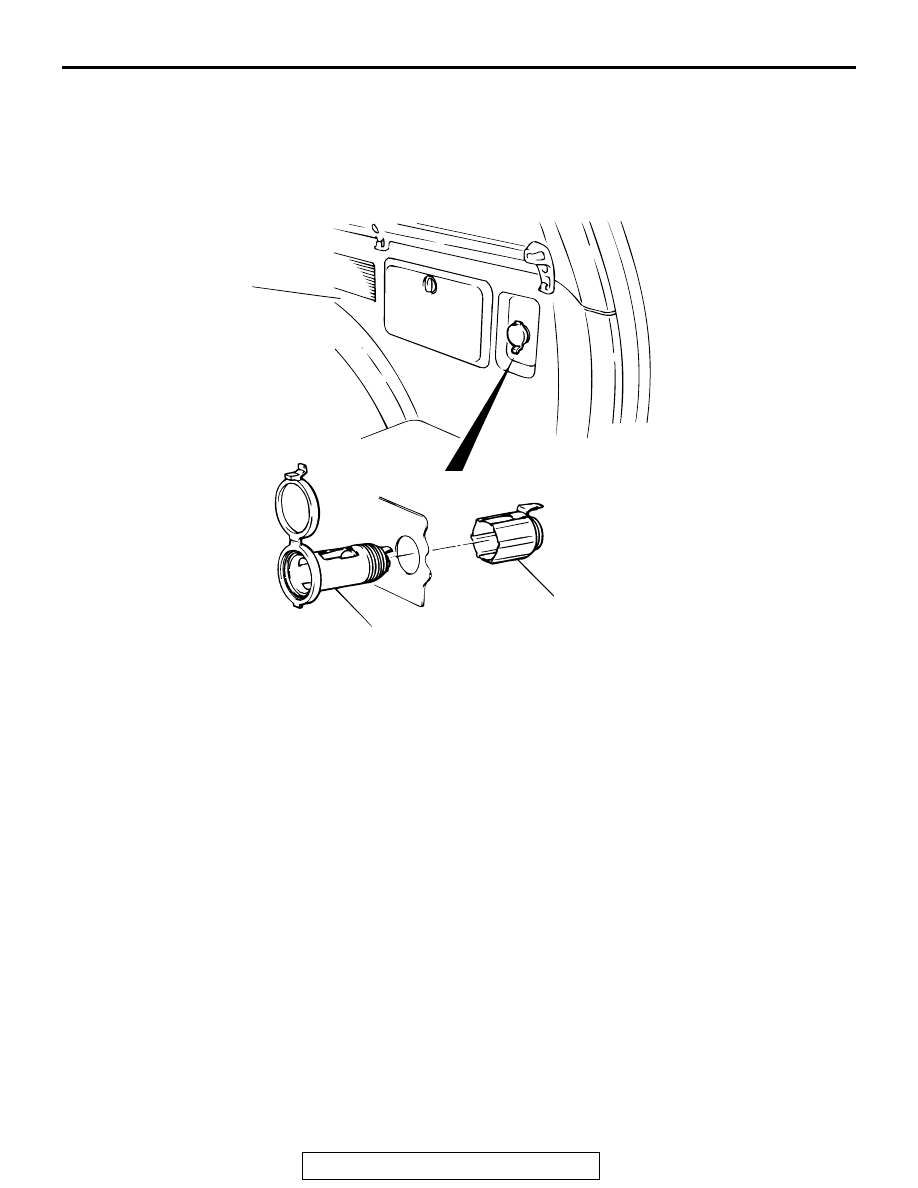

ACCESSORY SOCKET

REMOVAL AND INSTALLATION

M1543008900126

AC002803AB

1

2

QUARTER TRIM,LOWER <RH>

REMOVAL STEPS

•

QUARTER TRIM, LOWER <RH>
(REFER TO GROUP 52A, TRIMS

P.52A-41

.)

1.

OUTER CASE

2.

SOCKET

REMOVAL STEPS (Continued)

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-180

INSPECTION

M1543019501590

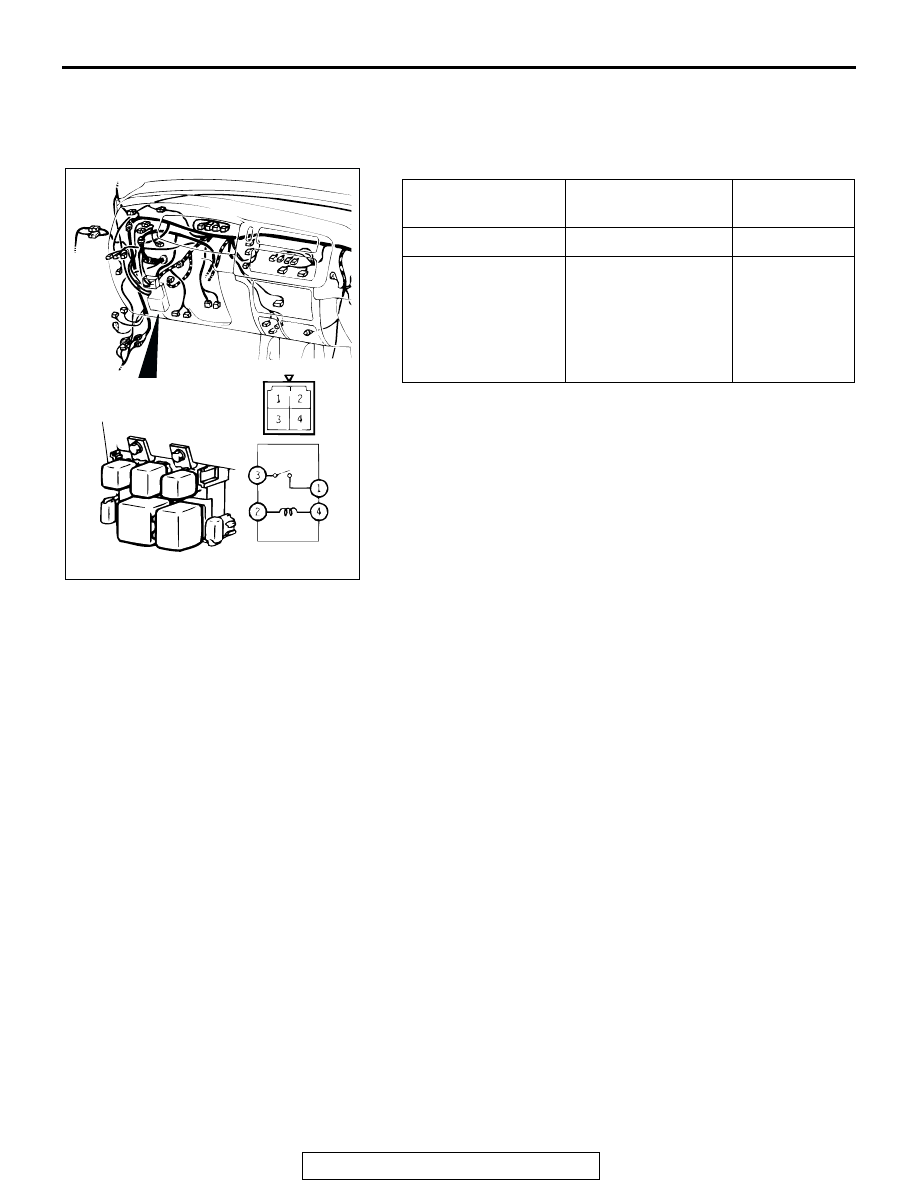

ACCESSORY SOCKET RELAY CONTINUITY
CHECK

RADIO AND TAPE PLAYER

RADIO WITH TAPE PLAYER AND CD PLAYER, SPEAKER AND ANTENNA
DIAGNOSIS

INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS

M1543009900947

The diagnosis for symptoms such as noise being
emitted, no sound being played, or sound coming
only out of one side while listening to the audio sys-
tem or tape is provided.

TROUBLESHOOTING STRATEGY

M1544004800272

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find
audio system fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify that the malfunction is eliminated.

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1

− 3

Open circuit

• Connect terminal

2 to the positive
battery terminal

• Connect terminal

4 to the negative
battery terminal

1

− 3

Less than 2
ohms

AC002804 AB

ACCESSORY
SOCKET RELAY

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-181

SYMPTOM CHART

M1544004900309

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

When power switch is turned "ON," no power is available.

1



P.54-182

No sound. <vehicles with amplifier>

2



P.54-187

No sound from one speaker.

3



P.54-193

Noise

Noise appears at certain
places when traveling (AM).

4



P.54-220

Noise appears at certain
places when traveling (FM).

5



P.54-221

Mixed with noise, only at night
(AM).

6



P.54-222

Broadcasts can be heard but
both AM and FM have a lot of
noise.

7



P.54-222

There is more noise on either
AM or FM.

8



P.54-224

There is noise when starting
the engine.

9



P.54-225

Some noise appears when
there is vibration or shocks
during traveling.

10



P.54-227

Noise sometimes appears on
FM during traveling.

11



P.54-227

Ever-present noise.

12



P.54-228

Radio

There is noise but no
reception for both AM and FM
or no sound from AM, or no
sound from FM.

13



P.54-229

Poor reception.

14



P.54-229

Distortion on AM or on both
AM and FM.

15



P.54-230

Distortion on FM only.

16



P.54-231

Using the auto select function,
too few automatic stations are
selected.

17



P.54-231

Preset stations are erased.

18



P.54-232

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-182

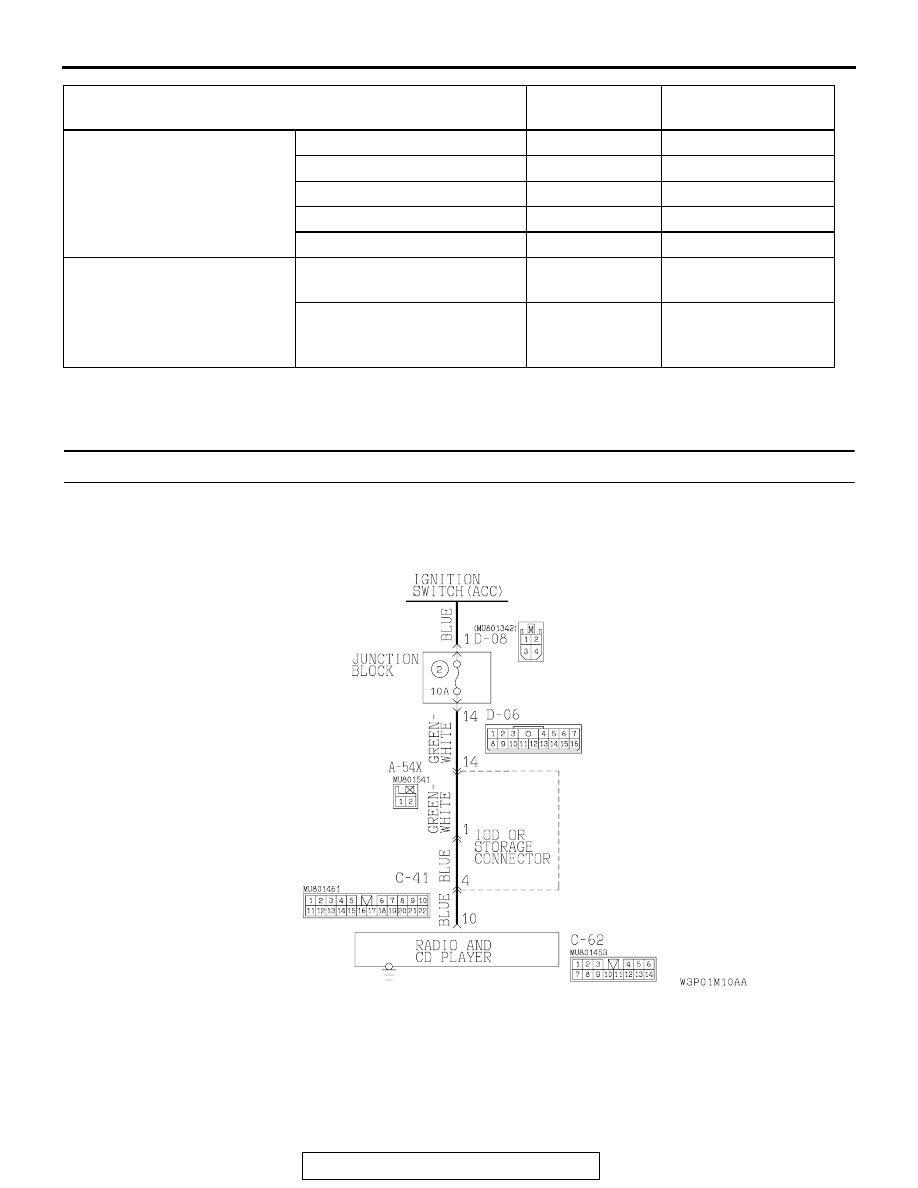

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," No Power is Available.

CD player

CD can not be inserted.

19



P.54-235

No sound (CD only).

20



P.54-236

CD sound skips.

21



P.54-236

Sound quality is poor.

22



P.54-237

CD cannot be ejected.

23



P.54-237

Motor antenna

Motor antenna won't extend or
retract.

24



P.54-238

Motor antenna extends and
retracts but does not receive
any radio signal.

25



P.54-250

SYMPTOM

INSPECTION
PROCEDURE

REFERENCE PAGE

Radio and CD Player Power Supply Circuit
