SUNROOF ASSEMBLY

TSB Revision

BODY

42-191

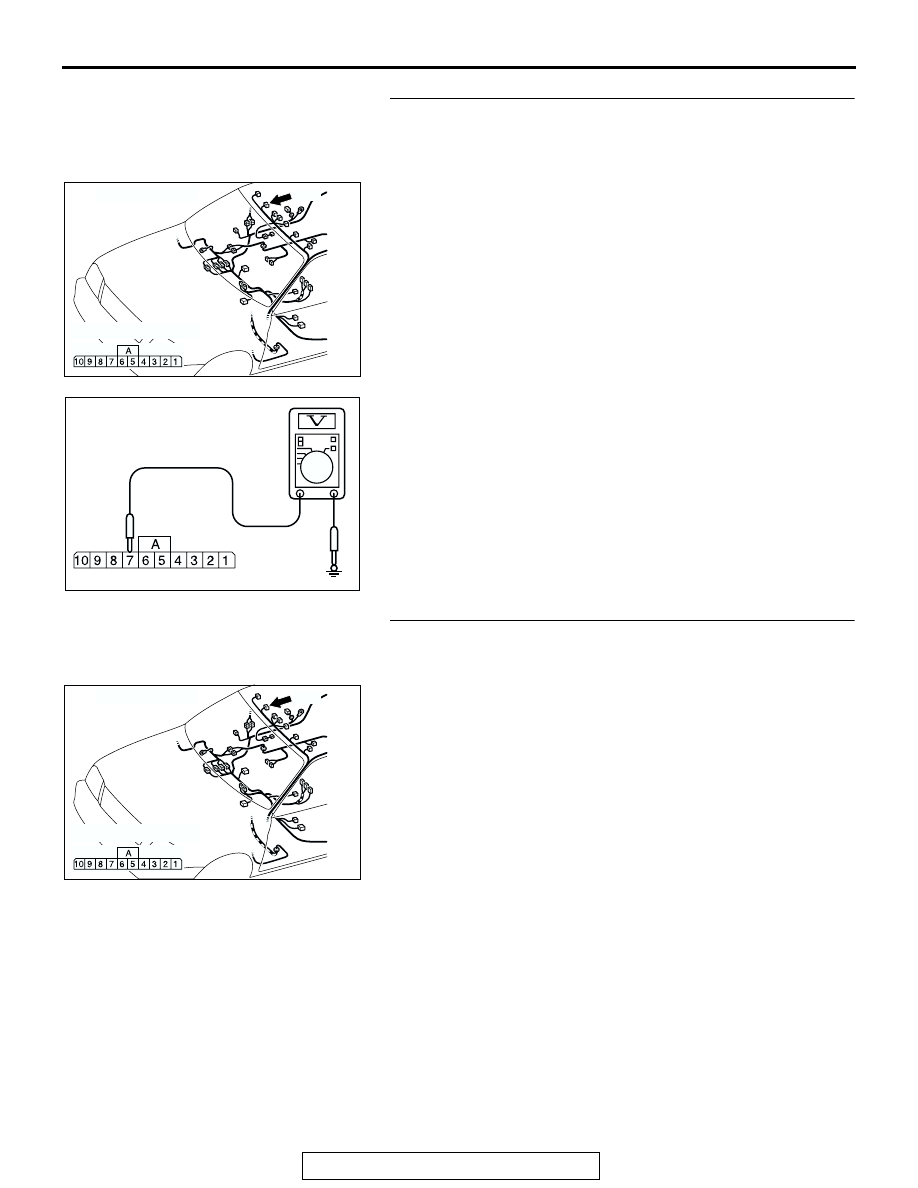

STEP 2. Measure the power supply line voltage at
sunroof-ECU connector E-07.
(1) Remove the headlining. (Refer to GROUP 52A, Headlining

P.52A-42

.)

(2) Disconnect sunroof-ECU connector E-07 and measure at

the harness side.

(3) Measure the voltage between terminal 7 and ground.

• Voltage should be approximately 12 volts (battery posi-

tive voltage).

Q: Is measured the voltage approximately 12 volts?

YES : Go to Step 4.
NO :  Go to Step 3.

STEP 3. Check the harness wires between fusible link
number 8 and sunroof-ECU connector E-07 (terminal No.
7).

AC004958AH

CONNECTOR: E-07

E-07

COMPONENT SIDE

AC309312 AB

E-07 HARNESS CONNECTOR:
COMPONENT SIDE

AC004958AH

CONNECTOR: E-07

E-07

COMPONENT SIDE

SUNROOF ASSEMBLY

TSB Revision

BODY

42-192

NOTE: After inspecting intermediate connectors C-01, D-02
and D-09, inspect the wire. If intermediate connectors C-01,
D-02 or D-09 is damaged, repair or replace it. Refer to GROUP
00E

P.00E-2

, Harness Connector Inspection. Then go to Step

4.
Q: Are there any damaged wires between fusible link

number 8 and sunroof-ECU connector E-07 (terminal
No. 7)?
YES : Repair or replace the harness wire, then go to Step 4.
NO :  Go to Step 5.

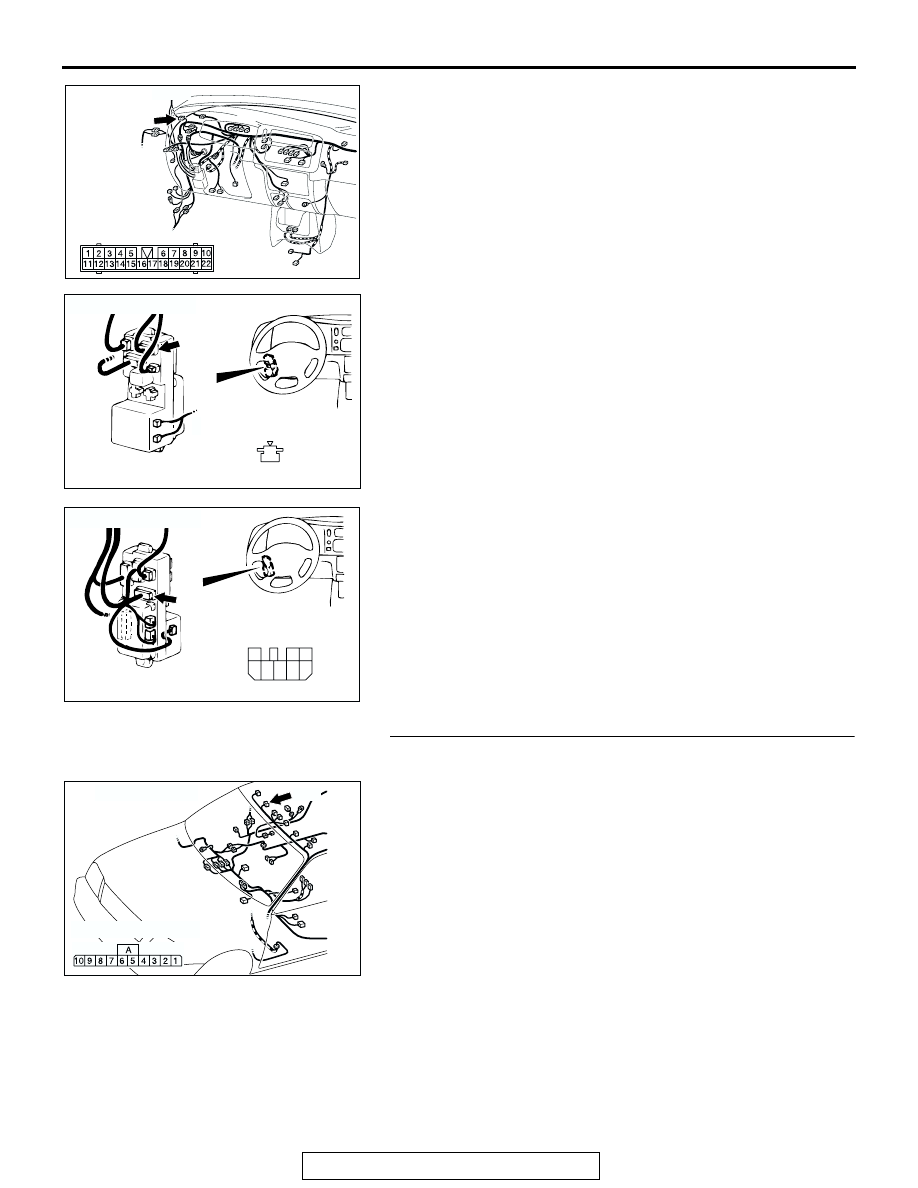

STEP 4. Check the harness wires between sunroof-ECU
connector E-07 (terminals No.2 and No.6) and ground.

AC309309AC

C-01

CONNECTOR: C-01

AC201905

1

CONNECTOR: D-02

AB

COMPONENT SIDE

JUNCTION BLOCK (FRONT)

D-02 (GR)

AC201999

1

4

M

3

8 7 6

2

5

CONNECTOR: D-09

D-09

AB

COMPONENT SIDE

JUNCTION BLOCK (REAR)

AC004958AH

CONNECTOR: E-07

E-07

COMPONENT SIDE

SUNROOF ASSEMBLY

TSB Revision

BODY

42-193

NOTE: After inspecting intermediate connectors C-01, inspect
the wire. If intermediate connectors C-01 is damaged, repair or
replace it. Refer to GROUP 00E

P.00E-2

, Harness Connector

Inspection. Then go to Step 5.
Q: Are there any damaged wires between sunroof-ECU

connector E-07 (terminals No.2 and No.6) and ground?
YES : Repair or replace the damaged components, then go

to Step 5.

NO :  Replace the sunroof-ECU. Then go to Step 5.

STEP 5. Retest the system.
Q: Does the safety mechanism work normally?

YES : The procedures is complete.
NO :  Return to Step 1.

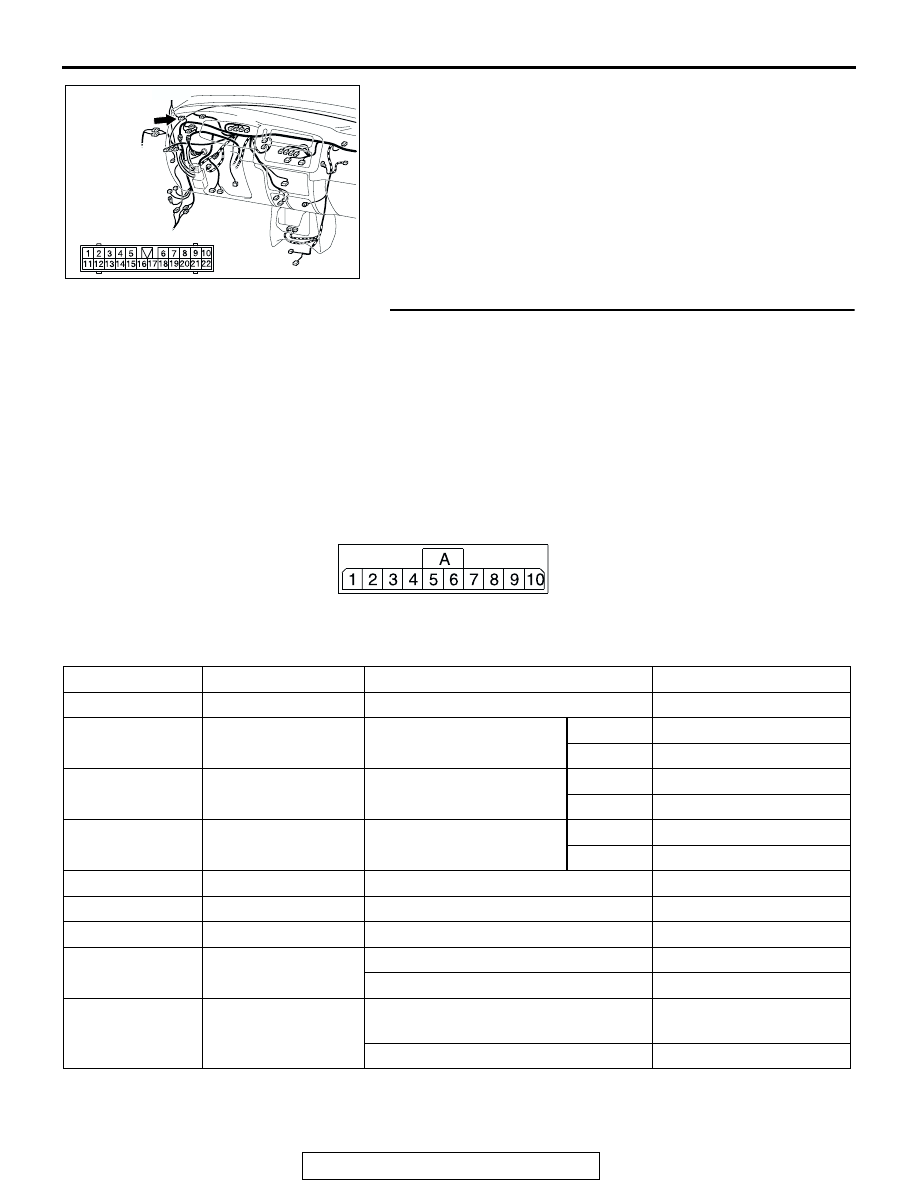

CHECKING AT THE SUNROOF-ECU

M1426002400071

TERMINAL VOLTAGE CHART

AC309309AC

C-01

CONNECTOR: C-01

AC309355

Sunroof-ECU Connector Terminal Arrangement

AB

TERMINAL NO.

CHECK ITEM

CHECK STATE

NORMAL STATE

2

Earth

Always

0V

3

Front door switch
input

Front door switch

ON

0V

OFF

Battery positive voltage

4

Sunroof switch (tilt
up/open) input

Sunroof switch (tilt
up/open position)

ON

0V

OFF

Battery positive voltage

5

Sunroof switch
(close) input

Sunroof switch (close
position)

ON

0V

OFF

Battery positive voltage

6

Ground

Always

0V

7

ECU power supply

Ignition switch: ON

Battery positive voltage

8

ECU power supply

Always

Battery positive voltage

9

Motor output

While sunroof is closing or moving up Battery positive voltage
Other then the above

0V

10

Motor output

While sunroof is opening or moving
down

Battery positive voltage

Other then the above

0V

SUNROOF ASSEMBLY

TSB Revision

BODY

42-194

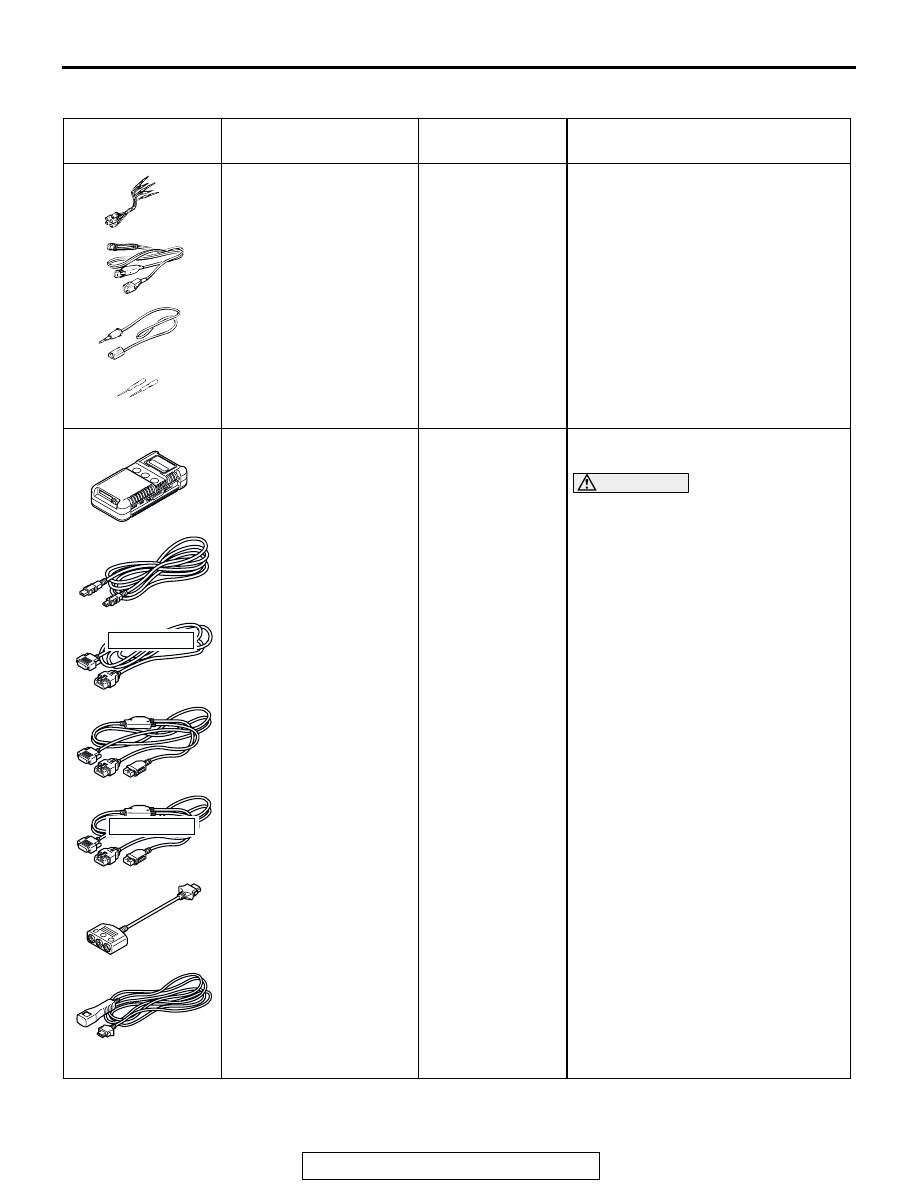

SPECIAL TOOLS

M1426000600240

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991223 Harness set

A: MB991219 Test

harness

B: MB991220 LED

harness

C: MB991221 LED

harness adapter

D: MB991222 Probe

MB991223

Measurement of terminal voltage

A: Connector pin contact pressure

inspection

B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester connection

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub Assembly

A: Vehicle

communication
interface (V.C.I)

B: MUT-III USB cable
C: MUT-III main harness

A (Vehicles with CAN
communication
system)

D: MUT-III main harness

B (Vehicles without
CAN communication
system)

E: MUT-III main harness

C (for Daimler
Chrysler models only)

F: MUT-III measurement

adapter

G: MUT-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826 MUT-III
trigger harness is
not necessary
when pushing
V.C.I. ENTER key.

SWS communication line check (ECU
check and service data)

CAUTION

MUT-III Main Harness B
(MB991911) should be used.
MUT-III main harness A and C
should not be used for this vehicle.

MB991223

A

D

C

B

AD

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

A

B

C

D

E

F

G

DO NOT USE

DO NOT USE
