Mitsubishi Montero Sport (2004+). Manual - part 460





DOOR

TSB Revision

BODY

42-95

.

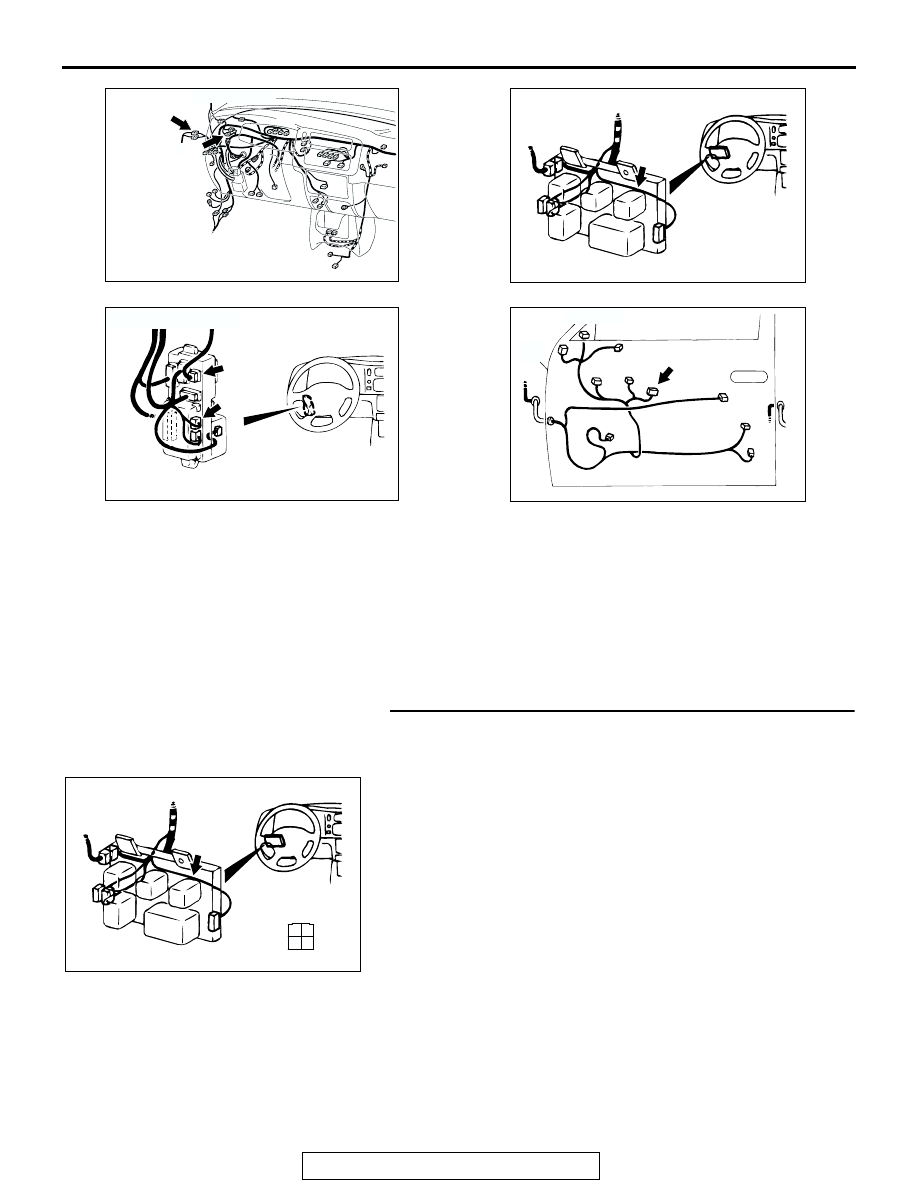

CIRCUIT OPERATION
The power window relay turn ON when the ignition
switch (IG1) is turned ON.

.

TECHNICAL DESCRIPTION (COMMENT)
The power window relay may be defective.

.

TROUBLESHOOTING HINTS

• Malfunction of the power window relay

• Malfunction of the power window main switch

• Damaged harness wires or connectors

DIAGNOSIS

STEP 1. Check power window relay connector C-75X for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E

P.00E-2

, Harness Connector inspection.

Then go to Step 14.

AC309309AD

C-40

CONNECTORS: C-40, C-41

C-41

AC003622

CONNECTOR: C-75X

AE

C-75X

AC004311BJ

CONNECTORS: D-08, D-09

JUNCTION BLOCK

(REAR)

D-09

D-08

AC004320

FRONT

DOOR

(LH)

CONNECTOR: F-05

AE

F-05

AC202074

4

2 1

3

CONNECTOR: C-75X

AB

C-75X

COMPONENT

SIDE

DOOR

TSB Revision

BODY

42-96

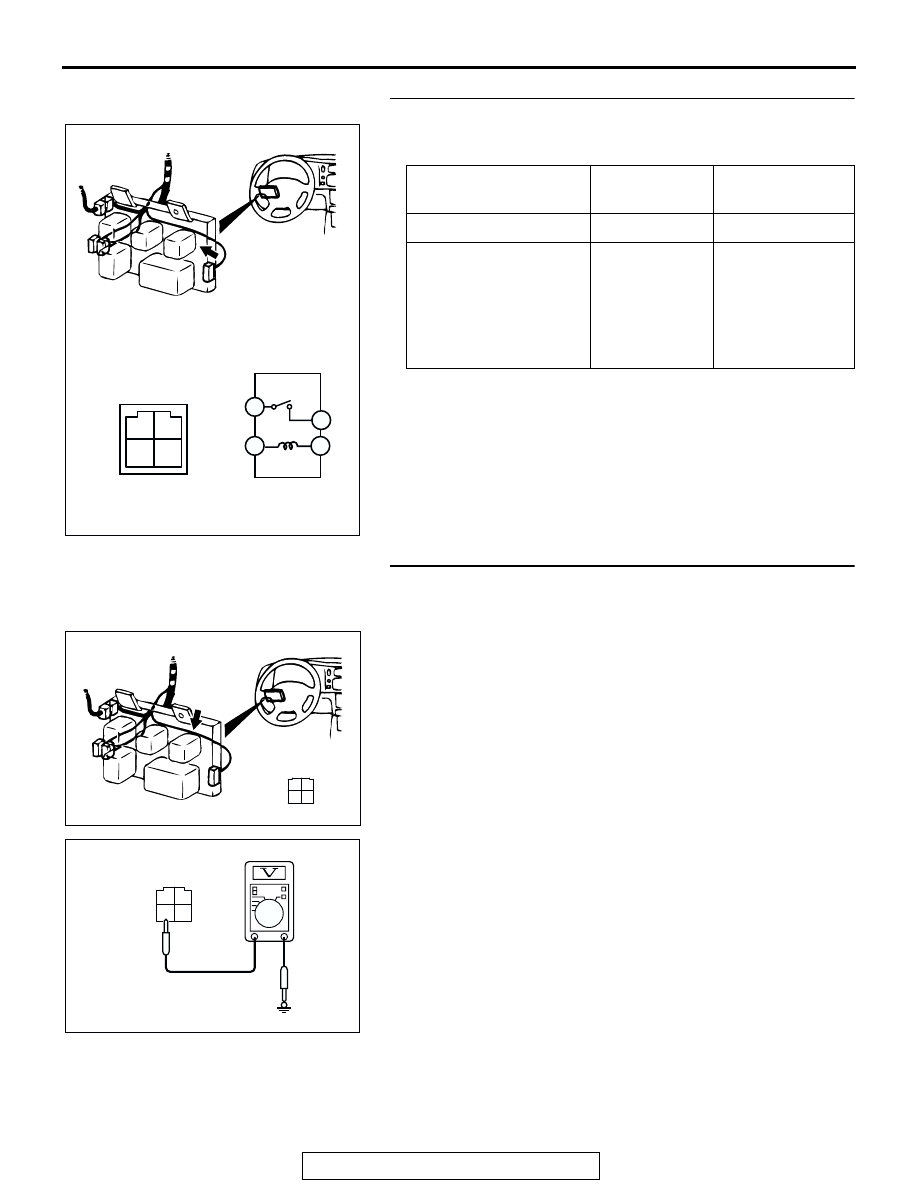

STEP 2. Measure the power window relay continuity.
(1) Remove the power window relay. (Refer to

P.42-137

.)

(2) Follow the table to check the power window relay continuity.

Q: Does the measured resistance value correspond with

this range?
YES :
Go to Step 3.
NO :  Replace power window relay, then go to Step 14.

STEP 3. Measure the power window relay supply circuit
[ignition switch (IG2)] at the power window relay connector
C-75X.
(1) Remove the power window relay, and measure at the power

window relay connector C-75X (relay box side).

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 4 and ground.
Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 5.
NO :  Go to Step 4.

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

− 3

Open circuit

• Connect terminal

No. 4 to the positive
battery terminal

• Connect terminal

No. 2 to the negative
battery terminal

− 3

Less than 2 ohms

1

2

3

4

1

2

3

4

AC003908

POWER WINDOW

RELAY

AC202074

4

2 1

3

CONNECTOR: C-75X

AB

C-75X

COMPONENT

SIDE

1

2

3

4

AC005049

C-75X HARNESS CONNECTOR:
COMPONENT SIDE

AC

DOOR

TSB Revision

BODY

42-97

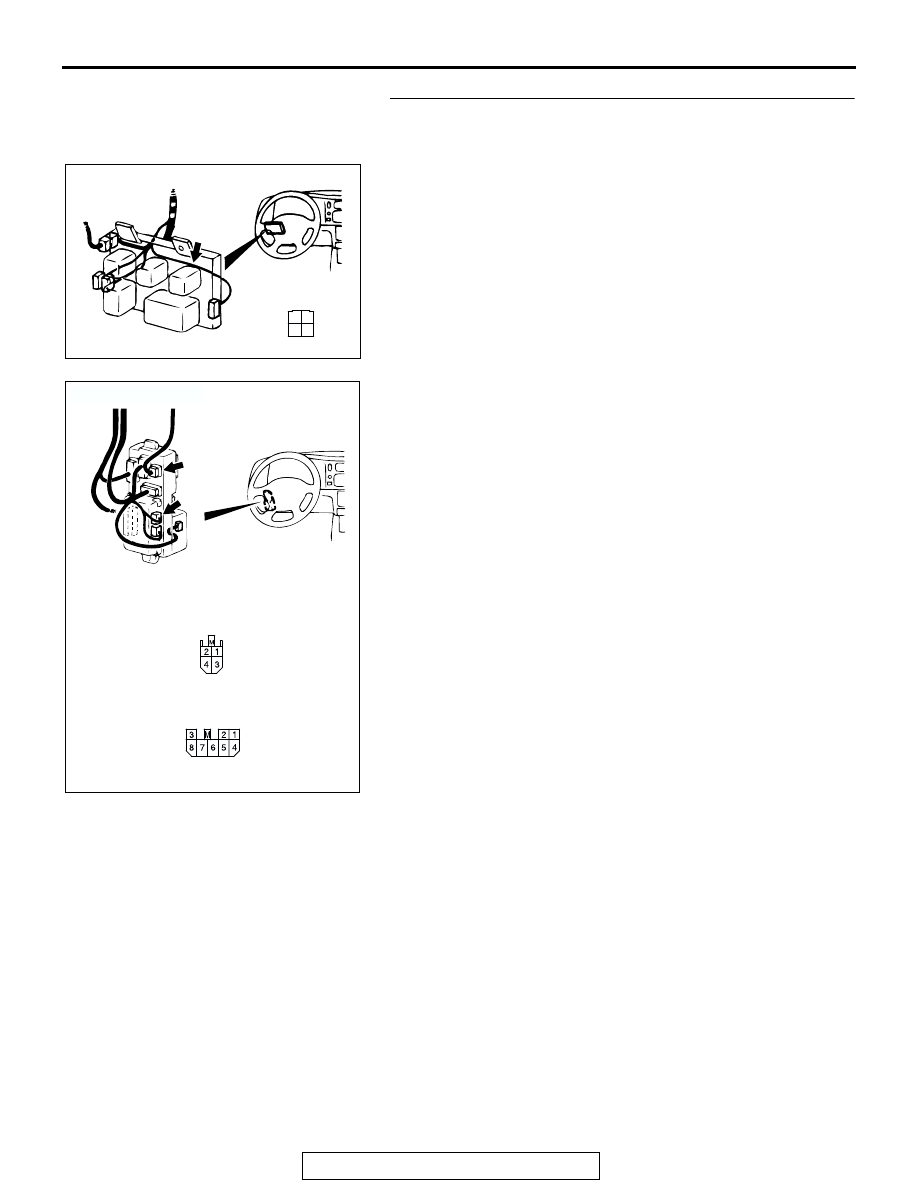

STEP 4. Check the harness wire between ignition switch
(IG2) and power window relay connector C-75X (terminal
No.4).

NOTE: After inspecting junction block connector D-08 and D-09
inspect the wires. If junction block connector D-08 or D-09 is
damaged, repair or replace it. Refer to GROUP 00E

P.00E-2

Harness Connector Inspection. Then go to Step 14.
Q: Are the harness wire damaged?

YES : Repair or replace the harness wire, then go to Step

14.

NO :  Go to Step 14.

AC202074

4

2 1

3

CONNECTOR: C-75X

AB

C-75X

COMPONENT

SIDE

AC309327AB

CONNECTORS: D-08, D-09

JUNCTION BLOCK (REAR)

D-09

D-08

D-08 COMPONENT SIDE

D-11 COMPONENT SIDE

DOOR

TSB Revision

BODY

42-98

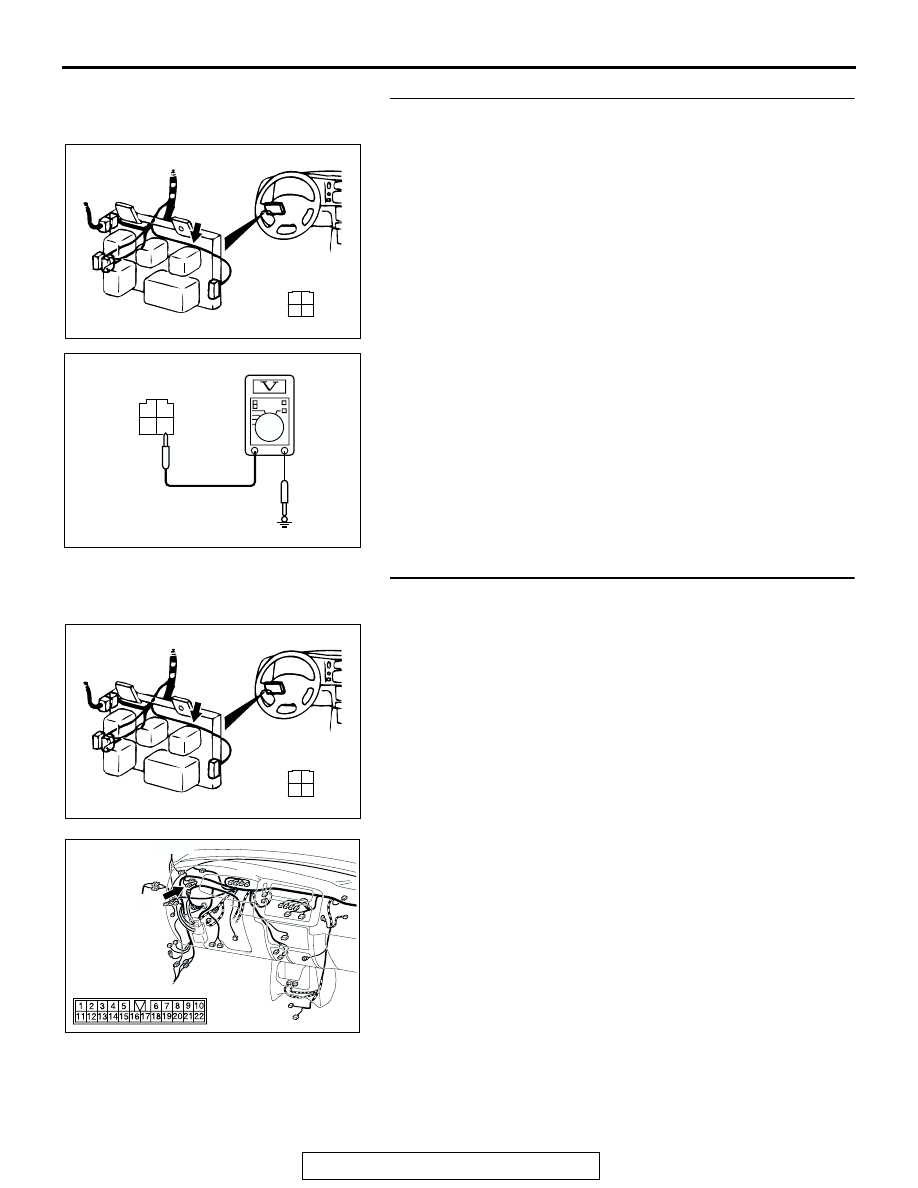

STEP 5. Check the power window relay supply circuit
[fusible link (10)] at power window relay connector C-75X.
(1) Remove the power window relay, and measure at power

window relay connector C-75X (relay box side).

(2) Measure the voltage between terminal 3 and ground.
Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 7.
NO :  Go to Step 6.

STEP 6. Check the harness wire between fusible link (10)
and power window relay connector C-75X (terminal No.3).

NOTE: After inspecting intermediate connector C-41 inspect
the wires. If intermediate connector C-41 is damaged, repair or
replace it. Refer to GROUP 00E

P.00E-2

, Harness Connector

Inspection. Then go to Step 14.
Q: Is the harness wire damaged?

YES : Repair or replace the harness wire, then go to Step

14.

NO :  Go to Step 14.

AC202074

4

2 1

3

CONNECTOR: C-75X

AB

C-75X

COMPONENT

SIDE

1

2

3

4

AC005051

C-75X HARNESS CONNECTOR:
COMPONENT SIDE

AC

AC202074

4

2 1

3

CONNECTOR: C-75X

AB

C-75X

COMPONENT

SIDE

AC309309AE

CONNECTOR: C-41

C-41
