DOOR
TSB Revision
BODY
42-67
NOTE: After inspecting intermediate connector C-12 inspect
the wire. If intermediate connector C-12 is damaged, repair or
replace damaged component. Refer to GROUP 00E
P.00E-2
,
Harness Connector Inspection. Then go to Step 22.
Q: Are there any damaged harness wires between
ETACS-ECU connectors D-10 (terminals No.21 and
No.24) <Vehicles without keyless entry system> or D-27
(terminals No.41 and No.42) <Vehicles with keyless
entry system> and door lock actuator (front: RH)
connector F-24 (terminals No.4 and No.6)?
YES : Replace the ETACS-ECU and then go to Step 22.
NO : Repair or replace the damaged components. Refer to
GROUP 00E
P.00E-2
, Harness Connector inspection.
Then go to Step 22.

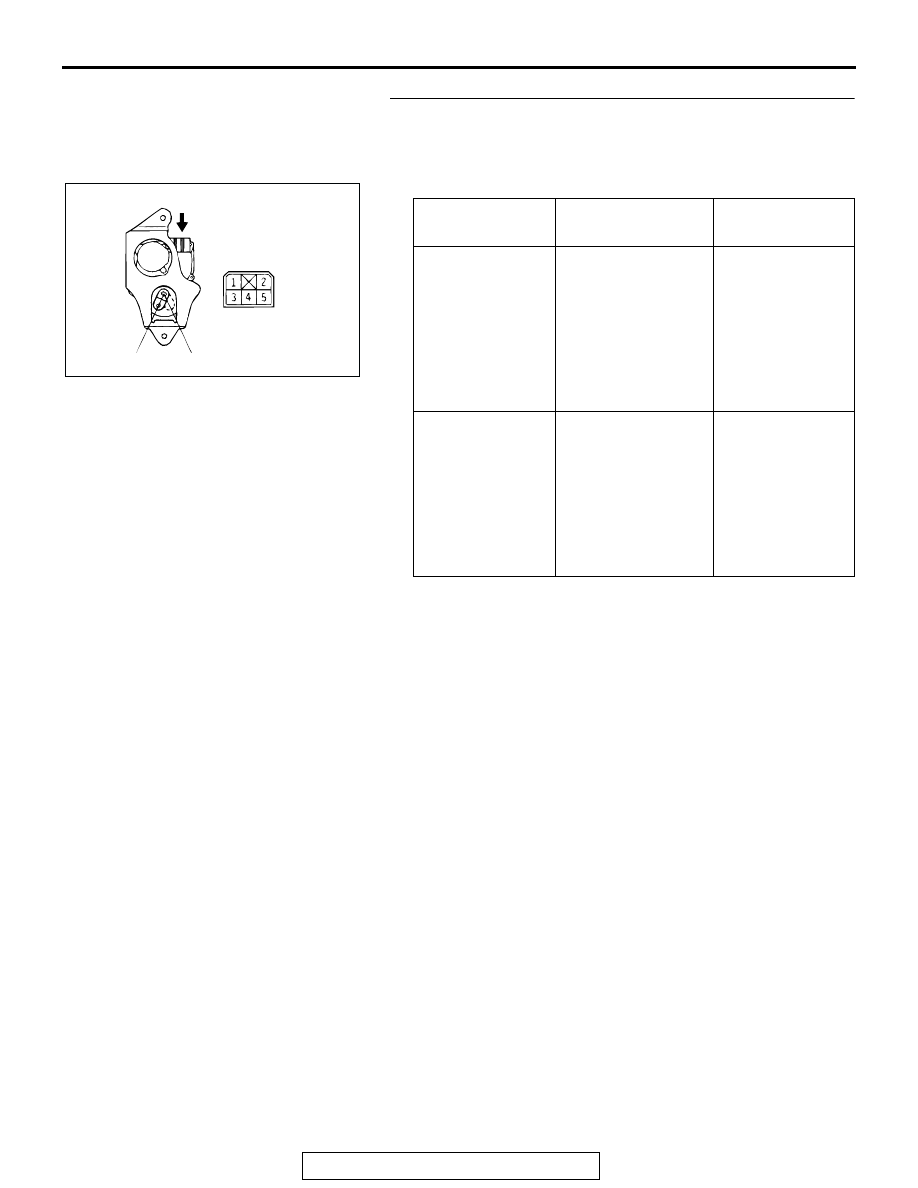

STEP 10. Check door lock actuator (rear: RH) connector
F-21 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is the connector in good condition?
YES : Go to step 11.
NO : Repair or replace the damaged components. Refer to
GROUP 00E
P.00E-2
, Harness Connector inspection.
Then go to Step 22.
AC309353AC
C-12

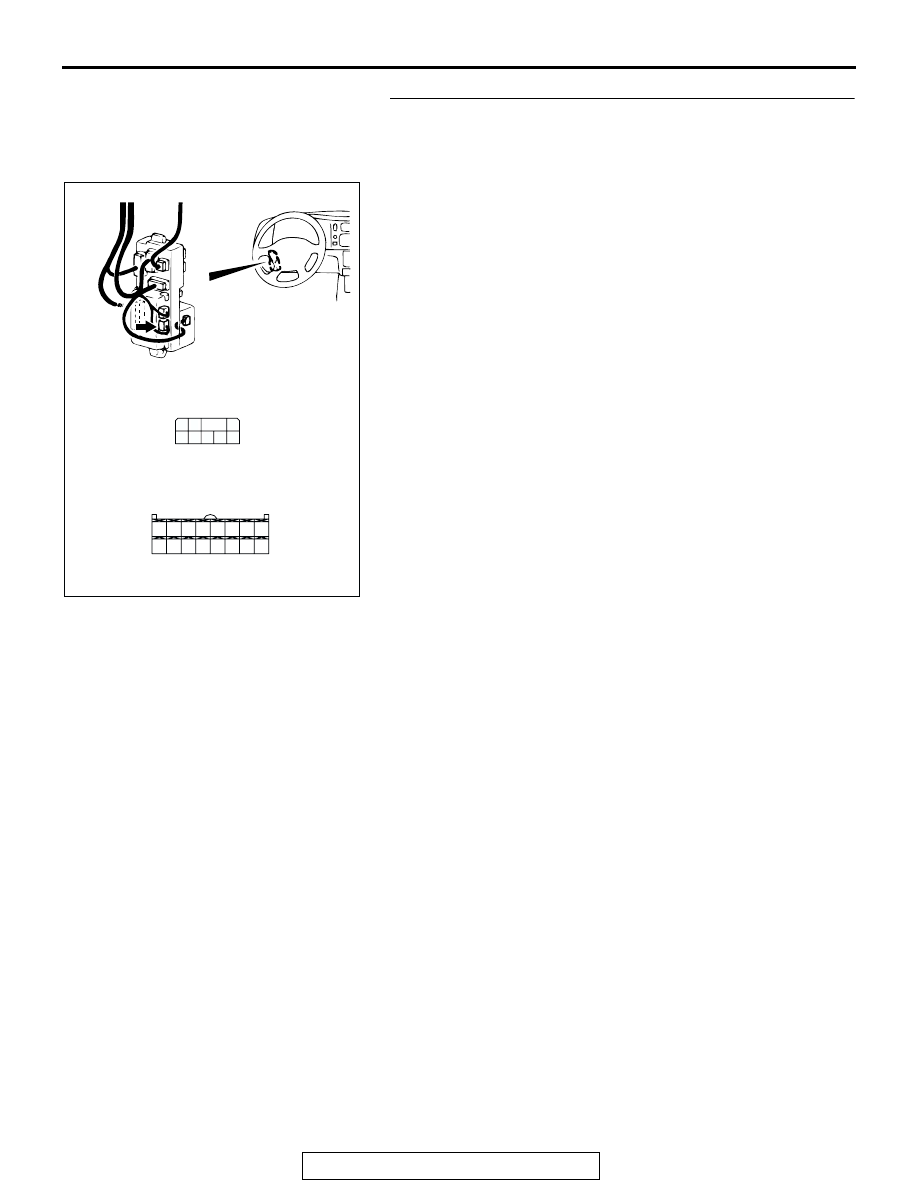

CONNECTOR: C-12
AC309455

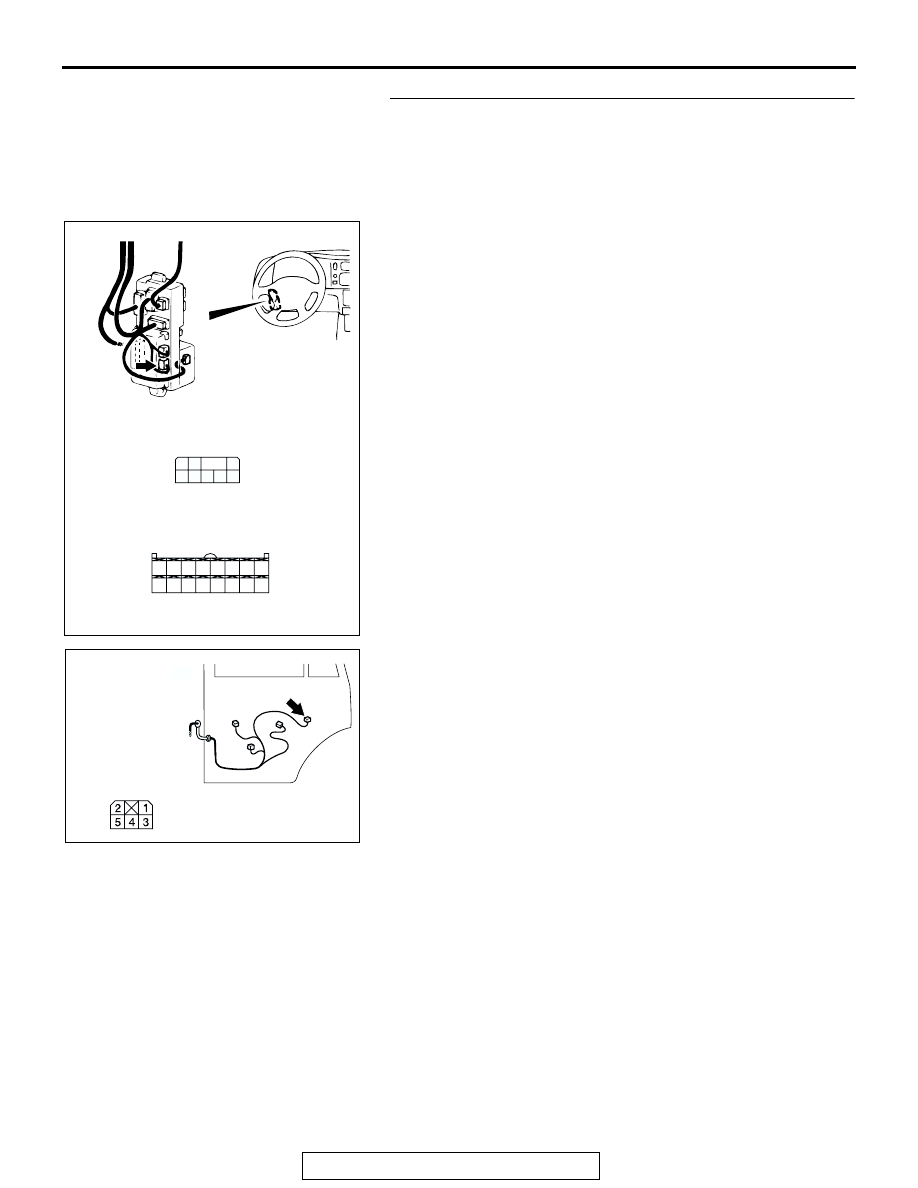

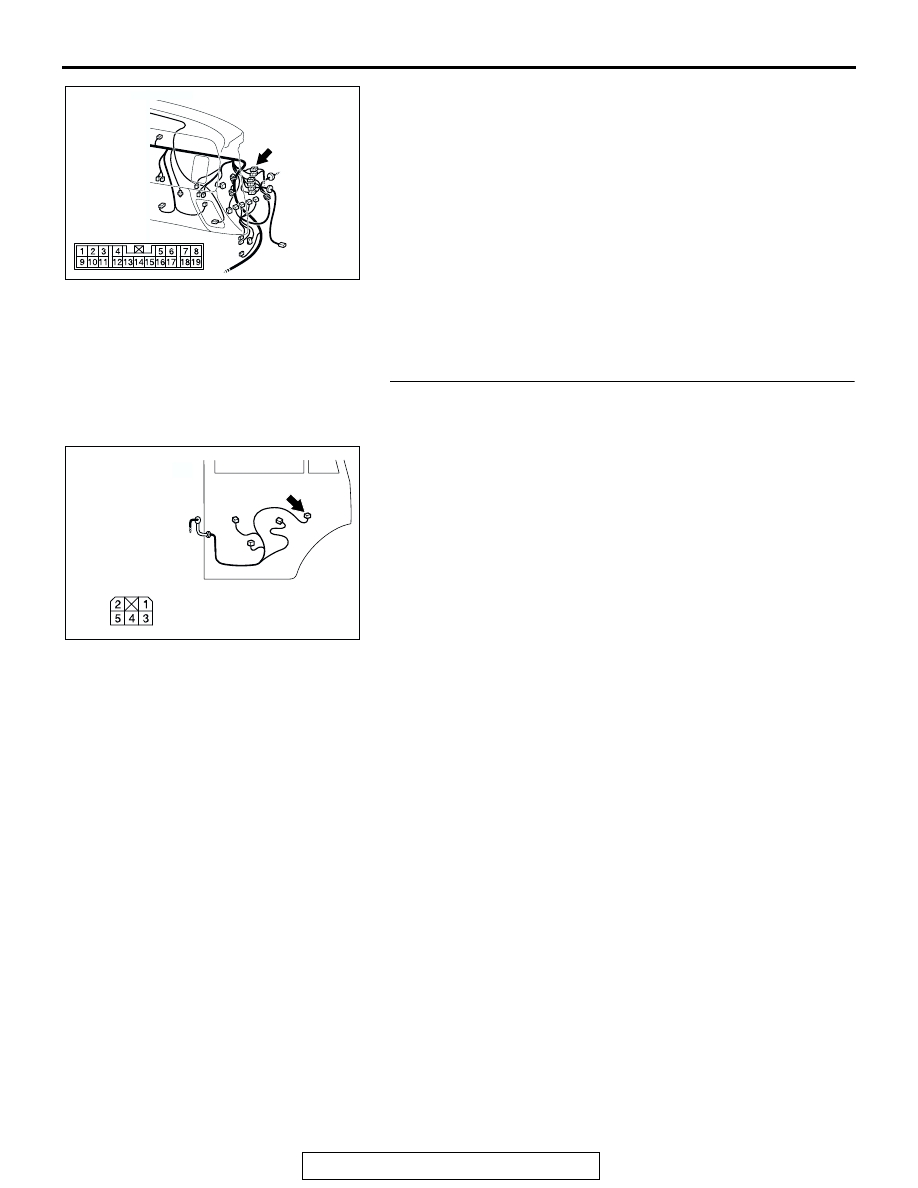

CONNECTOR: F-21
F-21
REAR DOOR <RH>
AB
COMPONENT SIDE
