Mitsubishi Montero Sport (2004+). Manual - part 373

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-905

ASSEMBLY SERVICE POINTS

.

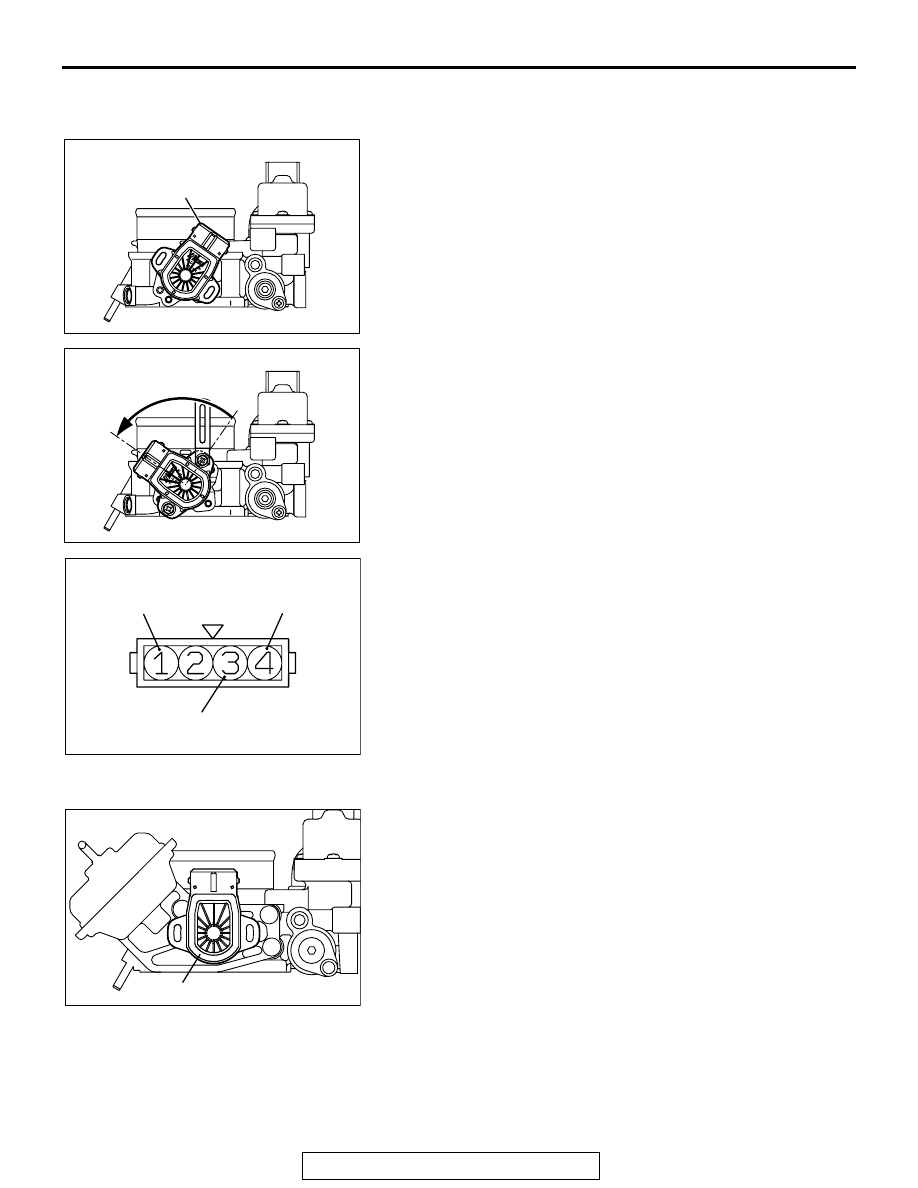

>>A<< THROTTLE POSITION SENSOR (TPS) INSTALLTION
1. Install the throttle position sensor to the throttle body as

shown in the illustration.

2. Turn the throttle position sensor 90 degree angle

counterclockwise to set it, and tighten the screws.

3. Connect an ohmmeter between terminals 1 (ground) and 3

(output), or between terminals 3 (output) and 4 (power).
Then, make sure that the resistance changes smoothly
when the throttle valve is slowly moved to the fully open
position.

4. If the above specifications are not met, replace throttle

position sensor.

.

>>B<< THROTTLE POSITION SENSOR (TPS) INSTALLTION
1. Install the throttle position sensor to the throttle body as

shown in the illustration.

AK302827AB

THROTTLE
POSITION
SENSOR

AK302828AB

90˚

AKX01635

THROTTLE POSITION
SENSOR POWER

GROUND

THROTTLE POSITION
SENSOR OUTPUT

AB

AKX01633AB

THROTTLE POSITION SENSOR

THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-906

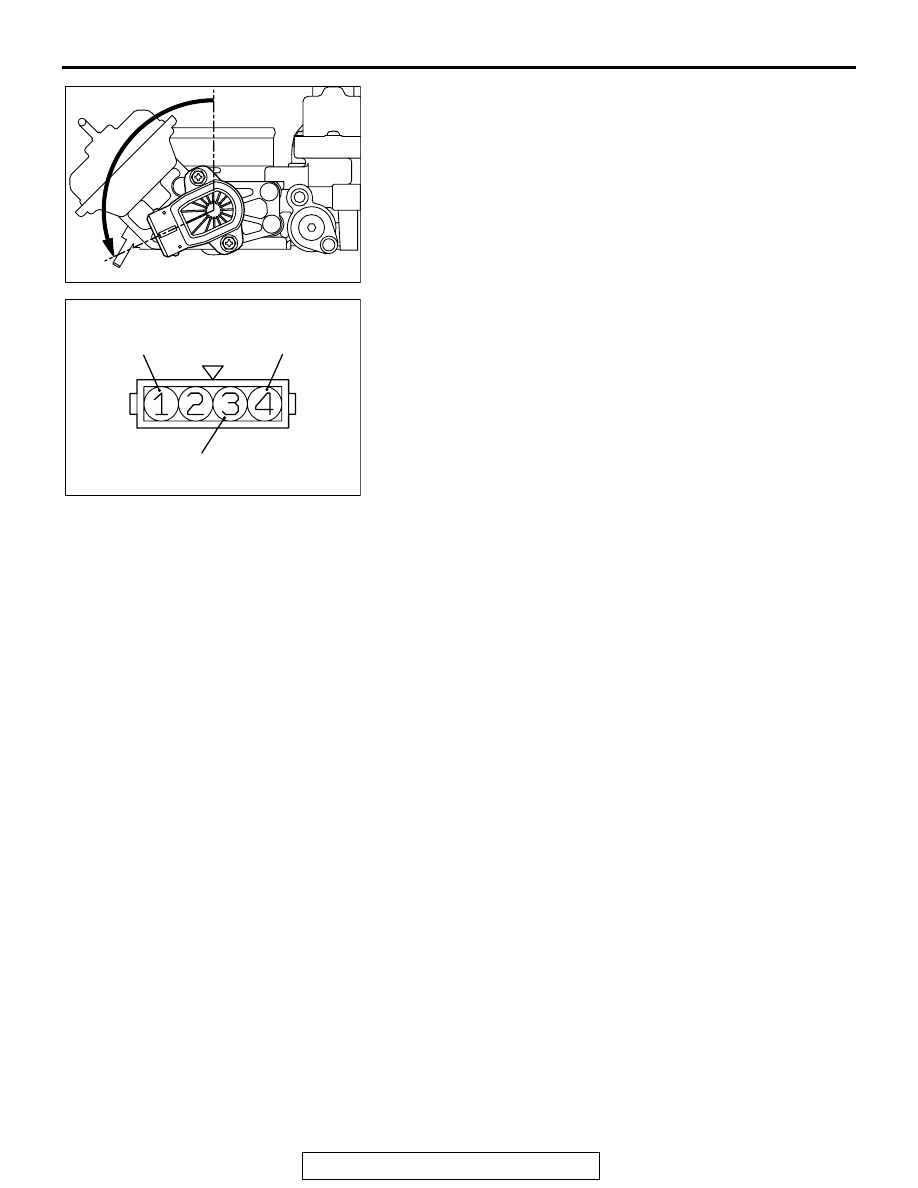

2. Turn the throttle position sensor 115 degree angle

counterclockwise to set it, and tighten the screws.

3. Connect an ohmmeter between terminals 1 (ground) and 3

(output), or between terminals 3 (output) and 4 (power).
Then, make sure that the resistance changes smoothly
when the throttle valve is slowly moved to the fully open
position.

4. If the above specifications are not met, replace throttle

position sensor.

INSPECTION

M1131009800042

DASH POT

1. Push the dash pot rod in lightly and confirm the resistance.

NOTE: Resistance increases as the rod is pushed harder.
NOTE: If the rod can be pushed in with no resistance, either
the diaphragm or check valve is faulty.

2. Release finger and confirm that the rod returns to it's original

position quickly.
NOTE: If the rod returns slowly, the check valve is faulty.

AKX01634AB

115˚

AKX01635

THROTTLE POSITION
SENSOR POWER

GROUND

THROTTLE POSITION
SENSOR OUTPUT

AB

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-907

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1131011600562

GENERAL SPECIFICATIONS

M1131000200559

ITEM

SPECIFICATION

Accelerator lever body assembly

5.0 N

⋅m (44 in-lb)

Bracket

5.0 N

⋅m (44 in-lb)

Dash pot

3.5N

⋅m (31 in-lb)

Engine coolant temperature sensor

29 N

⋅m (22 ft-lb)

Fast idle air valve

2.0 N

⋅m (18 in-lb)

Fuel high-pressure hose

4.9 N

⋅m (43 in-lb)

Fuel pipe attaching bolt

8.8 N

⋅m (78 in-lb)

Fuel pressure regulator attaching bolt

8.8 N

⋅m (78 in-lb)

Fuel rail mounting bolt

12 N

⋅m (106 in-lb)

Idle air control motor

2.0 N

⋅m (18 in-lb)

Throttle body mounting bolt

12 N

⋅m (106 in-lb)

Throttle position sensor

2.0 N

⋅m (18 in-lb)

ITEM

SPECIFICATION

Throttle body

Throttle bore mm (in.)

60 (2.4)

Throttle position sensor

Variable resistor type

Idle air control motor

Stepper motor (stepper motor type
by-pass air control system with the air
volume limiter)

Powertrain control
module (PCM)

Identification model No.

E6T36077 <RWD>
E6T36078 <4WD>

Sensors

Volume airflow sensor

Karman vortex type

Barometric pressure sensor

Semiconductor type

Intake air temperature sensor

Thermistor type

Engine coolant temperature sensor

Thermistor type

Heated oxygen sensor

Zirconia type

Camshaft position sensor

Hall element type

Crankshaft position sensor

Hall element type

Power steering pressure switch

Contact switch type

Manifold absolute pressure sensor

Semiconductor type

Fuel tank temperature sensor

Thermistor type

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-908

SERVICE SPECIFICATIONS

M1131000300664

SEALANT AND ADHESIVE

M1131000500408

Actuators

Multiport fuel injection (MFI) relay

Contact switch type

Fuel pump relay

Contact switch type

Injector type and number

Electromagnetic type, 6

Injector identification mark

EDH240

EGR vacuum regulator solenoid valve

Duty cycle type solenoid valve

Evaporative emission purge solenoid

Duty cycle type solenoid valve

Fuel pressure
regulator

Regulator pressure kPa (in.Hg)

335 (98.9)

ITEM

SPECIFICATION

ITEMS

STANDARD VALUE

Throttle position sensor adjusting voltage   millivolt

535

− 735

Basic idle speed   r/min

700

± 50

Fuel pressure kPa (in.Hg)

Vacuum hose
disconnected

330

− 350 (97 − 103) at curb idle

Vacuum hose connected Approximately 270 (79) at curb

idle

Intake air temperature sensor resistance   k

Ω -20° C (-4° F)

13

− 17

0

° C (32° F)

5.3

− 6.7

20

° C (68° F)

2.3

− 3.0

40

° C (104° F)

1.0

− 1.5

60

° C (140° F)

0.56

− 0.76

80

° C (176° F)

0.30

− 0.42

Engine coolant temperature sensor
resistance   k

Ω

-20

° C (-4° F)

14

− 17

0

° C (32° F)

5.1

− 6.5

20

° C (68° F)

2.1

− 2.7

40

° C (104° F)

0.9

− 1.3

60

° C (140° F)

0.48

− 0.68

80

° C (176° F)

0.26

− 0.36

Throttle position sensor resistance   k

Ω

3.5

− 6.5

Heated oxygen sensor output voltage   volt

0.6

− 1.0

Heated oxygen sensor heater resistance
ohm

HO

2

S (front)

4.5

− 8.0

HO

2

S (rear)

11

− 18

Injector coil resistance   ohm

13

− 16 [at 20° C (68° F)]

Idle air control motor coil resistance   ohm

28

− 33 [at 20° C (68° F)]

ITEM

SPECIFIED SEALANT

Engine coolant temperature sensor threaded portion 3M

 AAD part number 8731or equivalent
