MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-133

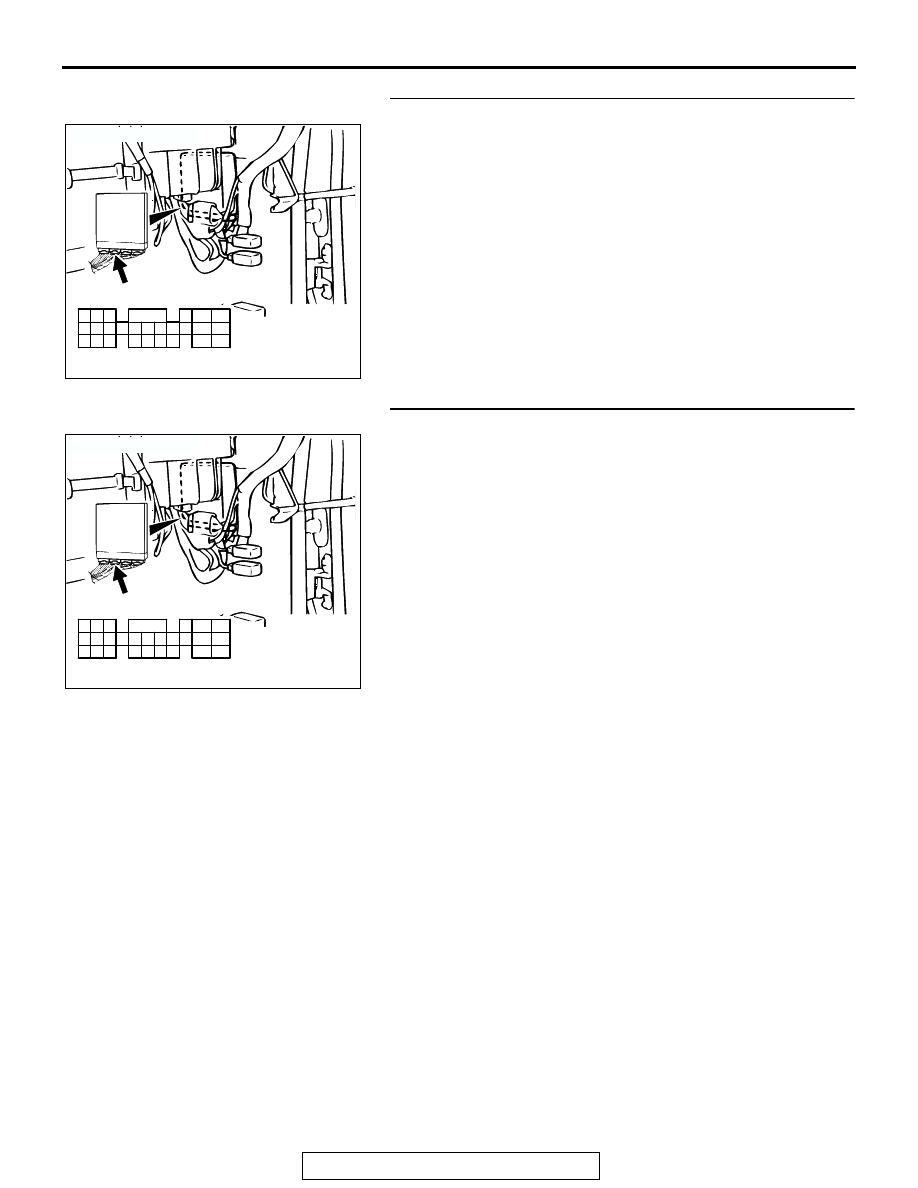

STEP 5. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between engine coolant

temperature sensor connector A-67 (terminal No. 1)
and PCM connector C-90 (terminal No. 44) because
of open circuit. Then go to Step 11.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 6. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-134

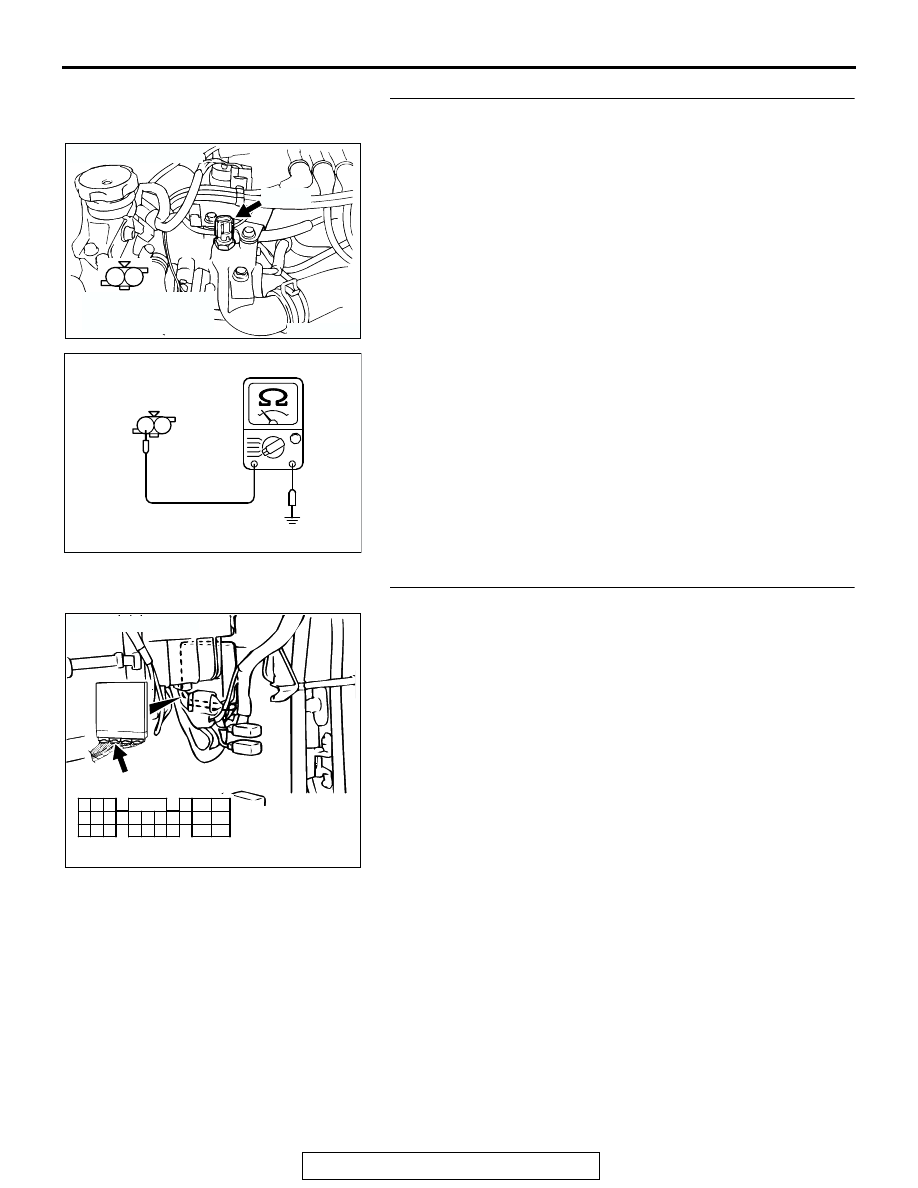

STEP 7. Check for continuity at engine coolant
temperature sensor harness side connector A-67.
(1) Disconnect the connector A-67 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 10.
NO :  Go to Step 8.

STEP 8. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000235

A-67 HARNESS
CONNECTOR:
COMPONENT SIDE

2 1

AK

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-135

STEP 9. Check for open circuit between engine coolant
temperature sensor connector A-67 (terminal No. 2) and
PCM connector C-90 (terminal No. 57).

NOTE: Check harness after checking intermediate connector
C-71. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 11.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 11.
NO :  Repair it. Then go to Step 11.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-136

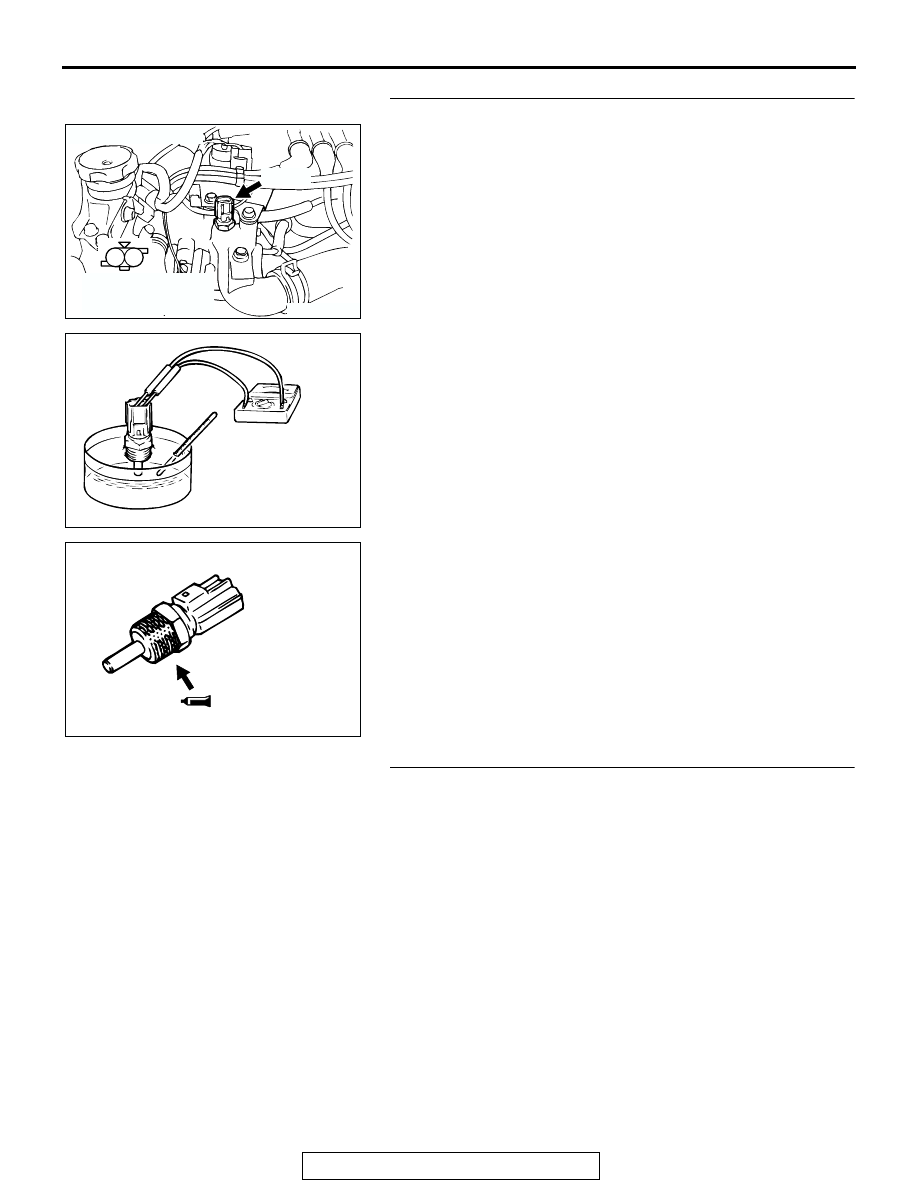

STEP 10. Check the engine coolant temperature sensor.
(1) Disconnect the engine coolant temperature sensor

connector A-67.

(2) Remove the engine coolant temperature sensor.

(3) With the temperature sensing portion of engine coolant

temperature sensor immersed in hot water, check
resistance.

Standard value:

14

− 17 kΩ [at −20°C (−4°F)]

5.1

− 6.5 kΩ [at 0°C (32°F)]

2.1

− 2.7 kΩ [at 20°C (68°F)]

0.9

− 1.3 kΩ [at 40°C (104°F)]

0.48

− 0.68 kΩ [at 60°C (140°F)]

0.26

− 0.36 kΩ [at 80°C (176°F)]

(4) Apply 3M

 AAD part number 8731 or equivalent on the

screw section of the engine coolant temperature sensor.

(5) Install the engine coolant temperature sensor, and tighten

to the specified torque.

Tightening torque: 29

± 10 N⋅m (22 ± 7 ft-lb)

Q: Is the resistance at the standard value?

YES : Replace the PCM. Then go to Step 11.
NO :  Replace the engine coolant temperature sensor. Then

go to Step 11.

STEP 11. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0118 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

AK104023

1

2

A-67(B)

AB

CONNECTOR: A-67

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01622

AKX01623 AB
