Mitsubishi Montero Sport (2004+). Manual - part 168





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-85

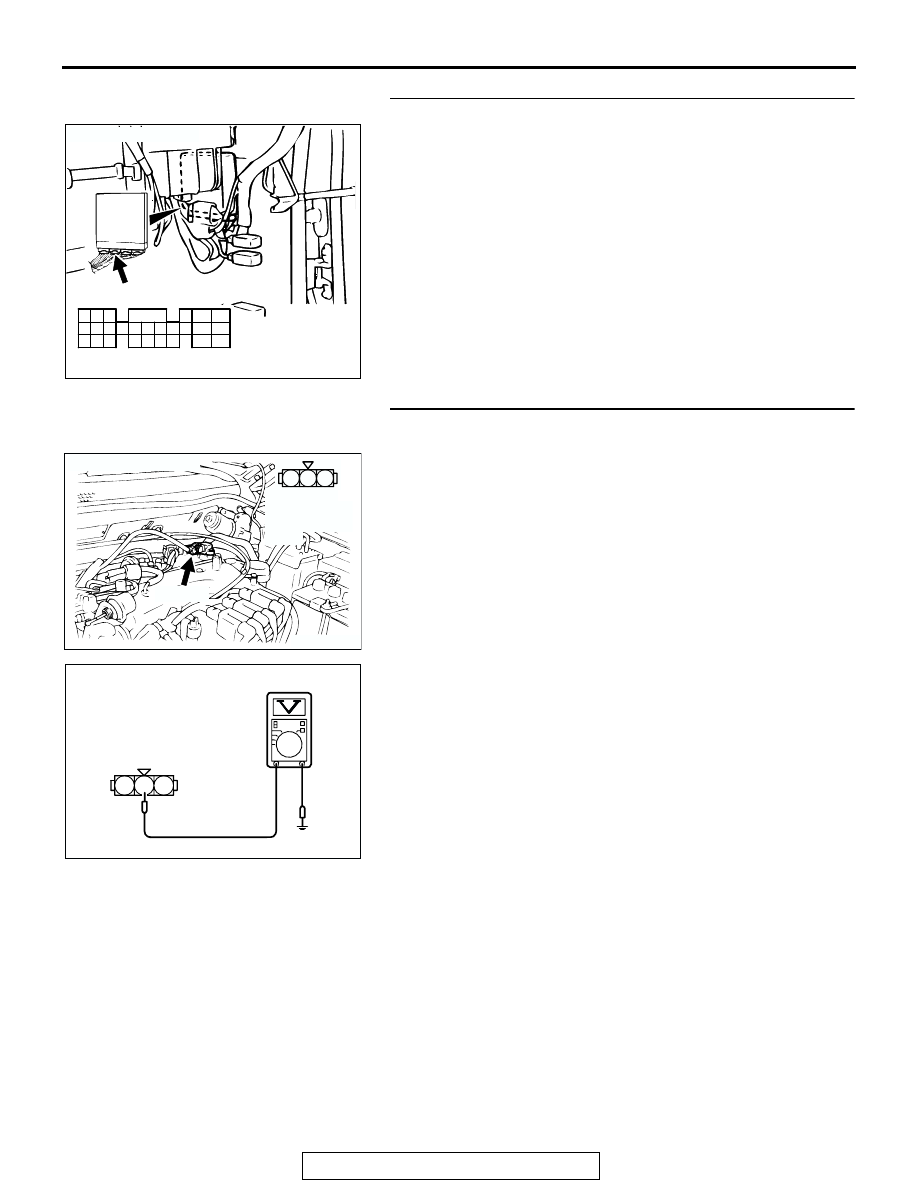

STEP 6. Check connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 7. Measure the ground voltage at manifold absolute
pressure sensor connector A-12 by backprobing.
(1) Do not disconnect the connector A-12.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 2 and ground by

backprobing.

• Voltage should be 0.5 volt or less.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage 0.5 volt or less?

YES : Go to Step 10.
NO :  Go to Step 8.

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

3

2

1

AK203038

A-12 HARNESS
CONNECTOR:
HARNESS SIDE

AF

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-86

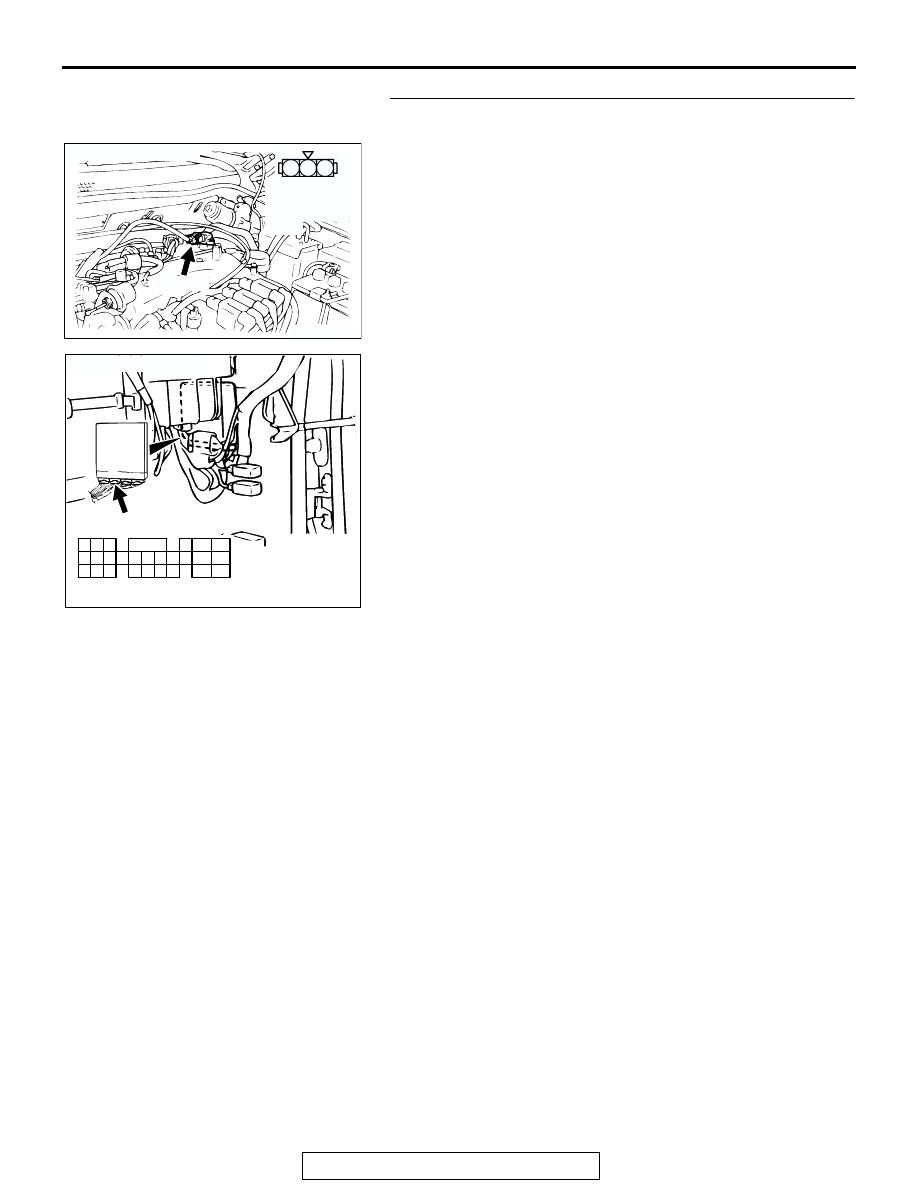

STEP 8. Check connector A-12 at the manifold absolute
pressure sensor and connector C-90 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-87

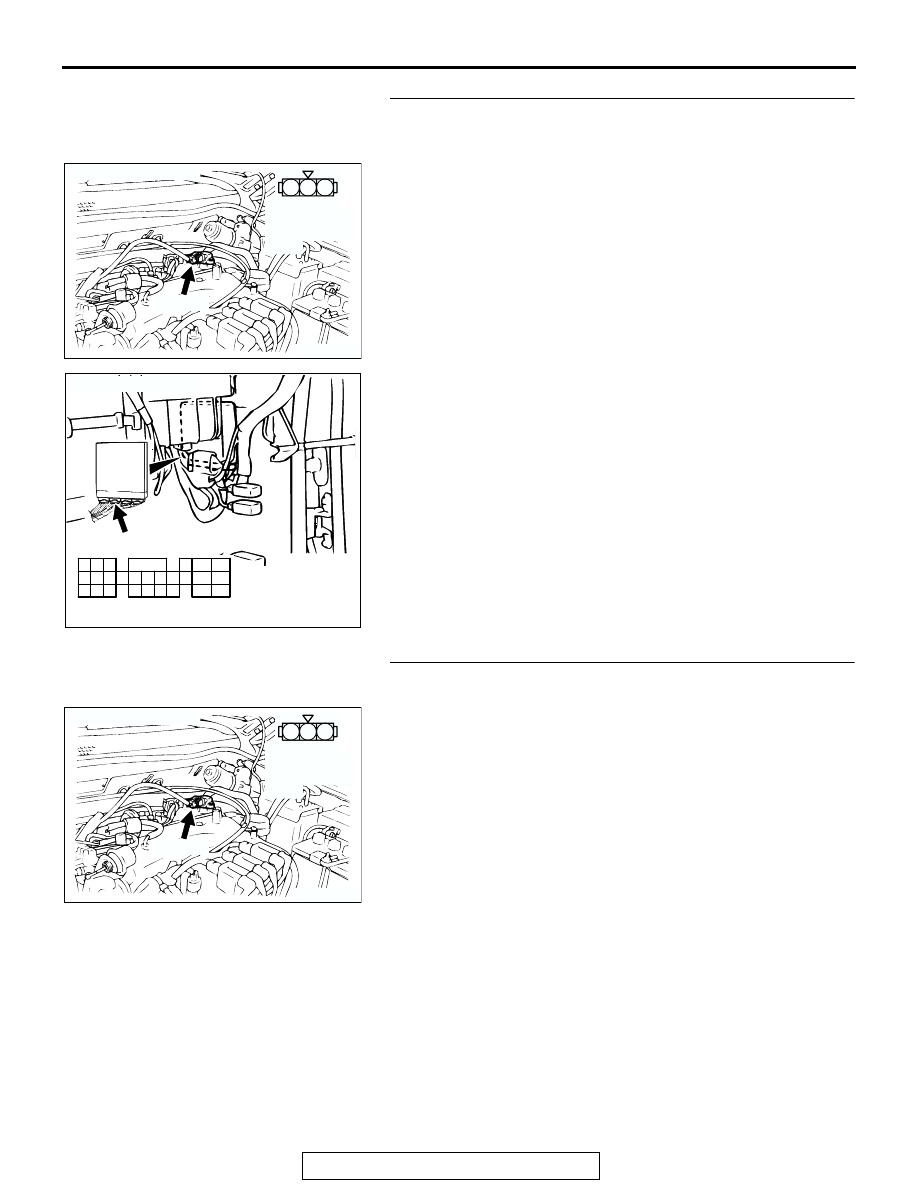

STEP 9. Check for open circuit between manifold absolute
pressure sensor connector A-12 (terminal No. 2) and PCM
connector C-90 (terminal No. 57).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 10. Check connector A-12 at manifold absolute
pressure sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

AK103762

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

AB

CONNECTOR: C-90

C-90(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200034

2 1

3

AB

CONNECTOR: A-12

A-12(B)

HARNESS
CONNECTOR:
COMPONENT
SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-88

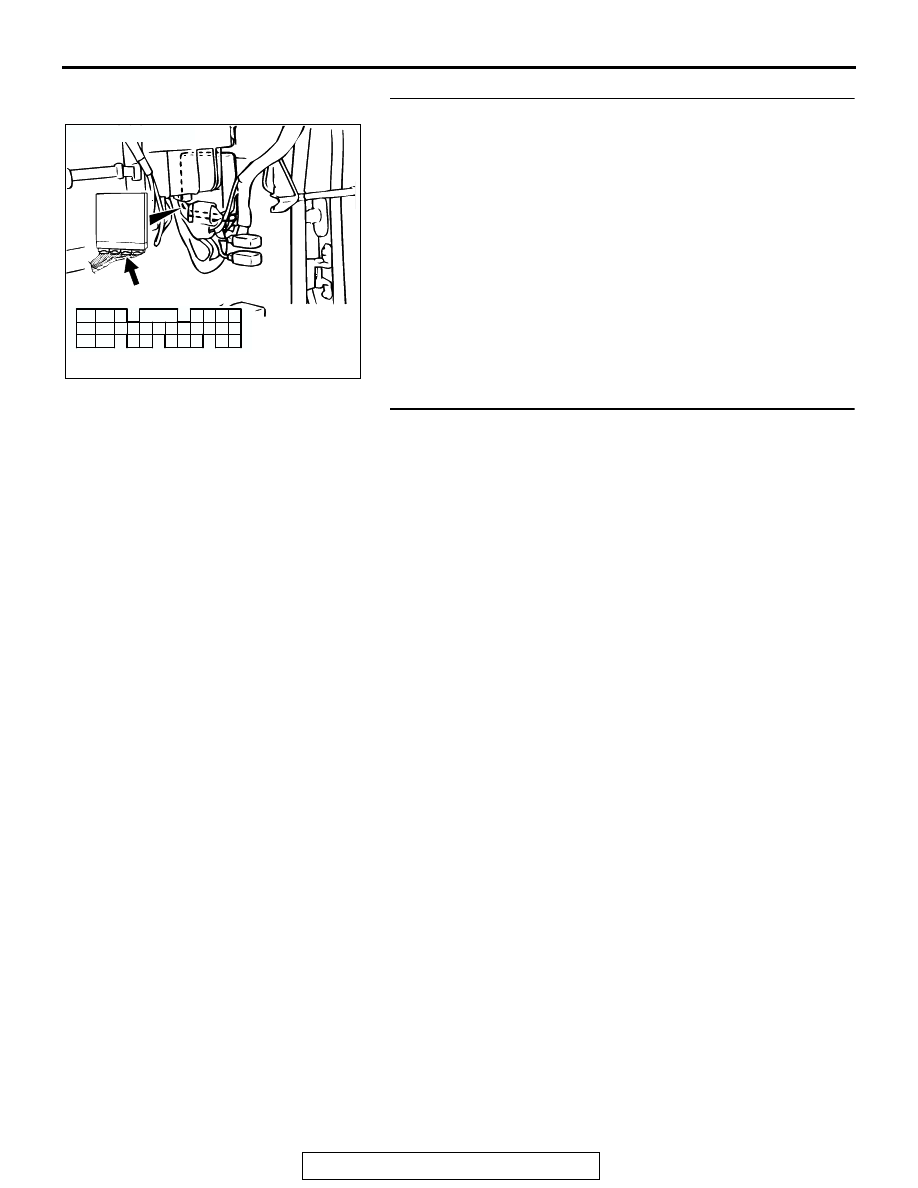

STEP 11. Check connector C-91 at PCM for damage.
Q: Is the connector in good condition?

YES : Replace the manifold absolute pressure sensor. Then

go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0108 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK104028

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

AB

CONNECTOR: C-91

C-91(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
