Mitsubishi Montero Sport (2004+). Manual - part 125





AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-95

ON-VEHICLE SERVICE

AUTO-CRUISE CONTROL SWITCH CHECK

M1172001100206

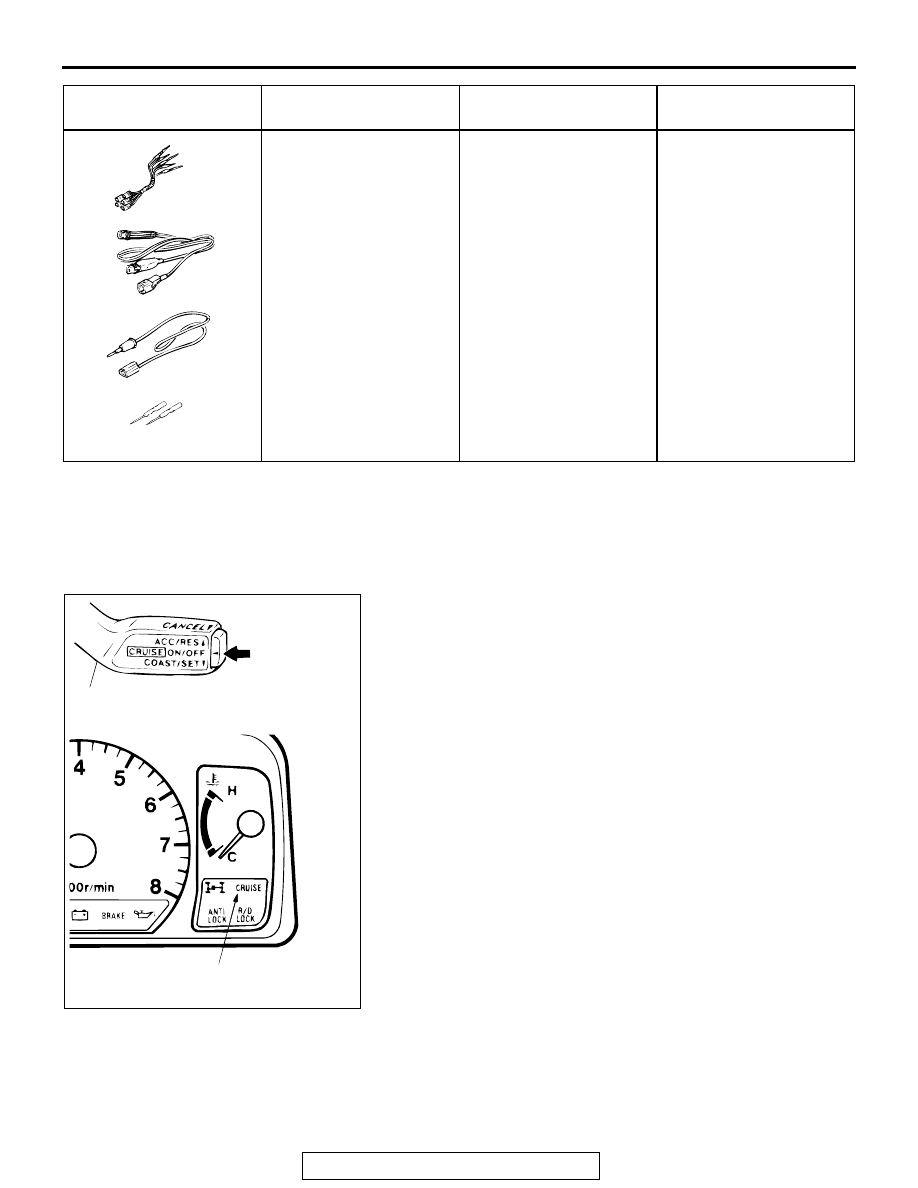

AUTO-CRUISE CONTROL MAIN SWITCH CHECK

1. Turn the ignition switch to the "ON" position.
2. Check that the indicator light within the combination meter

illuminates when the main switch is switched "ON".

MB991223

• A: MB991219

• B: MB991220

• C: MB991221

• D: MB991222

Harness set

• A: Test harness

• B: LED harness

• C: LED harness

adapter

• D: Probe

-

Checking the continuity
and measuring the
voltage at the harness
connector

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991223

A

D

C

B

AD

AC004511 AB

MAIN
SWITCH: ON

AUTO-CRUISE
CONTROL SWITCH

AUTO-CRUISE
INDICATOR LIGHT

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-96

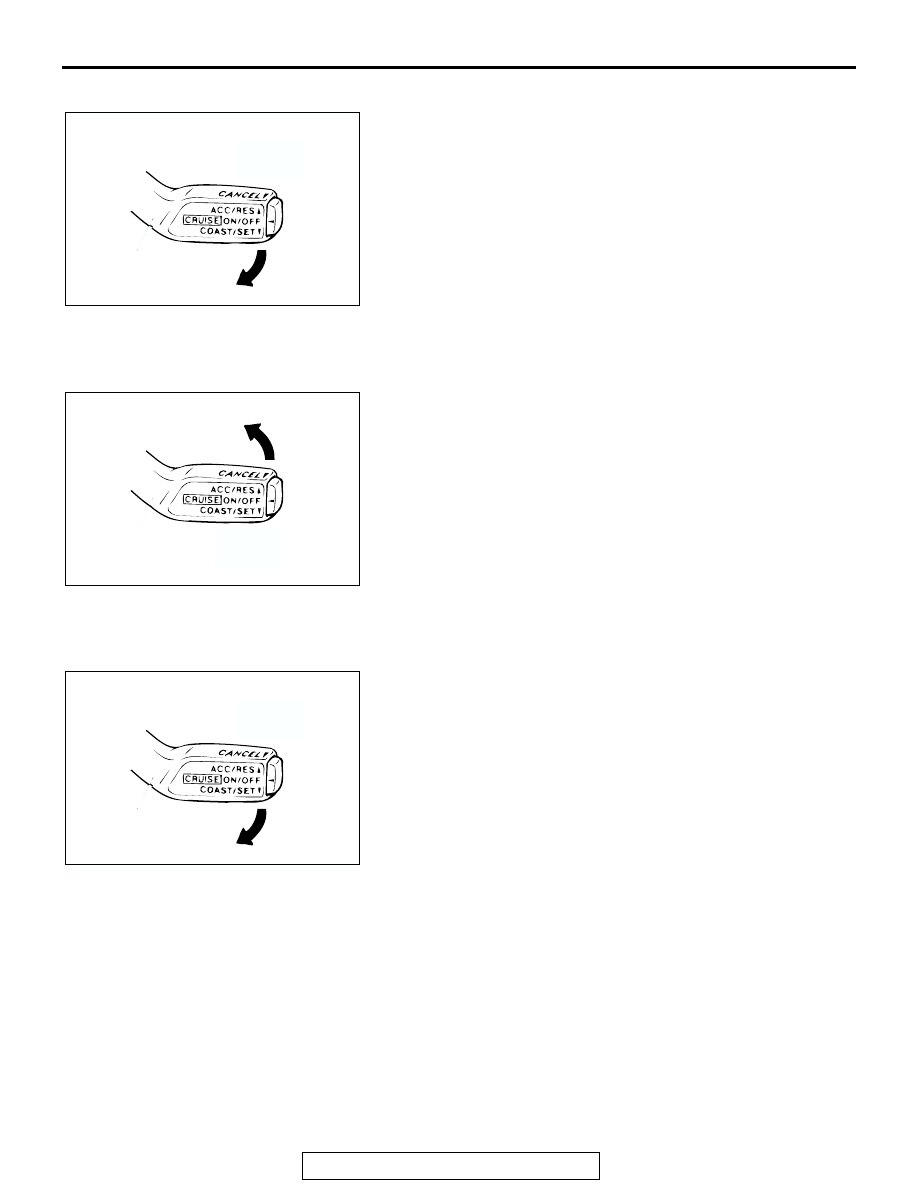

AUTO-CRUISE CONTROL SETTING

1. Switch "ON" the main switch.
2. Drive at the desired speed, above approximately 40 km/h.

(25 mph)

3. Push the auto-cruise control switch in the direction of arrow.
4. Check to be sure that when the switch is released the speed

is the desired constant speed.
NOTE: If the vehicles speed decreases to approximately 15
km/h (9 mph) below the set speed because of climbing a hill
for example, the auto-cruise control will be cancelled.

SPEED-INCREASE SETTING

1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
3. Check to be sure that acceleration continues while the

switch is held, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.
NOTE: Acceleration can be continued even if the vehicle
speed has passed the high-speed limit [approximately 200
km/h (124 mph)]. But the speed when the auto-cruise con-
trol switch is released will be recorded as the high-speed
limit.

SPEED-REDUCTION SETTING

1. Set to the desired speed.
2. Push the auto-cruise control switch in the direction of arrow.
3. Check to be sure that deceleration continues while the

switch is pressed, and that after it is released the constant
speed at the time when it was released becomes the driving
speed.
NOTE: When the vehicle speed reaches the low limit
[approximately 40 km/h (25 mph)] during deceleration, the
auto-cruise control will be cancelled.

ACX01172

AD

ACX01172

AE

ACX01172

AD

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-97

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND AUTO-CRUISE CONTROL
CANCELLATION

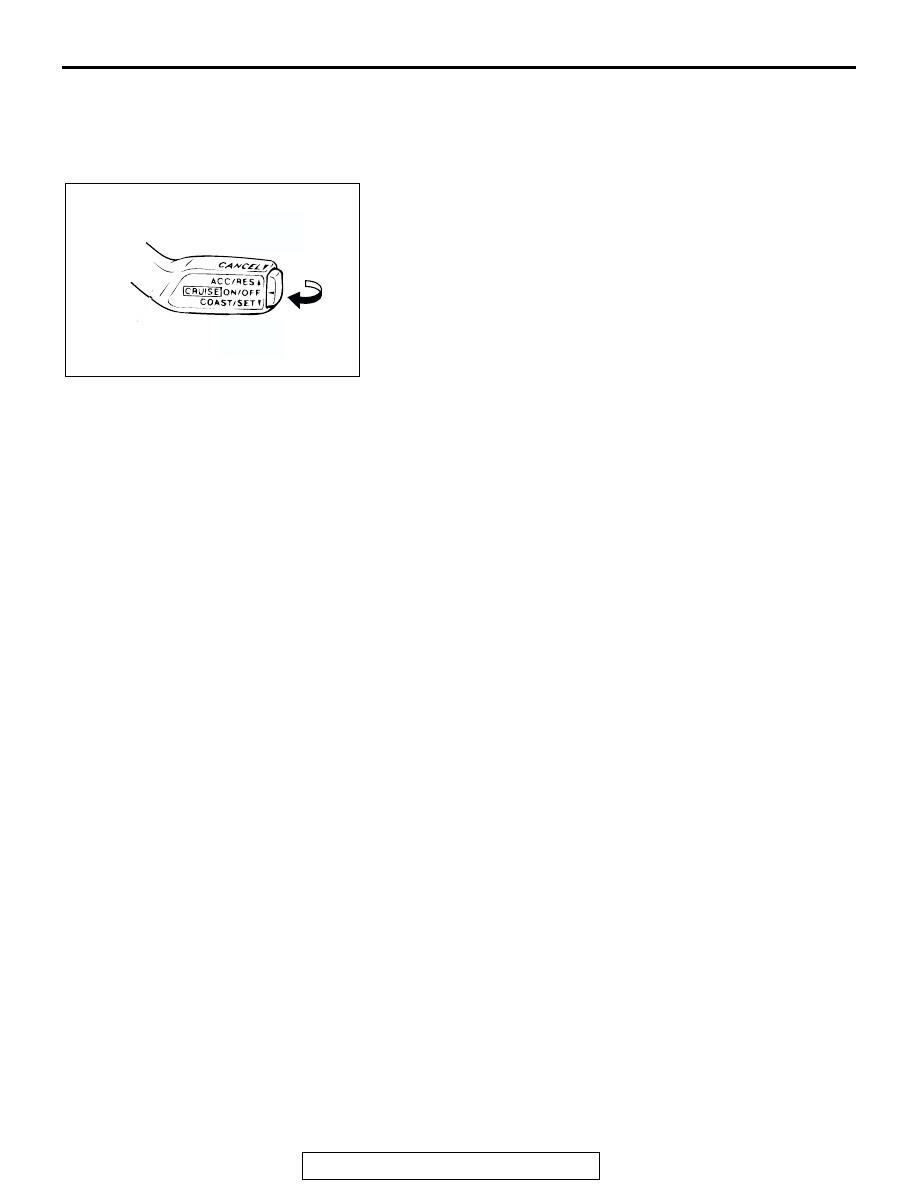

1. Set the auto-cruise speed control.
2. When any of the following operations are performed while at

constant speed during auto-cruise control, check if normal
driving is resumed and deceleration occurs.

(1) The auto-cruise control switch is pushed in the direction

of arrow.

(2) The brake pedal is depressed.
(3) The selector lever is moved to the "N" range.

3. At a vehicle speed of 40 km/h (25 mph) or higher, check if

when the "RESUME" switch is switched "ON," the vehicle
speed returns to the speed before auto-cruise control driving
was cancelled, and constant speed driving occurs.

4. When the main switch is turned to "OFF" while driving at

constant speed, check if normal driving is resumed and
deceleration occurs.

AUTO-CRUISE CONTROL SYSTEM COMPONENT
CHECK

M1172001700383

STOPLIGHT SWITCH

Refer to GROUP 35A, On-vehicle Service

− Stoplight Switch

Check

P.35A-16

.

PARK/NEUTRAL POSITION SWITCH ("N"
POSITION)

Refer to GROUP 23A, On-vehicle Service

− Essential Service

P.23A-435

.

THROTTLE POSITION SENSOR

Refer to GROUP 13A, On-vehicle Service

− Throttle Position

Sensor Check

P.13A-890

.

ACX01172

AG

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-98

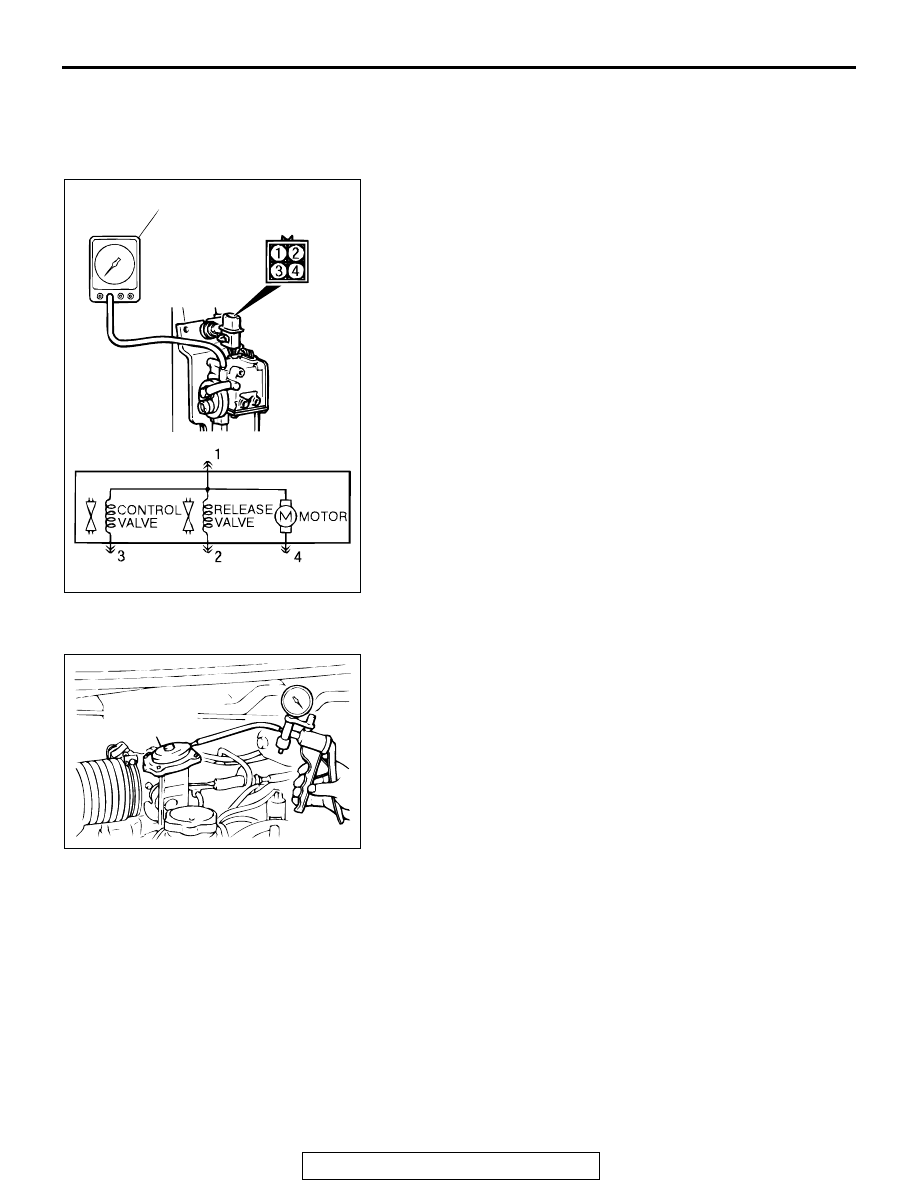

AUTO-CRUISE VACUUM PUMP

1. Disconnect the vacuum hose from the auto-cruise vacuum

pump and connect a vacuum gauge to the vacuum pump.

2. Disconnect the vacuum pump connector.
3. Check the auto-cruise vacuum pump and valves according

to the following procedure:

(1) Connect the positive battery terminal to auto-cruise

vacuum pump connector terminal 1, and the negative
battery terminal to terminals 2, 3, and 4. Then the
vacuum gauge should read 27 kPa (8.0 in Hg) or more.

(2) The vacuum should be maintained when terminal 4 is

disconnected from the negative battery terminal while
terminals 1, 2, and 3 remain connected. Then the
vacuum gauge should read 0 kPa (0 in Hg) when terminal
2 is disconnected from the negative battery terminal while
terminals 1, and 3 remain connected.

(3) The vacuum should be maintained when terminal 4 is

disconnected from the negative battery terminal while
terminals 1, 2, and 3 remain connected. Then the
vacuum gauge should read 0 kPa (0 in Hg) when terminal
3 is disconnected from the negative battery terminal while
terminals 1, and 2 remain connected.

VACCUM ACTUATOR CHECK

1. Disconnect the vacuum hose from the vacuum actuator, and

connect a hand vacuum pump to the vacuum actuator.

2. Check that the throttle lever operates when applying

vacuum, and the vacuum is maintained.

VEHICLE SPEED SENSOR CHECK

Refer to GROUP 54, Combination Meters Assembly - Inspec-
tion

P.54-119

.

AC004749 AB

VACUUM GAUGE

AC004774 AB

VACUUM
ACTUATOR
