AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-67

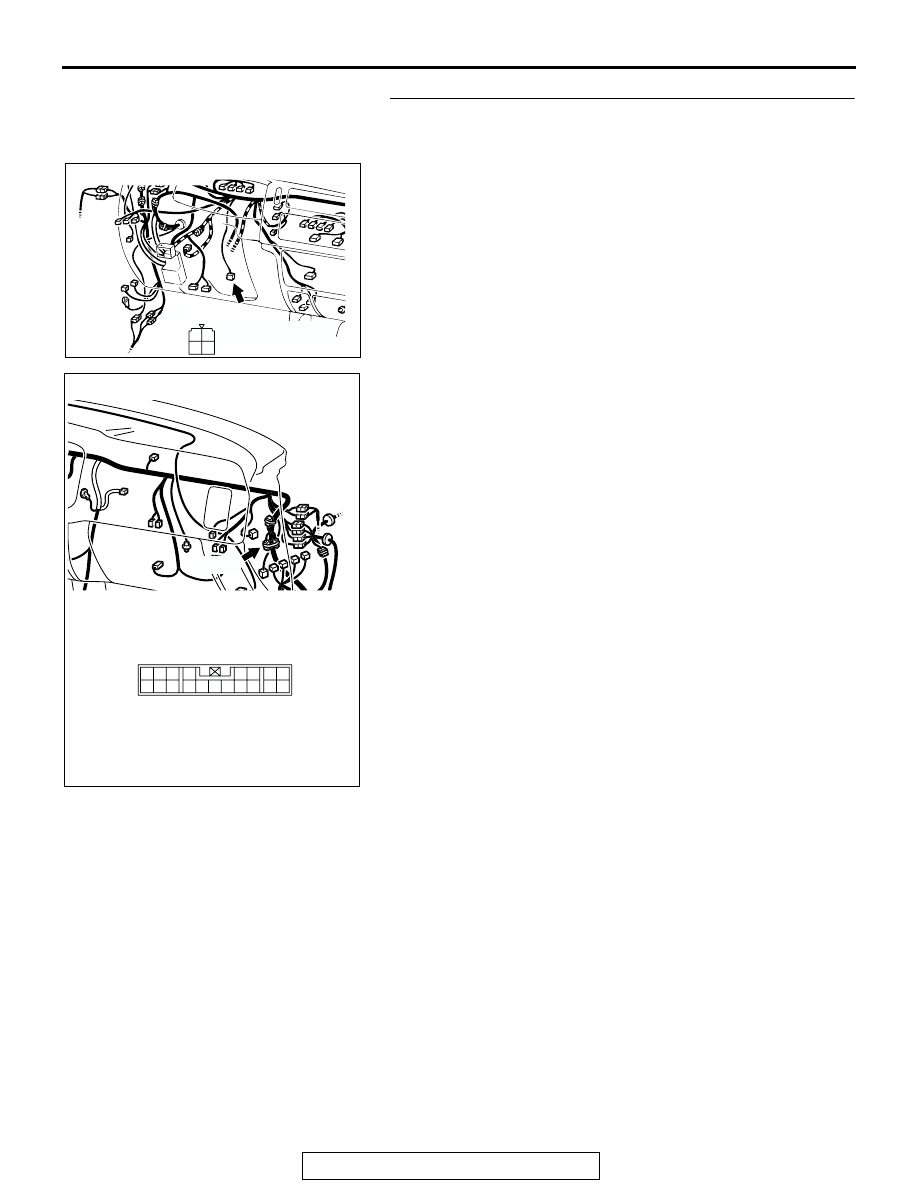

STEP 7. Check the harness wire between stoplight switch
connector C-66 (terminal No. 3) and joint connector (2)
C-10 (terminal No.4).
Q: Is the harness wire between stoplight switch connector

C-66 (terminal No. 3) and joint connector (2) C-10
(terminal No.4) damaged?
YES : Repair or replace the harness wire. Then go to Step

12 .

NO :  It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

).

AC202157

1
3

4

2

CONNECTOR: C-66

AB

C-66 (B)

C-66:HARNESS SIDE
CONNECTOR

AC201909

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTOR: C-10

AB

C-10

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-68

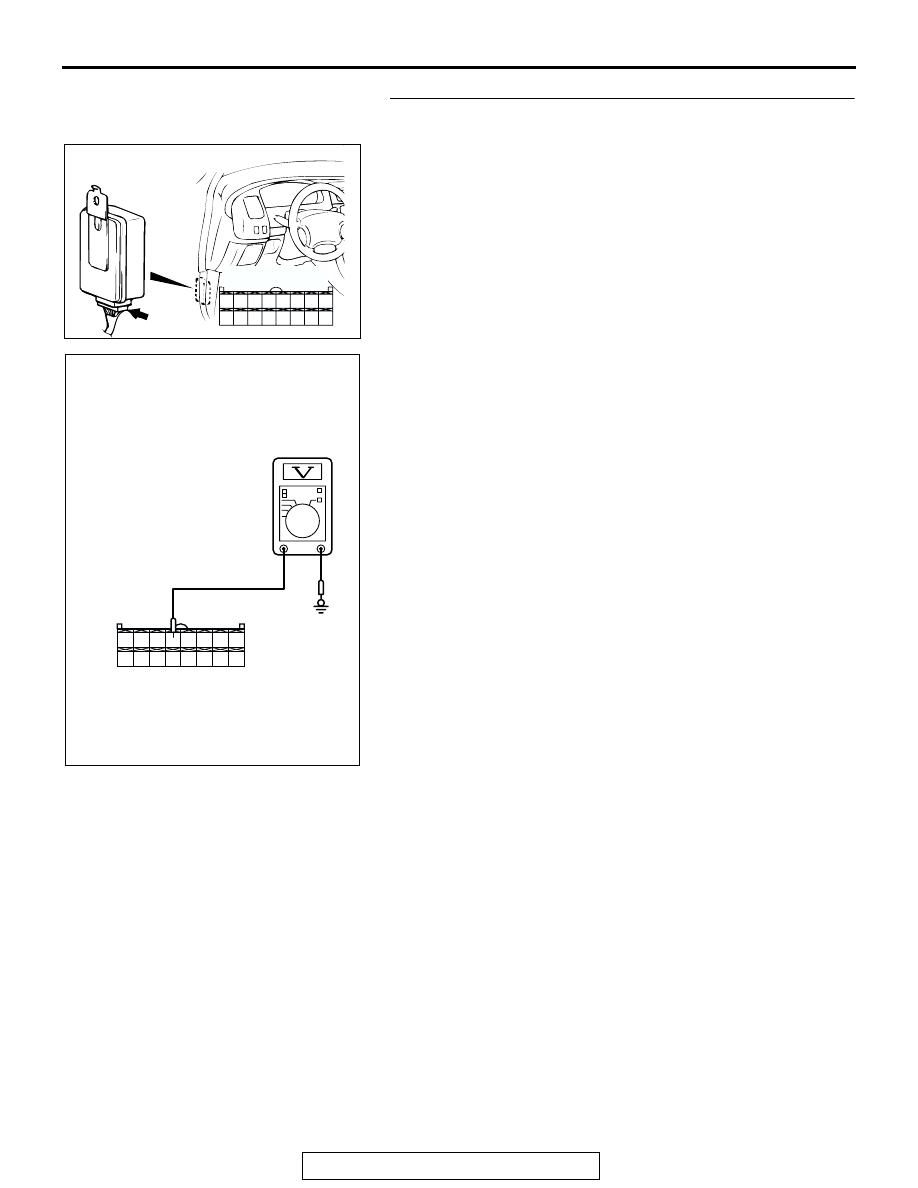

STEP 8. Measure the output circuit voltage at auto-cruise
control-ECU connector C-35 by backprobing.
(1) Do not disconnect auto-cruise control-ECU connector C-35.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between auto-cruise control-ECU

connector C-35 terminal 4 and ground by backprobing.

• Voltage should measure battery positive volts. (When

brake pedal is depressed).

• Voltage should measure 0.5 volts or less. (When brake

pedal is not depressed).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is measured the voltage within specifications?

YES : Go to Step 11 .
NO :  Go to Step 9 .

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01905

C-35 HARNESS CONNECTOR:
HARNESS SIDE

AJ

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-69

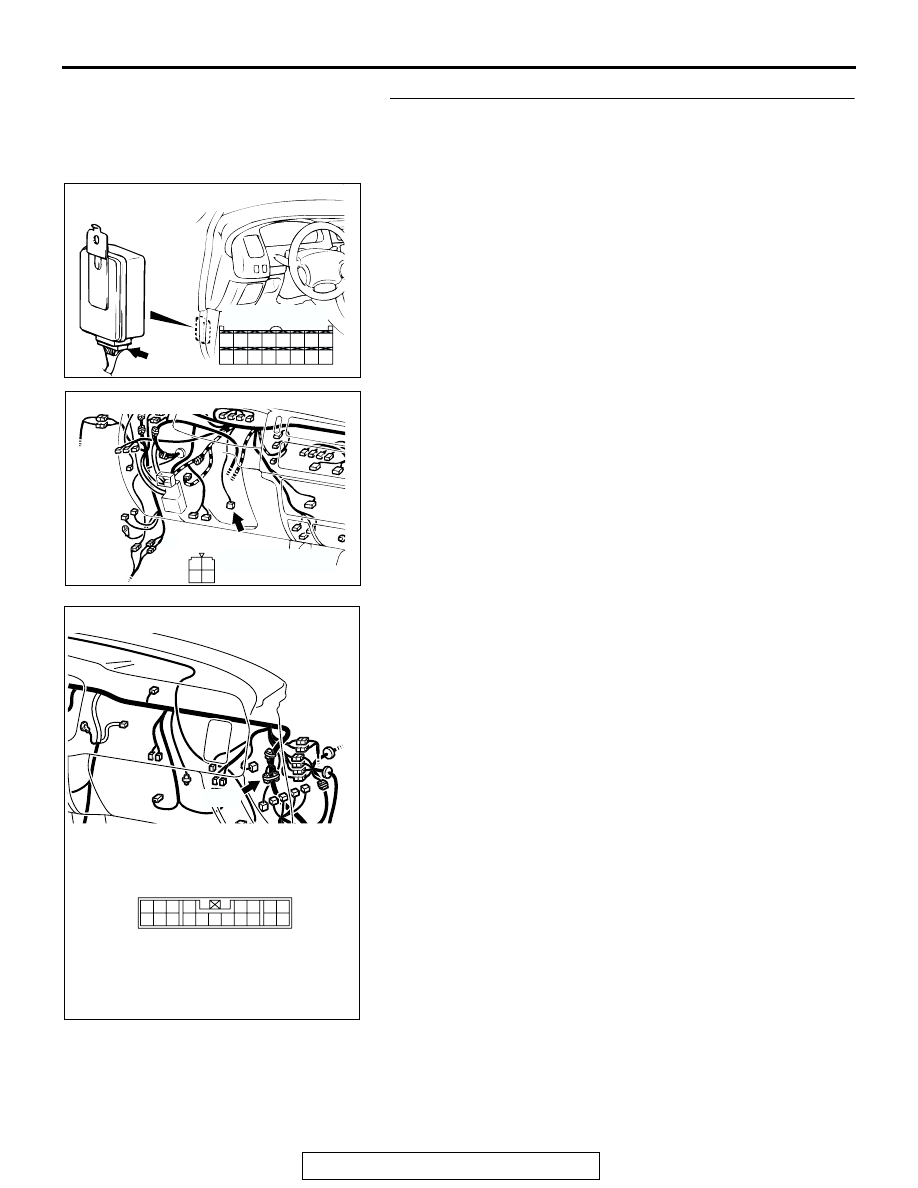

STEP 9. Check auto-cruise control-ECU connector C-35,
stoplight switch connector C-66 and joint connector (2)
C-10 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is the connector damaged?

YES : Repair or replace the damaged connector. (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 12 .

NO :  Go to Step 10 .

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

AC202157

1
3

4

2

CONNECTOR: C-66

AB

C-66 (B)

C-66:HARNESS SIDE
CONNECTOR

AC201909

8

19

7

6

5

16

15

17 18

4

3

2

10 11 12 13

1
9

14

CONNECTOR: C-10

AB

C-10

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-70

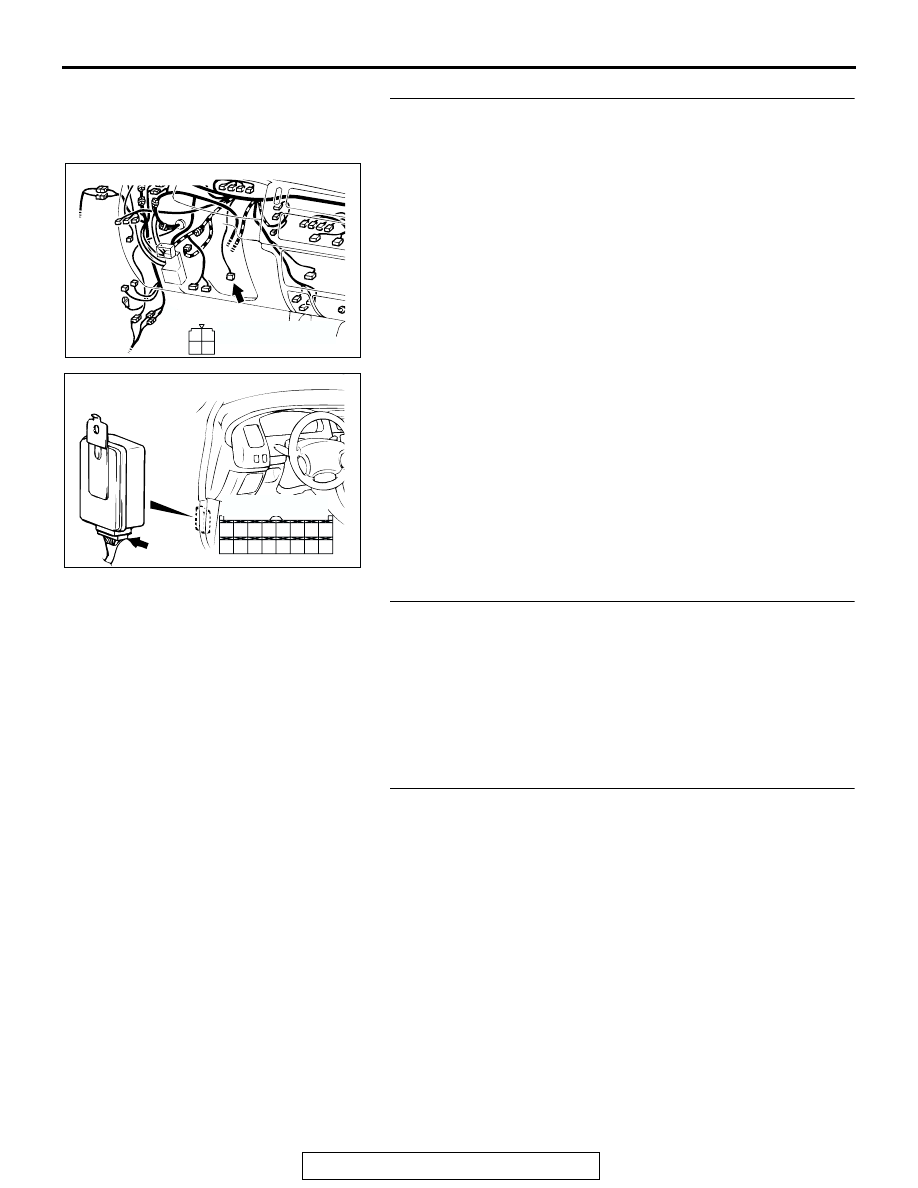

STEP 10. Check the harness wire between stoplight switch
connector C-66 (terminal No.3) and auto-cruise
control-ECU connector C-35 (terminal No.4).
Q: Is any harness wire between stoplight switch connector

C-66 (terminal No.3) and auto-cruise control-ECU
connector C-35 (terminal No.4) damaged?
YES : Repair or replace the harness wire. Then go to Step

12 .

NO :  It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

).

STEP 11. Check that the malfunction is eliminated.
Q: Is the malfunction eliminated?

YES : It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

).

NO :  Replace the auto-cruise control-ECU. (Refer to

P.17-99

). Then go to Step 12 .

STEP 12. Check that the malfunction is eliminated.
Q: Is the malfunction eliminated?

YES : This procedure is complete.
NO :  Return to Step 1 .

AC202157

1
3

4

2

CONNECTOR: C-66

AB

C-66 (B)

C-66:HARNESS SIDE
CONNECTOR

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR
