AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-31

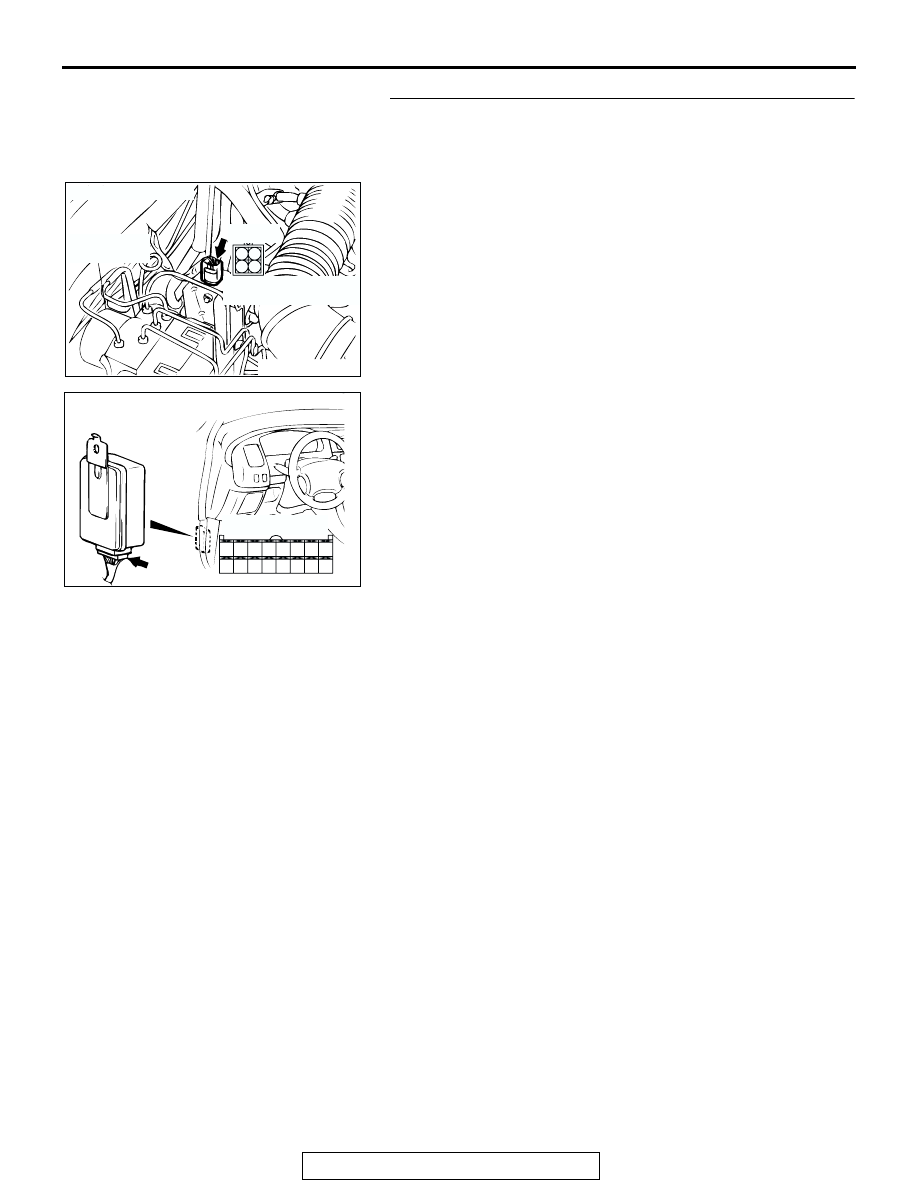

STEP 13. Check the harness wire between auto-cruise
control vacuum pump connector A-02 (terminal No.2. 3
and 4) and auto-cruise control-ECU connector C-35
(terminal No.7, 8 and 16).
Q: Is any harness wire between auto-cruise control

vacuum pump connector A-02 (terminal No.2. 3 and 4)
and auto-cruise control-ECU connector C-35 (terminal
No.7, 8 and 16) damaged?
YES : Repair or replace the harness wire. Then go to Step

19 .

NO :  Go to Step18 .

AC202156

3

1 2

4

CONNECTOR:A-02

HYDRAULIC
UNIT

AB

A-02:HARNESS SIDE
CONNECTOR

A-02 (B)

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-32

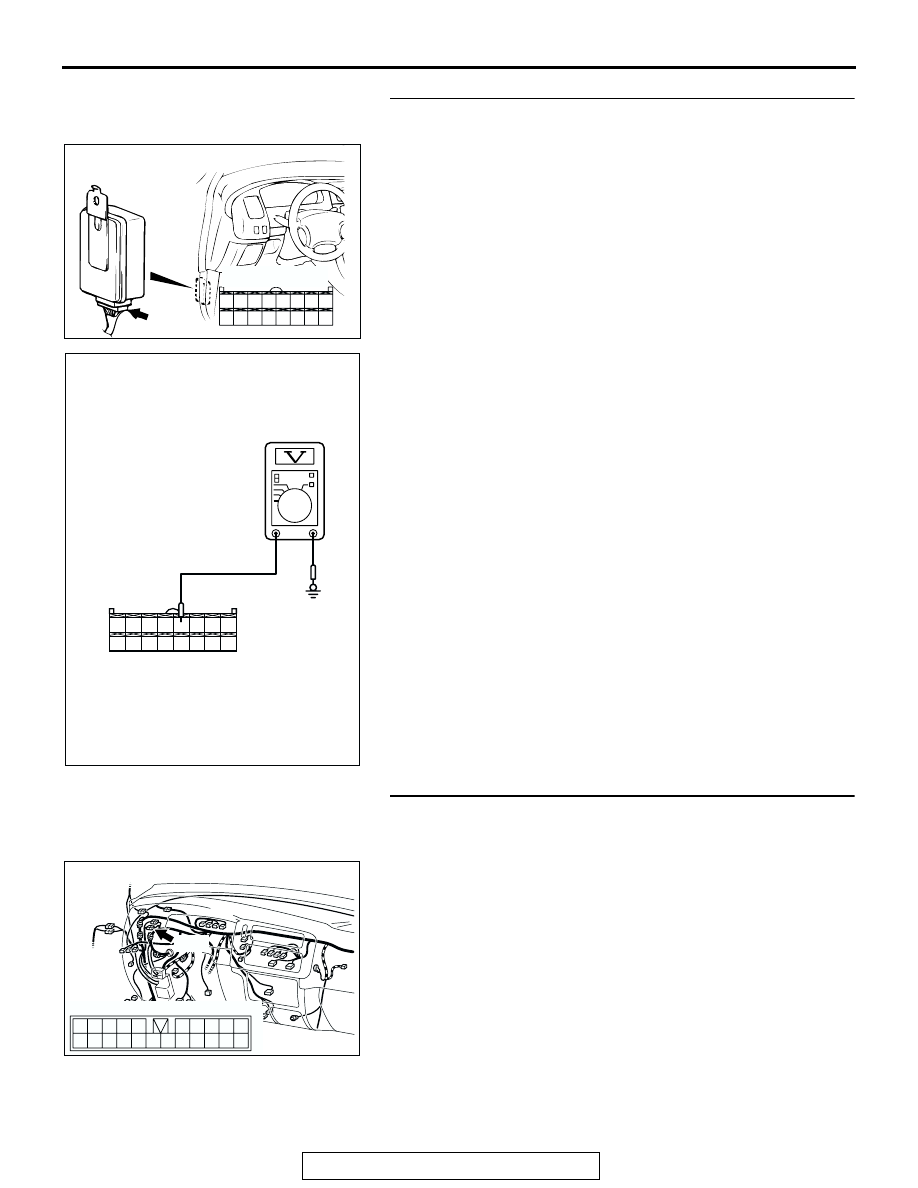

STEP 14. Measure the output circuit voltage at auto-cruise
control-ECU connector C-35 by backprobing.
(1) Do not disconnect auto-cruise control-ECU connector C-35.
(2) Turn the ignition switch to the "ON" position and the

auto-cruise control main switch to the "ON" position.

(3) Measure the voltage between auto-cruise control-ECU

connector C-35 terminal 5 and ground by backprobing.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is measured voltage approximately battery positive

voltage?
YES : Go to Step 15 .
NO :  Go to Step 17 .

STEP 15. Check intermediate connector C-41 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is any connector damaged?

YES : Repair or replace the damaged components. (Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 19 .

NO :  Go to Step 16 .

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01899 AH

C-35 HARNESS CONNECTOR:
HARNESS SIDE

AC202075

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

CONNECTOR: C-41

AB

C-41

C-41: MALE SIDE CONNECTOR

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-33

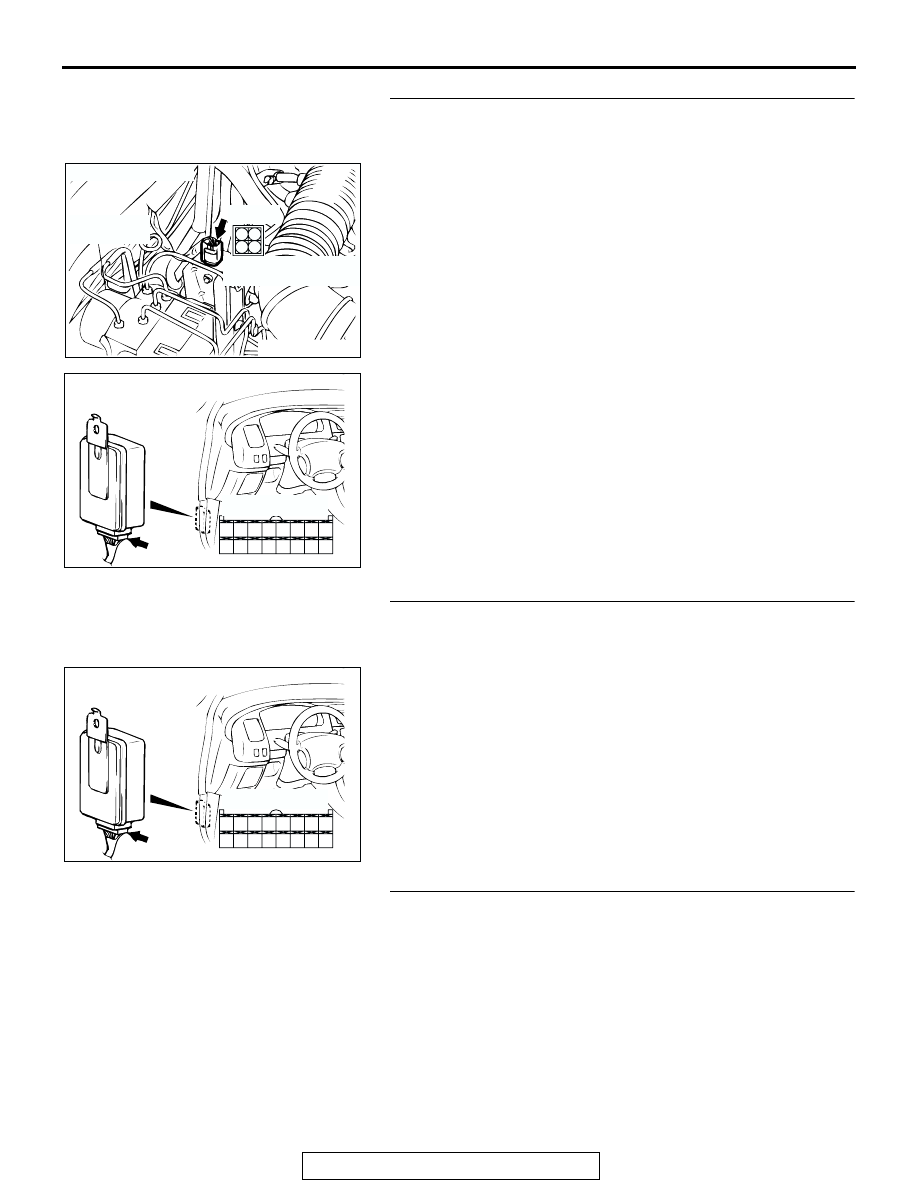

STEP 16. Check the harness wire between auto-cruise
control-ECU connector C-35 (terminal No.5) and stoplight
switch connector C-66 (terminal No. 4).
Q: Is any harness wire between auto-cruise control-ECU

connector C-35 (terminal No.5) and stoplight switch
connector C-66 (terminal No. 4) damaged?
YES : Repair or replace the harness wire. Then go to Step

18 .

NO :  Go to Step17 .

STEP 17. Check auto-cruise control-ECU connector C-35
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is the connector damaged?

YES : Repair or replace the damage connector. (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

). Then go to Step 19 .

NO :  It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

).

STEP 18. Check the diagnostic trouble codes.
Q: Is DTC 14 set?

YES : Replace the auto-cruise control-ECU (Refer to

P.17-99

). Then go to Step 19 .

NO :  It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-7

).

AC202156

3

1 2

4

CONNECTOR:A-02

HYDRAULIC
UNIT

AB

A-02:HARNESS SIDE
CONNECTOR

A-02 (B)

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

AC202155

2

3

10

11

5

6

13

14

12

4

8

16 15

7

9

1

C-35 (B)

AB

CONNECTOR: C-35

C-35 HARNESS SIDE
CONNECTOR

AUTO-CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-34

STEP 19. Check the diagnostic trouble codes.
Q: Is DTC 14 set?

YES : Return to Step 1 .
NO :  This procedure is complete.

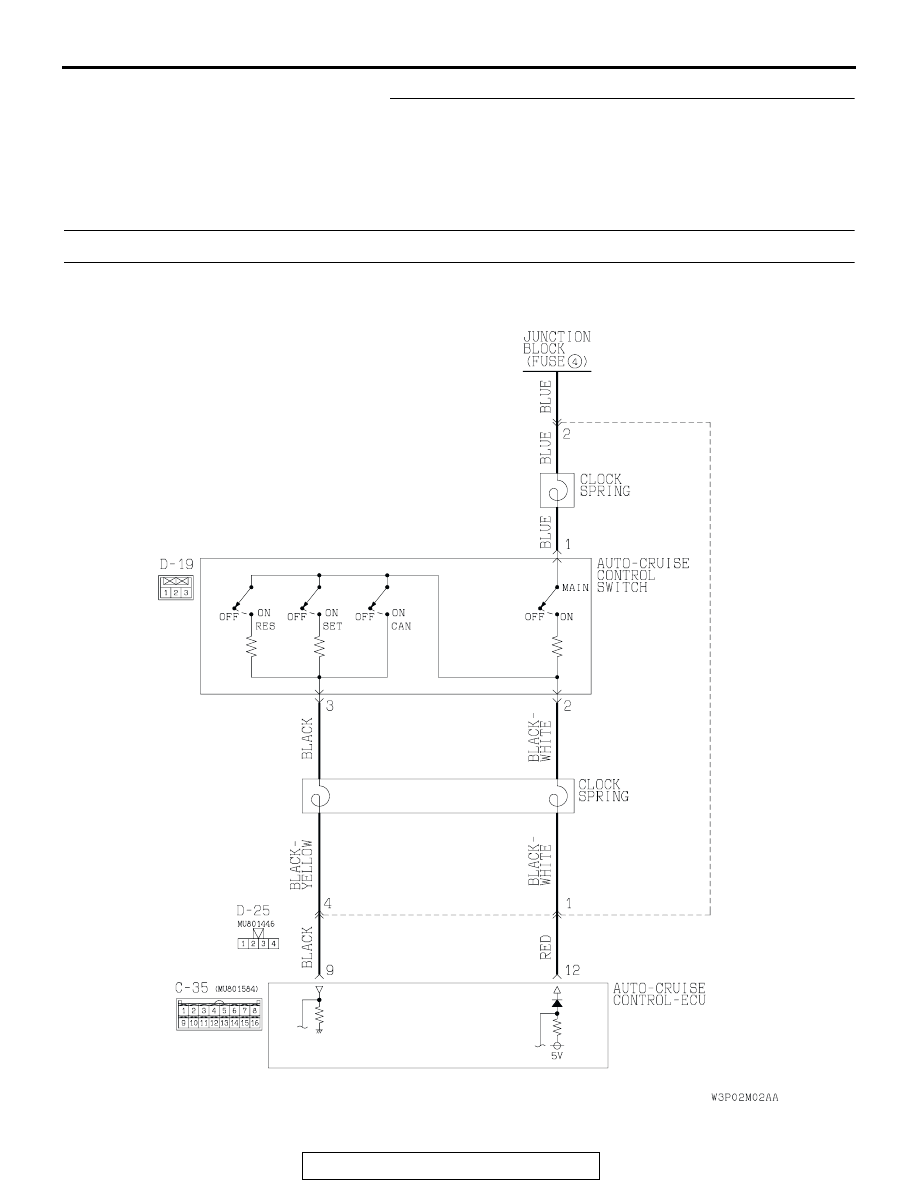

DTC15 : Auto-cruise Control Switch System

Auto-cruise Control Switch System Circuit
