CENTRALIZED JUNCTION
TSB Revision

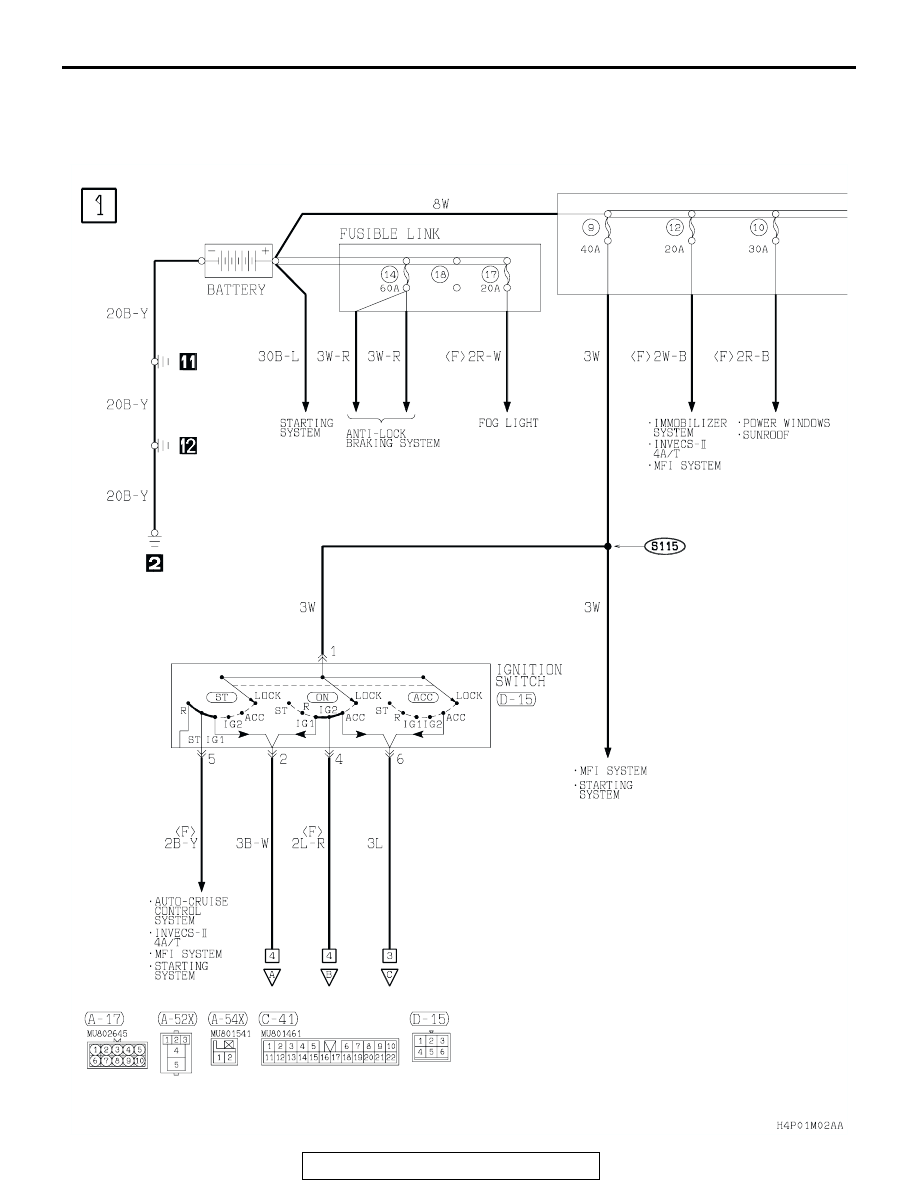

CIRCUIT DIAGRAMS
90-19
CENTRALIZED RELAY
CONNECTOR NO.
NAME
CONNECTOR NO.
NAME
A-49X
−
A-56X
Condenser fan motor relay
A-50X
Starter relay
A-57X
−
A-51X
Fog light relay
C-73X
Accessory socket relay
A-52X
Headlight relay
C-74X
Rear heater relay
A-53X
Blower relay
C-75X
Power window relay
A-54X
IOD or storage connector
C-76X
Defogger timer
A-55X
A/C compressor relay
C-77X
Rear intermittent wiper relay
AC005029
FRONT OF VEHICLE

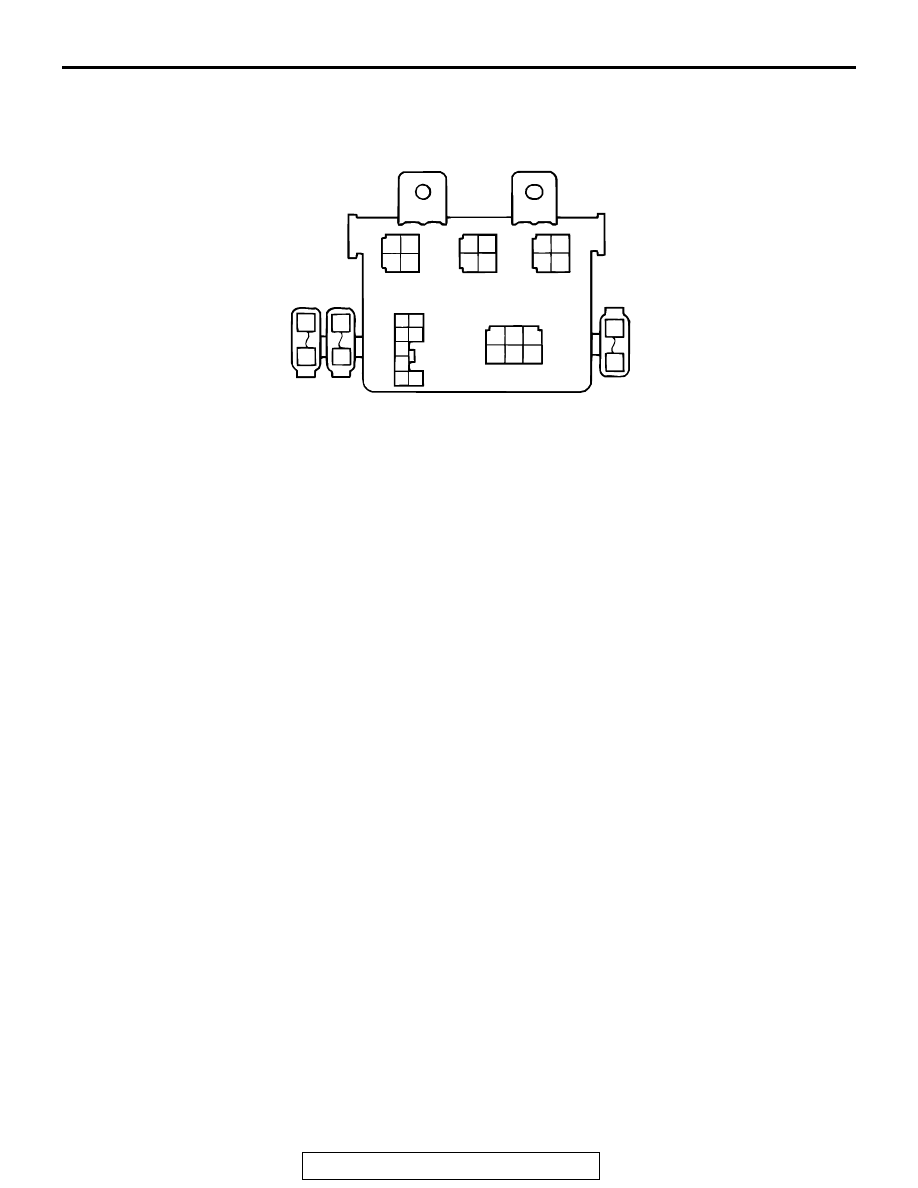

(RELAY BOX IN ENGINE COMPARTMENT)

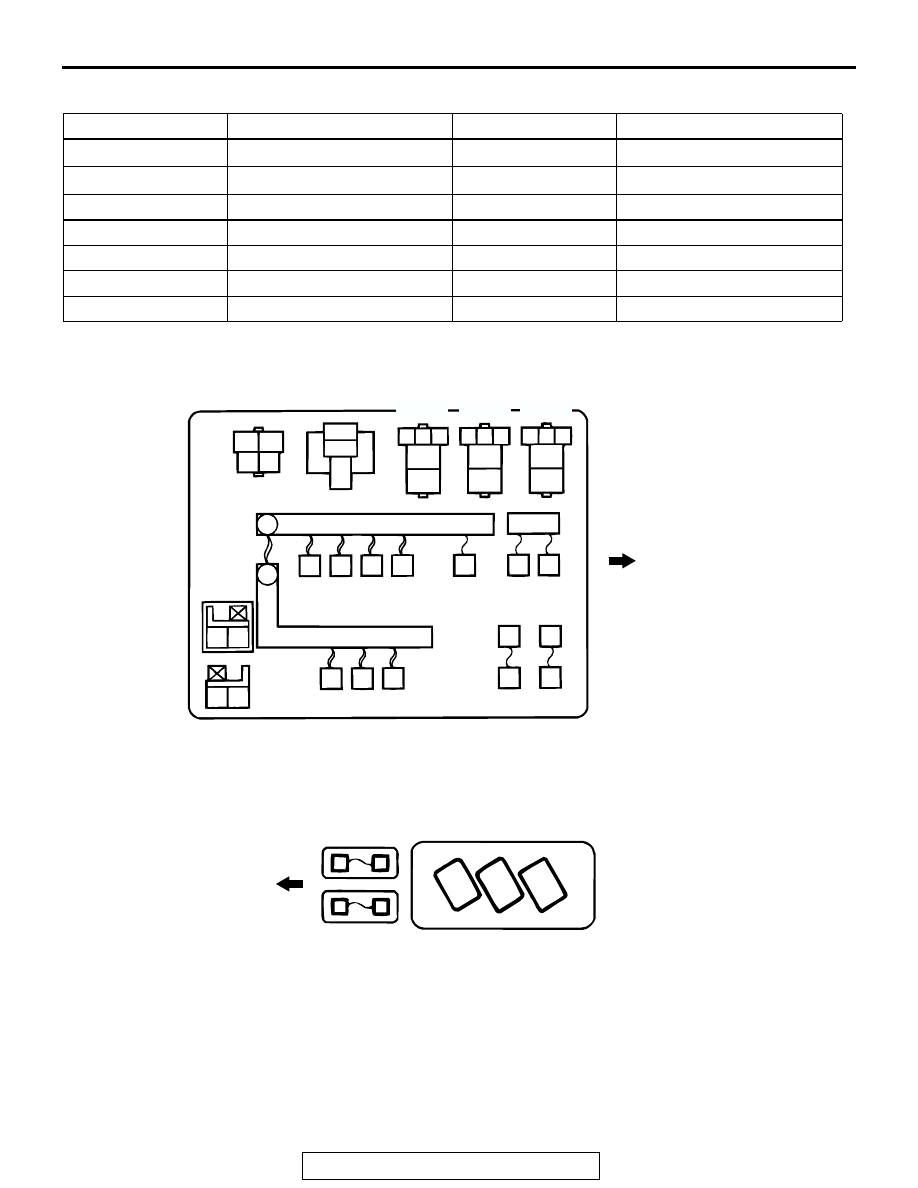

(A/C RELAY BRACKET IN ENGINE COMPARTMENT)
A-55X
AD
A-57X
A-56X
A-50X
A-49X
A-54X
A-51X
A-52X A-53X
FRONT OF VEHICLE
