SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-63

STEP 3. Check SRS-ECU connector E-07 and driver’s seat
belt pre-tensioner connector F-27. (Using scan tool
MB991958, read the diagnostic trouble code).
(1) Disconnect the negative battery terminal.
(2) Disconnection connectors E-07 and F-27, and then

reconnect them.

(3) Connect the negative battery terminal.
(4) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC 26 set?

YES : Go to Step 4.
NO :  The procedure is complete. (It is assumed that DTC

26 set as connector E-07 or F-27 was engaged
improperly).

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204126

AD

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

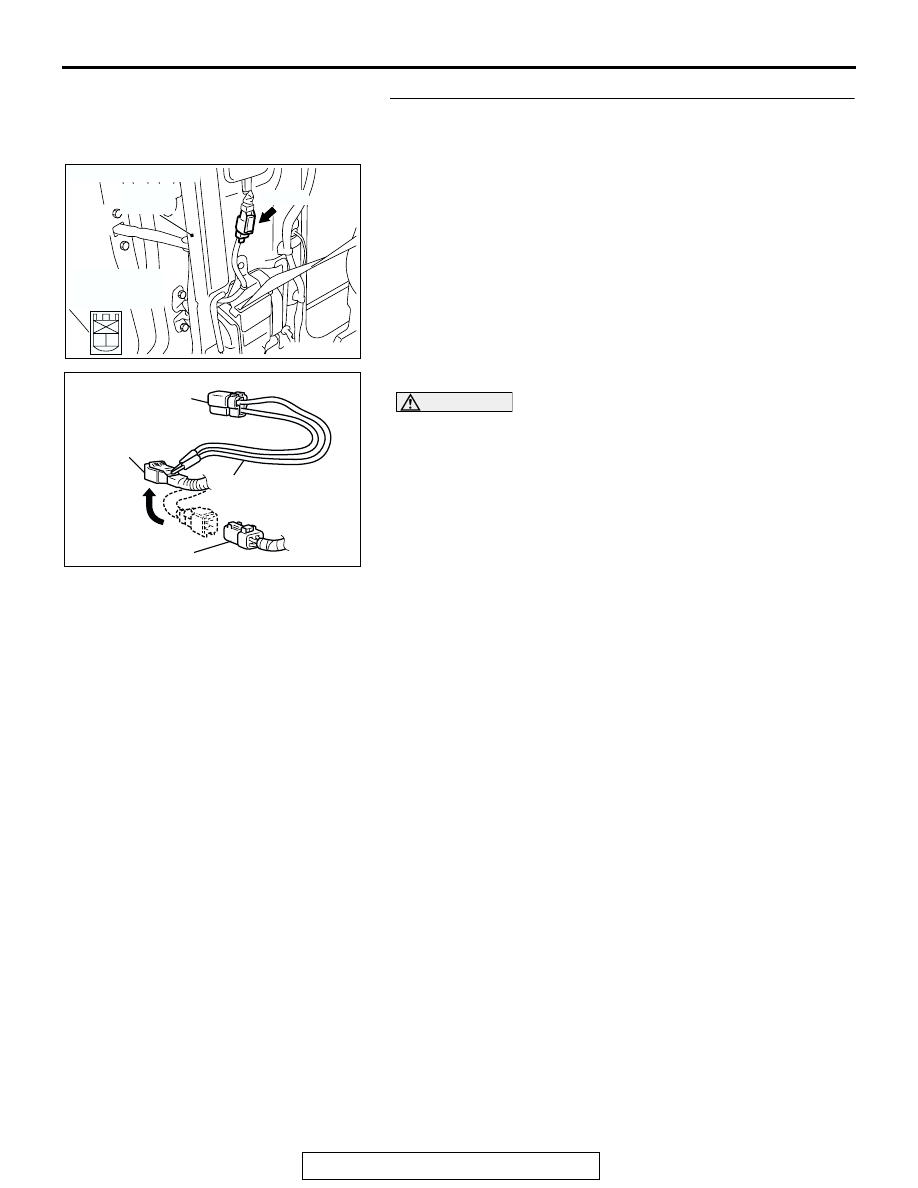

52B-64

STEP 4. Check the driver's seat belt pre-tensioner. (Using
scan tool MB991958, read the diagnostic trouble code).
(1) Disconnect the negative battery terminal.
(2) Disconnect the driver's seat belt pretensioner connector

F-27.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the harness connector by

backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC 26 set?

YES : Go to Step 5.
NO :  Replace the driver's seat belt pre-tensioner (Refer to

P.52B-229

). Then go to Step 7.

AC204126

AD

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC006042 AY

MB991866
(RESISTOR HARNESS)

F-27 HARNESS
CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω)

F-27 SEAT BELT
PRE-TENSIONER
CONNECTOR (DRIVER'S SIDE)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

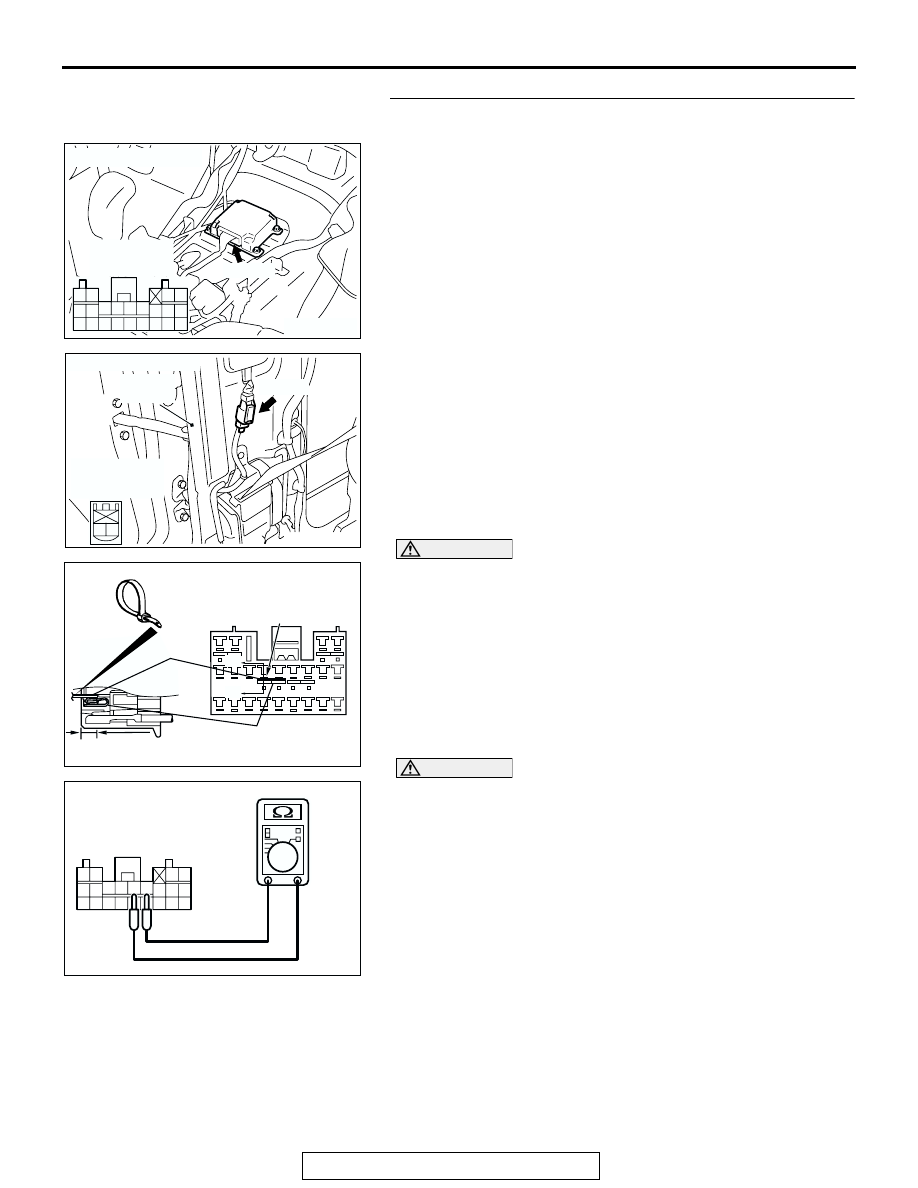

52B-65

STEP 5. Check the driver's side seat belt pretensioner
circuit at the SRS-ECU connector E-07.
(1) Disconnect SRS-ECU connector E-07.

(2) Disconnect driver's seat belt pretensioner connector F-27.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(3) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 29, 30 and the short spring to
release the short spring.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Check for continuity between E-07 harness connector

terminals 29 and 30.
It should be open circuit.

Q: Does continuity exist?

YES : Go to Step 6.
NO :  Eras the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 26 sets, replace
the SRS-ECU (Refer to

P.52B-215

).

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204126

AD

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC200988 AL

A

A

E-07 HARNESS SIDE
CONNECTOR (FRONT VIEW)

TERMINAL

CABLE TIE

SHORT SPRING

4 mm (0.16 inch) OR MORE

SECTION
A - A

AC006244

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

AR

E-07 HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-66

STEP 6. Check the harness for short circuit between
SRS-ECU connector E-07 (terminal No.29 and 30) and
driver’s seat belt pre-tensioner connector F-27 (terminal
No.1 and 2).

NOTE: After inspecting intermediate connector E-19, inspect
the wiring harness. If the intermediate connector E-19 is dam-
aged, repair or replace it (Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

). Then go to Step 7.

Q: Are harness wires between SRS-ECU connector E-07

(terminal No.29 and 30) and driver’s seat belt
pre-tensioner connector F-27 (terminal No.1 and 2) in
good condition?
YES : Go to Step 7.
NO :  Repair the harness wires between SRS-ECU

connector E-07 and driver’s side seat belt
pre-tensioner connector F-27. Then go to Step 7.

STEP 7. Recheck for diagnostic trouble code.
Q: Is DTC 26 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

).

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204126

AD

CONNECTOR: F-27

F-27 (R)

CENTER
PILLAR

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204603AC

CONNECTOR: E-19

FLOOR
CONSOLE

E-19

2

1

4

3

E-19
